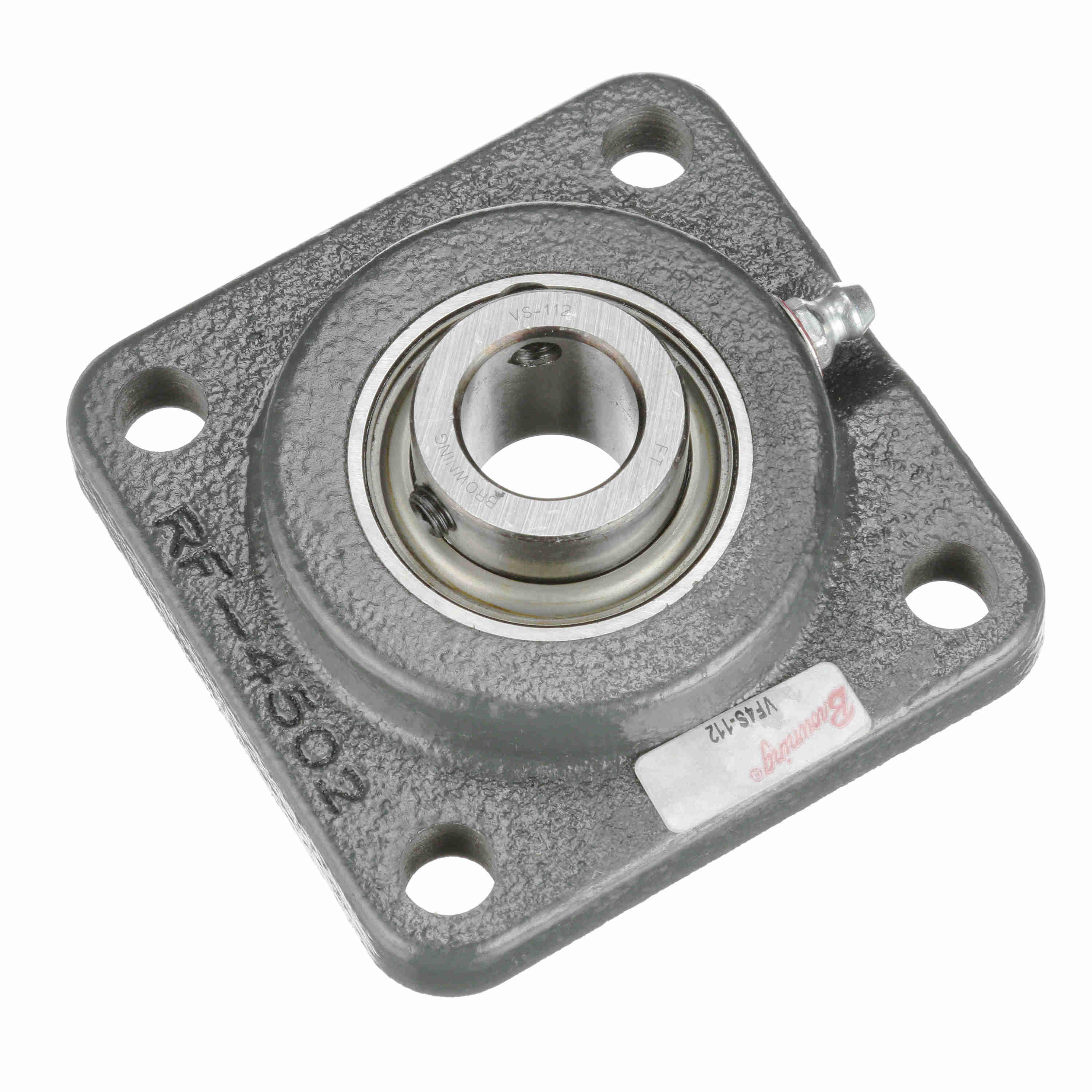

BROWNING 767604 VF4S-112 Four Bolt Flange Ball Bearing, Mounted, Cast Iron, Setscrew Lock
Item: BD9YTDModel: 767604Cross Ref: VF4S-112
7 In Stock
3/4"
4000 RPM
Ships within 2 days via
€104.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 2 1/2" |
| Bolt Spacing | 2 1/2" |
| Bore Dia. | 3/4" |
| Color | Gray |
| Dynamic Load Capacity | 2611 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Insert Part Number | VS-112 |
| Length Through Bore | 1.063" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 4000 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 3 1/2" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 9/32" |
| Overall Dia. | 3 3/8" |
| Overall Height | 3 3/8" |
| Overall Length | 3 3/8" |
| Pilot Configuration | No Pilot |
| Product Type | Intermediate Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF4S 100 Series |
| Static Load Capacity | 1444 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.69 Kg |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 3.25 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Bolt Center To Center Length | Inside Dia. | Housing Material | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
732679 | 50 mm | 142.9 mm | 142.9 mm | 3000 RPM | 111.1 mm | - | - | - | €365.79 | RFQ
|
 |
767838 | 5/8" | 3" | 3" | 5000 RPM | 2 1/8" | - | - | - | €114.56 | |
 |
767347 | 1 3/4" | 5 3/8" | 5 3/8" | 2000 RPM | 4 1/8" | 1 3/4" | Cast Iron | - | €217.93 | |
 |
767623 | 1" | 3 3/4" | 3 3/4" | 5500 RPM | 2 3/4" | - | Cast Iron | - | €120.40 | |
 |
767815 | 1 1/4" | 4 1/4" | 4 1/4" | 4500 RPM | 3 1/4" | 1 1/4" | Cast Iron | - | €142.38 | |
 |
767506 | 1 15/16" | 6 3/8" | 6 3/8" | 2500 RPM | 5 1/8" | - | Cast Iron | - | €348.53 | |
 |
765594 | 2" | 5 5/8" | 5 5/8" | 3000 RPM | 4 3/8" | 2" | Cast Iron | - | €254.08 |
