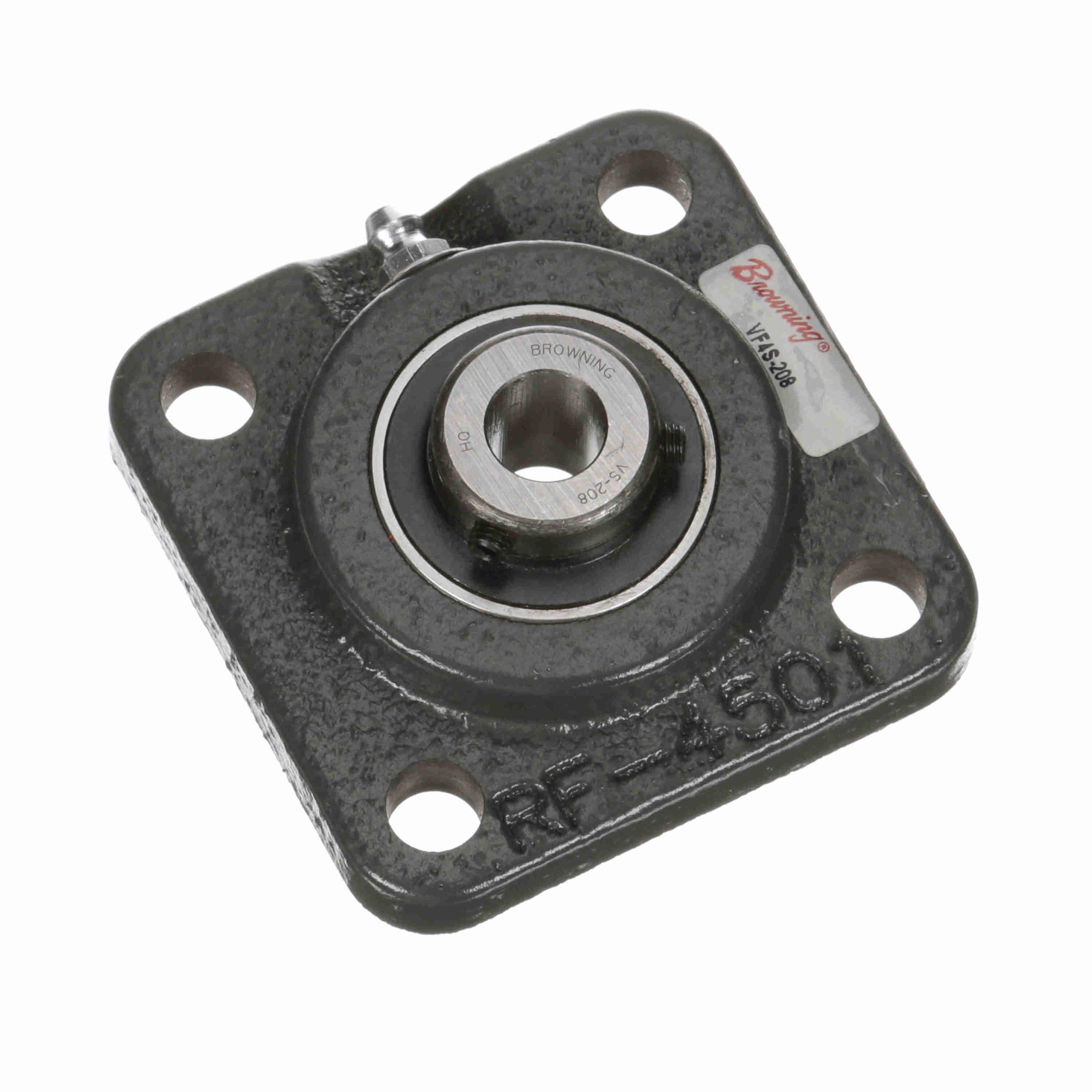

BROWNING 767629 VF4S-208 Ball Bearing, 3 in OAL/Dia, 1/2 in Bore Dia, Gray Painted, Steel, Setscrew, Normal Duty Non-Expansion Round/Straight Bore
Item: BE7FFMModel: 767629Cross Ref: VF4S-208
7 In Stock
1/2"
7500 RPM
Ships within 2 days via
€104.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 2 1/8" |
| Bolt Spacing | 2 1/8" |
| Bore Dia. | 1/2" |
| Color | Gray |
| Dynamic Load Capacity | 2108 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Insert Part Number | VS-208 |
| Inside Dia. | 1/2" |
| Length Through Bore | 1.031" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 7500 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| No. Of Mounting Holes | 4 |
| No. Of Rows | 1 |
| Nominal Bolt Circle Dia. | 3" |
| Overall Depth | 1 5/64" |
| Overall Dia. | 3" |
| Overall Height | 3" |
| Overall Length | 3" |
| Pilot Configuration | No Pilot |
| Product Type | Normal Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF4S 200 Series |
| Static Load Capacity | 1117 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.74 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Length Through Bore | Mounting Bolts | Nominal Bolt Circle Dia. | Bolt Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767347 | 1 3/4" | 5 3/8" | 7901 lbs. | 5139 lbs. | 1.438" | 9/16" | 5 4/5" | 4 1/8" | €217.93 | |
 |
767623 | 1" | 3 3/4" | 2801 lbs. | 1651 lbs. | 1 3/8" | 7/16" | 3.9" | 2 3/4" | €120.40 | |
 |
767815 | 1 1/4" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €142.38 | |
 |
767506 | 1 15/16" | 6 3/8" | 9752 lbs. | 6601 lbs. | 2.188" | 5/8" | 7 1/5" | 5 1/8" | €348.53 | |
 |
765594 | 2" | 5 5/8" | 7889 lbs. | 5216 lbs. | 2.031" | 9/16" | 6 1/5" | 4 3/8" | €254.08 | |
 |
767684 | 2" | 5 5/8" | 7889 lbs. | 5216 lbs. | 1.547" | 9/16" | 6 1/5" | 4 3/8" | €248.69 | |
 |
767446 | 1 3/16" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €160.26 |
