BROWNING VF4S 100 Series Intermediate Duty Four Bolt Flange Mounted Ball Bearings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Length Through Bore | Mounting Bolts | Nominal Bolt Circle Dia. | Bolt Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 767868 | - | - | - | - | - | - | - | - | €217.93 | |
| B | 764874 | 1 1/2" | - | - | - | 1.422" | 1/2" | 5.7" | 4" | €155.97 | |

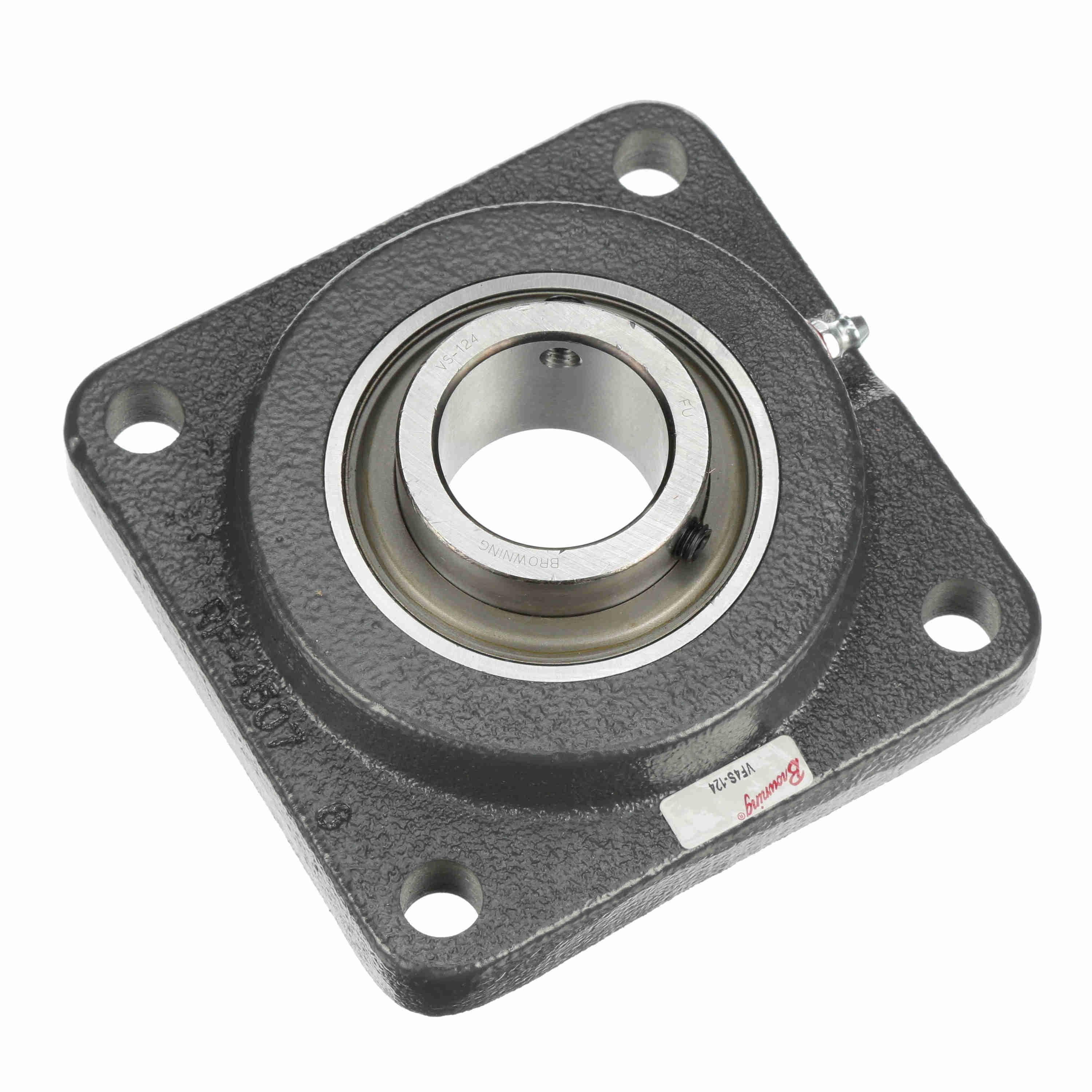

| C | 767342 | 1 1/2" | 5 1/8" | 7340 lbs. | 4467 lbs. | 1.422" | 1/2" | 5.7" | 4" | €155.97 | |
| D | 767815 | 1 1/4" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €142.38 | |

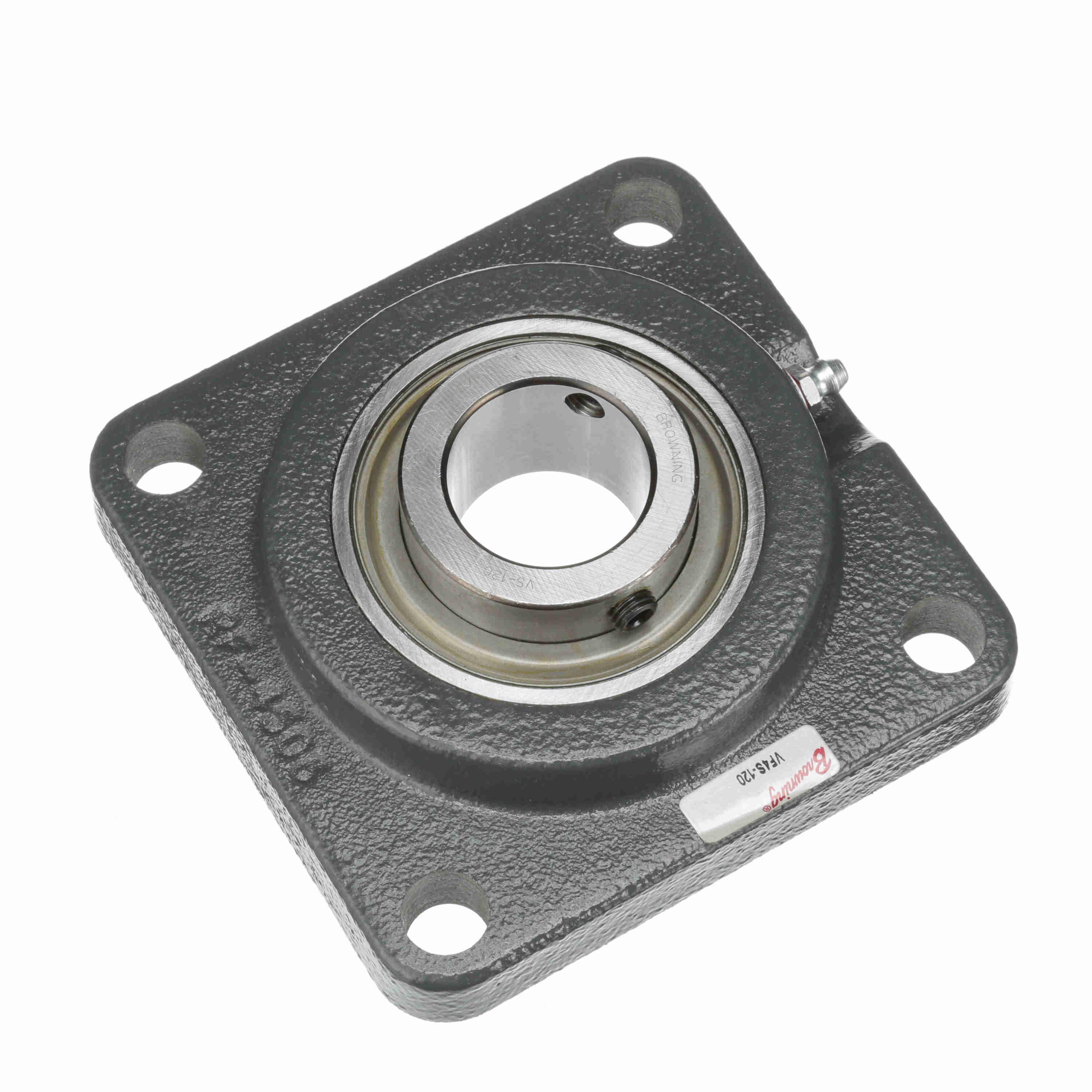

| E | 767563 | 1 1/4" | 4 5/8" | 5782 lbs. | 3493 lbs. | 1.281" | 1/2" | 5.1" | 3 5/8" | €118.62 | |
| F | 764849 | 1 1/4" | - | - | - | 1.281" | 1/2" | 5.1" | 3 5/8" | €127.14 | |

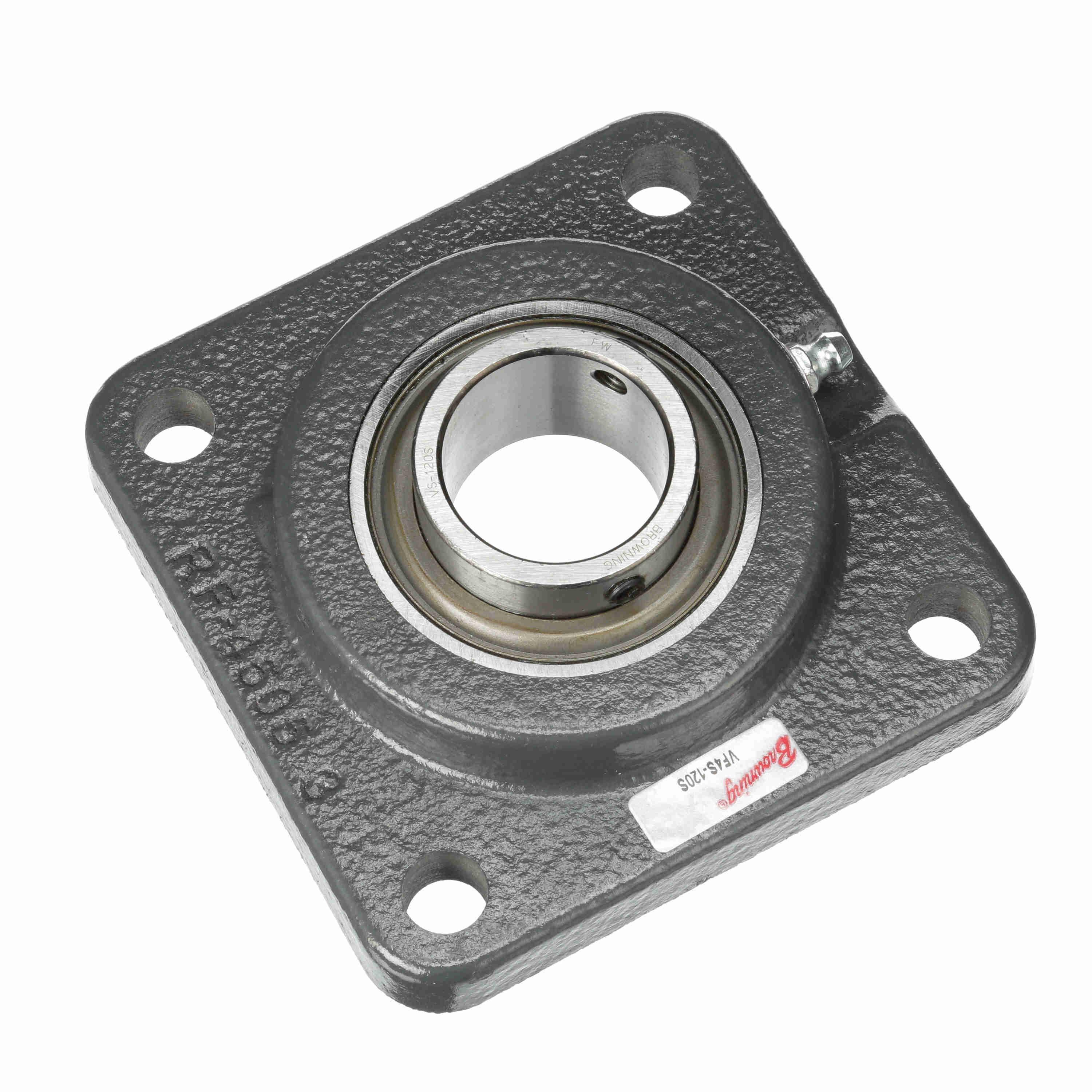

| G | 767596 | 1 1/4" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1.156" | 7/16" | 4.7" | 3 1/4" | €132.28 | |
| H | 767811 | 1 1/8" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €170.26 | |

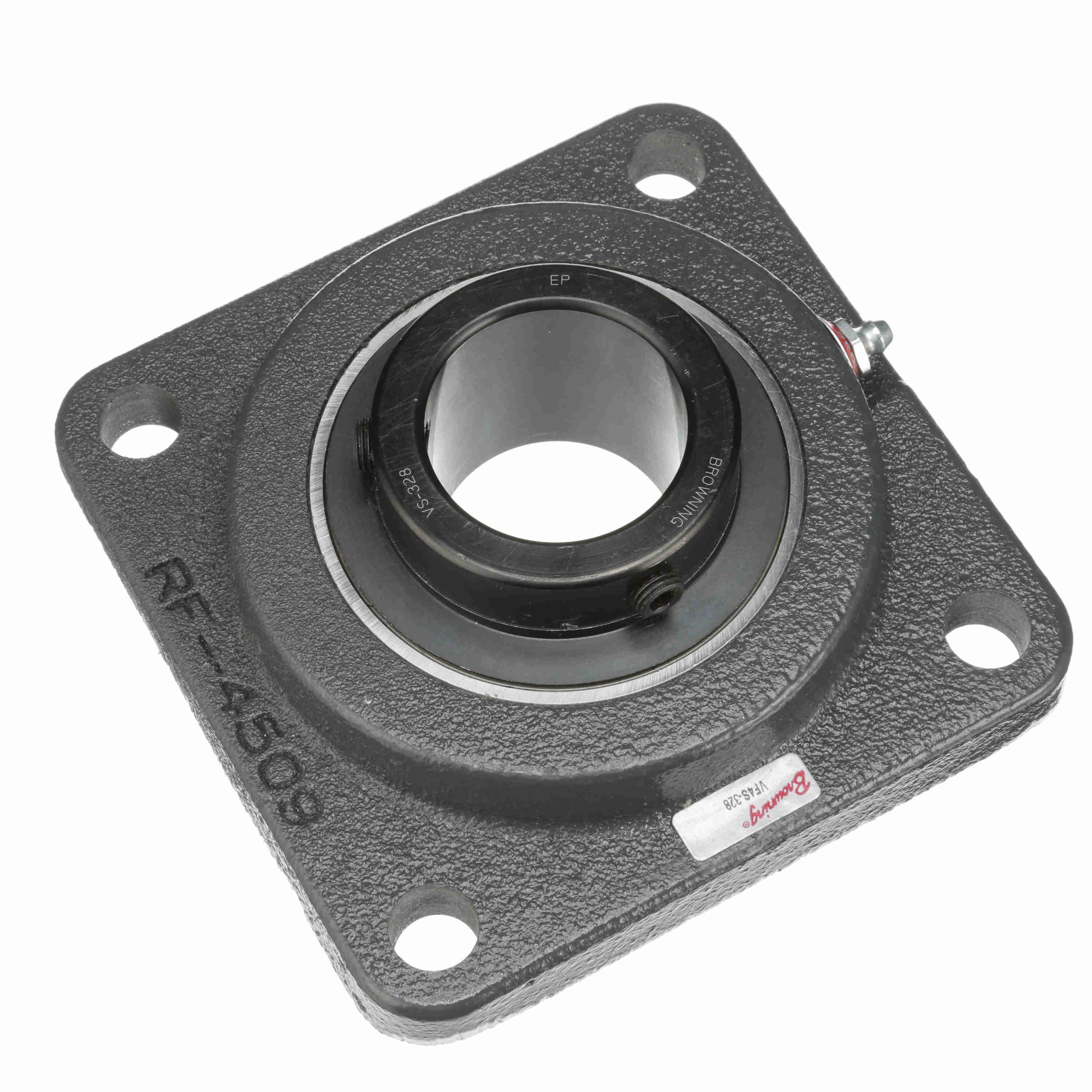

| I | 767905 | 1 3/4" | 5 5/8" | 7889 lbs. | 5216 lbs. | 2.031" | 9/16" | 6 1/5" | 4 3/8" | €326.37 | |
| J | 767347 | 1 3/4" | 5 3/8" | 7901 lbs. | 5139 lbs. | 1.438" | 9/16" | 5 4/5" | 4 1/8" | €217.93 | |
| K | 767619 | 1 3/8" | 4 5/8" | 5782 lbs. | 3493 lbs. | 1.281" | 1/2" | 5.1" | 3 5/8" | €194.71 | |

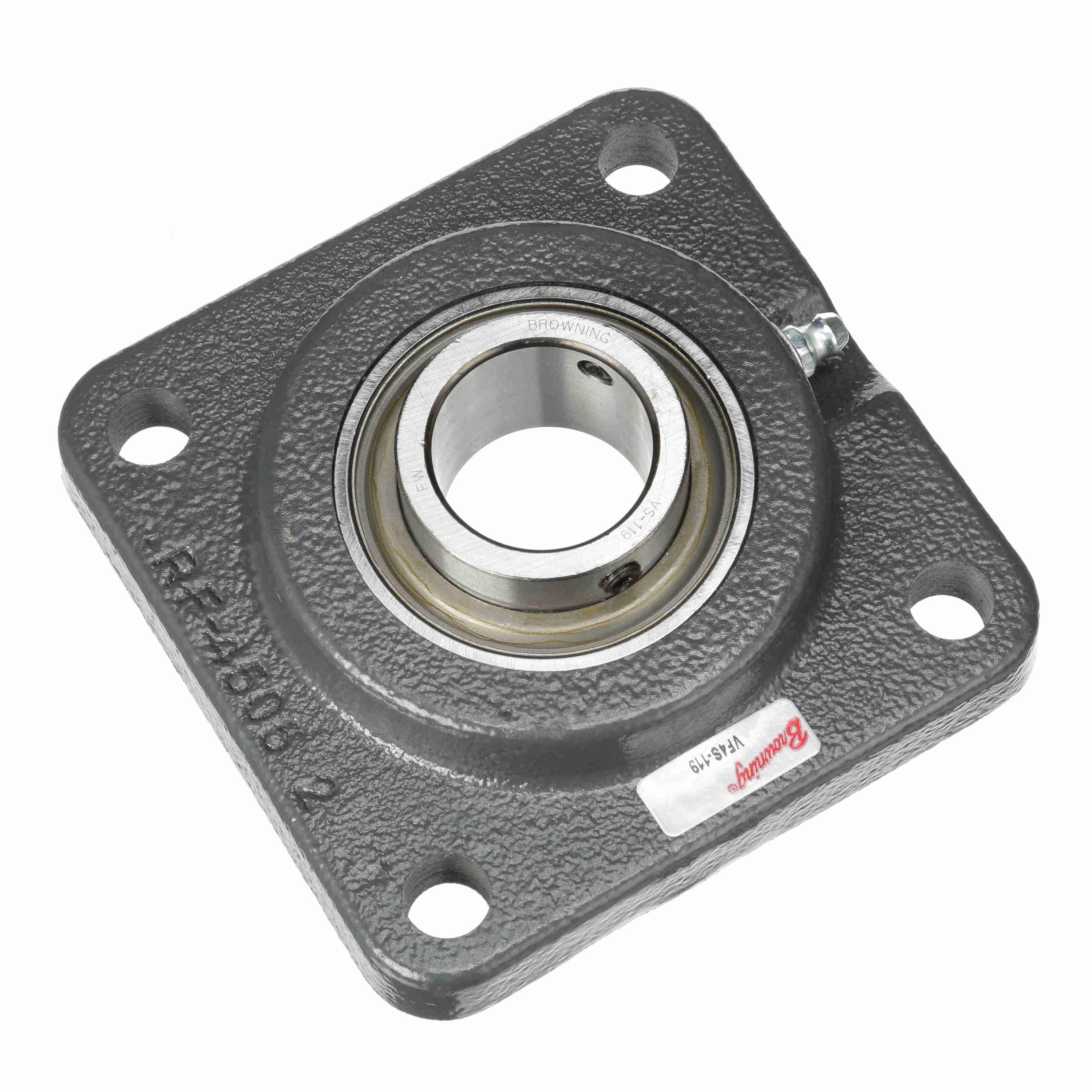

| L | 767742 | 1 3/16" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1.156" | 7/16" | 4.7" | 3 1/4" | €132.28 | |
| M | 767446 | 1 3/16" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €160.26 | |
| N | 767933 | 1 3/16" | 4 5/8" | 5782 lbs. | 3493 lbs. | 1.688" | 1/2" | 5.1" | 3 5/8" | €217.03 | |
| O | 767753 | 1 7/16" | 4 5/8" | 5782 lbs. | 3493 lbs. | 1.281" | 1/2" | 5.1" | 3 5/8" | €141.85 | |
| P | 767506 | 1 15/16" | 6 3/8" | 9752 lbs. | 6601 lbs. | 2.188" | 5/8" | 7 1/5" | 5 1/8" | €348.53 | |
| Q | 767682 | 1 15/16" | 5 5/8" | 7889 lbs. | 5216 lbs. | 1.547" | 9/16" | 6 1/5" | 4 3/8" | €234.11 | |

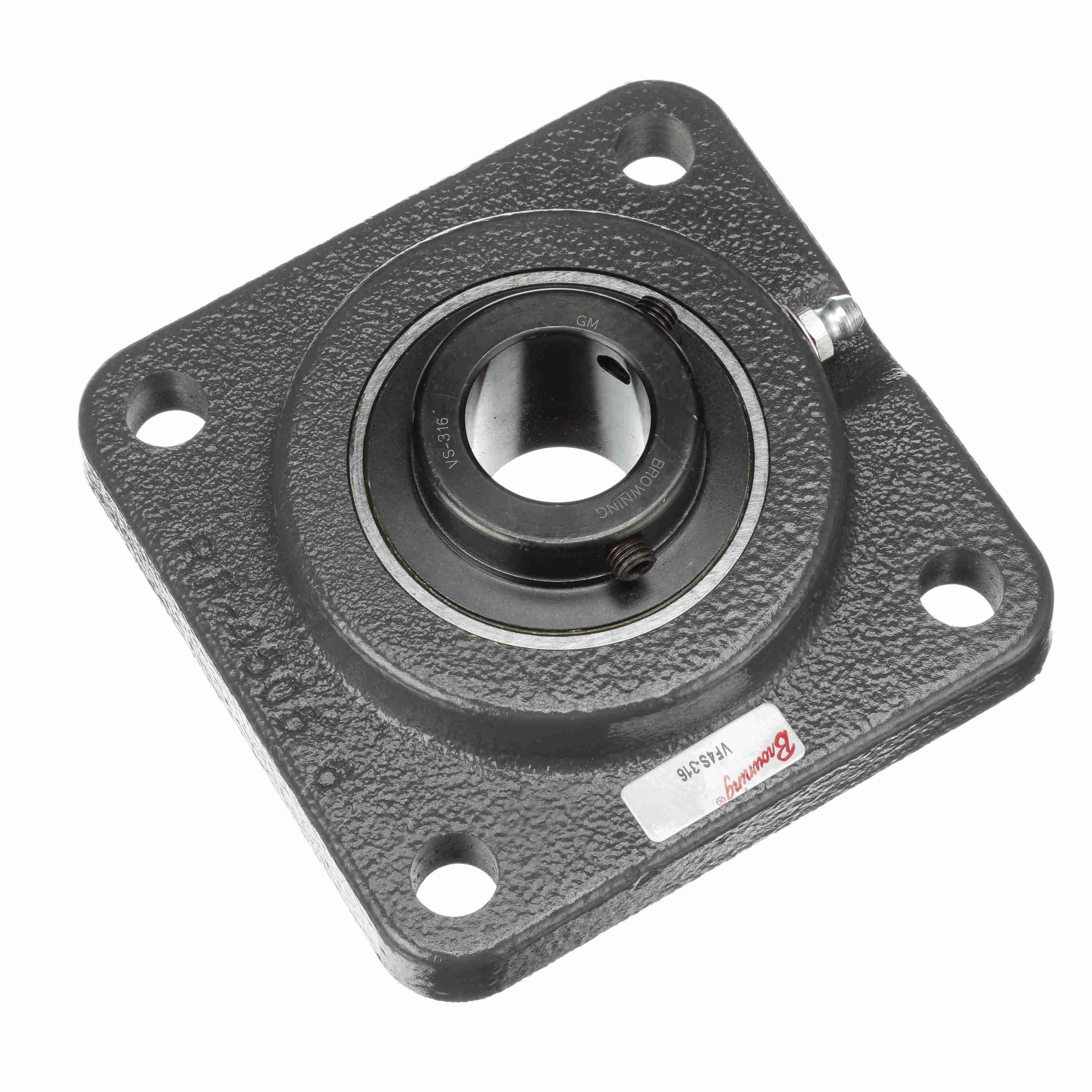

| R | 767904 | 1" | 4 1/4" | 4381 lbs. | 2567 lbs. | 1 1/2" | 7/16" | 4.7" | 3 1/4" | €184.34 | |
| S | 767623 | 1" | 3 3/4" | 2801 lbs. | 1651 lbs. | 1 3/8" | 7/16" | 3.9" | 2 3/4" | €120.40 | |
| T | 767629 | 1/2" | 3" | 2108 lbs. | 1117 lbs. | 1.031" | 3/8" | 3" | 2 1/8" | €104.96 | |
| U | 767674 | 1/2" | 3" | 2108 lbs. | 1117 lbs. | 0.938" | 3/8" | 3" | 2 1/8" | €91.43 | |
| V | 767998 | 2 1/4" | 6 7/8" | 11789 lbs. | 8150 lbs. | 2.563" | 5/8" | 8" | 5 5/8" | €692.96 | |
| W | 765594 | 2" | 5 5/8" | 7889 lbs. | 5216 lbs. | 2.031" | 9/16" | 6 1/5" | 4 3/8" | €254.08 | |
| X | 767684 | 2" | 5 5/8" | 7889 lbs. | 5216 lbs. | 1.547" | 9/16" | 6 1/5" | 4 3/8" | €248.69 | |
| Y | 767869 | 2" | 6 3/8" | 9752 lbs. | 6601 lbs. | 1.656" | 5/8" | 7 1/5" | 5 1/8" | €277.00 | |
| Z | 767604 | 3/4" | 3 3/8" | 2611 lbs. | 1444 lbs. | 1.063" | 3/8" | 3 1/2" | 2 1/2" | €104.62 | |
| A1 | 767433 | 3/4" | 3 3/8" | 2611 lbs. | 1444 lbs. | 1.219" | 3/8" | 3 1/2" | 2 1/2" | €132.68 | |
| B1 | 767401 | 5/8" | 3" | 2108 lbs. | 1117 lbs. | 1.031" | 3/8" | 3" | 2 1/8" | €143.01 | |
| C1 | 732675 | 30 mm | 108 mm | 19488N | 11419N | 1 1/2" | 10 mm | 4 3/5" | 3.252" | €187.77 | |
| D1 | 732677 | 40 mm | 1302 mm | 32650N | 19870N | - | - | - | - | €146.12 | |
| E1 | 732681 | 60 mm | 174.6 mm | 52440N | 36253N | 2.563" | 16 mm | 8" | 5.626" | €1,179.66 |
