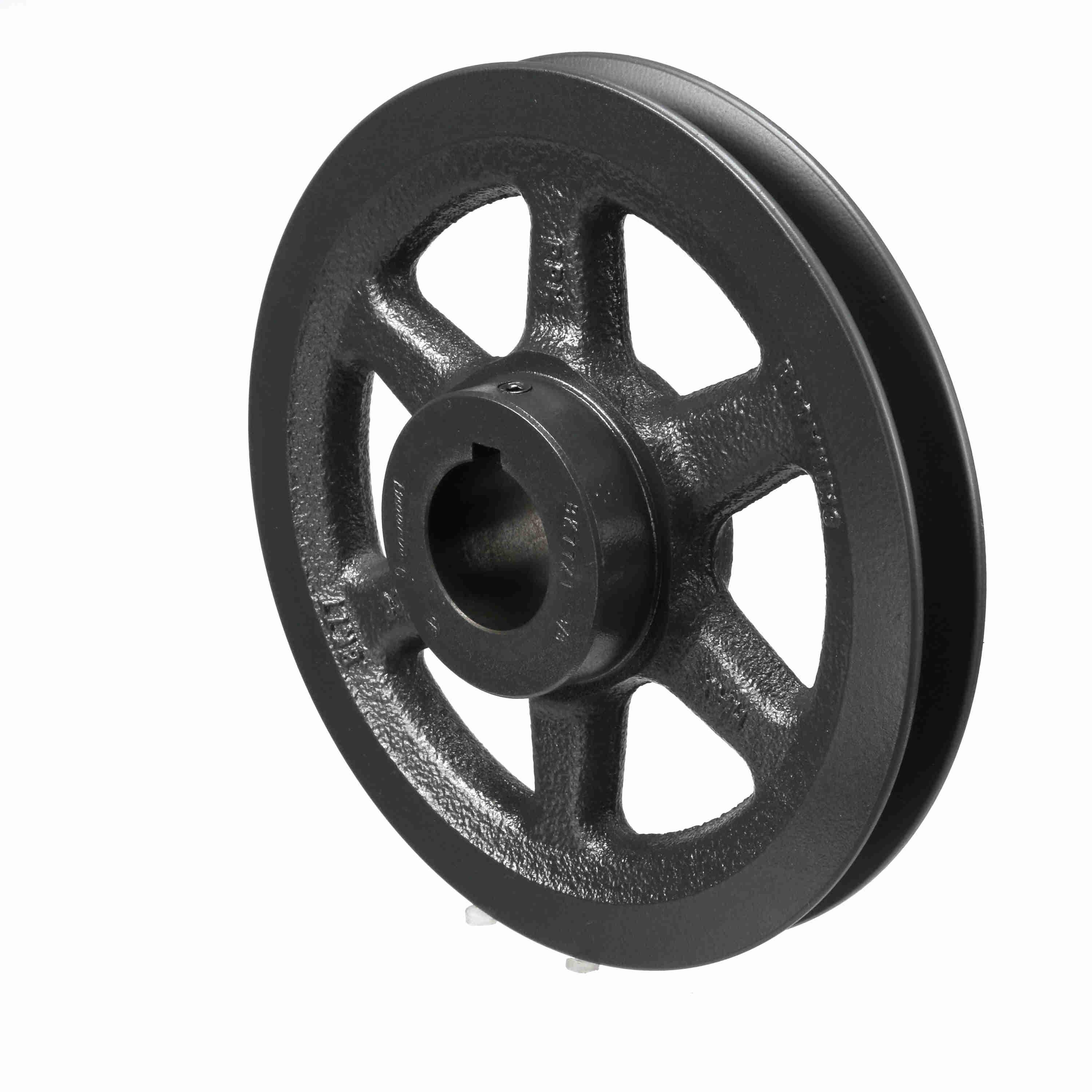

BROWNING 3195641 BK77X 1 3/8 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron, 7.45 in OD, 1-3/8 in Bore Dia, 6.9 in A/7.4 in B Pitch Dia, Type 3, 21/32 in Hub Projection
Item: BA2MDAModel: 3195641Cross Ref: BK77X 1 3/8
7 In Stock
7.45"
1 3/8"
Ships within 2 days via
€177.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 7/8" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7.1" |
| Min. Pitch Dia. | 6.7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 7.45" |
| Overall Length | 1 17/32" |
| Pitch Dia. | 6.9" |
| Pitch Dia. (b) | 7 2/5" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 18.92 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 18.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Type | Face Width | Pitch Dia. | Min. Pitch Dia. | Max. Pitch Dia. | Bore Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1028869 | 1" | Type 3 | 7/8" | 5.9" | - | - | Finished | 13/32" | €146.17 | |
 |
1029156 | 15/16" | Type 3 | - | 8 1/5" | 8" | 8 2/5" | Finished | 21/32" | €377.27 | |
 |
2713824 | - | - | - | - | 2 3/5" | 3" | - | - | €135.20 | |
 |
1042423 | 3/8" to 1 1/2" | Type 1 | 7/8" | 3 2/5" | 3 1/5" | 3 3/5" | Split Taper | 15/32" | €71.94 | |
 |
2739027 | - | - | - | - | 5" | 5 2/5" | - | - | €104.10 | |
 |
1042472 | 3/8" to 1 1/2" | Type 2 | 7/8" | 4.7" | 4 1/2" | 4.9" | Split Taper | 15/32" | €86.30 | |
 |
1042670 | 3/8" to 1 1/2" | Type 3 | 7/8" | 13 1/5" | 13" | 13 2/5" | Split Taper | 17/32" | €220.80 |
