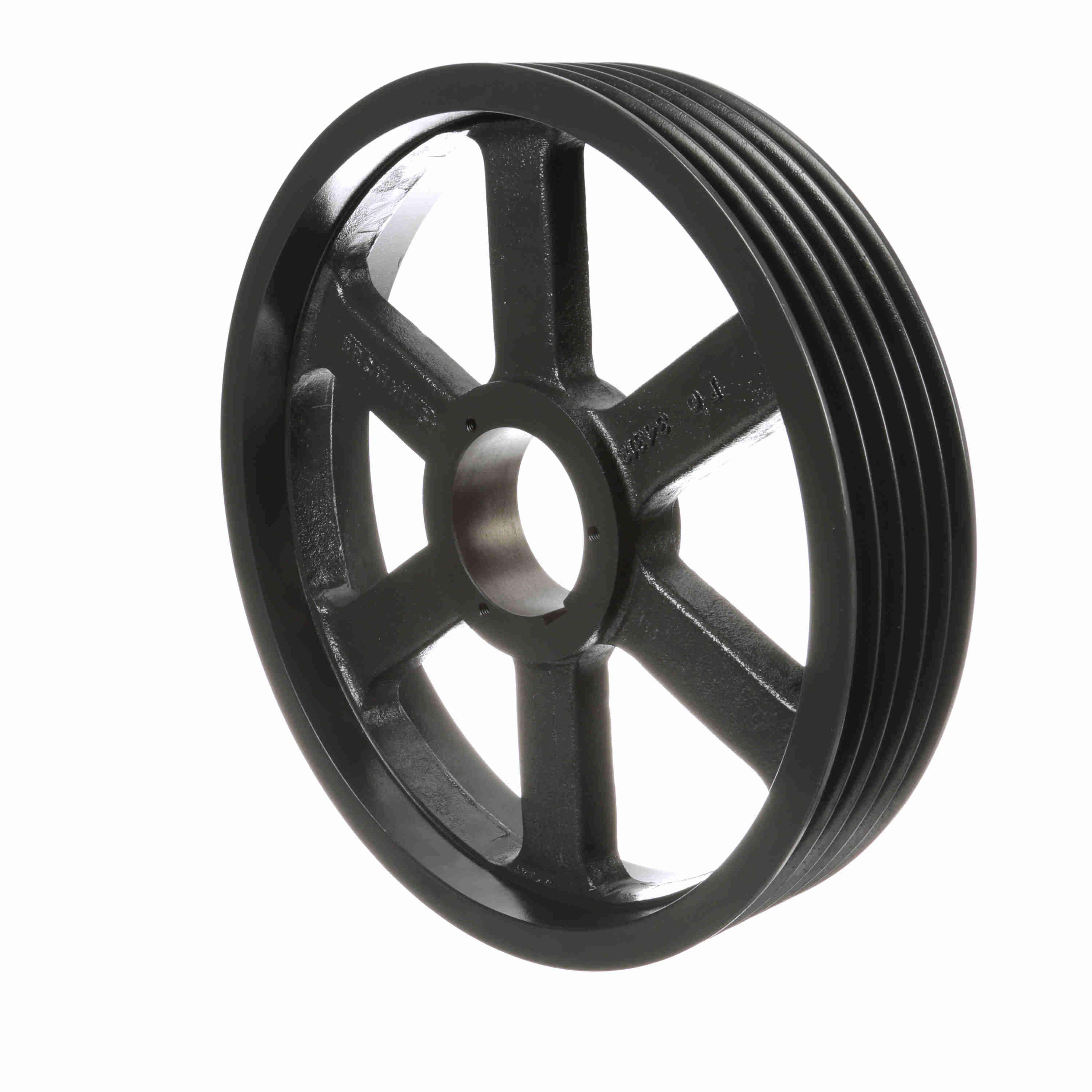

BROWNING 1969252 5B5V184 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
18 17/25"
Get it by Tuesday, Dec 23
€1,411.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 3 7/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 18 1/2" |
| Min. Pitch Dia. | 18" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 18 17/25" |
| Overall Length | 4 3/32" |
| Pitch Dia. (a) | 18 1/5" |
| Pitch Dia. (b) | 18.7" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 6 Arm |
| Weight | 28.148 Kg |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 47.45 |
| Ship length (cm) | 10.39 |
| Ship width (cm) | 47.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1969005 | 4 12/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | €349.85 | |
 |
1969013 | 4 17/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | €328.21 | |
 |
1969021 | 4 22/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | €281.03 | RFQ
|
 |
1969039 | 5 2/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | €281.08 | |
 |
1969070 | 5 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €509.20 | |
 |
1969104 | 6 12/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €448.84 | |
 |
1969120 | 6 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €465.21 |
