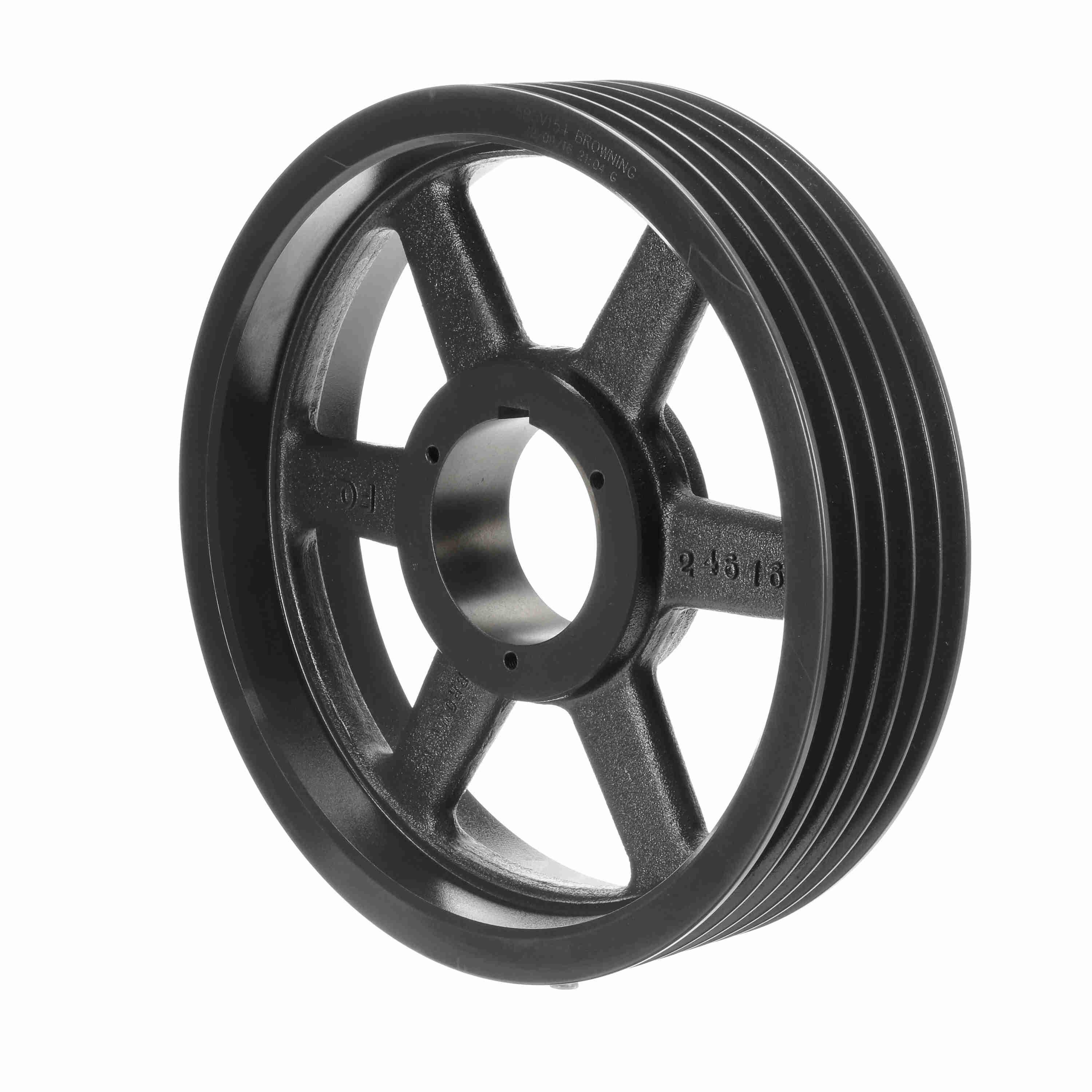

BROWNING 1969237 5B5V154 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 15.68 in OD, 1-1/8 to 3-3/4 in Bore Dia, R1 Bushing Type
15 17/25"
Get it by Tuesday, Aug 18
€1,287.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 3 7/8" |
| Hub Projection | 0.0325" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 15 1/2" |
| Min. Pitch Dia. | 15" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 15 17/25" |
| Overall Length | 4.076875" |
| Pitch Dia. | 15 1/5" |
| Pitch Dia. (5v) | 15 1/2" |
| Pitch Dia. (b) | 15.7" |
| Product Datasheet | browning-1097849.pdf |
| Series | B5V Series |
| Suitable For Use With | A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 39.83 |
| Ship length (cm) | 10.36 |
| Ship width (cm) | 39.83 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Pitch Dia. (5v) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1969070 | 5 2/5" | 3/4" to 2 11/16" | Type 3 | 5.7" | 5 1/5" | 5.9" | Q1 | - | €509.20 | |
 |
1969104 | 6" | 3/4" to 2 11/16" | Type 3 | 6.3" | 5 4/5" | 6 1/2" | Q1 | - | €448.84 | |
 |
1969120 | 6 2/5" | 3/4" to 2 11/16" | Type 3 | 6.7" | 6 1/5" | 6.9" | Q1 | - | €465.21 | |
 |
1969161 | 7 4/5" | 1.13" to 3.75" | Type 4 Web | 8.1" | 7 3/5" | 8.3" | R1 | - | €586.48 | |
 |
1969229 | 13 2/5" | 1.13" to 3.75" | Type 6 Arm | - | - | 13.9" | R1 | - | €1,050.76 | |
 |
1969245 | 15 4/5" | 1.13" to 3.75" | Type 6 Arm | - | - | 16.3" | R1 | - | €1,352.11 | |
 |
1969260 | 19 4/5" | 1.13" to 3.75" | Type 6 Arm | - | - | 20.3" | R1 | - | €1,273.24 |
