BROWNING 1969179 5B5V86 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 8.88 in OD, 1-1/8 to 3-3/4 in Bore Dia, R1 Bushing Type
Get it by Tuesday, Apr 14
€604.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 3 7/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8.7" |
| Min. Pitch Dia. | 8 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 8 22/25" |
| Overall Length | 4 7/64" |
| Pitch Dia. (5v) | 8.7" |
| Pitch Dia. (a) | 8 2/5" |
| Pitch Dia. (b) | 8.9" |
| Series | B5V Series |
| Suitable For Use With | AB, 5V Cross Section V-Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 12.47 |
| Ship height (cm) | 22.56 |
| Ship length (cm) | 10.44 |
| Ship width (cm) | 22.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1969070 | 5 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €509.20 | |
 |
1969104 | 6 12/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €448.84 | |
 |
1969120 | 6 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | €465.21 | |
 |
1969161 | 8 7/25" | 1.13" to 3.75" | 4 5/32" | Type 4 Web | Split Taper | Cast Iron | 3 7/8" | €586.48 | |
 |
1969229 | 13 22/25" | 1.13" to 3.75" | 4 3/32" | Type 6 Arm | Split Taper | Cast Iron | 3 7/8" | €1,050.76 | |
 |
1969245 | 16 7/25" | 1.13" to 3.75" | 4 3/32" | Type 6 Arm | Split Taper | Cast Iron | 3 7/8" | €1,352.11 | |
 |

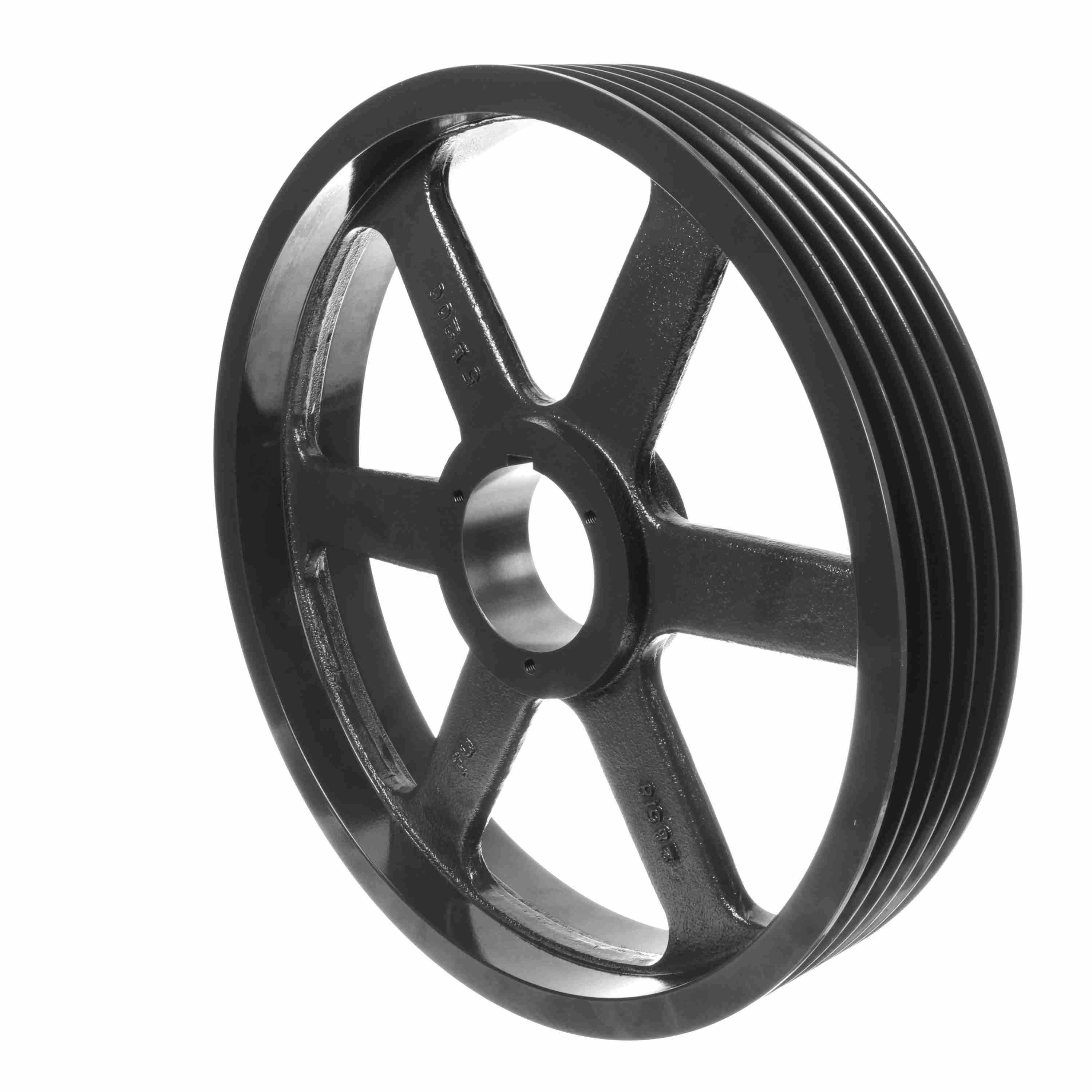

1969260 | 20 7/25" | 1.13" to 3.75" | 4 3/32" | Type 6 Arm | Split Taper | Cast Iron | 3 7/8" | €1,273.24 |
