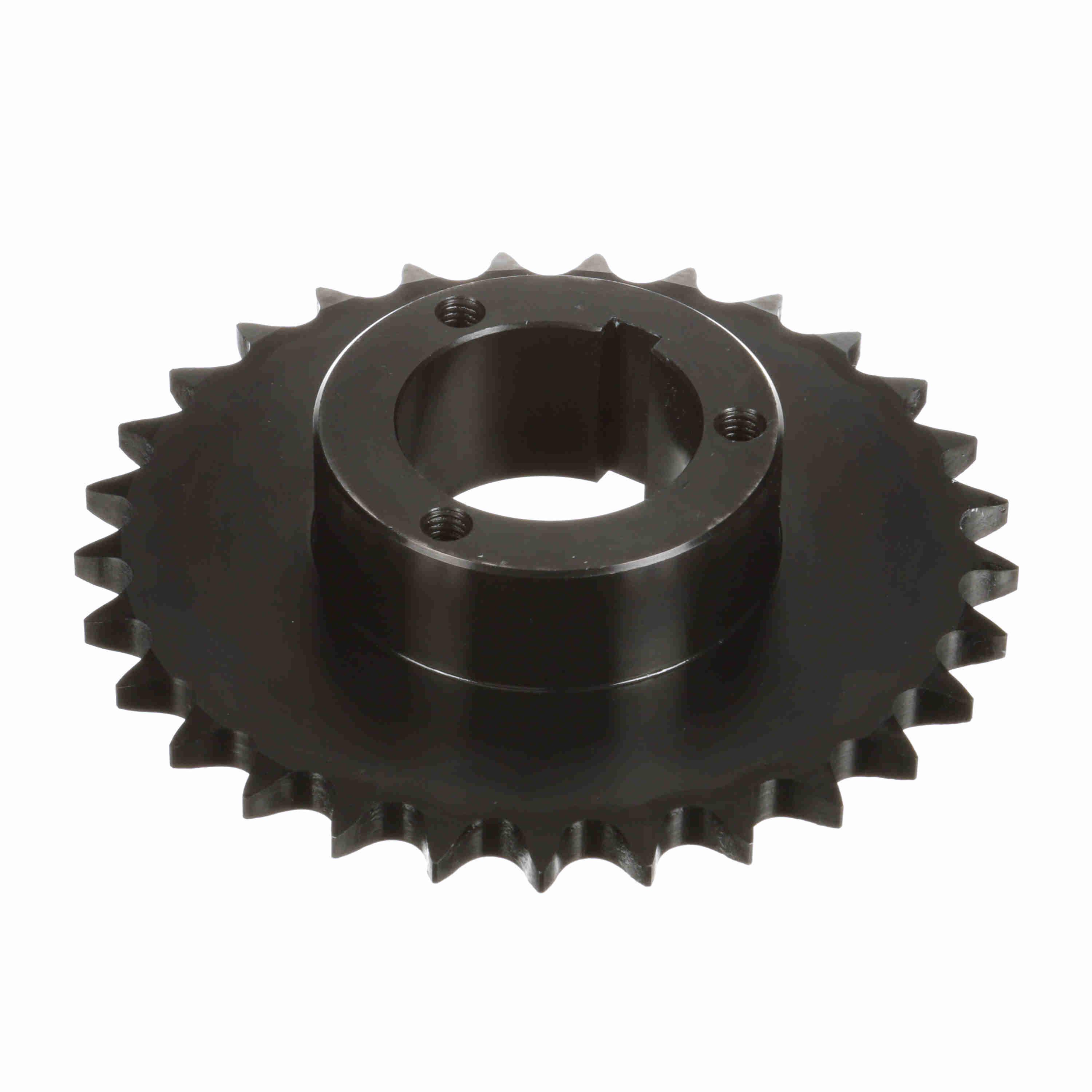

BROWNING 1177666 H50P29 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GCRModel: 1177666Cross Ref: H50P29
7 In Stock
29
Ships within 2 days via
€606.44 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1/2" to 1 3/4" |
| Bushing Size | P1 |
| Chain Pitch | 5/8" |
| Chain Size | 50 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 3" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.2212" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 29 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 6.122" |
| Pitch Dia. | 5.781" |
| Type | Single Strand Type 4 |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 15.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 15.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1177278 | 2.504" | 2.219" | 3/8" | 2.015" | 1" | Single Strand | Type 3 Split Taper | B Hub One Side | €212.14 | |
 |
1177377 | 3.718" | 3.401" | - | 3" | 2.2162" | Single Strand Type 4 | - | B Hub One Side | €278.93 | |
 |
1177500 | 4.922" | 4.59" | 3/4" | 4 1/8" | 2 1/2" | Single Strand | Type 4 Split Taper | - | €368.16 | |
 |
1177385 | 3 23/25" | 3.599" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | - | €262.38 | |
 |
1177401 | 4 3/25" | 3.797" | 3/8" to 1 1/2" | 2.494" | 1.5123" | Single Strand Type 3 | - | - | €319.50 | |
 |
1128636 | 2.71" | 2.415" | 3/4" | 2" | 1.016" | Finished Bore Single Strand Type 1 | - | - | €29.62 | |
 |
1128800 | 3 8/25" | 3.006" | 1" | 2.391" | 1.016" | Finished Bore Single Strand Type 1 | - | - | €33.17 |
