BROWNING Steel Single Sprockets With Split Taper Bushings For No. 50 Chain, Hardened Teeth
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Length Through Bore | Hub Dia. | Type | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | H5022X3/4 | - | - | - | - | - | - | - | - | €72.84 | |
| A | H5021X3/4 | - | - | - | - | - | - | - | - | €67.32 | |
| A | H5025X 1 1/2 | - | - | 1 1/2" | 1 1/4" | - | - | - | - | €82.02 | |
| A | H5025X 1 7/16 | - | - | 1 7/16" | 1 1/4" | - | - | - | - | €82.02 | |
| A | H5030X 1 3/8 | - | - | - | - | - | - | - | - | €112.43 | |
| A | H5029X 1 1/2 | - | - | - | - | - | - | - | - | €88.97 | |
| A | H5021X 1 7/16 | - | - | 1 7/16" | - | - | - | - | - | €61.15 | |
| A | H5021X 1 3/8 | - | - | 1 3/8" | - | - | - | - | - | €84.15 | |
| A | H5029X3/4 | - | - | - | - | - | - | - | - | €83.16 | |
| A | H5029X1 | - | - | - | - | - | - | - | - | €97.94 | |
| A | H5023X 1 7/16 | - | - | 1 7/16" | - | - | - | - | - | €71.35 | |
| A | H5023X 1 1/8 | - | - | - | - | - | - | - | - | €78.54 | |
| A | H5024X 1 3/16 | - | - | 1 3/16" | 1 1/4" | - | - | - | - | €77.81 | |
| A | H5020X 1 7/16 | - | - | 1 7/16" | - | - | - | - | - | €69.89 | |
| A | H5017X 1 1/2 | - | - | - | - | - | - | - | - | €41.66 | |
| A | H5014X5/8 | - | - | 5/8" | - | - | - | - | - | €30.56 | |
| A | H5026X 1 3/8 | - | - | 1 3/8" | 1 1/4" | - | - | - | - | €106.16 | |
| A | H5015X5/8 | - | - | 5/8" | - | - | - | - | - | €44.07 | |
| B | 1128610 | 2 1/2" | 2.218" | 1" | 1.016" | 1.7813" | Finished Bore Single Strand Type 1 | - | - | €48.88 | |
| C | 1128602 | 2 1/2" | 2.218" | 7/8" | 1.016" | 1.7813" | Finished Bore Single Strand Type 1 | - | - | €29.38 | |
| D | 1642792 | 2.71" | 2.415" | 1 1/4" | 1.016" | 2" | Finished Bore Single Strand Type 1 | - | - | €29.62 | |
| E | 1128636 | 2.71" | 2.415" | 3/4" | 1.016" | 2" | Finished Bore Single Strand Type 1 | - | - | €29.62 | |
| B | 1128727 | 2.91" | 2.612" | 1 1/4" | 1.016" | 2.1719" | Finished Bore Single Strand Type 1 | - | - | €31.70 | |

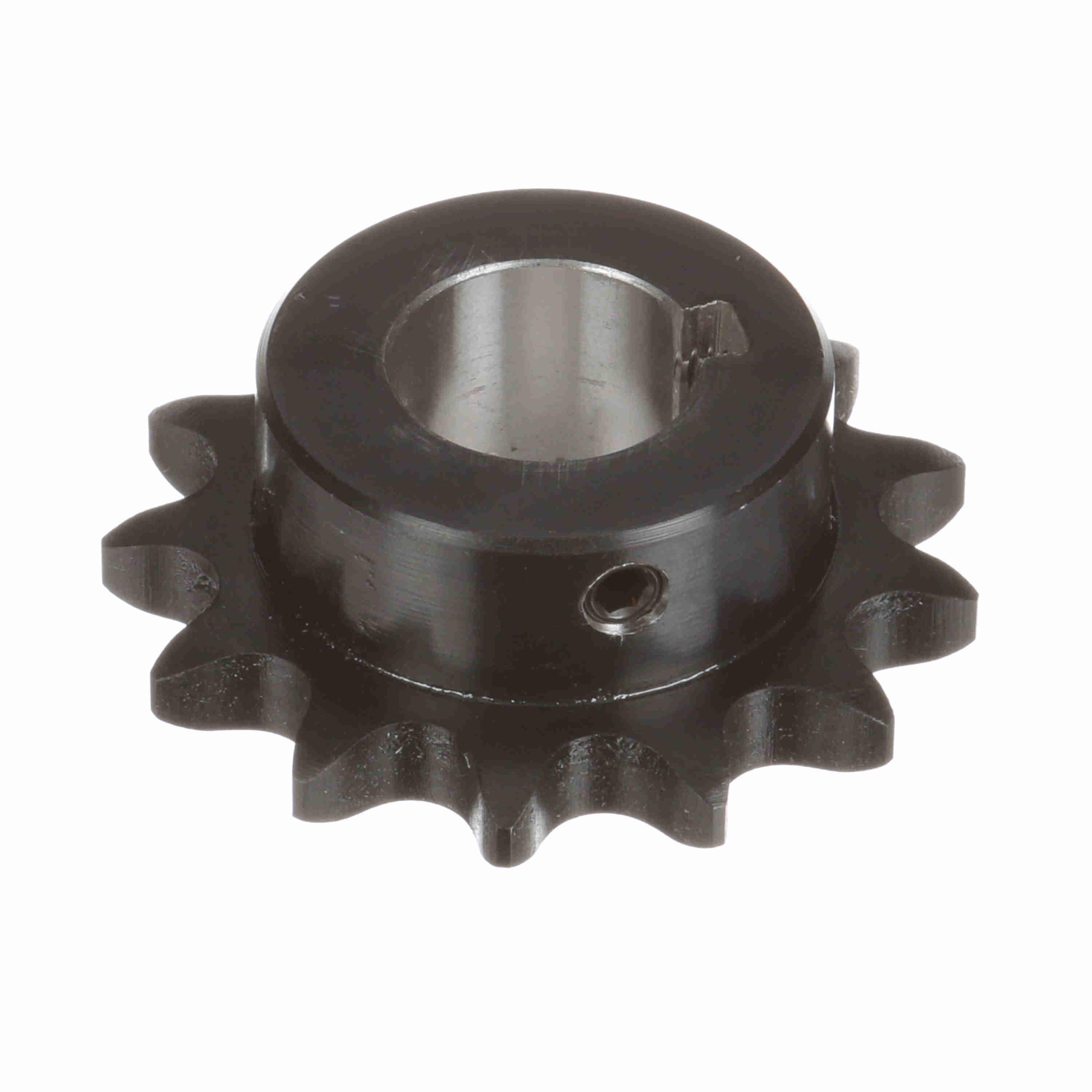

| F | 1128693 | 2.91" | 2.612" | 1" | 1.016" | 2.1719" | Finished Bore Single Strand Type 1 | - | - | €30.84 | |
| G | 1177278 | 2.504" | 2.219" | 3/8" | 1" | 2.015" | Single Strand | Type 3 Split Taper | B Hub One Side | €212.14 | |
| H | 1177286 | 2.708" | 2.415" | 3/8" to 1" | 1.6063" | 2.015" | Single Strand Type 3 | - | - | €168.97 | |

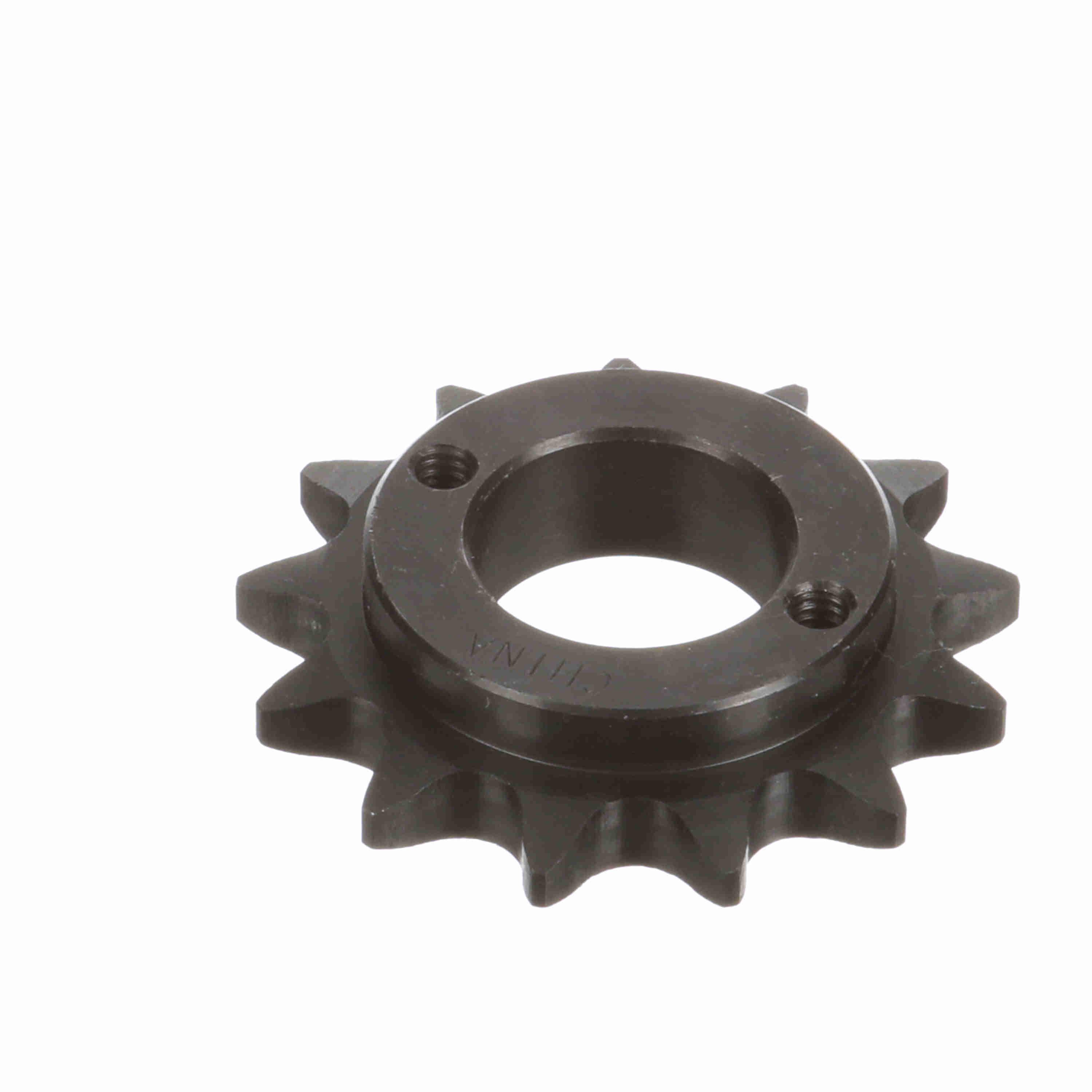

| I | 1177294 | 2.911" | 2.612" | - | 1.2623" | 2.015" | Single Strand Type 3 | - | B Hub One Side | €257.23 | |
| J | 1177302 | 2.911" | 2.612" | 3/8" | 1.276" | 2.494" | Single Strand | Type 3 Split Taper | B Hub One Side | €151.74 | |
| K | 1128834 | 3 8/25" | 3.006" | 1 1/4" | 1.016" | 2.391" | Finished Bore Single Strand Type 1 | - | - | €34.30 | |
| L | 1128800 | 3 8/25" | 3.006" | 1" | 1.016" | 2.391" | Finished Bore Single Strand Type 1 | - | - | €33.17 | |
| M | 1128909 | 3 13/25" | 3.204" | 1 1/4" | 1.016" | 2.578" | Finished Bore Single Strand Type 1 | - | - | €35.51 | |
| N | 1880822 | 3 18/25" | 3.401" | 1 5/8" | 1.016" | 2.703" | Finished Bore Single Strand Type 1 | - | - | €41.66 | |
| O | 1880780 | 3 18/25" | 3.401" | 1 1/4" | 1.016" | 2.703" | Finished Bore Single Strand Type 1 | - | - | €116.89 | |
| B | 1880756 | 3 18/25" | 3.401" | 5/8" | 1.016" | 2.703" | Finished Bore Single Strand Type 1 | - | - | €83.58 | |
| P | 1128933 | 3 18/25" | 3.401" | 1" | 1.016" | 2.703" | Finished Bore Single Strand Type 1 | - | - | €40.52 | |
| A | H5018X 1 5/8 | 3 23/25" | - | 1 5/8" | - | - | - | - | - | €46.30 | |
| Q | 1177385 | 3 23/25" | 3.599" | 3/8" | 1.276" | 2.494" | Single Strand | Type 3 Split Taper | - | €262.38 | |
| R | 1177310 | 3.113" | 2.809" | 3/8" | 1.276" | 2.494" | Single Strand | Type 3 Split Taper | B Hub One Side | €196.17 | |
| B | 1128768 | 3.113" | 2.809" | 1" | 1.016" | 2.141" | Single Strand Finished Bore Type 1 | Split Taper | - | €94.43 | |
| S | 1128776 | 3.113" | 2.809" | 1 1/4" | 1.016" | 2.141" | Finished Bore Single Strand Type 1 | - | B Hub One Side | €94.43 | |
| B | 1128826 | 3.315" | 3.006" | 1 3/16" | 1.016" | 2.391" | Finished Bore Single Strand Type 1 | - | B Hub One Side | €88.48 | |
| T | 1177328 | 3.315" | 3.006" | 3/8" | 1.276" | 2.494" | Single Strand | Type 3 Split Taper | B Hub One Side | €202.72 | |
| U | 1177336 | 3.315" | 3.006" | - | 2.2162" | 3" | Single Strand Type 4 | - | B Hub One Side | €205.70 | |
| B | 1128792 | 3.315" | 3.006" | 7/8" | 1.016" | 2.391" | Single Strand Finished Bore Type 1 | - | - | €35.27 | |
| V | 1177351 | 3.517" | 3.204" | - | 2.2162" | 3" | Single Strand Type 4 | - | B Hub One Side | €234.30 | |
| W | 1177344 | 3.517" | 3.204" | - | 1.5123" | 2.494" | Single Strand Type 3 | - | B Hub One Side | €207.43 | |
| X | 1128859 | 3.517" | 3.204" | 3/4" | 1.016" | 2.578" | Finished Bore Single Strand Type 1 | - | B Hub One Side | €101.54 | |
| Y | 1177377 | 3.718" | 3.401" | - | 2.2162" | 3" | Single Strand Type 4 | - | B Hub One Side | €278.93 | |
| Z | 1177369 | 3.718" | 3.401" | 3/8" to 1 1/2" | 1.5123" | 2.494" | Single Strand Type 3 | - | - | €278.93 | |
| A1 | 1177393 | 3.919" | 3.599" | - | 2.2162" | 3" | Single Strand Type 4 | - | B Hub One Side | €266.23 | |

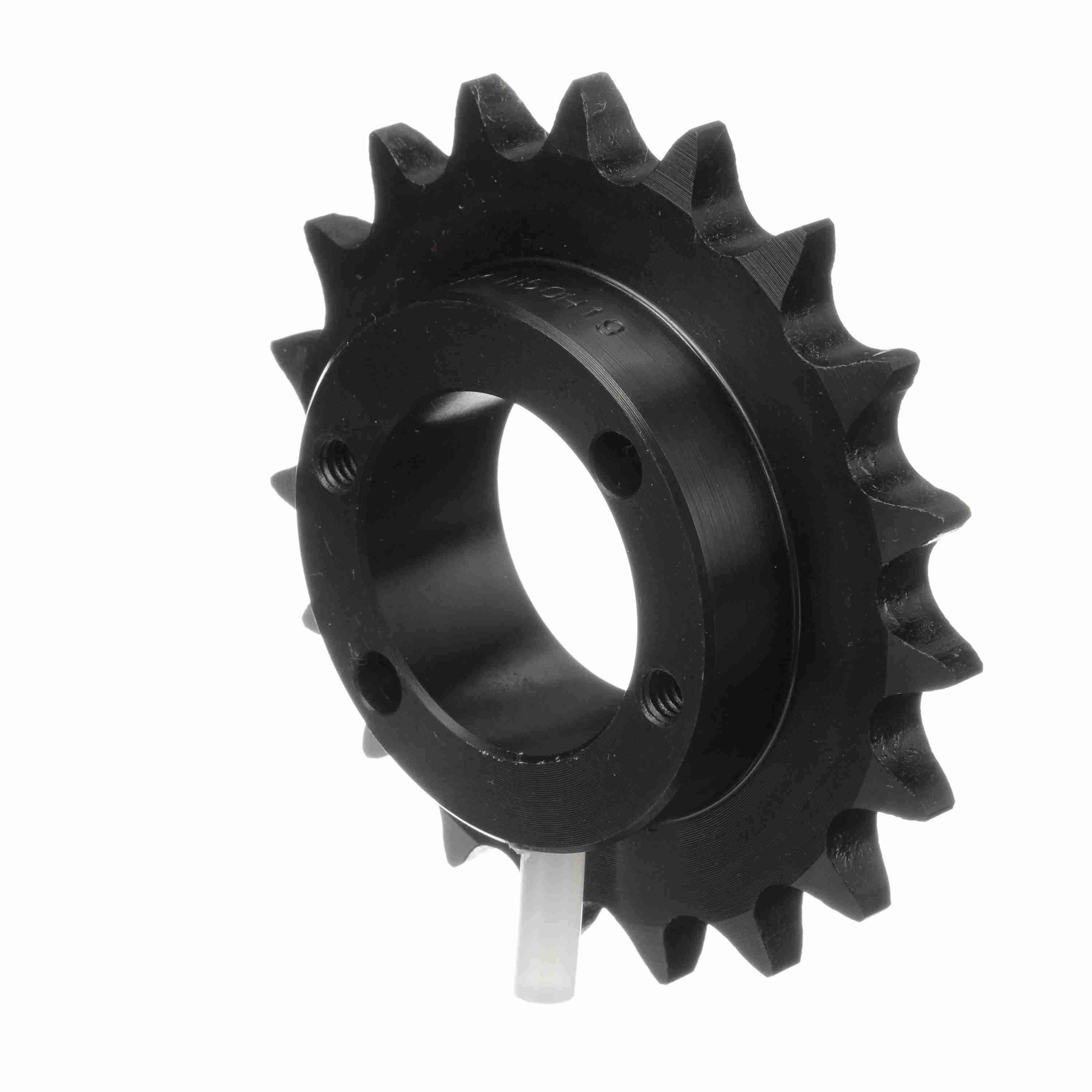

| B1 | 1177401 | 4 3/25" | 3.797" | 3/8" to 1 1/2" | 1.5123" | 2.494" | Single Strand Type 3 | - | - | €319.50 | |
| C1 | 1881051 | 4 13/25" | 4.193" | 1 3/16" | 1.016" | 3.391" | Finished Bore Single Strand Type 1 | - | - | €61.15 | |
| D1 | 1881044 | 4 13/25" | 4.193" | 1 1/8" | 1.016" | 3.391" | Finished Bore Single Strand Type 1 | - | - | €67.32 | |
| E1 | 1881218 | 4 23/25" | 4.59" | 1 3/16" | 1.016" | 3.266" | Finished Bore Single Strand Type 1 | - | - | €192.08 | |
| E1 | 1881259 | 4 23/25" | 4.59" | 1 1/2" | 1.016" | 3.266" | Finished Bore Single Strand Type 1 | - | - | €66.13 | |
| F1 | 1177419 | 4.121" | 3.798" | 1/2" | 1.938" | 3" | Single Strand | Type 4 Split Taper | B Hub One Side | €277.79 | |
| G1 | 1177435 | 4.321" | - | 1/2" | 1.938" | 3" | Single Strand | Type 4 Split Taper | - | €300.49 | |
| H1 | 1177427 | 4.321" | 3.995" | 3/8" to 1 1/2" | 1.5123" | 2.494" | Single Strand Type 3 | - | - | €334.54 | |
| I1 | 1177450 | 4.522" | 4.193" | 1/2" | 1.938" | 3" | Single Strand | Type 4 Split Taper | - | €349.72 | |
| A | 1177443 | 4.522" | 4.194" | - | 1.5123" | 2.494" | Single Strand Type 3 | - | B Hub One Side | €146.60 | |
| J1 | 1177476 | 4.722" | 4.392" | 1/2" | 1.938" | 3" | Single Strand | Type 4 Split Taper | - | €406.67 |
