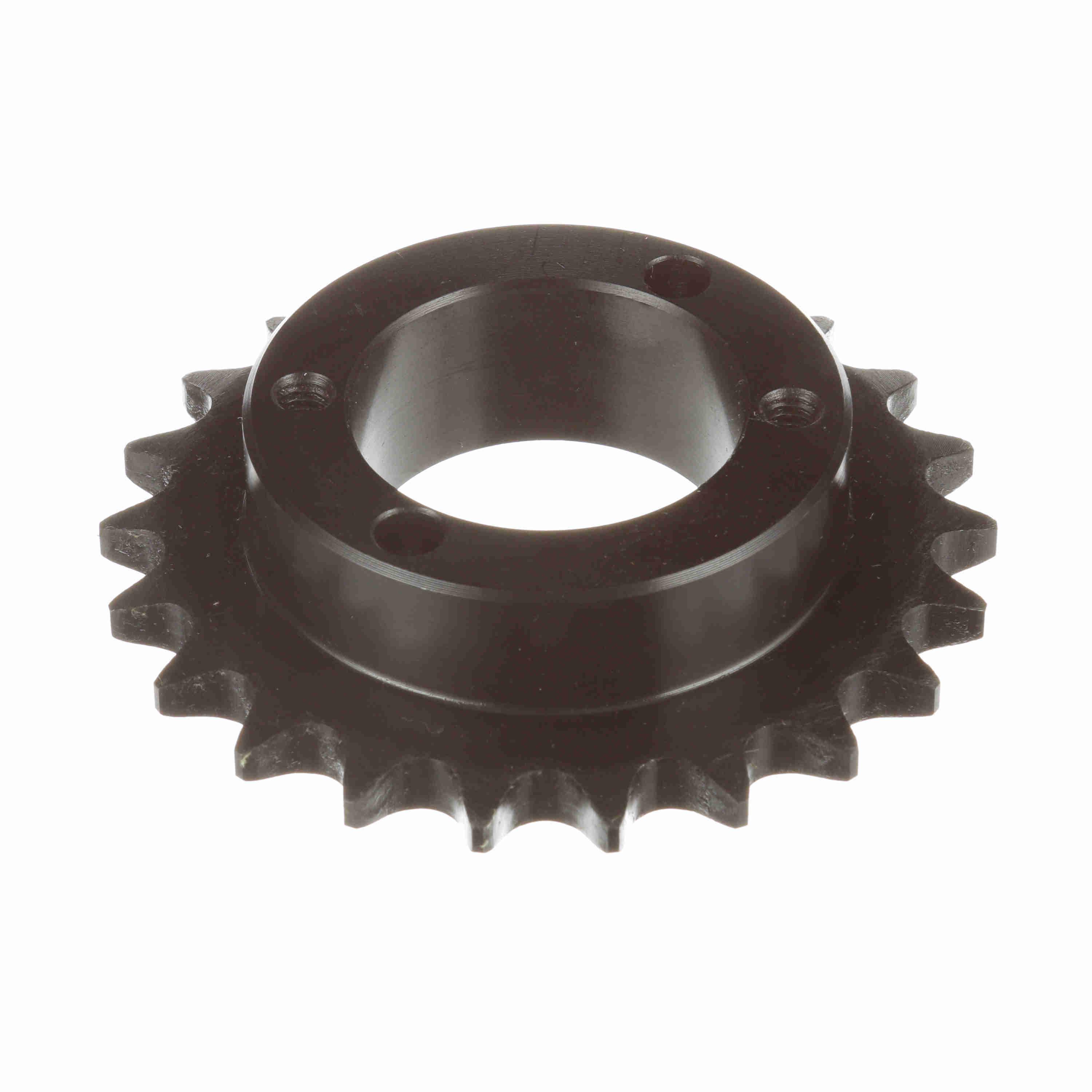

BROWNING 1177039 H40H22 Roller Chain Sprocket, Steel, Single Strand Type 3, 3/8 to 1-1/2 in Bore Dia, 3.778 in OD, 40 Chain Size, 22 Teeth, 3.513 in Pitch Dia
Item: AJ9FZTModel: 1177039Cross Ref: H40H22
7 In Stock
Ships within 2 days via
€312.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.5123" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 22 |
| Outside Dia. | 3.778" |
| Pitch Dia. | 3.513" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 9.6 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 9.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Type | Chain Size | Hub Dia. | Bushing Size | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1176890 | 1.932" | 12 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €86.80 | |
 |
1176908 | 2.089" | 13 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €165.01 | |
 |
1176916 | 2.247" | 14 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €163.80 | |
 |
3938958 | 2.563" | 16 | 1.2683" | Single Strand Type 3 | 40 | 2.015" | G | 3/8" to 1" | €209.36 | |
 |
1176932 | 2.563" | 16 | 1.6083" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €178.62 | |
 |
1176940 | 2.721" | 17 | 1.5063" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €193.96 | |
 |
1176957 | 2.879" | 18 | 1.5063" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €181.17 |
