BROWNING Steel Single Sprockets With Split Taper Bushings For No. 40 Chain, Hardened Teeth
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Type | Hub Dia. | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1176890 | 1.932" | 2.166" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €86.80 | |
| B | 1176908 | 2.089" | 2.328" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €165.01 | |
| C | 1176916 | 2.247" | 2.49" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €163.80 | |
| D | 1176924 | 2.405" | 2.652" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | B Hub One Side | €152.54 | |
| E | 3938958 | 2.563" | 2.814" | - | 1.2683" | Single Strand Type 3 | 2.015" | - | B Hub One Side | €209.36 | |
| F | 1176932 | 2.563" | 2.814" | - | 1.6083" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €178.62 | |
| G | 1176940 | 2.721" | 2.974" | - | 1.5063" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €193.96 | |
| H | 1176957 | 2.879" | 3.136" | - | 1.5063" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €181.17 | |
| I | 1176965 | 2.879" | 3.136" | - | 2.2162" | Single Strand Type 4 | 3" | - | B Hub One Side | €245.80 | |
| J | 1176973 | 3.038" | 3.292" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €187.92 | |
| K | 1176981 | 3.038" | 3.292" | - | 2.2162" | Single Strand Type 4 | - | - | B Hub One Side | €280.12 | |
| L | 1176999 | 3.196" | 3.457" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €232.17 | |
| M | 1177005 | 3.196" | 3.457" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | B Hub One Side | €240.09 | |
| N | 1177013 | 3.355" | 3.617" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | - | €309.00 | |

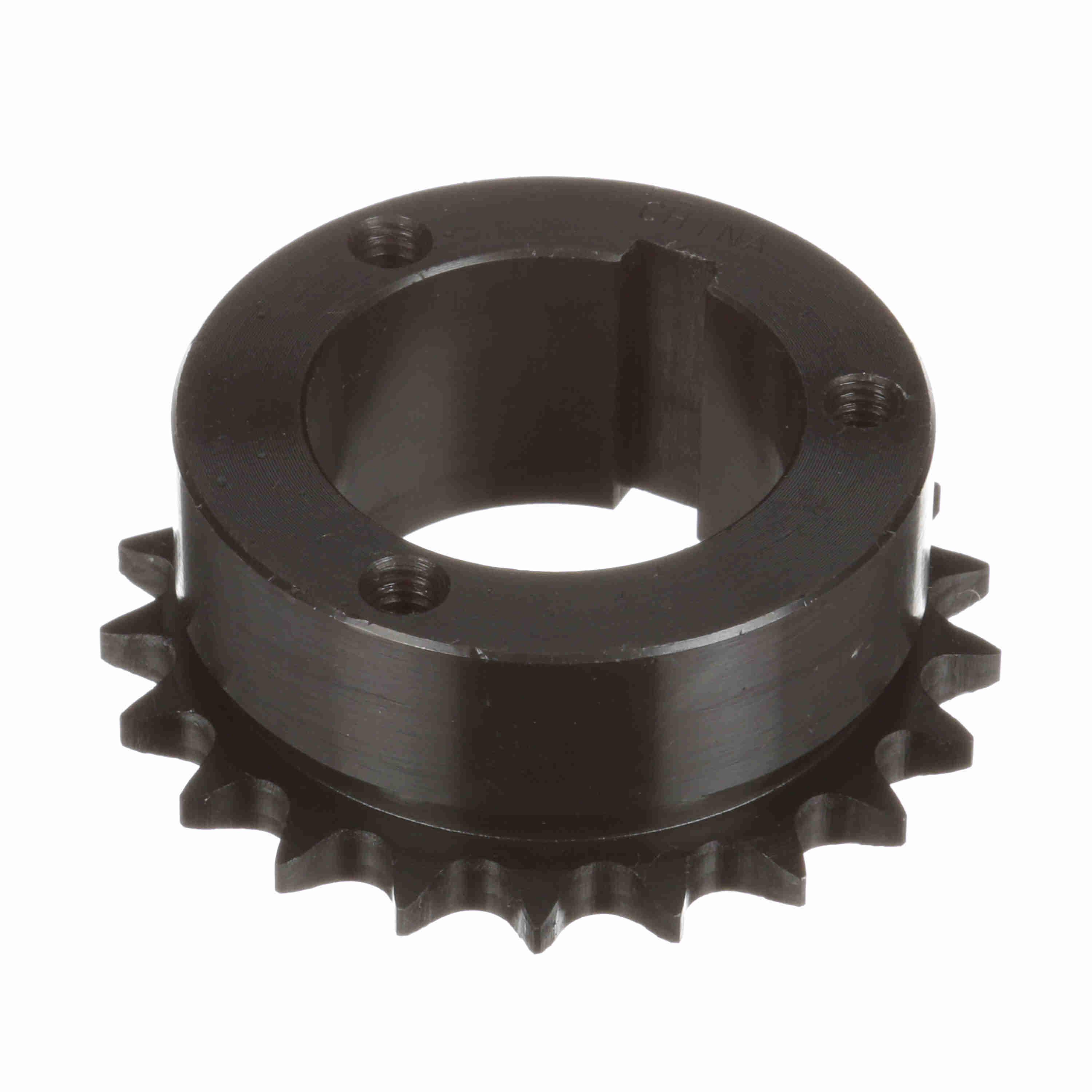

| O | 1177021 | 3.355" | 3.618" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | B Hub One Side | €339.89 | |
| P | 1177039 | 3.513" | 3.778" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €312.13 | |

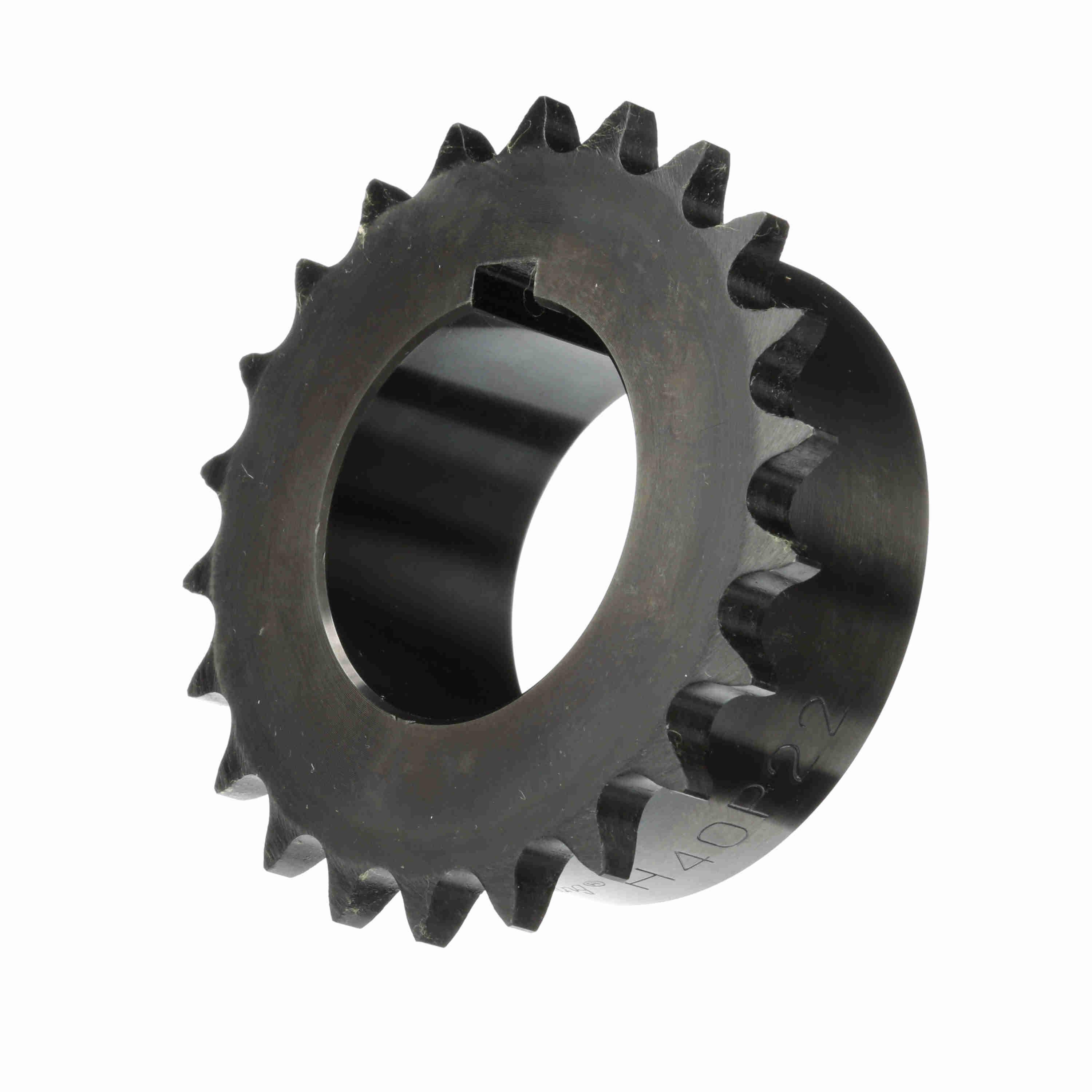

| Q | 1177047 | 3.513" | 3.778" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | - | €275.09 | |
| R | 1177062 | 3.672" | 3.938" | - | 2.2212" | Single Strand Type 4 | 3" | - | B Hub One Side | €163.65 | RFQ
|
| S | 1177054 | 3.672" | 3.938" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | B Hub One Side | €347.57 | |
| T | 1177070 | 3.831" | 4.098" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | B Hub One Side | €302.35 | |
| U | 1177088 | 3.831" | 4.098" | - | 2.2212" | Single Strand Type 4 | 3" | - | B Hub One Side | €394.50 | |
| V | 1177104 | 3.989" | 4.258" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | B Hub One Side | €450.07 | |
| W | 1177096 | 3.989" | 4.258" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | B Hub One Side | €364.96 | |
| R | 1177161 | 4 5/8" | 4.898" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | B Hub One Side | €141.99 | |

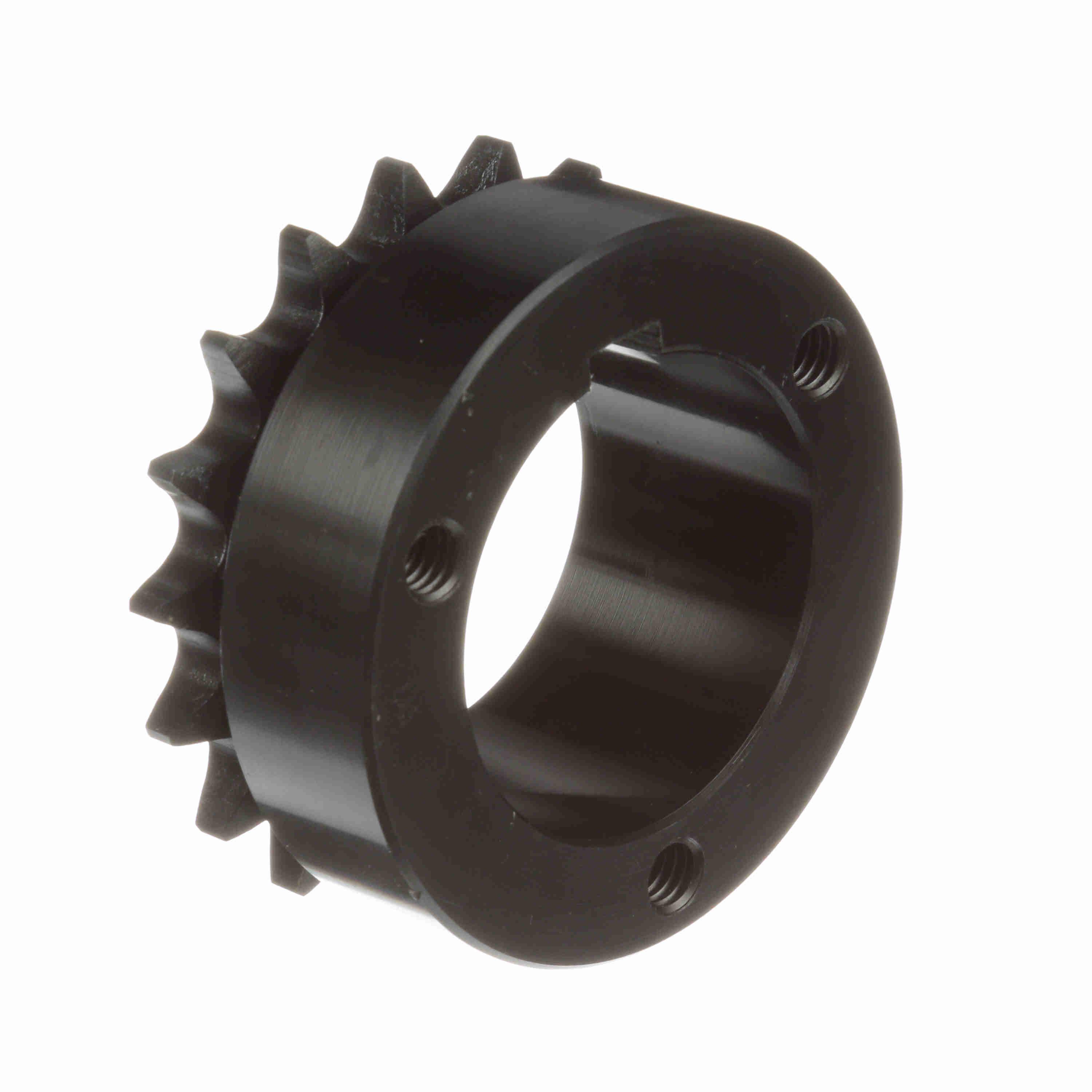

| X | 1177120 | 4.148" | 4.418" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | - | €467.51 | |

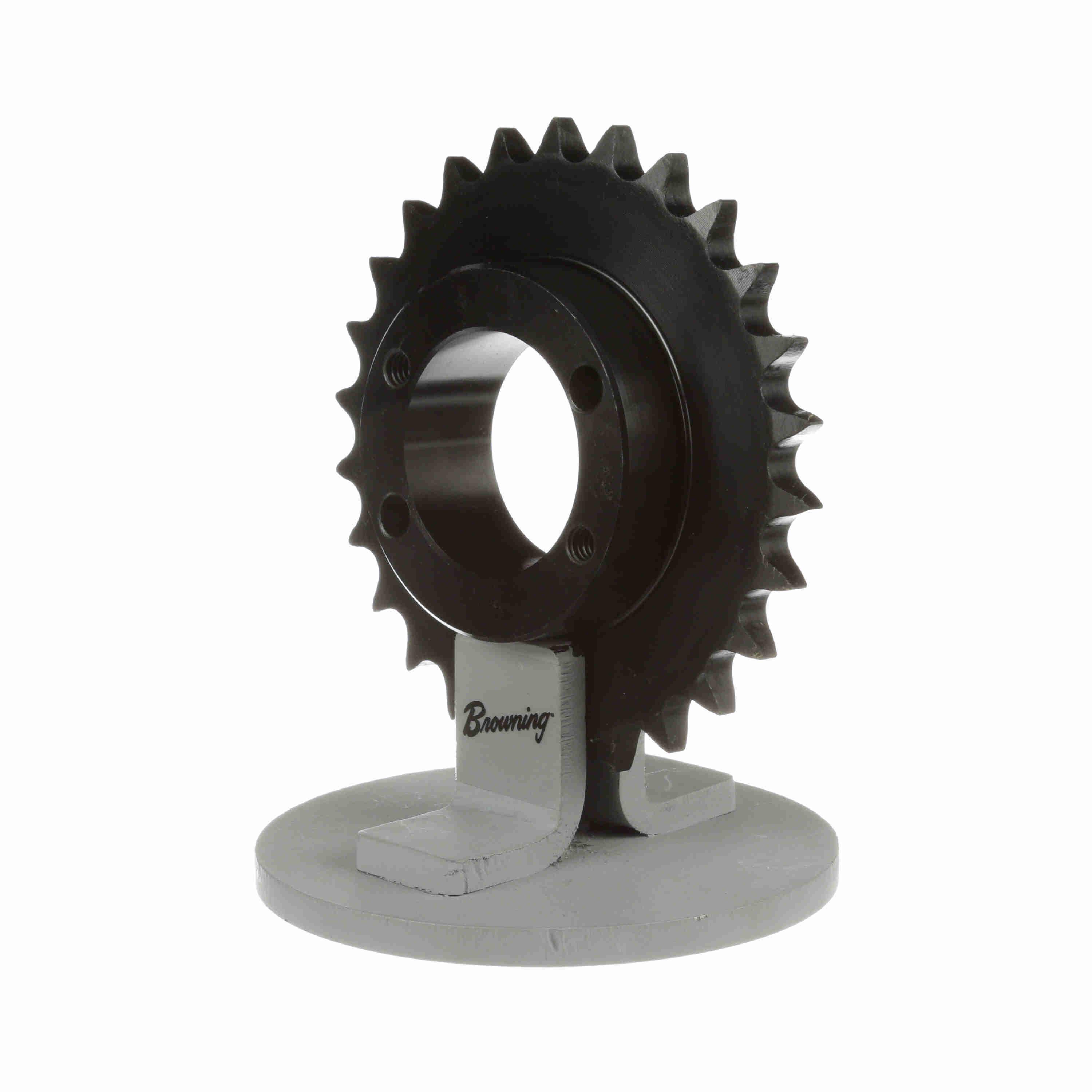

| Y | 1177112 | 4.148" | 4.418" | 3/8" | 1.276" | Single Strand | 2.494" | Type 3 Split Taper | B Hub One Side | €366.94 | |
| Z | 1177138 | 4.307" | 4.578" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €471.39 | |
| A1 | 3995776 | 4.307" | 4.578" | 1/2" | 1.938" | Single Strand | 3" | Type 4 Split Taper | B Hub One Side | €409.44 | |
| B1 | 1177146 | 4.465" | 4.738" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €453.65 | |
| C1 | 1177153 | 4.465" | 4.738" | - | 2.2212" | Single Strand Type 4 | 3" | - | B Hub One Side | €453.65 | |
| D1 | 1177179 | 4.783" | 5.057" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €375.13 | |
| E1 | 1177187 | 4.783" | 5.057" | - | 2.2212" | Single Strand Type 4 | 3" | - | B Hub One Side | €433.57 | |
| F1 | 1177203 | 5.26" | 5.536" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €586.01 | |
| G1 | 1177195 | 5.101" | 5.376" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €602.25 | |
| R | 1177211 | 5.578" | 5.856" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €194.57 | |
| H1 | 1177229 | 5.737" | 6.015" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €541.35 | |
| I1 | 1177245 | 6.055" | 6.334" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €655.97 | |
| J1 | 1177260 | 6.373" | 6.653" | - | 1.5123" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €653.97 |
