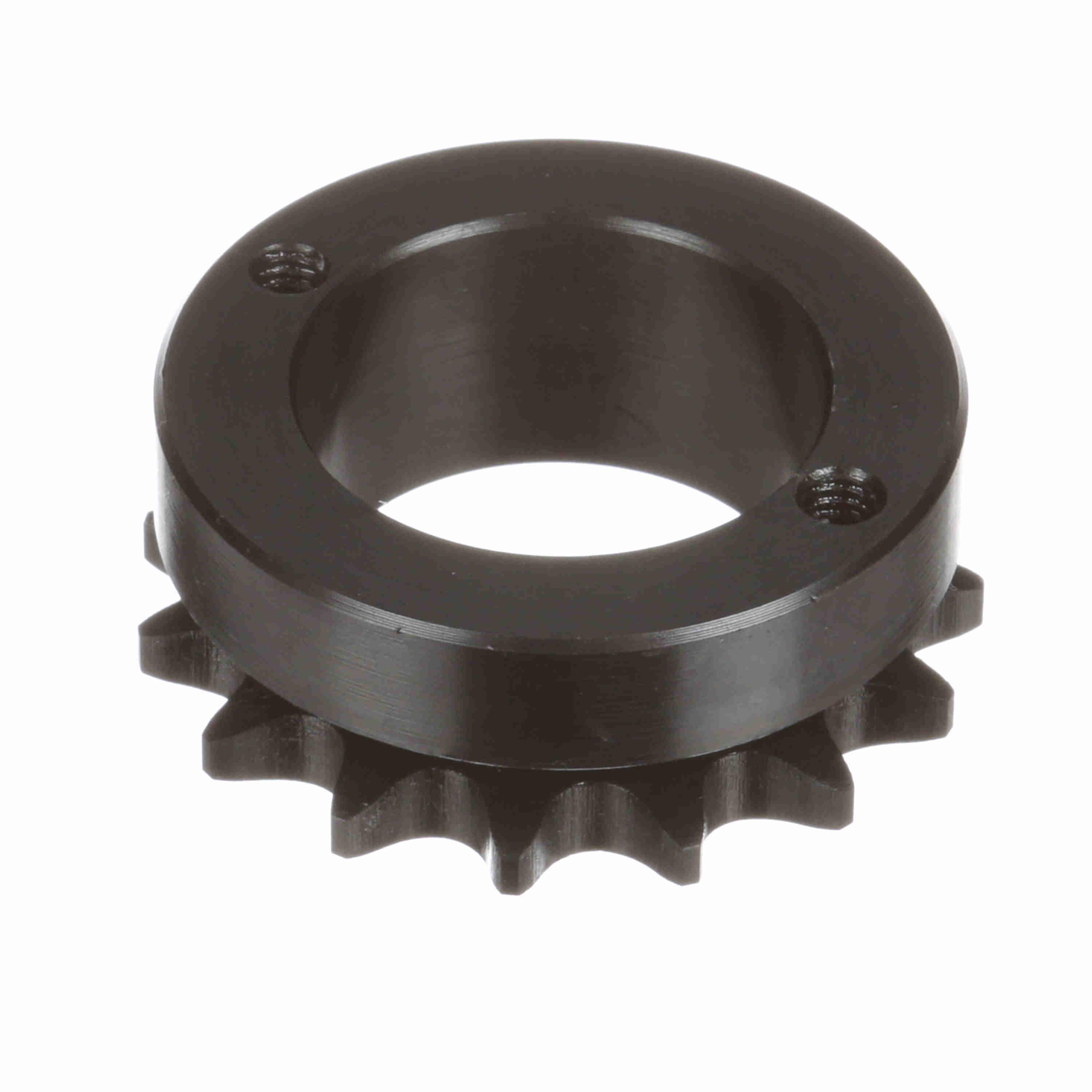

BROWNING 1176924 H40H15 Roller Chain Sprocket, Steel, Split Taper Bushed, 3/8 to 1-1/2 in Bore Dia, 2.652 in OD, #40 Chain Size, 15 Teeth, 2.405 in Pitch Dia
Item: AJ9HVQModel: 1176924Cross Ref: H40H15
7 In Stock
Ships within 2 days via
€152.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bore Dia. | 3/8" |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Bushing Type | Type 3 Split Taper |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.276" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 15 |
| Outside Dia. | 2.652" |
| Pitch Dia. | 2.405" |
| Pitch Size | 1/2" |
| Product Datasheet | browning-1170075.pdf |
| System Of Measurement | Imperial |
| Type | Single Strand |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.73 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 6.73 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Type | Chain Size | Hub Dia. | Bushing Size | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1176890 | 1.932" | 12 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €86.80 | |
 |
1176908 | 2.089" | 13 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €165.01 | |
 |
1176916 | 2.247" | 14 | 1.026" | Single Strand | 40 | 2.015" | G | 3/8" to 1" | €163.80 | |
 |
3938958 | 2.563" | 16 | 1.2683" | Single Strand Type 3 | 40 | 2.015" | G | 3/8" to 1" | €209.36 | |
 |
1176932 | 2.563" | 16 | 1.6083" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €178.62 | |
 |
1176940 | 2.721" | 17 | 1.5063" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €193.96 | |
 |
1176957 | 2.879" | 18 | 1.5063" | Single Strand Type 3 | 40 | 2.494" | H | 3/8" to 1 1/2" | €181.17 |
