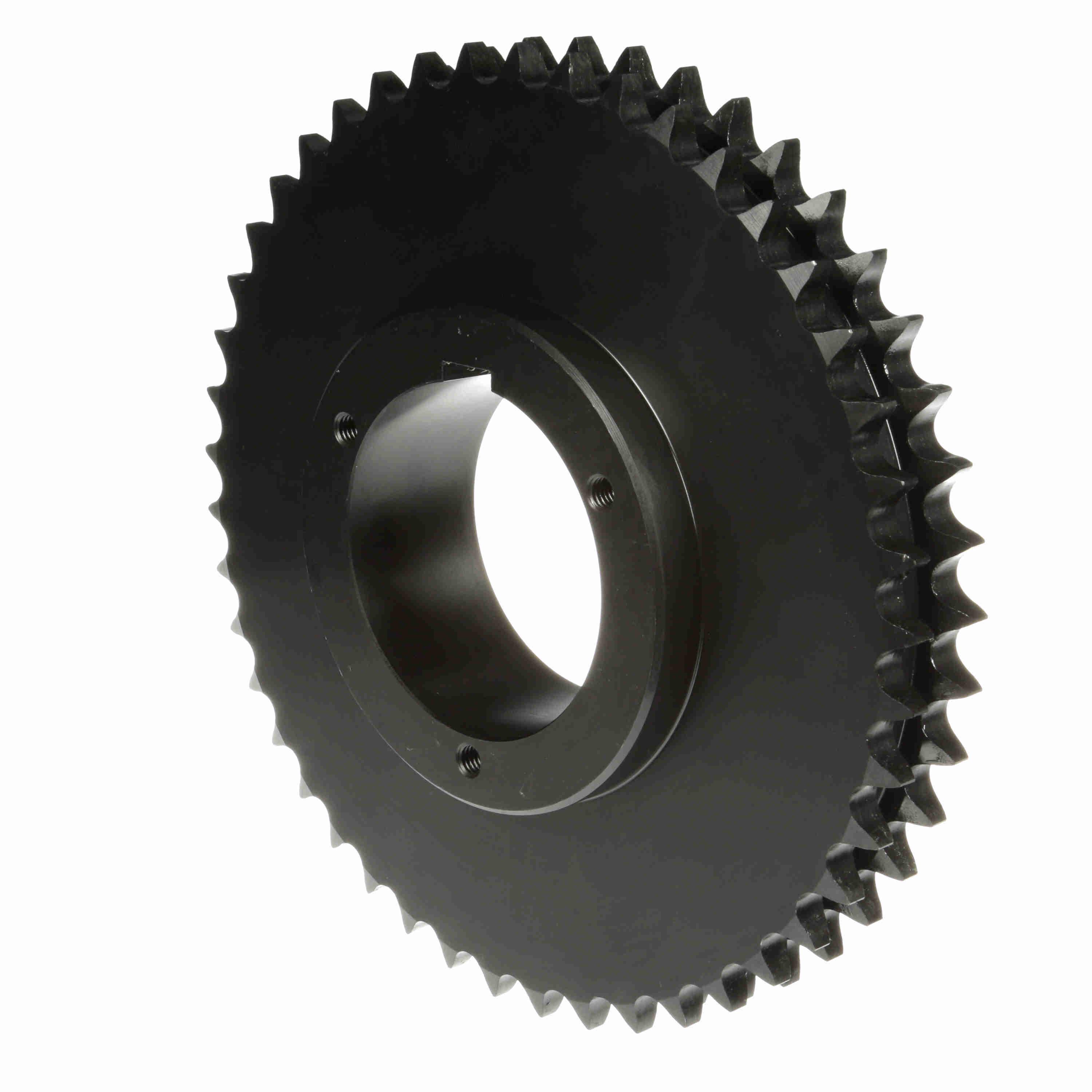

BROWNING 1174812 D60R45 Roller Chain Sprocket, Steel, Double Strand Type 12, 1-1/8 to 3-3/4 in Bore Dia, 11.176 in OD, 60 Chain Size, 45 Teeth, 10.752 in Pitch Dia
45
Get it by Friday, Aug 14
€1,798.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 3/4" |
| Chain Size | 60-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 5 3/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1414" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 11.176" |
| Pitch Dia. | 10.752" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 28.4 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 28.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Type | Chain Size | Bushing Size | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174580 | 3.134" | 13 | 2 15/16" | 3" | Double Strand | 60-2 | P1 | C Hub Both Sides | €626.08 | |
 |
1174598 | 3.371" | 14 | 2.9812" | 3" | Double Strand Type 12 | 60-2 | P1 | B Hub One Side | €625.86 | |
 |
1174606 | 3.607" | 15 | 2.9552" | 3" | Double Strand Type 12 | 60 | - | - | €724.50 | |
 |
1174614 | 3.845" | 16 | 2.1657" | 3" | Double Strand Type 13 | 60-2 | P1 | B Hub One Side | €579.33 | |
 |
1174622 | 4.082" | 17 | 2.1657" | 3" | Double Strand Type 13 | 60-2 | P1 | B Hub One Side | €592.05 | |
 |
1174630 | 4.319" | 18 | 1.938" | 3" | Double Strand | 60-2 | P1 | B Hub One Side | €397.09 | |
 |
1174655 | 4.794" | 20 | 2.1657" | 3" | Double Strand Type 13 | 60-2 | P1 | B Hub One Side | €767.02 |
