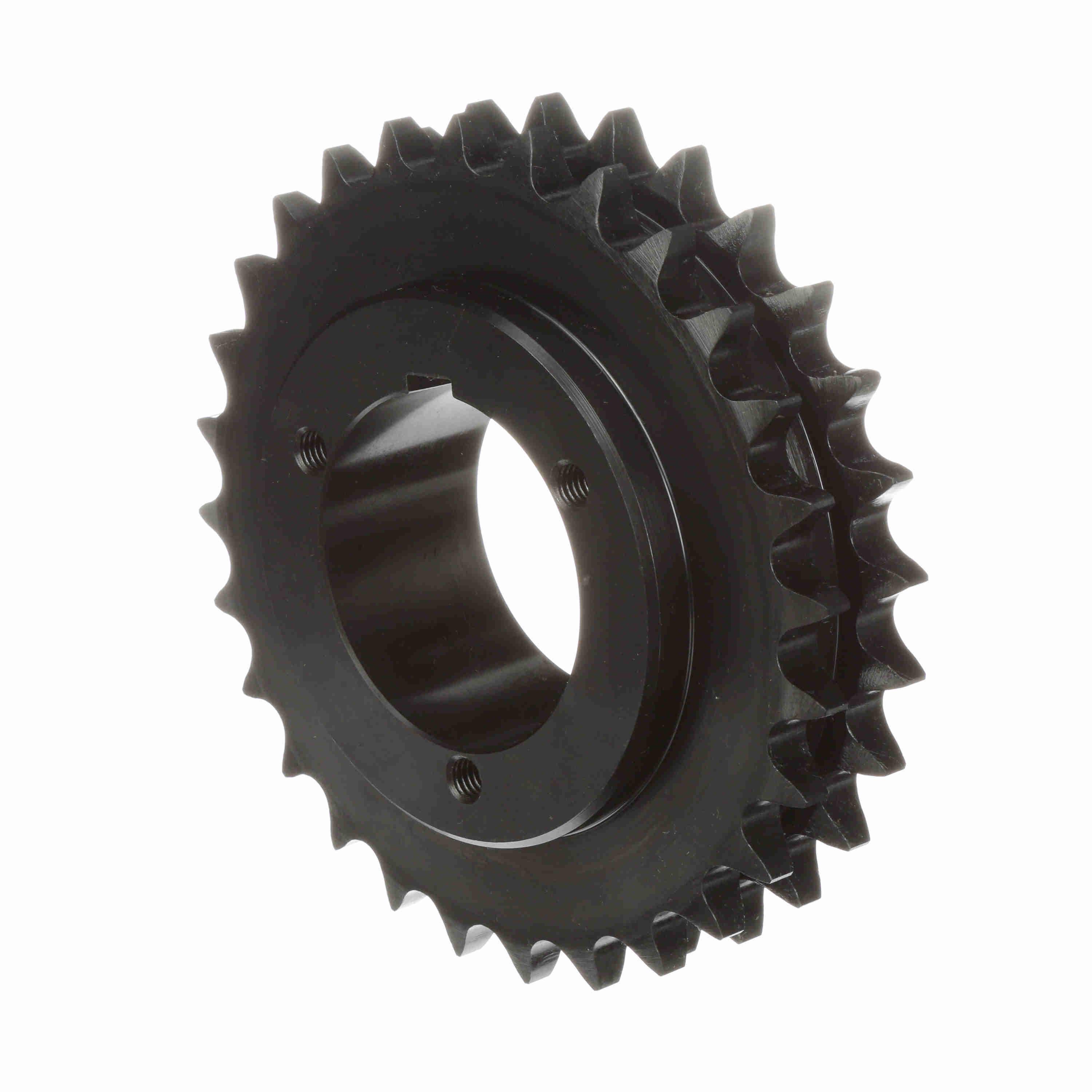

BROWNING 1174739 D60Q28 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GPDModel: 1174739Cross Ref: D60Q28
7 In Stock
28
Ships within 2 days via
€1,019.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 3/4" |
| Chain Size | 60-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 28 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.106" |
| Pitch Dia. | 6.698" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
| Weight | 10.54 lbs. |
Shipping Info:
| Ship weight (kg) | 4.74 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 21.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174580 | 3.134" | 3.493" | - | 3" | 2 15/16" | Double Strand | C Hub Both Sides | Type P2 Split Taper | €626.08 | |
 |
1174598 | 3.371" | 3.736" | - | 3" | 2.9812" | Double Strand Type 12 | B Hub One Side | - | €625.86 | |
 |
1174606 | 3.607" | 3.978" | 1/2" to 1 3/4" | 3" | 2.9552" | Double Strand Type 12 | - | - | €724.50 | |
 |
1174614 | 3.845" | 4.22" | - | 3" | 2.1657" | Double Strand Type 13 | B Hub One Side | - | €579.33 | |
 |
1174622 | 4.082" | 4.462" | - | 3" | 2.1657" | Double Strand Type 13 | B Hub One Side | - | €592.05 | |
 |
1174630 | 4.319" | 4.703" | - | 3" | 1.938" | Double Strand | B Hub One Side | Type P1 Split Taper | €397.09 | RFQ
|
 |
1174655 | 4.794" | 5.186" | - | 3" | 2.1657" | Double Strand Type 13 | B Hub One Side | - | €767.02 |
