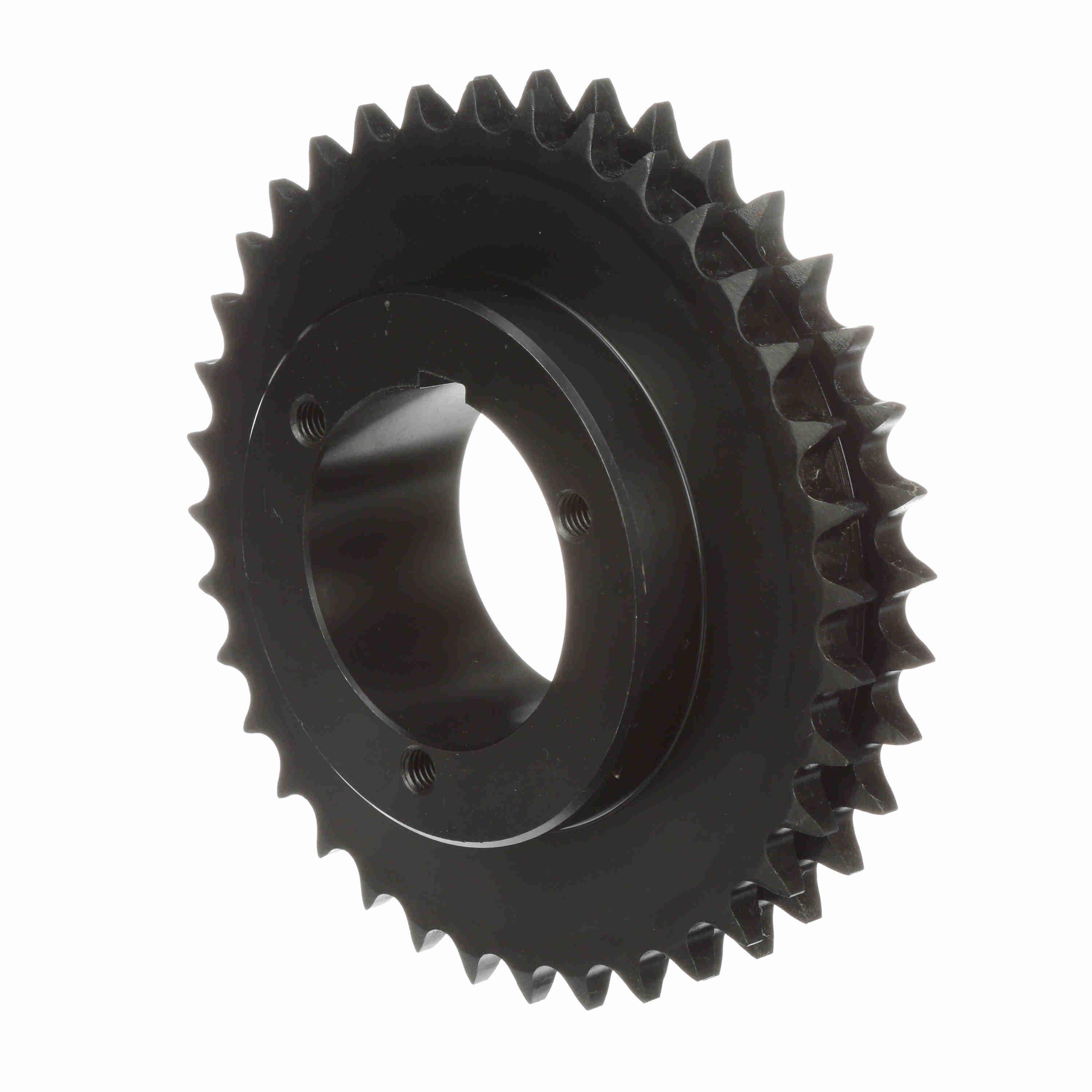

BROWNING 1174499 D50Q36 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GNEModel: 1174499Cross Ref: D50Q36
7 In Stock
36
Ships within 2 days via
€974.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 5/8" |
| Chain Size | 50-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 36 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.519" |
| Pitch Dia. | 7.171" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
| Weight | 10.38 lbs. |
Shipping Info:
| Ship weight (kg) | 4.67 |
| Ship height (cm) | 19.1 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 19.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Length Through Bore | Type | Hub Dia. | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174382 | 4.522" | 4.193" | 1/2" to 1 3/4" | 2.1427" | Double Strand Type 12 | 3" | - | - | €593.53 | |
 |
1174390 | 4.722" | 4.392" | - | 2.1427" | Double Strand Type 12 | 3" | - | B Hub One Side | €794.57 | |
 |
D50P23 | - | - | - | - | - | - | - | - | €766.96 | |
 |
1174416 | 5.123" | 4.788" | - | 2 1/2" | Double Strand | 4 1/8" | Type Q1 Split Taper | B Hub One Side | €546.50 | |
 |
1174424 | 5.323" | 4.987" | - | 2.8281" | Double Strand Type 12 | 4 1/8" | - | B Hub One Side | €633.85 | |
|
D50Q26 | 5.522" | 5.185" | 3/4" to 2 11/16" | 2.8281" | Double Strand Type 12 | 4 1/8" | Split Taper Bushing | - | €755.37 | |
 |
1174440 | 5.722" | 5.384" | 3/4" to 2 11/16" | 2.8281" | Double Strand Type 12 | 4 1/8" | - | - | €865.32 |
