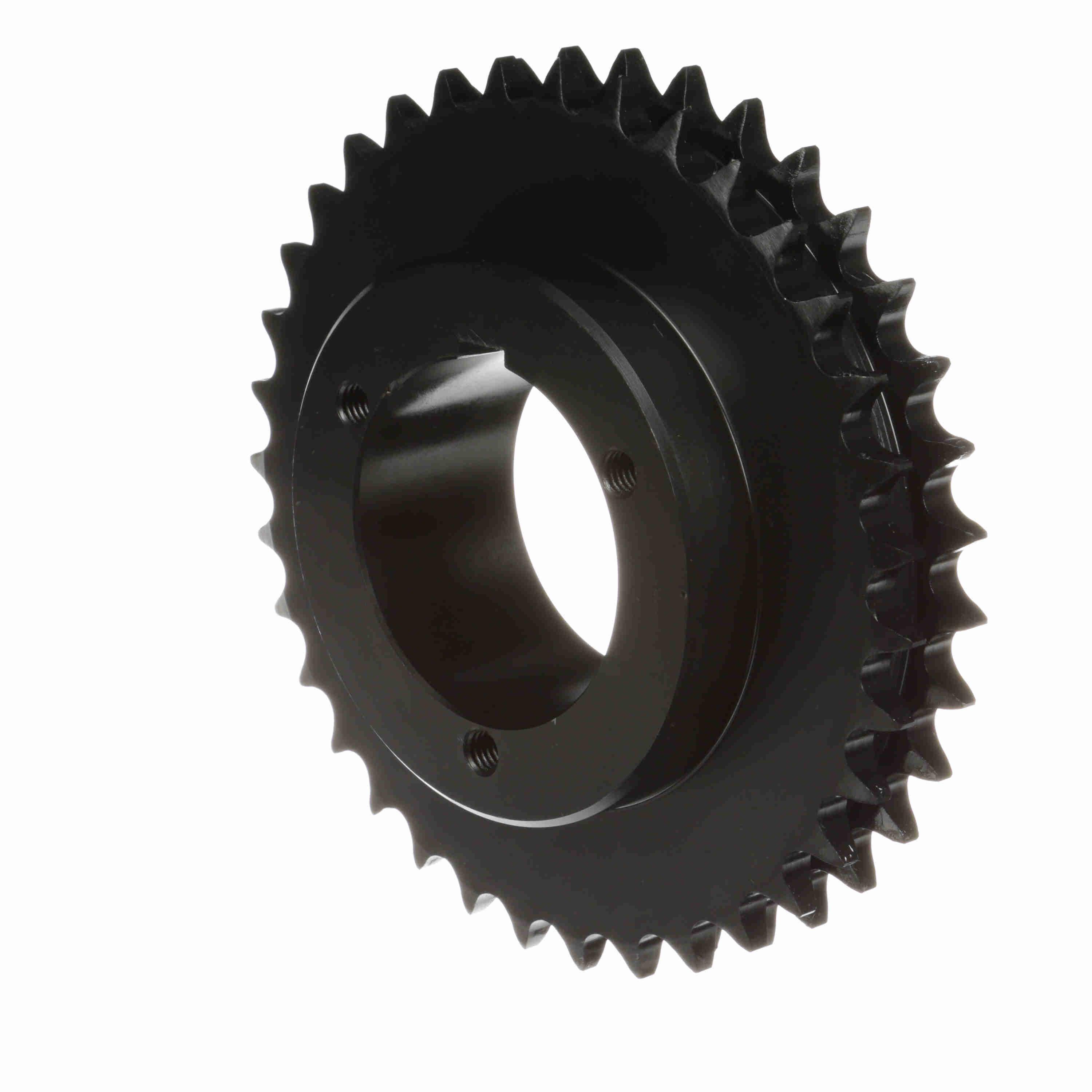

BROWNING 1174481 D50Q35 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GNDModel: 1174481Cross Ref: D50Q35
7 In Stock
35
Ships within 2 days via
€1,082.24 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 5/8" |
| Chain Size | 50-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 35 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.319" |
| Pitch Dia. | 6.973" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
| Weight | 9.78 lbs. |
Shipping Info:
| Ship weight (kg) | 4.4 |
| Ship height (cm) | 18.59 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 18.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Length Through Bore | Type | Hub Dia. | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174382 | 4.522" | 4.193" | 1/2" to 1 3/4" | 2.1427" | Double Strand Type 12 | 3" | - | - | €593.53 | |
 |
1174390 | 4.722" | 4.392" | - | 2.1427" | Double Strand Type 12 | 3" | - | B Hub One Side | €794.57 | |
 |
D50P23 | - | - | - | - | - | - | - | - | €766.96 | |
 |
1174416 | 5.123" | 4.788" | - | 2 1/2" | Double Strand | 4 1/8" | Type Q1 Split Taper | B Hub One Side | €546.50 | |
 |
1174424 | 5.323" | 4.987" | - | 2.8281" | Double Strand Type 12 | 4 1/8" | - | B Hub One Side | €633.85 | |
|
D50Q26 | 5.522" | 5.185" | 3/4" to 2 11/16" | 2.8281" | Double Strand Type 12 | 4 1/8" | Split Taper Bushing | - | €755.37 | |
 |
1174440 | 5.722" | 5.384" | 3/4" to 2 11/16" | 2.8281" | Double Strand Type 12 | 4 1/8" | - | - | €865.32 |
