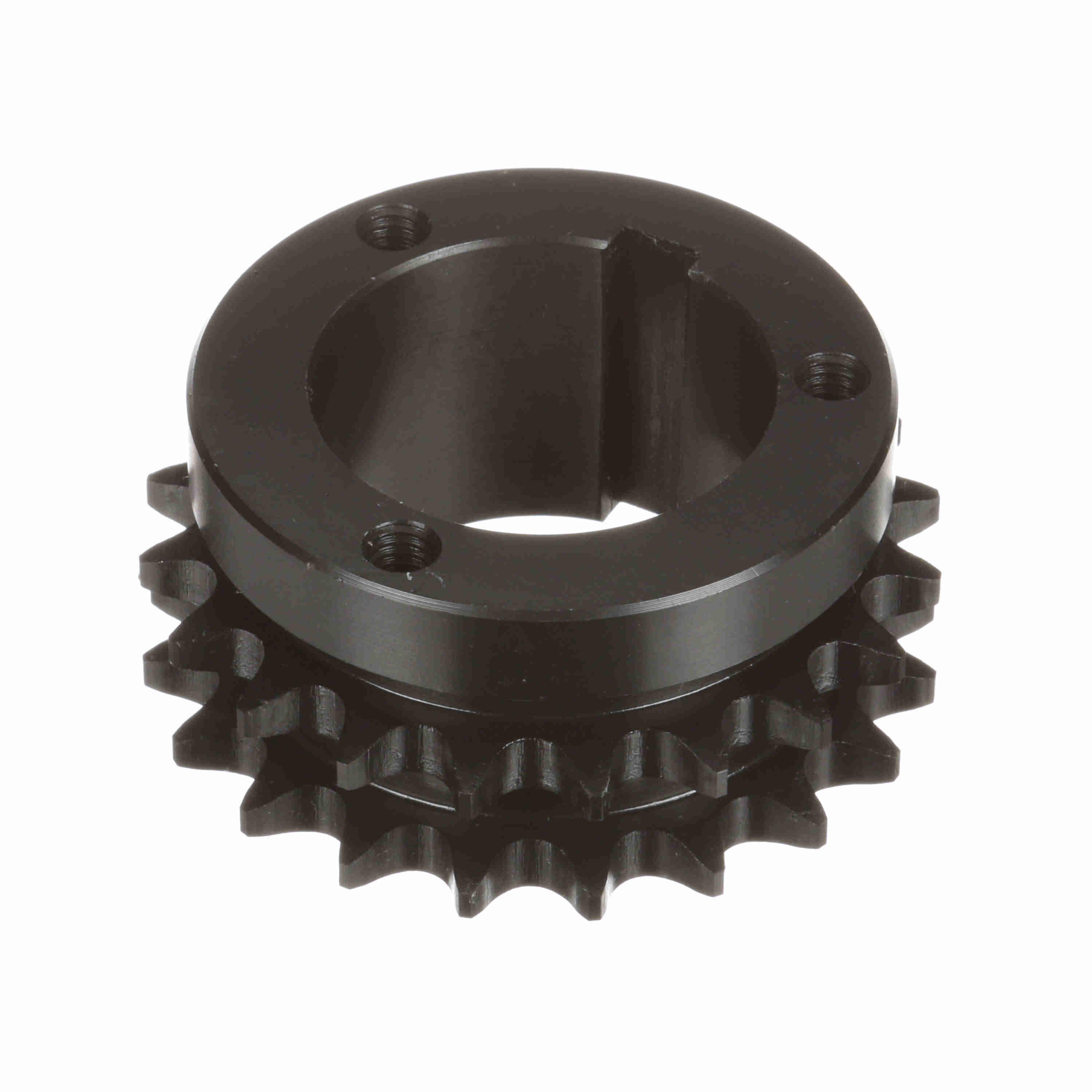

BROWNING 1174143 D40P20 Roller Chain Sprocket, Steel, Double Strand Type 12, 1/2 to 1-3/4 in Bore Dia, 3.457 in OD, 40 Chain Size, 20 Teeth, 3.196 in Pitch Dia
Item: BA6ZZTModel: 1174143Cross Ref: D40P20
7 In Stock
20
Ships within 2 days via
€547.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Size | P1 |
| Chain Pitch | 1/2" |
| Chain Size | 40-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 3" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.3732" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 20 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 3.457" |
| Pitch Dia. | 3.196" |
| Product Datasheet | browning-1174135.pdf |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 8.79 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 8.79 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1182823 | 3.672" | 3.938" | - | 3" | 2.1427" | Double Strand Type 12 | B Hub One Side | Yes | €693.97 | |
 |
D40Q42 | - | - | - | - | - | - | - | - | €811.29 | |
|
D40Q45 | - | - | - | - | - | - | - | - | €968.64 | |
 |
1182815 | 3.355" | 3.617" | 1/2" to 1 3/4" | 3" | 2.1432" | Double Strand Type 12 | - | - | €577.78 | |
 |
1174275 | 11.463" | 11.752" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €1,452.91 | |
|
D40H16 | - | - | - | - | - | - | - | - | €523.53 | |
 |
1174119 | 2.721" | 2.975" | 3/8" to 1 1/2" | 2.494" | 2.1053" | Double Strand Type 11 | - | - | €511.31 |
