BROWNING Steel Double Sprockets With Split Taper Bushings For No. 40 Chain
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R| Style | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D40Q95 | - | - | - | - | - | - | - | - | €729.15 | |
| A | D40Q35 | - | - | - | - | - | - | - | - | €774.56 | |
| A | D40Q68 | - | - | - | - | - | - | - | - | €1,158.79 | |
| A | D40Q112 | - | - | - | - | - | - | - | - | €1,204.26 | |
| A | D40Q76 | - | - | - | - | - | - | - | - | €569.80 | |
| A | D40Q96 | - | - | - | - | - | - | - | - | €773.74 | |
| A | D40H16 | - | - | - | - | - | - | - | - | €523.53 | |
| A | D40Q42 | - | - | - | - | - | - | - | - | €811.29 | |
| A | D40Q45 | - | - | - | - | - | - | - | - | €968.64 | |
| A | D40Q54 | - | - | - | - | - | - | - | - | €401.98 | |
| A | D40Q102 | - | - | - | - | - | - | - | - | €687.35 | |
| A | D40P24 | - | - | - | - | - | - | - | - | €533.71 | |
| B | 1174093 | 2.405" | 2.652" | - | 2.494" | 2.1173" | Double Strand Type 11 | B Hub One Side | Yes | €482.11 | |
| C | 1174119 | 2.721" | 2.975" | 3/8" to 1 1/2" | 2.494" | 2.1053" | Double Strand Type 11 | - | - | €511.31 | |
| D | 1174127 | 2.879" | 3.136" | - | 3" | 2.4688" | Double Strand Type 12 | C Hub Both Sides | Yes | €510.44 | |

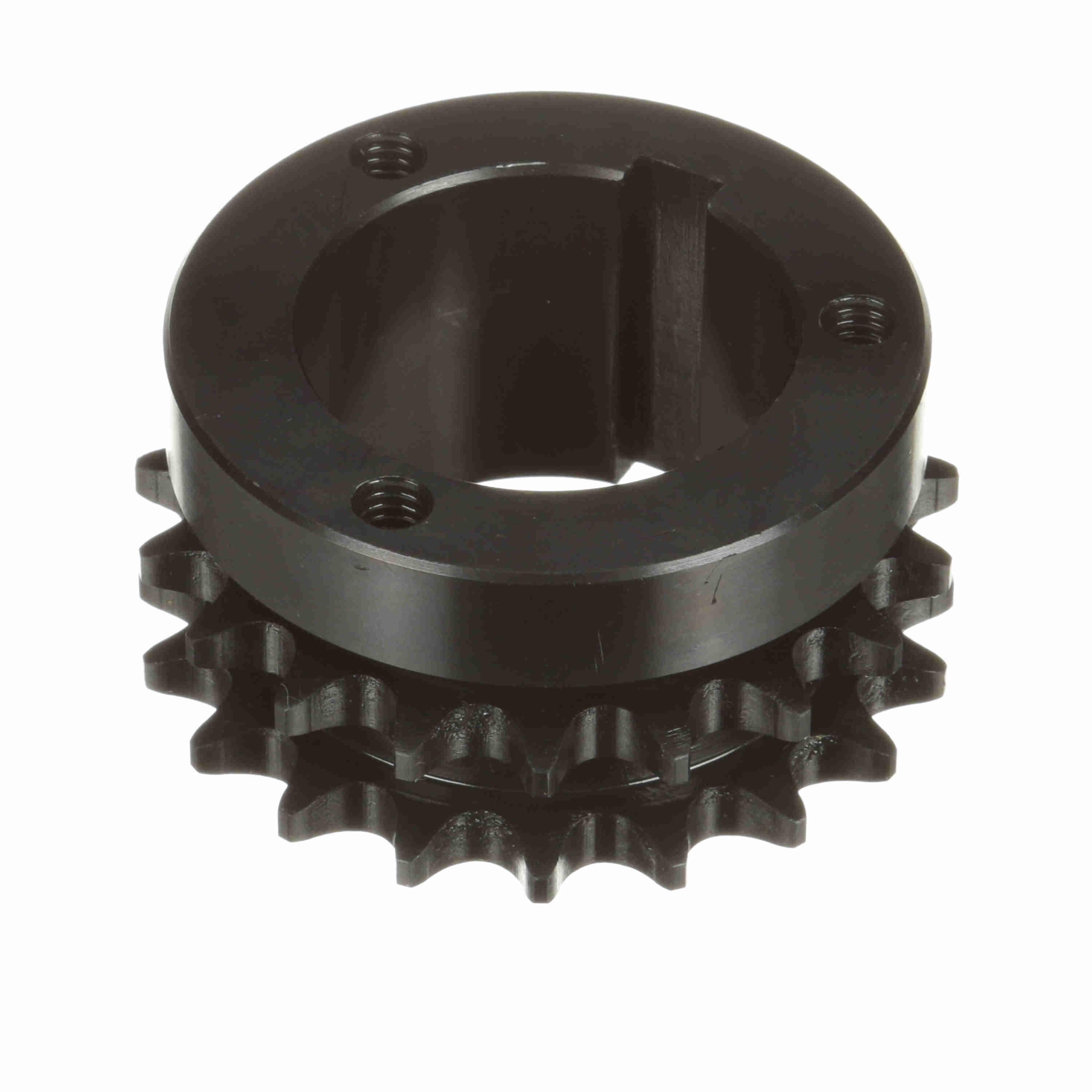

| E | 1174135 | 3.038" | 3.292" | - | 3" | 2.4688" | Double Strand Type 12 | B Hub One Side | Yes | €498.34 | |
| F | 1174143 | 3.196" | 3.457" | - | 3" | 2.3732" | Double Strand Type 12 | B Hub One Side | Yes | €547.15 | |
| G | 1182815 | 3.355" | 3.617" | 1/2" to 1 3/4" | 3" | 2.1432" | Double Strand Type 12 | - | - | €577.78 | |

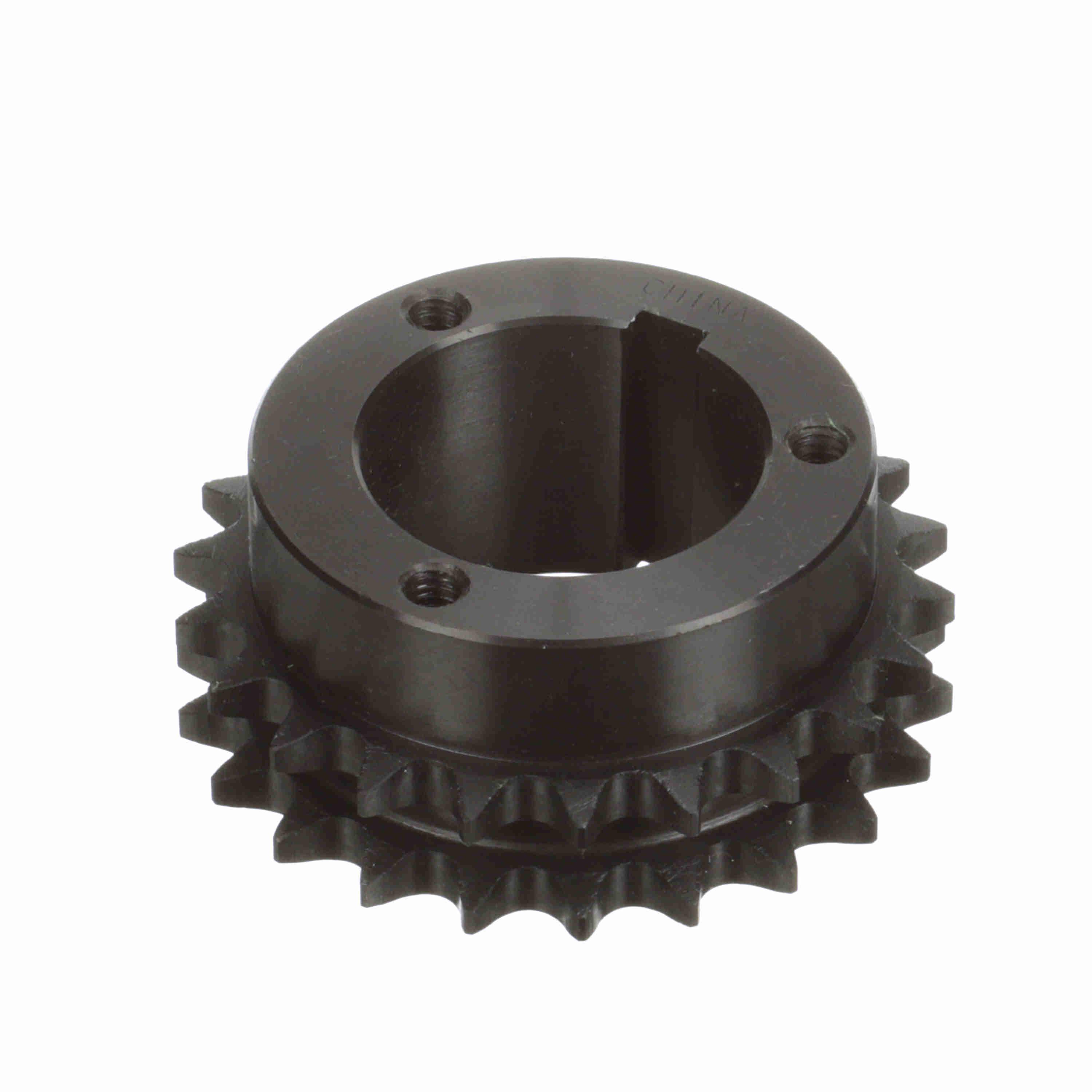

| H | 1174150 | 3.513" | 3.778" | 1/2" to 1 3/4" | 3" | 2.3612" | Double Strand Type 12 | - | - | €648.70 | |
| I | 1182823 | 3.672" | 3.938" | - | 3" | 2.1427" | Double Strand Type 12 | B Hub One Side | Yes | €693.97 | |

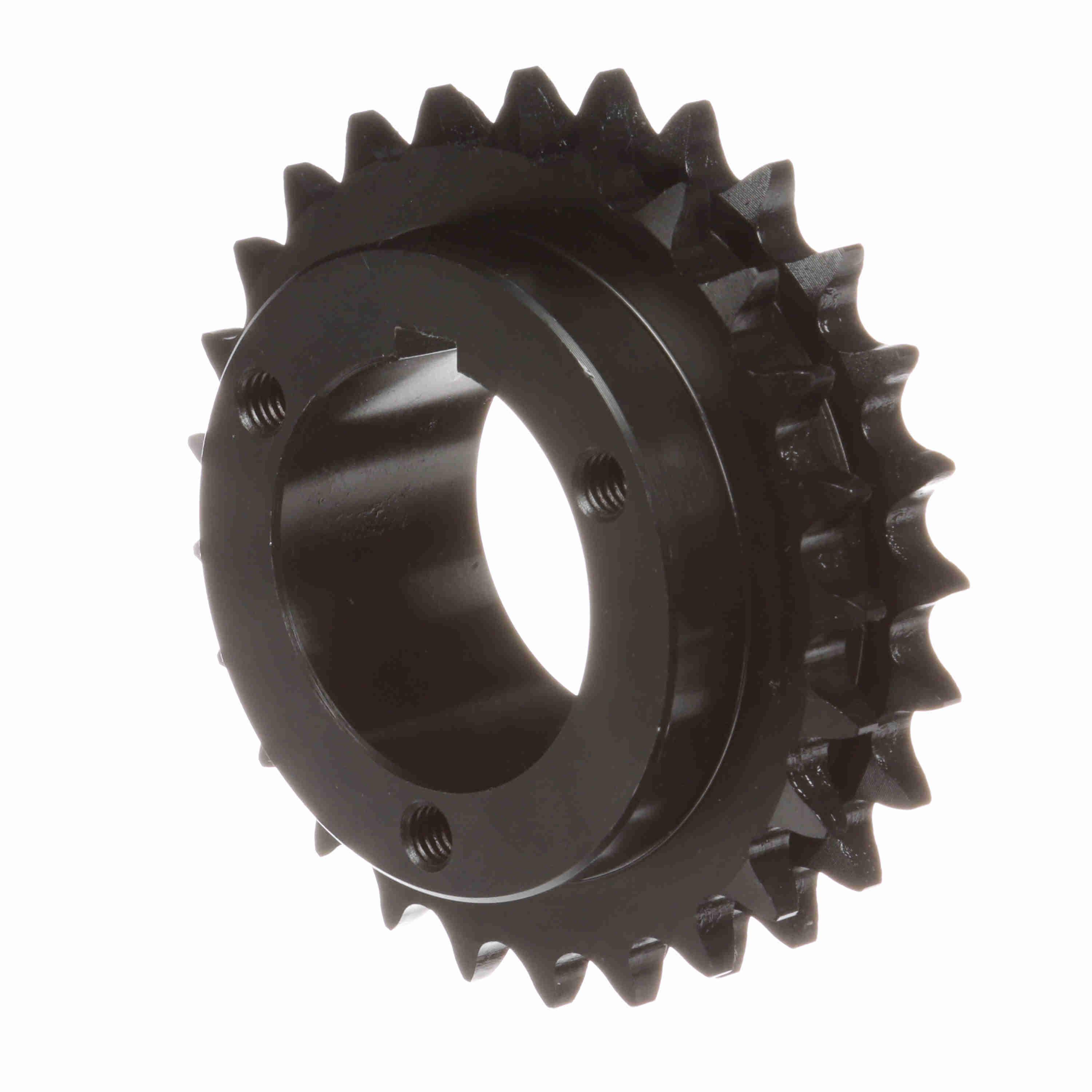

| J | 1174176 | 3.989" | 4.258" | 1/2" to 1 3/4" | 3" | 2.1427" | Double Strand Type 12 | - | - | €650.20 | |
| K | 1174184 | 4.148" | 4.418" | - | 3" | 2.1427" | Double Strand Type 12 | B Hub One Side | Yes | €740.50 | |
| D | 1174192 | 4.466" | 4.738" | 1/2" to 1 3/4" | 3" | 2.1427" | Double Strand Type 12 | - | - | €768.04 | |
| L | 1174200 | 4.783" | 5.057" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €522.87 | |

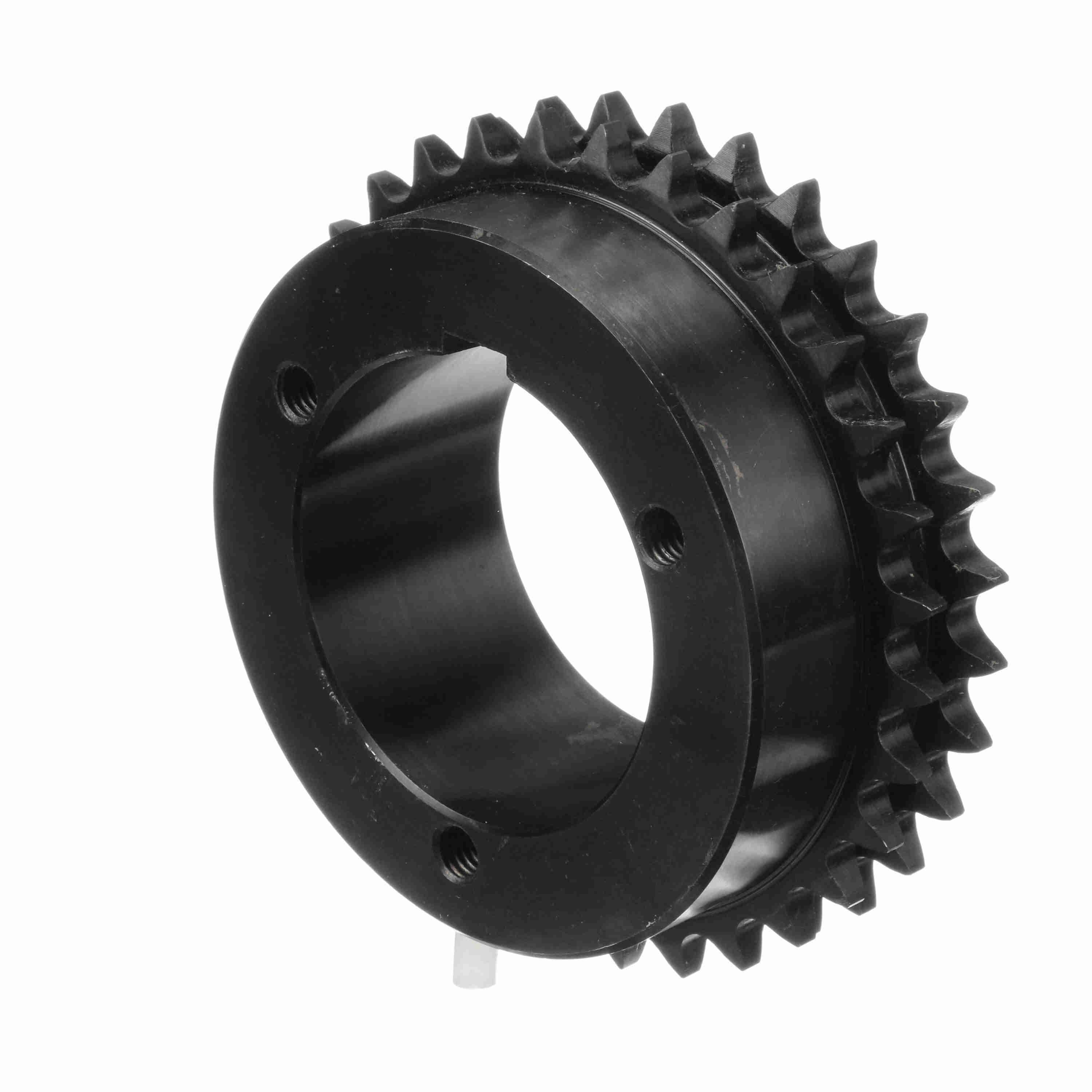

| M | 1174218 | 5.101" | 5.376" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €662.64 | |
| N | 1174234 | 5.737" | 6.015" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €812.71 | |
| O | 1174259 | 7.645" | 7.928" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €1,153.52 | |
| P | 1182864 | 8.281" | 8.566" | 3/4" to 2 11/16" | 4 1/8" | 2.7924" | Double Strand Type 12 | - | - | €1,063.22 | |
| Q | 1174267 | 9.554" | 9 21/25" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €1,255.87 | |
| R | 1174275 | 11.463" | 11.752" | - | 4 1/8" | 2.7924" | Double Strand Type 12 | B Hub One Side | Yes | €1,452.91 |
