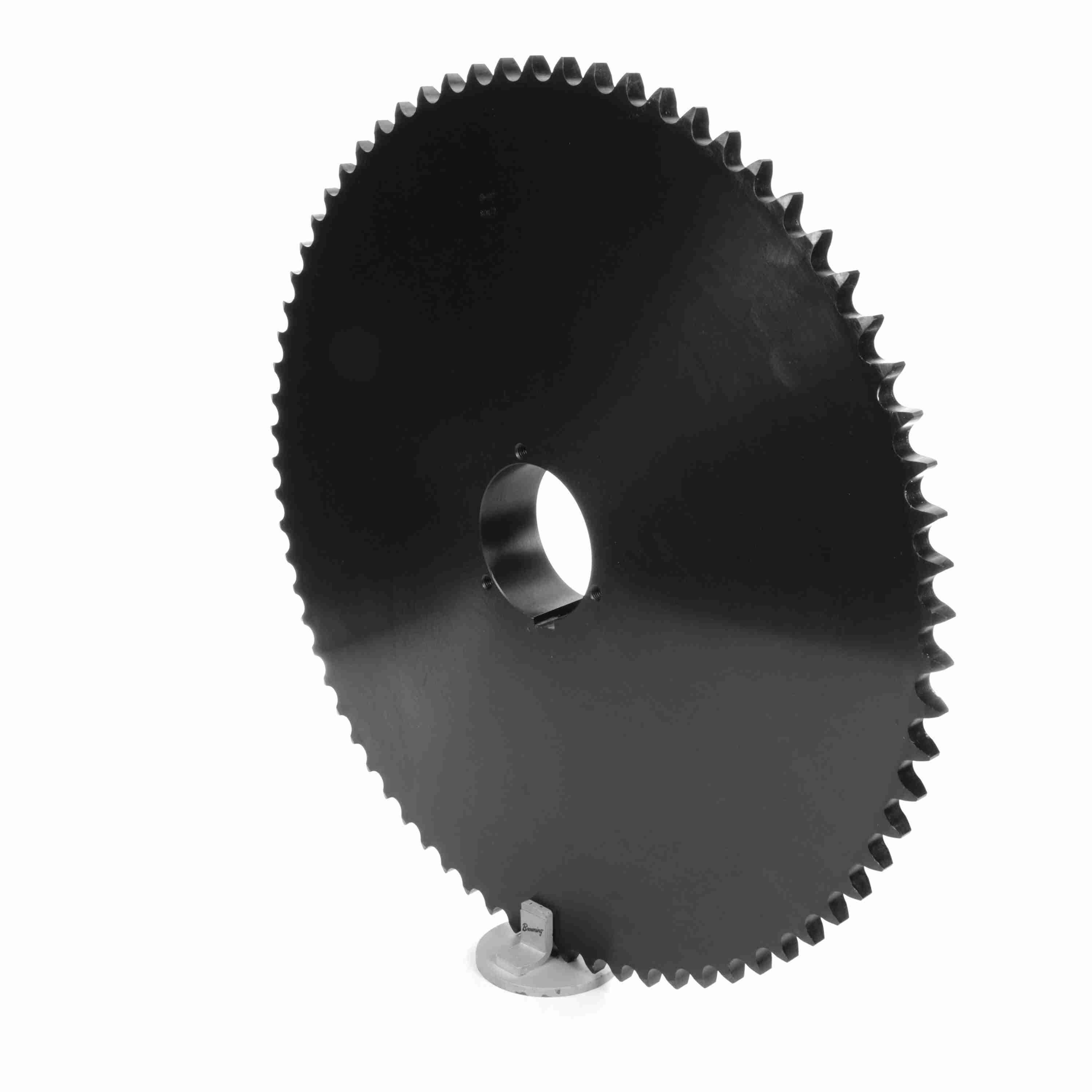

BROWNING 1172196 80R72 Roller Chain Sprocket, Bushed Bore, Steel
72
3.1563"
Get it by Tuesday, Dec 23
€2,361.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 5 3/8" |
| Hub Type | C Hub Both Sides |
| Keyway | Yes |
| Length Through Bore | 3.1563" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 72 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 23.504" |
| Pitch Dia. | 22.926" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 5 |
| Weight | 73 lbs. |
Shipping Info:
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 59.74 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 59.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1171891 | 9.884" | 10.434" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €858.39 | |
 |
1171909 | 10.202" | 10.753" | 3/4" to 2 11/16" | 4 1/8" | 2.8281" | Single Strand Type 4 | - | - | €725.81 | |
 |
1171917 | 10 13/25" | 11.072" | 3/4" to 2 11/16" | 4 1/8" | 2.8281" | Single Strand Type 4 | - | - | €754.55 | |
 |
1171925 | 10.838" | 11.392" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €864.08 | |
 |
1171933 | 11.156" | 11.711" | 3/4" to 2 11/16" | 4 1/8" | 2.8281" | Single Strand Type 4 | - | - | €791.35 | |
 |
1171941 | 11.471" | 12.03" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €866.97 | |
 |
1171958 | 11.471" | 12.03" | - | 5 3/8" | 3.1563" | Single Strand Type 4 | B Hub One Side | Yes | €903.11 |
