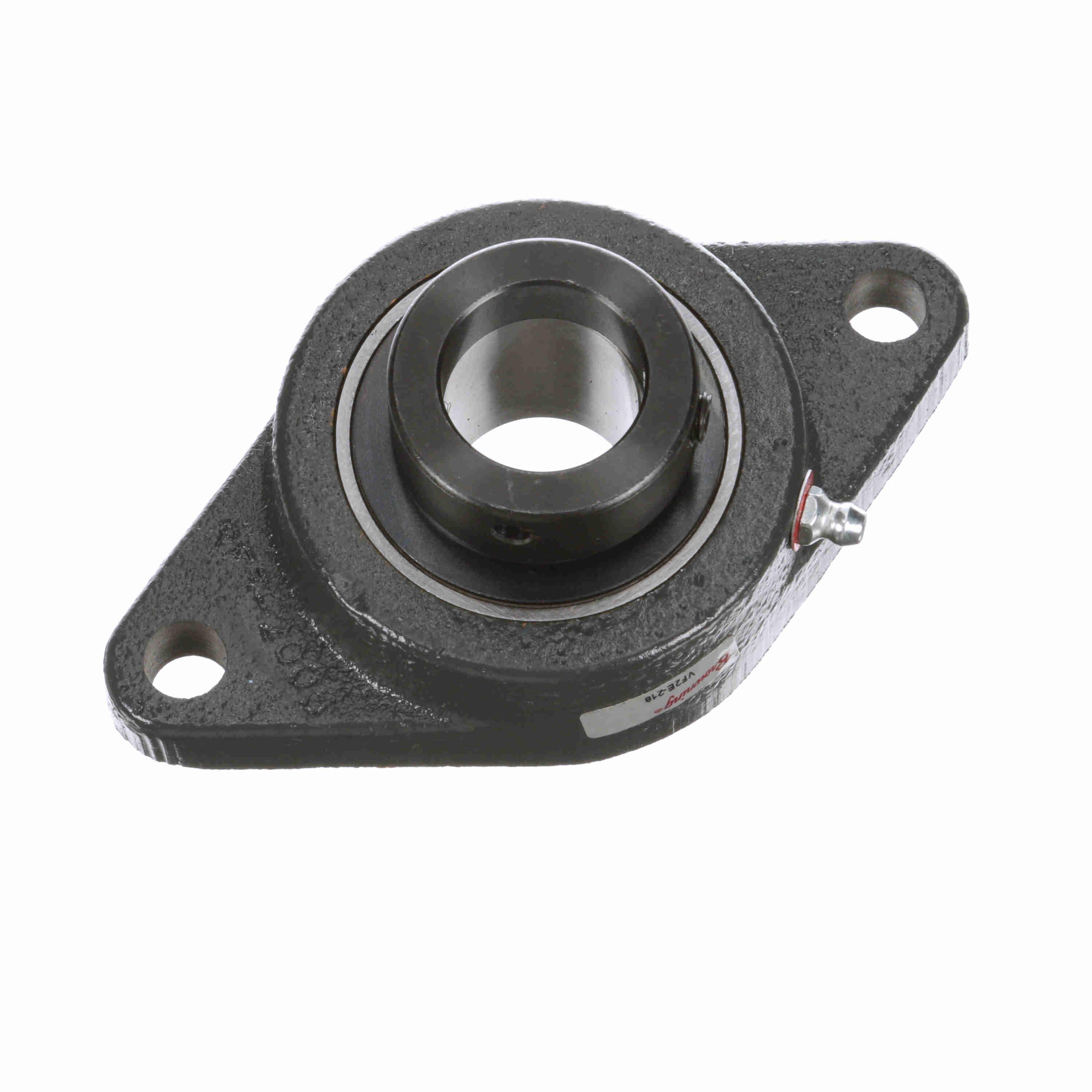

BROWNING 767366 VF2E-218 Two Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Eccentric Lock
Item: BD8TRDModel: 767366Cross Ref: VF2E-218
7 In Stock
Ships within 2 days via
€143.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 4 19/32" |
| Bolt Spacing | 4.594" |
| Bore Dia. | 1 1/8" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VE-218 |
| Length Through Bore | 1.906" |
| Locking Device | Eccentric |
| Material | Steel |
| Max. Speed | 4500 RPM |
| Mounting Bolts | 7/16" |
| Mounting Method | Eccentric Collar |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 4 3/5" |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Has Flinger |
| Overall Depth | 2" |
| Overall Dia. | 5 9/16" |
| Overall Height | 3 1/8" |
| Overall Length | 5 9/16" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2E 200 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 0.95 Kg |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 9.4 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Locking Device | Bolt Center To Center Length | Housing Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

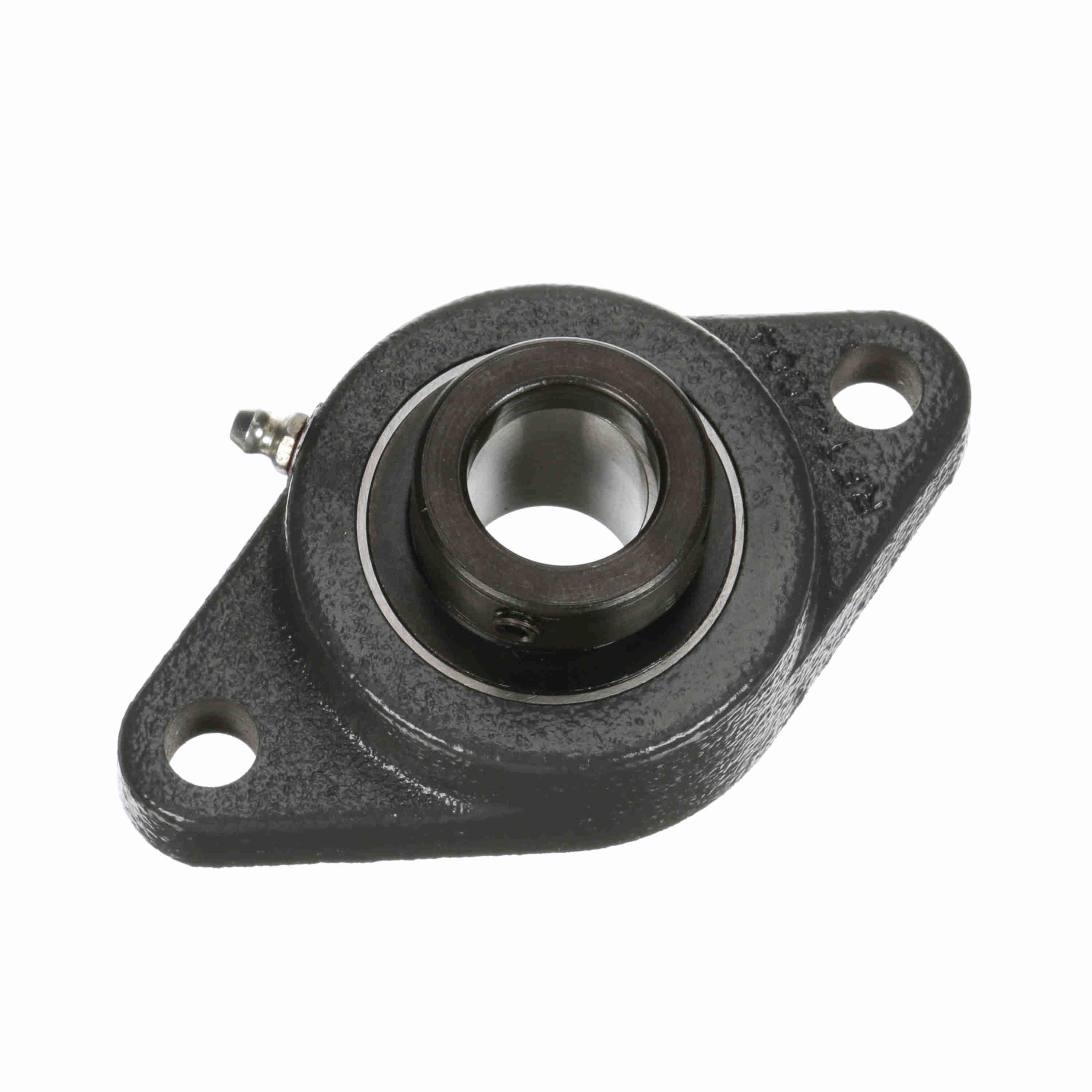

767930 | 15/16" | 4 7/8" | 2 3/4" | 5500 RPM | Eccentric | 3 57/64" | - | Painted | - | RFQ
|
 |

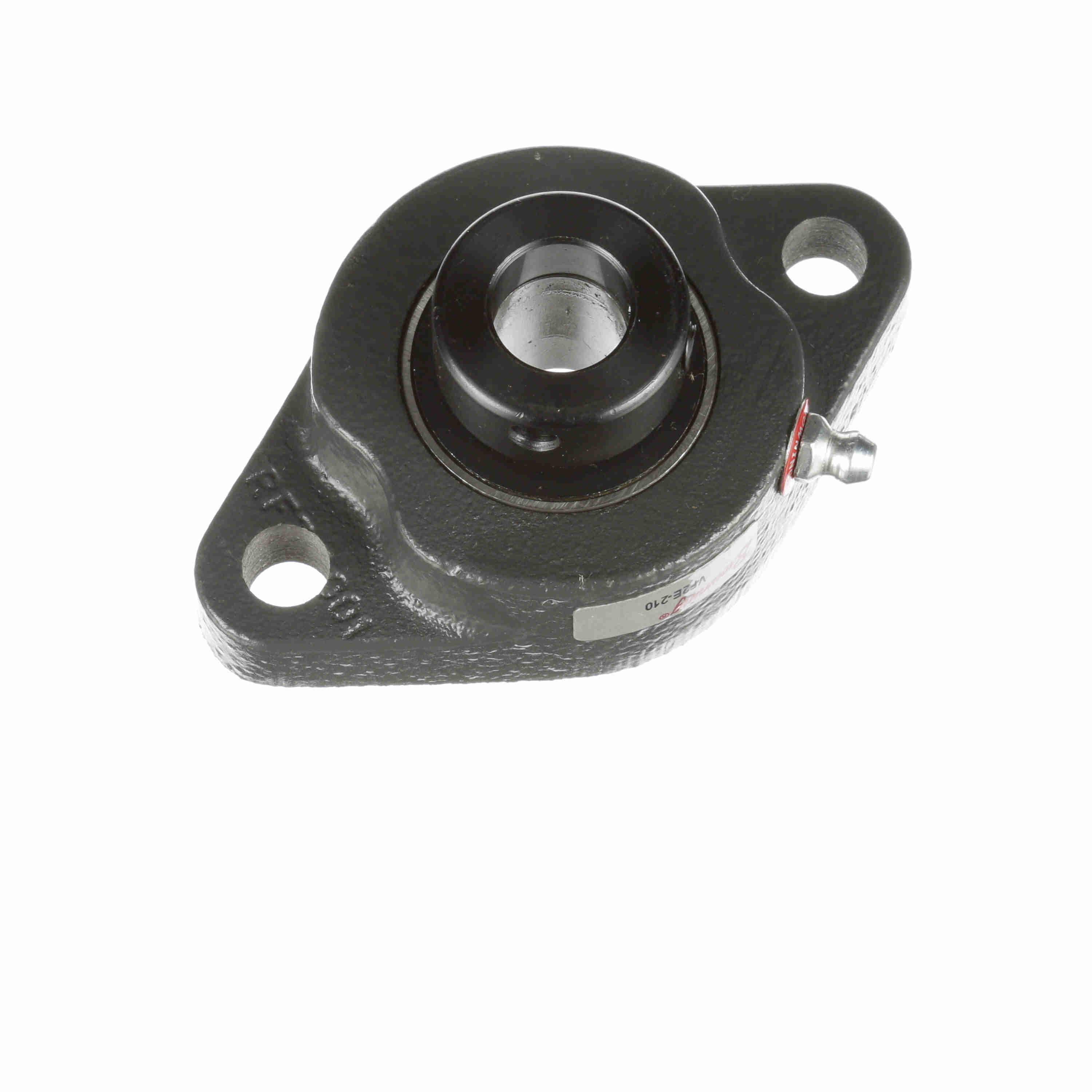

767355 | 5/8" | 3 7/8" | 2 1/8" | 7500 RPM | Eccentric | 3" | Cast Iron | Painted | €102.10 | |
 |

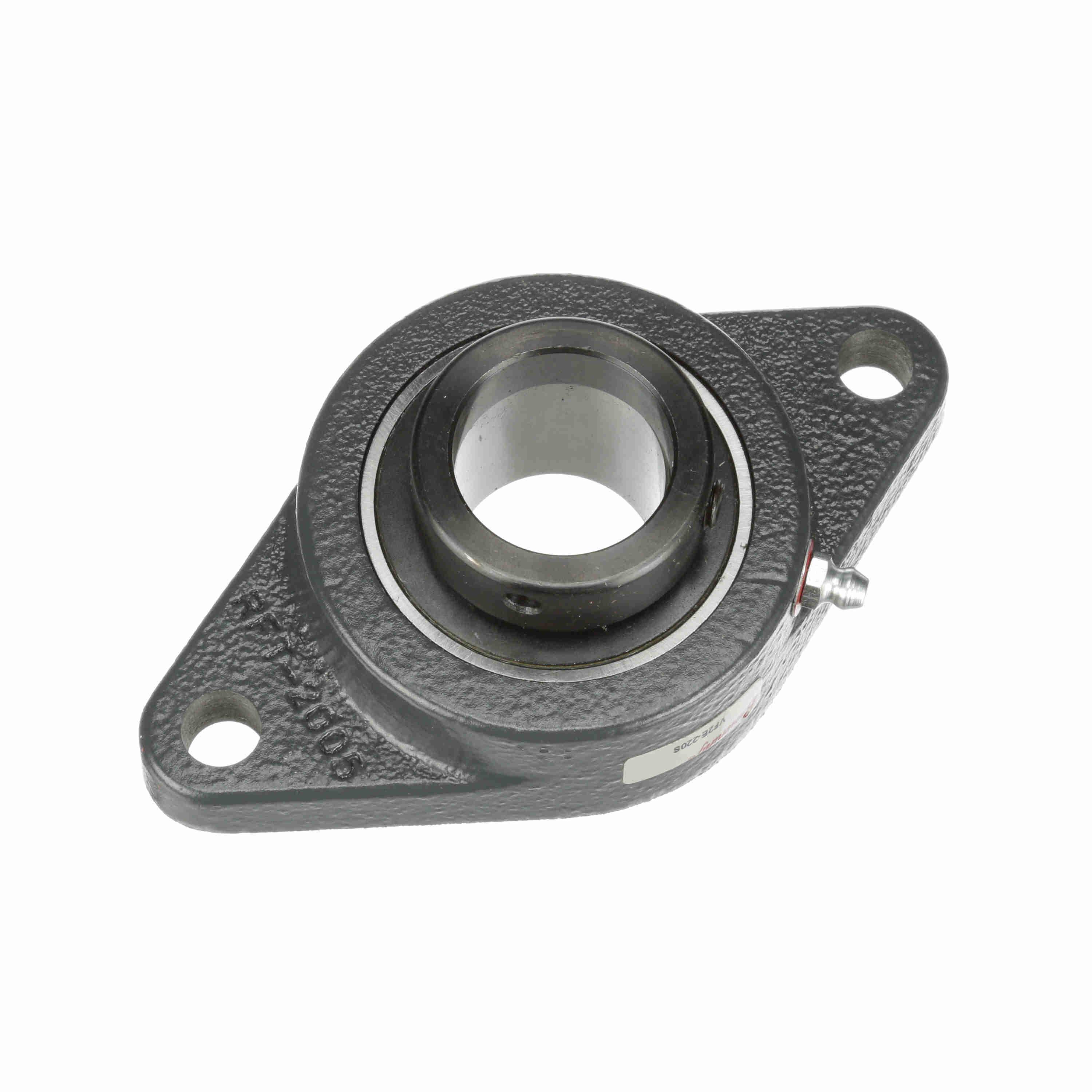

767851 | 1 1/4" | 5 9/16" | 3 1/8" | 4500 RPM | Eccentric | 4 19/32" | Cast Iron | Painted | €306.88 | |
 |
767537 | 1 3/16" | 5 9/16" | 3 1/8" | 4500 RPM | Eccentric | 4 19/32" | Cast Iron | Painted | €178.86 | |
 |

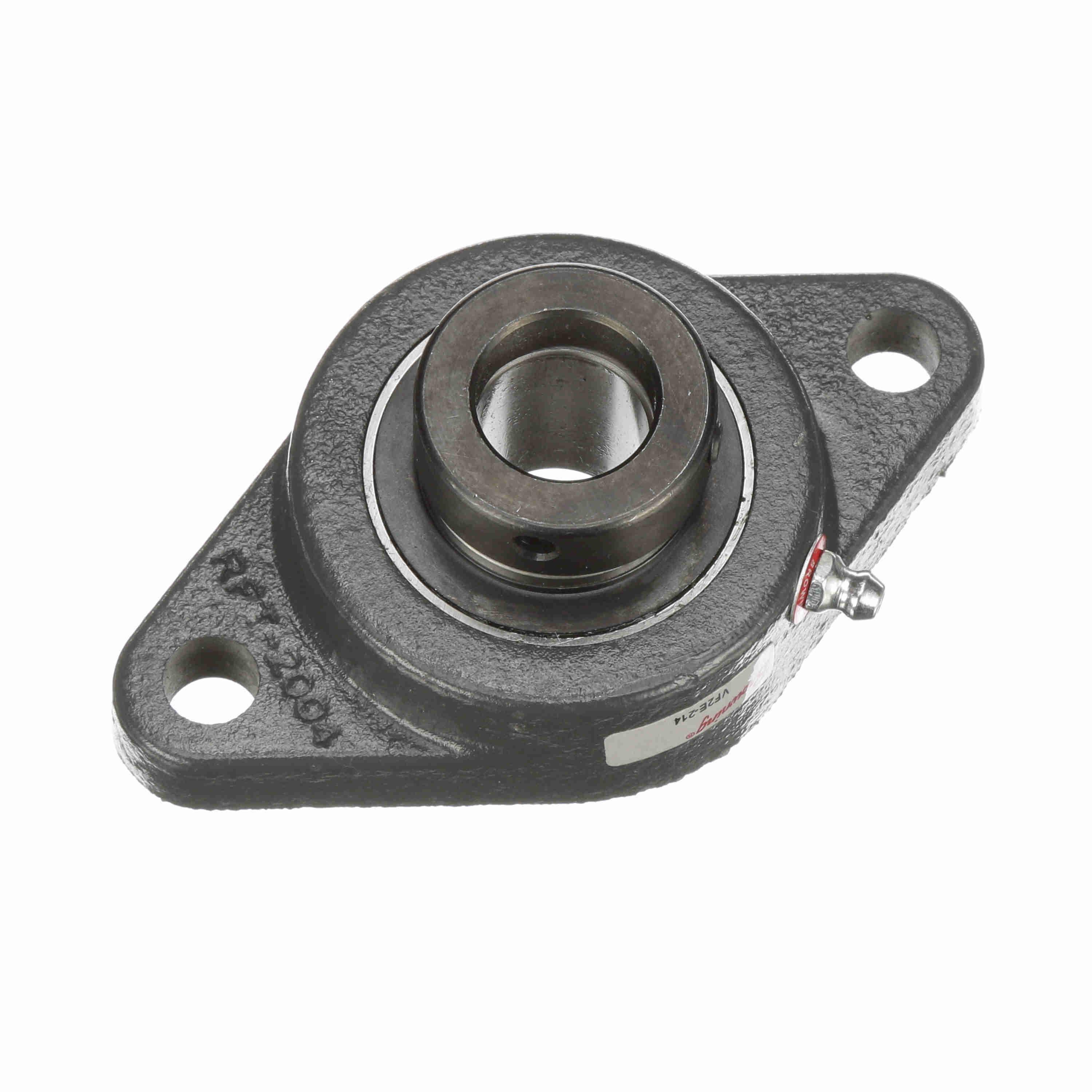

767901 | 7/8" | 4 7/8" | 2 3/4" | 5500 RPM | Eccentric | 3 57/64" | - | Painted | €129.41 | |
 |

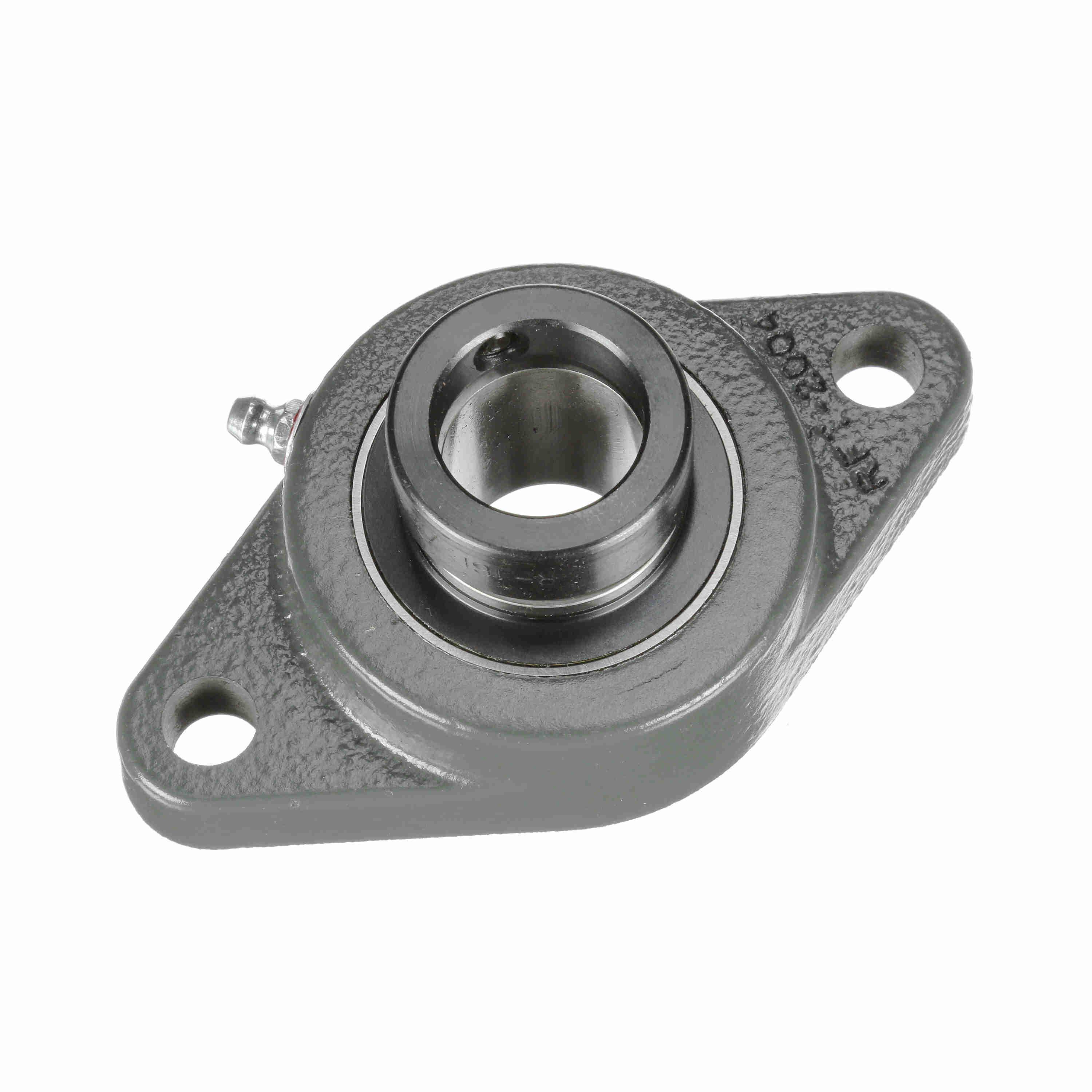

767361 | 1" | 2 3/4" | 4 7/8" | 5500 RPM | Eccentric Collar | 3 57/64" | Cast Iron | Painted | €130.63 | |
 |
767805 | 1/2" | 3 7/8" | 2 1/8" | 7500 RPM | Eccentric | 3" | Cast Iron | Painted | €102.10 |
