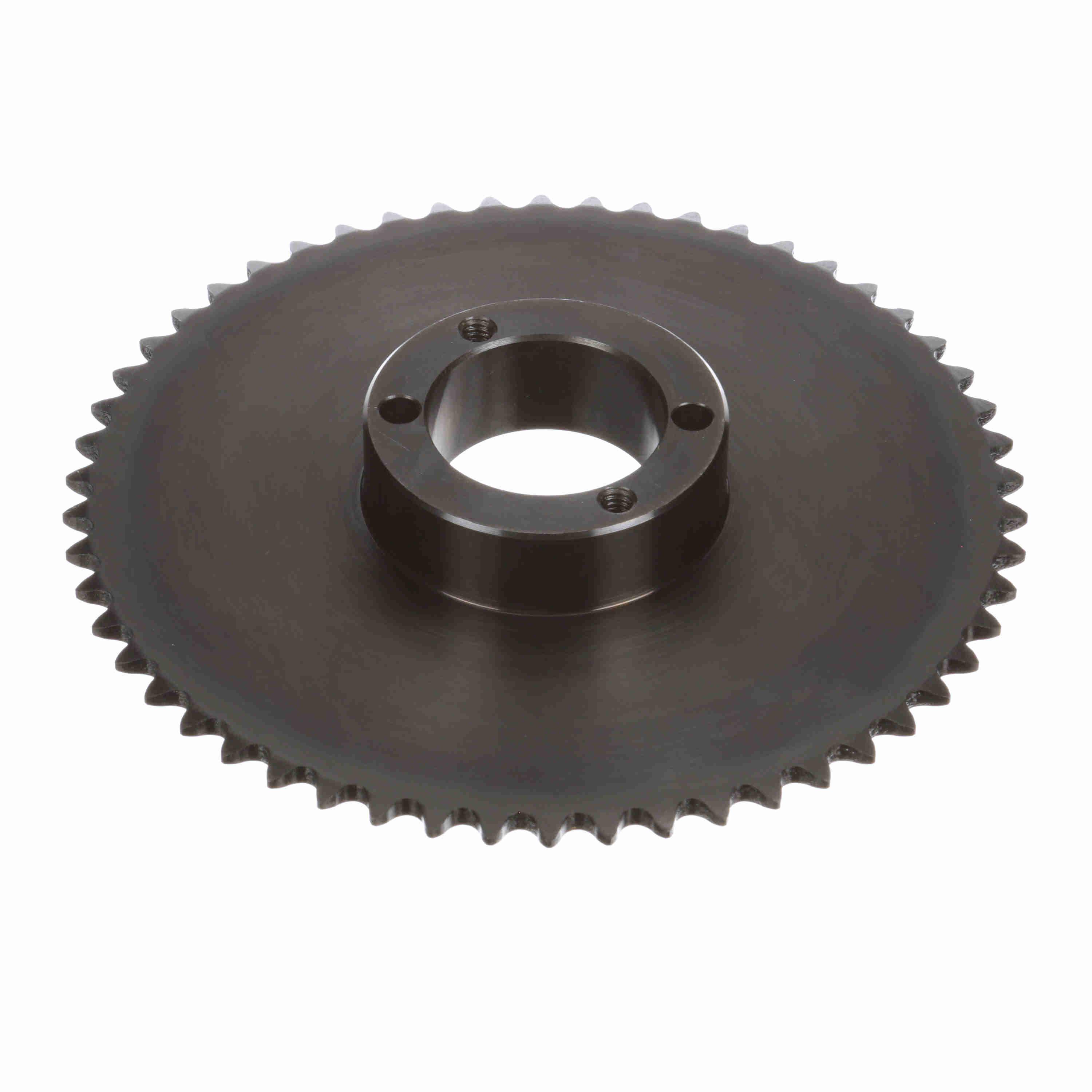

BROWNING 1169366 35H54 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9FYDModel: 1169366Cross Ref: 35H54
7 In Stock
54
Ships within 2 days via
€485.47 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 3/8" |
| Chain Size | 35 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.5123" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 54 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 6.663" |
| Pitch Dia. | 6.449" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 16.92 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 16.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1169135 | 1.804" | 1.989" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €108.52 | |
 |
1169317 | 4.303" | 4.511" | - | 2.494" | 1.5123" | Single Strand Type 3 | B Hub One Side | Yes | €378.84 | |
 |
1169184 | 2.279" | 2.472" | 3/8" | 2.494" | 1.276" | Single Strand | B Hub One Side | Yes | €210.92 | |
 |
1169259 | 2.992" | 3.194" | 3/8" | 2.494" | 1.276" | Single Strand | B Hub One Side | Yes | €299.35 | |
 |
1169143 | 1.922" | 2.11" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €168.10 | |
 |
1169150 | 2.041" | 2.231" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €191.10 | |
 |
1169424 | 13.371" | 13.59" | - | 2.494" | 1.5123" | Single Strand Type 3 | B Hub One Side | Yes | €863.37 |
