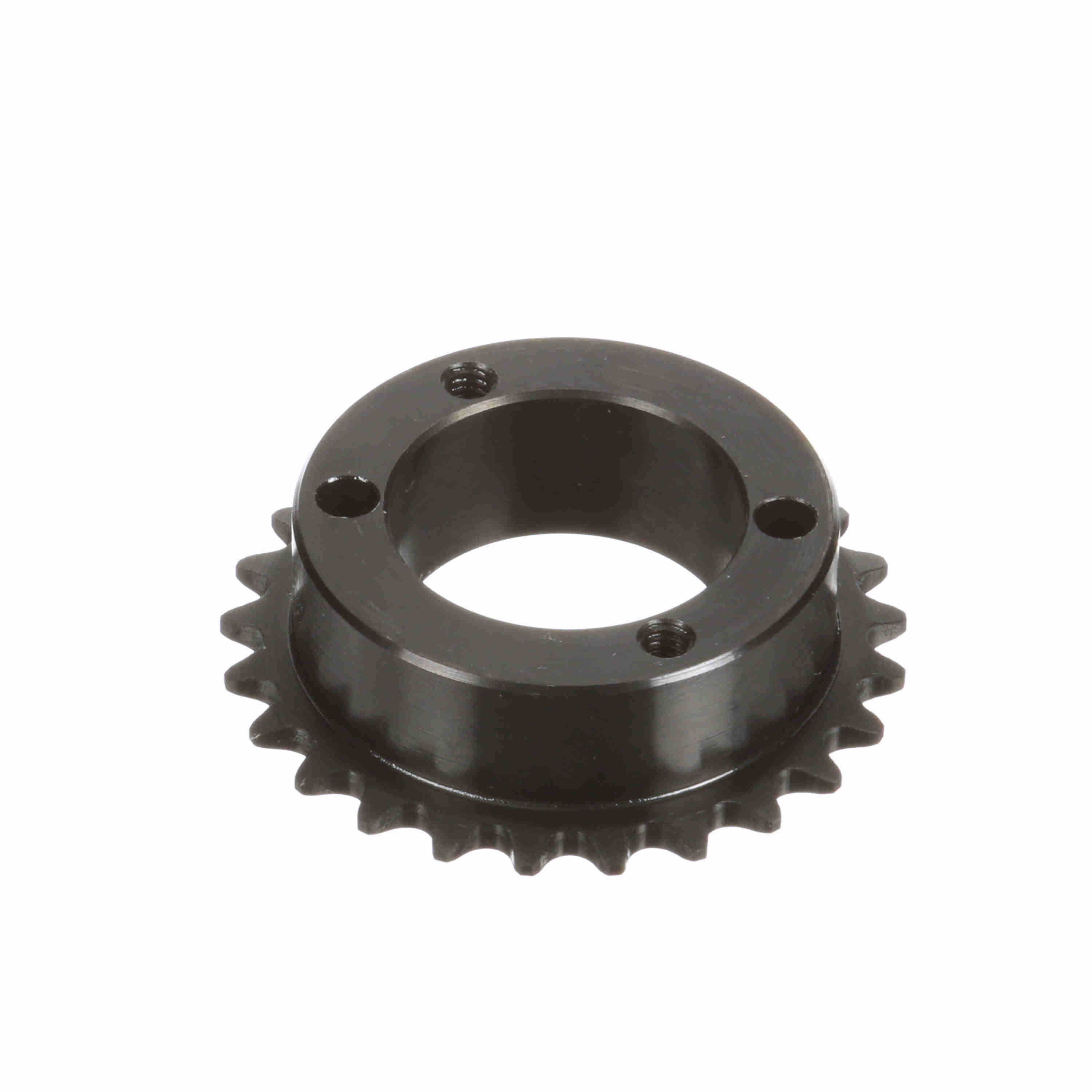

BROWNING 1169259 35H25 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9FXRModel: 1169259Cross Ref: 35H25
7 In Stock
25
Ships within 2 days via
€299.35 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bore Dia. | 3/8" |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Bushing Type | Type 3 Split Taper |
| Chain Pitch | 3/8" |
| Chain Size | 35 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.276" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 25 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 3.194" |
| Pitch Dia. | 2.992" |
| Pitch Size | 3/8" |
| System Of Measurement | Imperial |
| Type | Single Strand |
| Weight | 0.84 lbs. |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1169135 | 1.804" | 1.989" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €108.52 | |
 |
1169143 | 1.922" | 2.11" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €168.10 | |
 |
1169150 | 2.041" | 2.231" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €191.10 | |
 |
1169168 | 2 4/25" | 2.352" | 3/8" | 2.015" | 1.026" | Single Strand | - | - | €196.94 | |
 |
1169176 | 2.279" | 2.472" | 3/8" | 2.015" | 1.026" | Single Strand | B Hub One Side | Yes | €213.37 | |
 |
1169184 | 2.279" | 2.472" | 3/8" | 2.494" | 1.276" | Single Strand | B Hub One Side | Yes | €210.92 | |
 |
1169192 | 2.397" | 2.593" | - | 2.494" | 1.5063" | Single Strand Type 3 | B Hub One Side | Yes | €223.12 |
