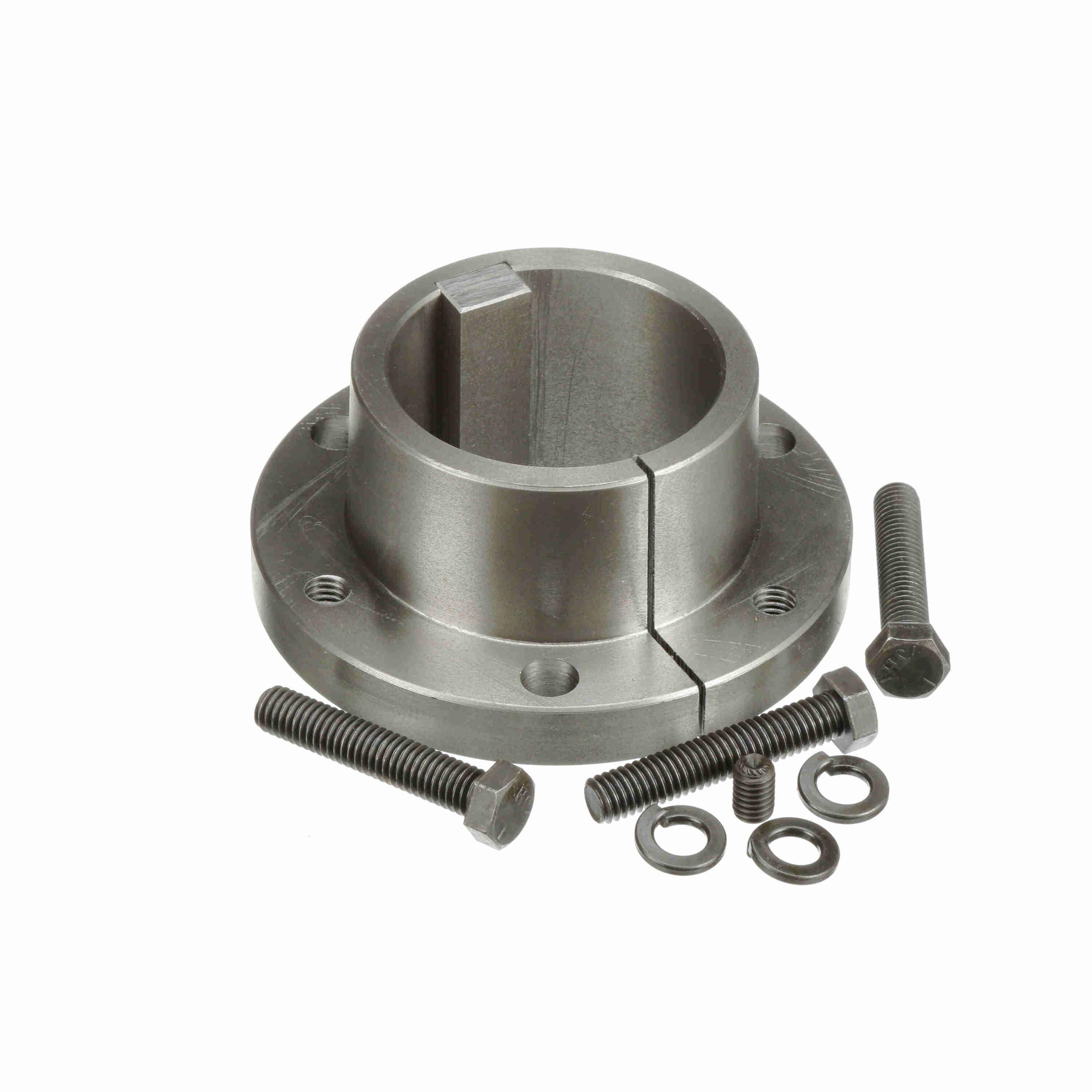

BROWNING 1077445 SF 2 1/2 Q-D Bushing, 2.5 Inch Bore Size, 4.625 Inch Outer Diameter, SF Bushing, Gray Iron
Item: AJ9QWMModel: 1077445Cross Ref: SF 2 1/2
7 In Stock
2 1/2"
Ships within 2 days via
€90.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 3 1/8" |
| Bolt Circle Dia. | 3 7/8" |
| Bore Size | 2 1/2" |
| Bushing Series | SF Series |
| Bushing Style | QD |
| Flange Dia. | 4 5/8" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Key Way Size | 5/8" x 5/16" |
| Keyway | Yes |
| Length Thru Bore | 2.063" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 3 1/8" |
| Overall Length | 1.995" |
| Product Datasheet | browning-e-1-7-8.pdf |
| Screw Size | 3/8"-16 |
| Screw Thread Length | 2" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 7.95 |
Documentation:
Product Variants
| Product | Model | Material | Bore Size | Key Way Size | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1077221 | Ductile Iron | 1 1/4" | 1/4" x 1/8" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €172.38 | |
 |
1077270 | Ductile Iron | 1 7/16" | 3/4" x 3/16" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €172.38 | |
 |
1077288 | Ductile Iron | 1 1/2" | 3/4" x 3/16" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €169.14 | |
 |
1077304 | Ductile Iron | 1 5/8" | 3/4" x 3/16" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €117.61 | |
 |
1077312 | Ductile Iron | 1 11/16" | 3/4" x 3/16" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €172.38 | |
 |
1077320 | Ductile Iron | 1 3/4" | 3/4" x 3/16" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €117.61 | |
 |
1077346 | Ductile Iron | 1 7/8" | 1/2" x 1/4" | 3 7/8" | - | 3 | 3/8"-16 | 4 5/8" | €115.91 |
