FREE delivery on orders over €150

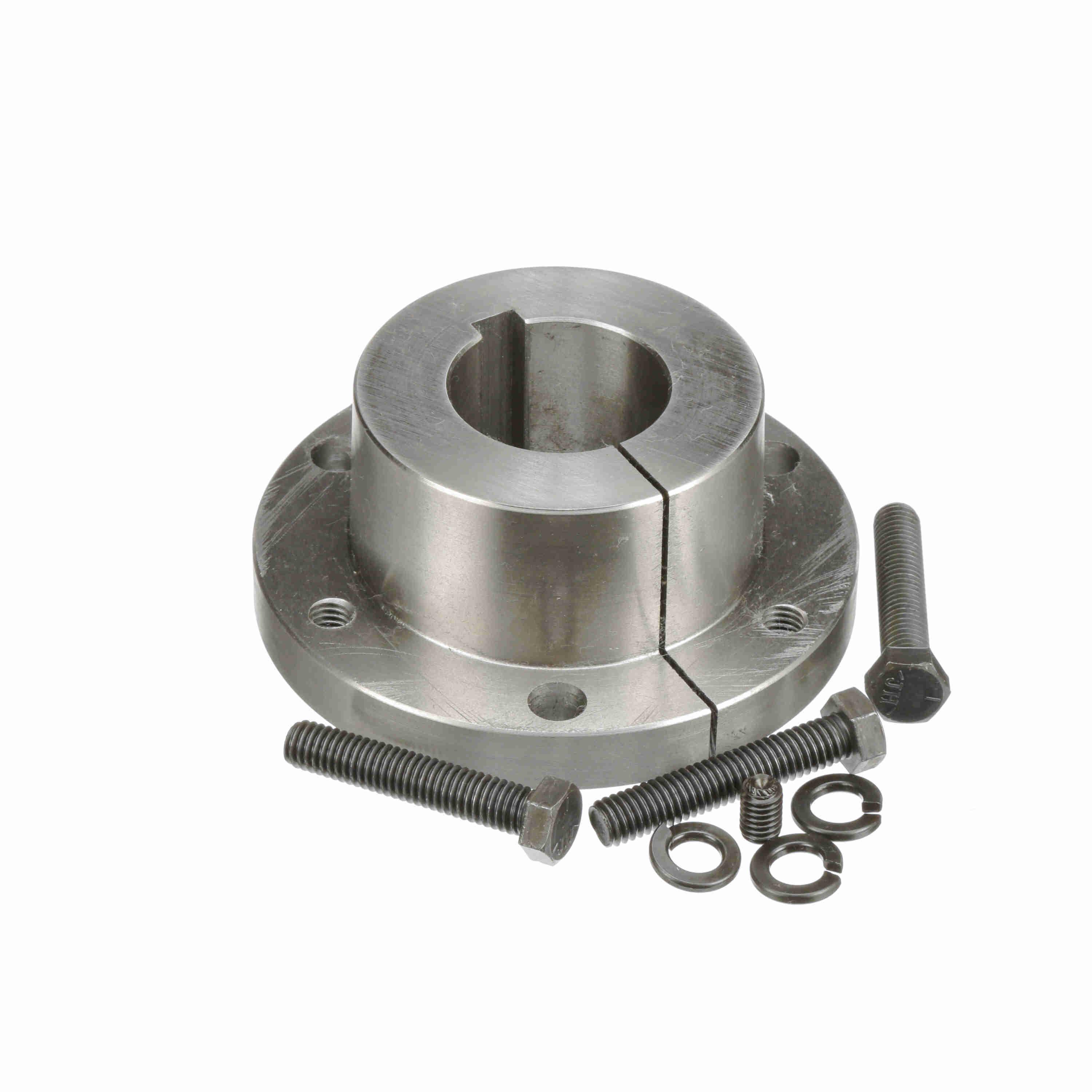

BROWNING 1077304 SF 1 5/8 Q-D Bushing, 1.625 Inch Bore Size, 4.625 Inch Outer Diameter, SF Bushing, Gray Iron
Item: AJ9QTTModel: 1077304Cross Ref: SF 1 5/8
7 In Stock
Ships within 2 days via
€117.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 3 1/8" |
| Bolt Circle Dia. | 3 7/8" |
| Bore Size | 1 5/8" |
| Bushing Series | SF Series |
| Bushing Style | QD |
| Flange Dia. | 4 5/8" |
| Flange Thickness | 9/16" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 3/4" x 3/16" |
| Length Thru Bore | 2.063" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 3 1/8" |
| Overall Length | 1.995" |
| Rated Torque | 11000 lbs.-in. |
| Screw Size | 3/8"-16 |
| Screw Thread Length | 2" |
| System Of Measurement | Imperial |
| Weight | 4.3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 7.95 |
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1077189 | 1.995" | 1" | 1/4" x 1/8" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €79.72 | RFQ
|
 |
1077205 | 1.995" | 1 1/8" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €106.05 | |
 |
1077213 | 1.995" | 1 3/16" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €79.72 | RFQ
|
 |
1077221 | 1.995" | 1 1/4" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €172.38 | |
 |
1077262 | 2" | 1 3/8" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €106.05 | |
 |
1077270 | 1.995" | 1 7/16" | 3/4" x 3/16" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €172.38 | |
 |
1077288 | 1.995" | 1 1/2" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €169.14 |
