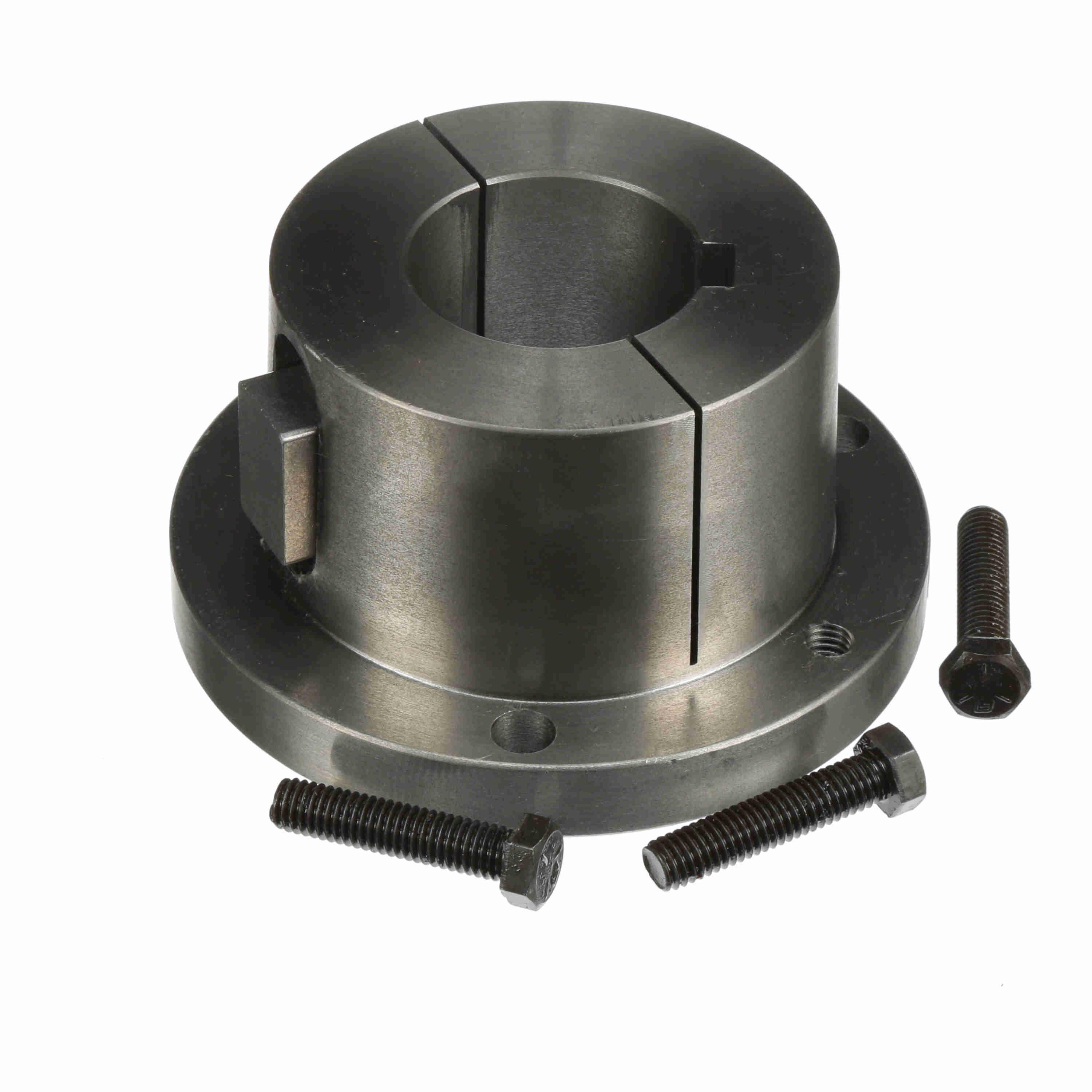

BROWNING 1070218 R1 2 Split Taper Bushing, 2 Inch Bore Size, 5.375 Inch Outer Dia., R1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XKWModel: 1070218Cross Ref: R1 2
7 In Stock
Ships within 2 days via
€228.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 3 7/8", 4" |
| Bolt Circle Dia. | 4 5/8" |
| Bore Size | 2" |
| Bushing Series | R1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 5/8" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 1/2" x 1/4" |
| Length Thru Bore | 2 22/25" |
| Material | Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4" |
| Overall Length | 2 7/8" |
| Screw Size | 1 3/4" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 3.78 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 14.22 |
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1070382 | 2 7/8" | 3 1/8" | - | 4 5/8" | 5/8" | 4" | Type R1 | €278.16 | |
 |
1070390 | 2 7/8" | 3 3/16" | - | 4 5/8" | 5/8" | 4" | Type R1 | €274.13 | |
 |
1070069 | 2 7/8" | 1 1/8" | - | 4 5/8" | 5/8" | 4" | Type R1 | €399.98 | |
 |
1070283 | 2 7/8" | 2 7/16" | 5/8" x 5/16" | 4 5/8" | 5/8" | 4" | - | €215.08 | |
 |
1070358 | 2 7/8" | 2 7/8" | 3/4" x 3/8" | 4 5/8" | 5/8" | - | - | €215.08 | |
 |
1070424 | 2 7/8" | 3 7/16" | 7/8" x 7/16" | 4 5/8" | 5/8" | 4" | - | €215.08 | |
 |
1070242 | 2 7/8" | 2 3/16" | 1/2" x 1/4" | 4 5/8" | 5/8" | 4" | - | €215.08 |
