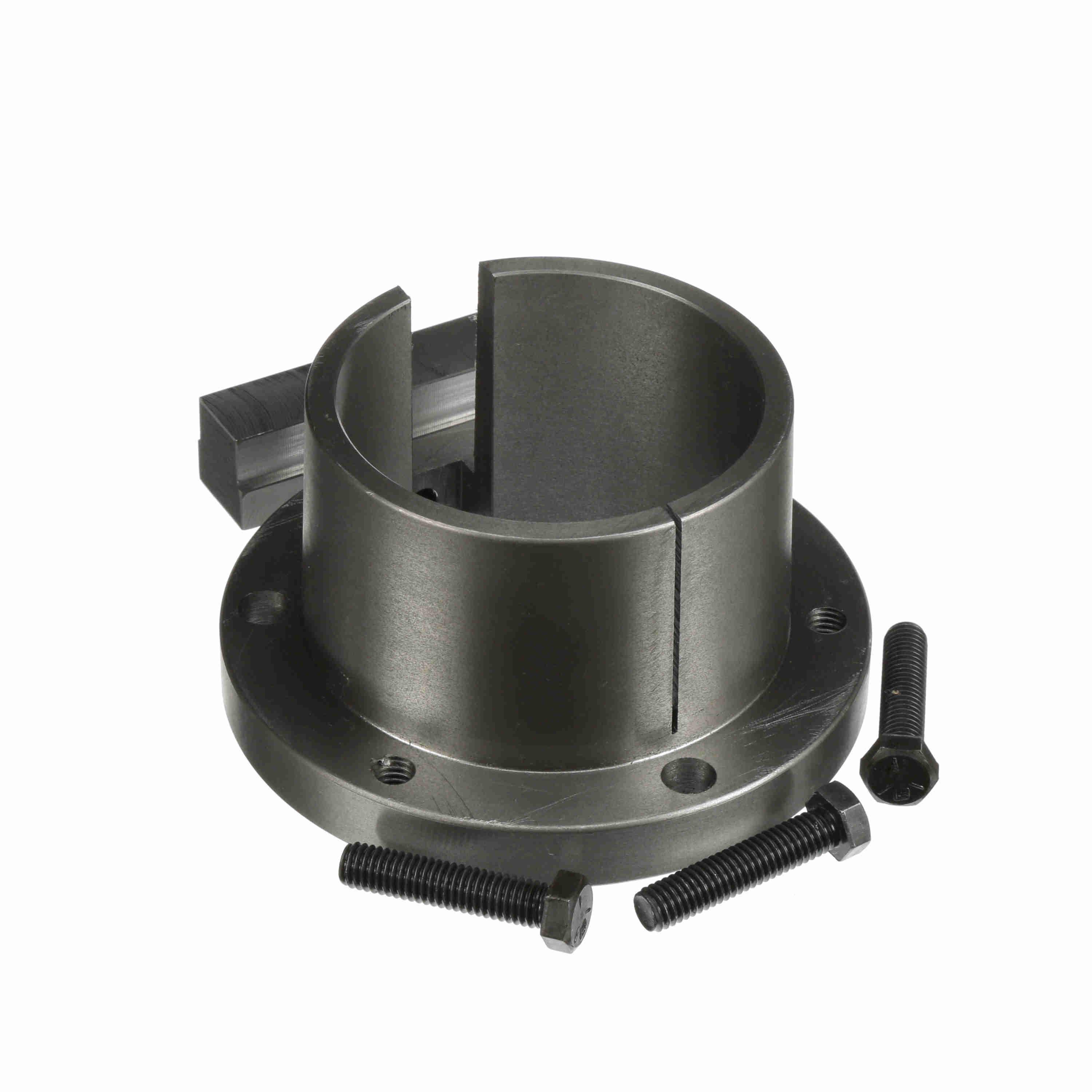

BROWNING 1070416 R1 3 3/8 Split Taper Bushing, 3.375 Inch Bore Size, 5.375 Inch Outer Dia., R1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XLRModel: 1070416Cross Ref: R1 3 3/8
7 In Stock
Ships within 2 days via
€215.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 3 7/8", 4" |
| Bolt Circle Dia. | 4 5/8" |
| Bore Size | 3 3/8" |
| Bushing Series | R1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 5/8" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 7/8" x 7/16" |
| Length Thru Bore | 2 22/25" |
| Material | Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4" |
| Overall Length | 2 7/8" |
| Product Datasheet | browning-3694825.pdf |
| Screw Size | 1 3/4" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1070911 | 2 7/8" | 45 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €193.72 | |
 |
1070853 | 2 7/8" | 35 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €257.61 | |
 |
1070895 | 2 7/8" | 40 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €257.61 | |
 |
1070903 | 73.025 mm | 42 mm | - | 4 5/8" | 5/8" | 4" | - | €356.42 | |
 |
1070929 | 2 7/8" | 48 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €430.75 | |
 |
1070937 | 2 7/8" | 50 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €291.26 | |
 |
1070945 | 2 7/8" | 55 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €291.26 |
