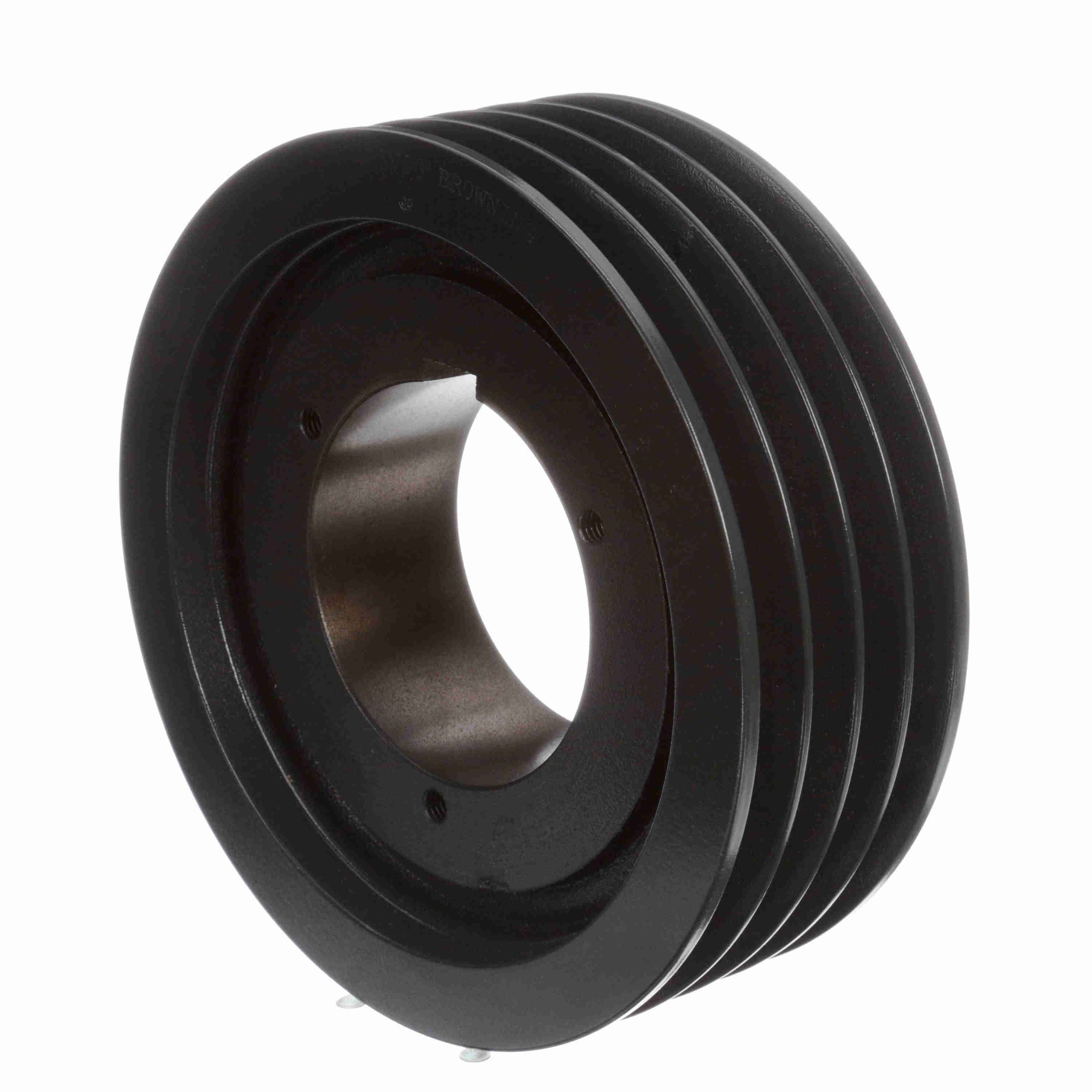

BROWNING 1061779 4R5V90 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 9 in OD, 1-1/8 to 3-3/4 in Bore Dia, 8.9 in Pitch Dia
Get it by Friday, Aug 21
€609.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 3 1/16" |
| Hub Projection | 13/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 9" |
| Overall Length | 3 45/64" |
| Pitch Dia. | 8.9" |
| Suitable For Use With | Gripbelt 5V Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 11.05 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1060912 | 13.95" | 1 29/32" | 3/4" to 2 11/16" | Type 13 Arm | - | - | - | Q1 | €792.06 | |
 |
1061431 | 6 1/5" | 3 1/16" | 3/4" to 2 11/16" | Type 13 Solid | 5V Series | 6 1/5" | 6 1/5" | Q1 | €534.61 | |
 |
1062553 | 21.1" | 3 1/16" | 1.13" to 3.75" | Type 13 Arm | 5V Series | - | - | R1 | €1,445.00 | |
 |
1060672 | 6.85" | 1 29/32" | 3/4" to 2 11/16" | Type 13 Web | 3V Series | - | - | Q1 | €294.49 | |
 |
1060219 | 4.95" | 1 29/32" | 1/2" to 1 3/4" | Type 13 Solid | - | - | - | P1 | €390.78 | |
 |
1061472 | 6 3/5" | 3 1/16" | 3/4" to 2 11/16" | Type 13 Solid | 5V Series | 6 3/5" | 6 3/5" | Q1 | €548.17 | |
 |
1061571 | 7 2/5" | 3 1/16" | 3/4" to 2 11/16" | Type 13 Web | - | - | - | Q1 | €630.72 |
