BROWNING 3V Series Gripbelt Sheaves With Split Taper Bushings, 4 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1| Style | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

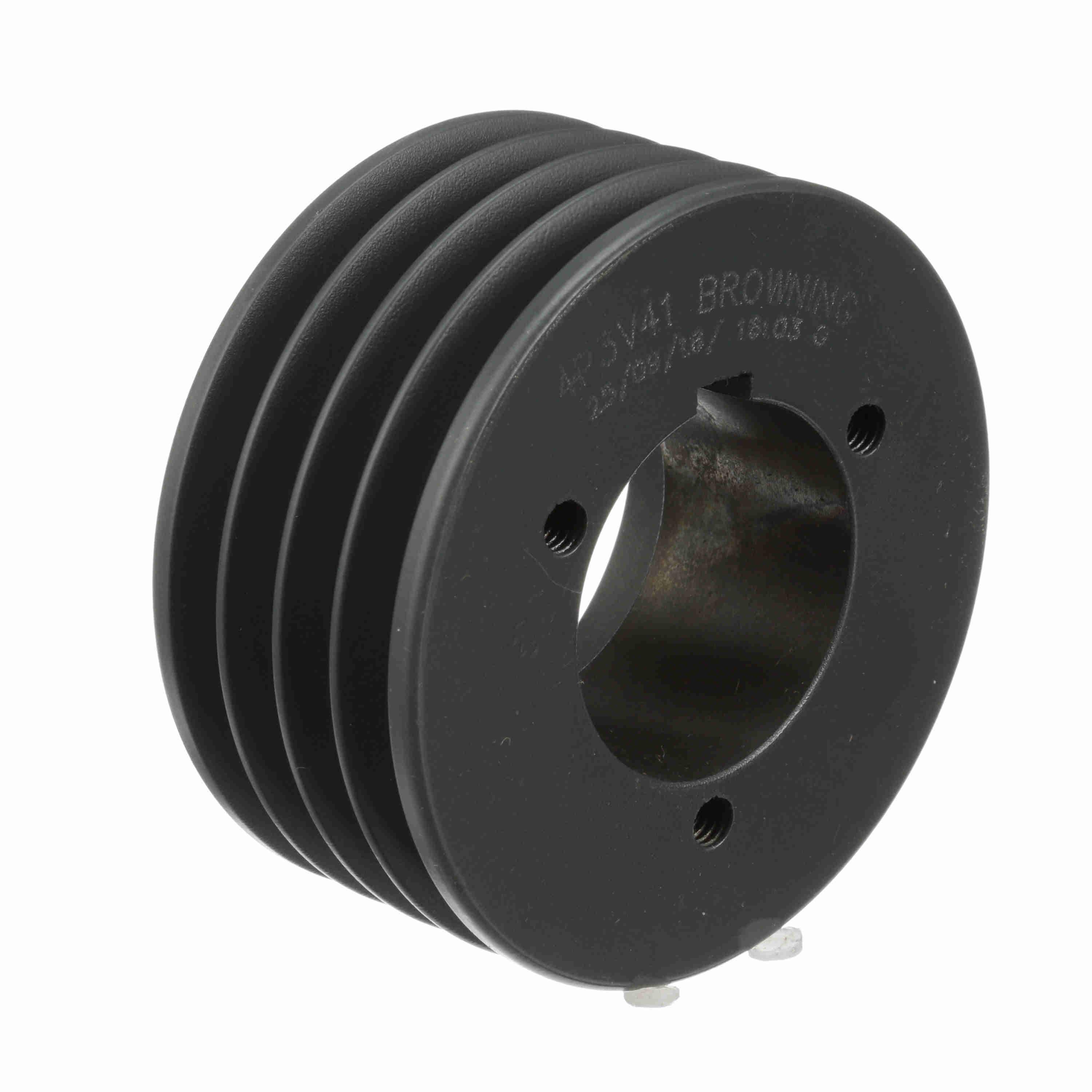

| A | 1059229 | 2.65" | 0.38" to 1" | 1 29/32" | 2 13/32" | Type 4 | Split Taper | Cast Iron | €414.79 | |

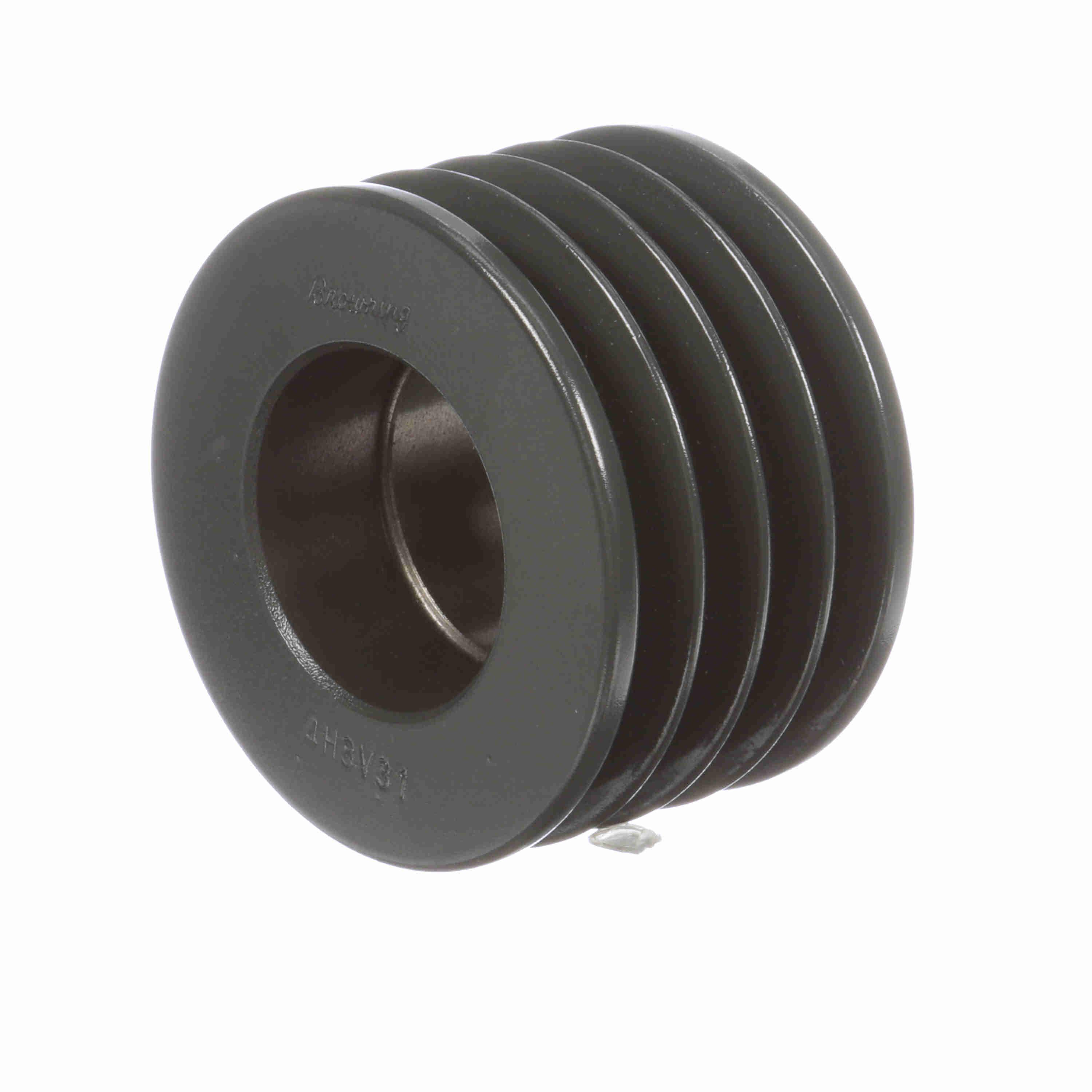

| B | 1059344 | 3.15" | 0.38" to 1.5" | 1 29/32" | 2 13/32" | Type 4 | Split Taper | Cast Iron | €345.74 | |

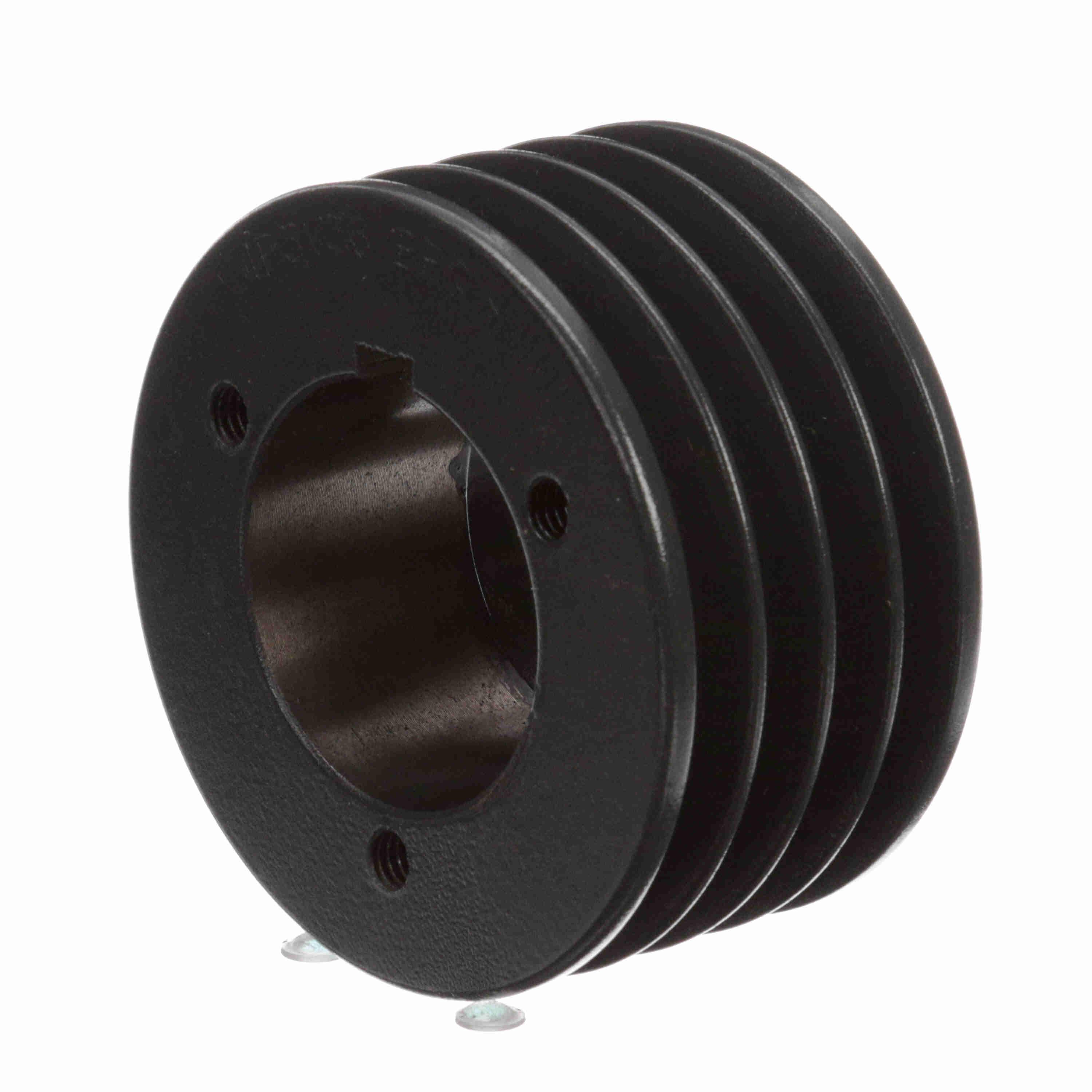

| C | 1059930 | 3.65" | 1/2" to 1 3/4" | 1 29/32" | 2 25/32" | Type 5 | Split Taper | Cast Iron | €298.65 | |

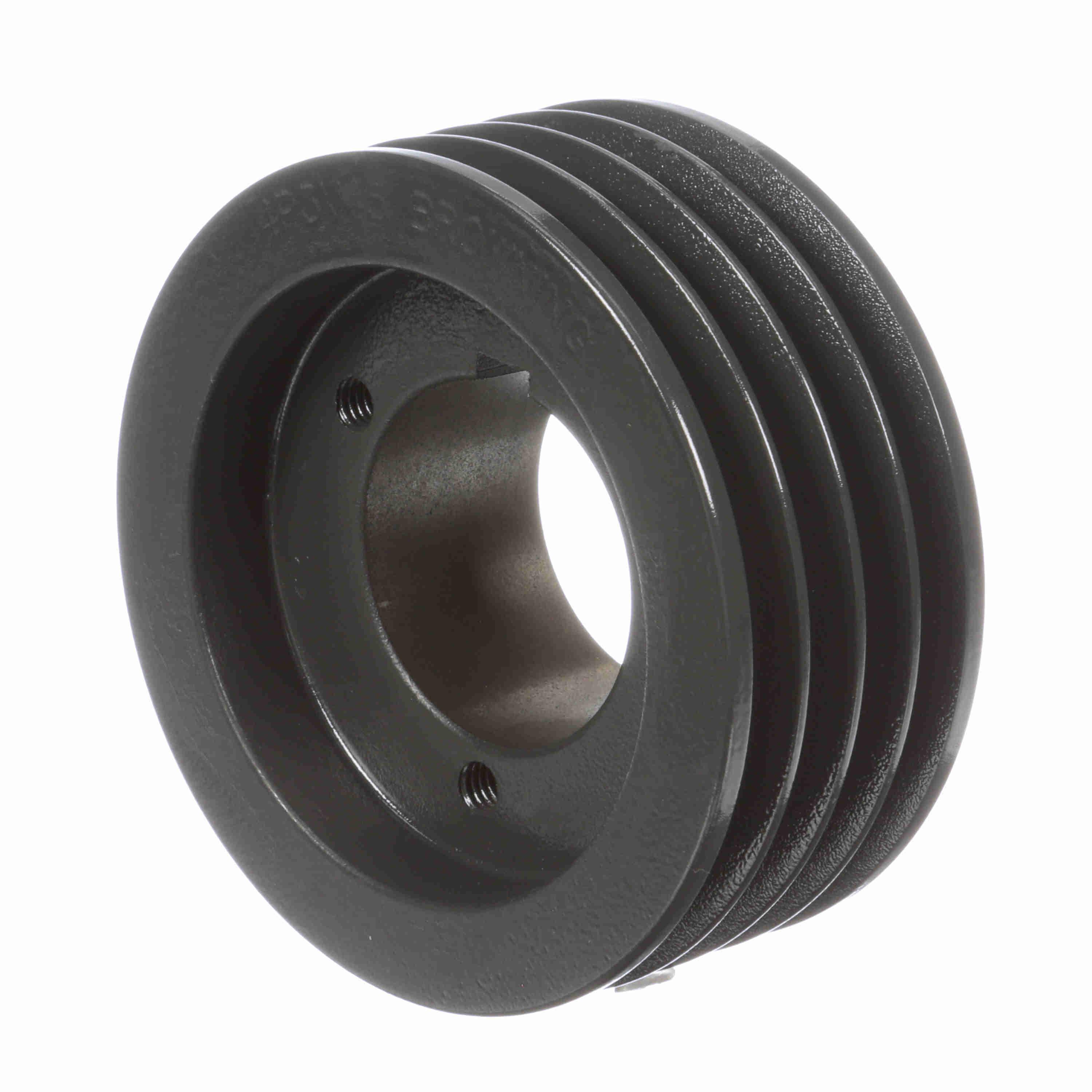

| D | 1060052 | 4 1/2" | 1/2" to 1 3/4" | 1 29/32" | 2 3/16" | Type 13 Solid | Split Taper | Cast Iron | €270.77 | |

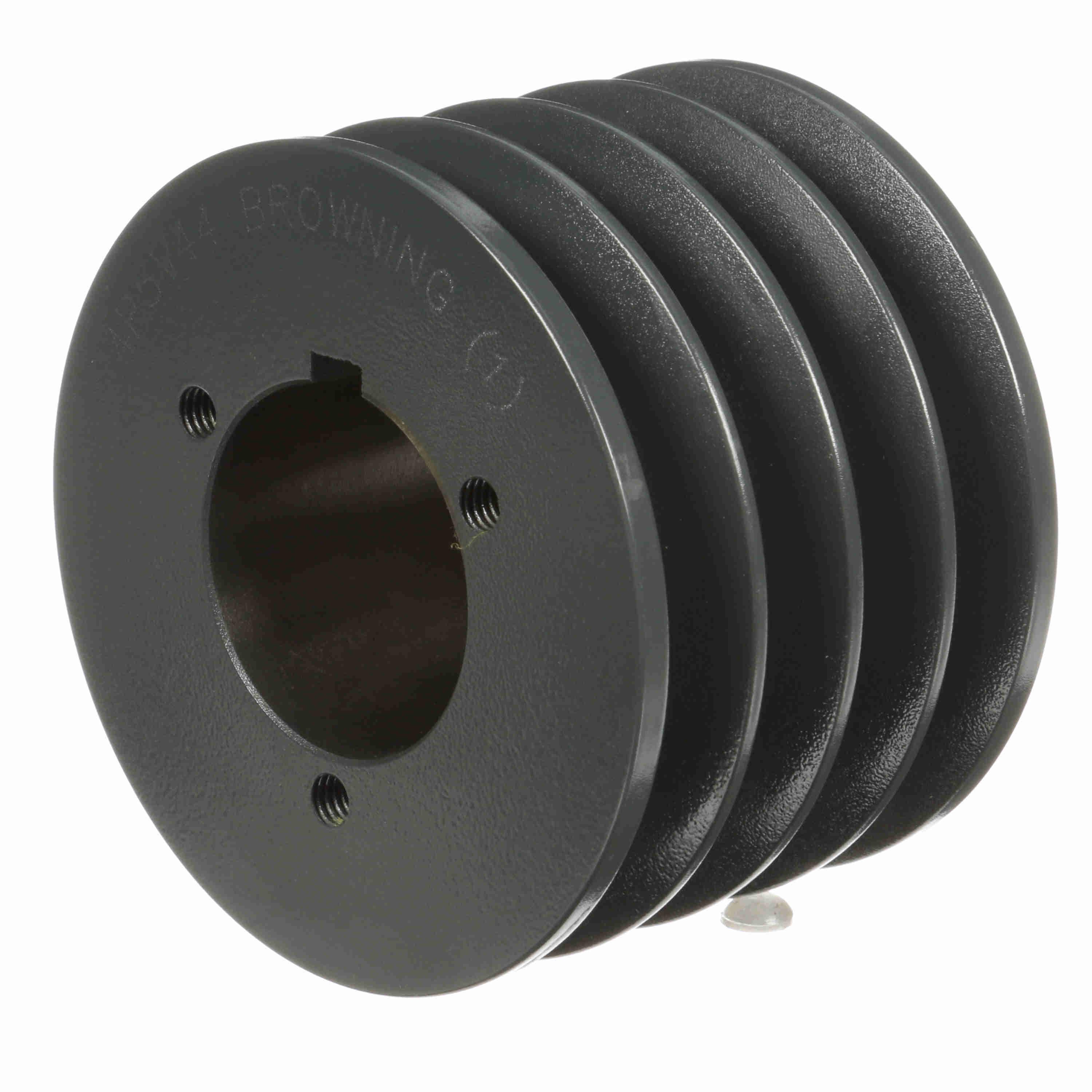

| E | 1061209 | 4 2/5" | 3/4" to 1 3/4" | 3 1/16" | 3 3/16" | Type 13 Solid | Split Taper | Cast Iron | €801.01 | |
| F | 1059997 | 4 3/25" | 1/2" to 1 3/4" | 1 29/32" | 2 25/32" | Type 5 | Split Taper | Cast Iron | €357.66 | |
| G | 1061274 | 4.9" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 5 | Split Taper | Cast Iron | €462.81 | |
| H | 1061357 | 5 1/2" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 5 | Split Taper | Cast Iron | €534.82 | |
| I | 1061316 | 5 1/5" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 5 | Split Taper | Cast Iron | €506.75 | |
| J | 1060417 | 5 3/5" | 1/2" to 1 3/4" | 1 29/32" | 2 3/16" | Type 13 Solid | Split Taper | Cast Iron | €341.38 | |
| K | 1060219 | 5" | 1/2" to 1 3/4" | 1 29/32" | 2 3/16" | Type 13 Solid | Split Taper | Cast Iron | €390.78 | |

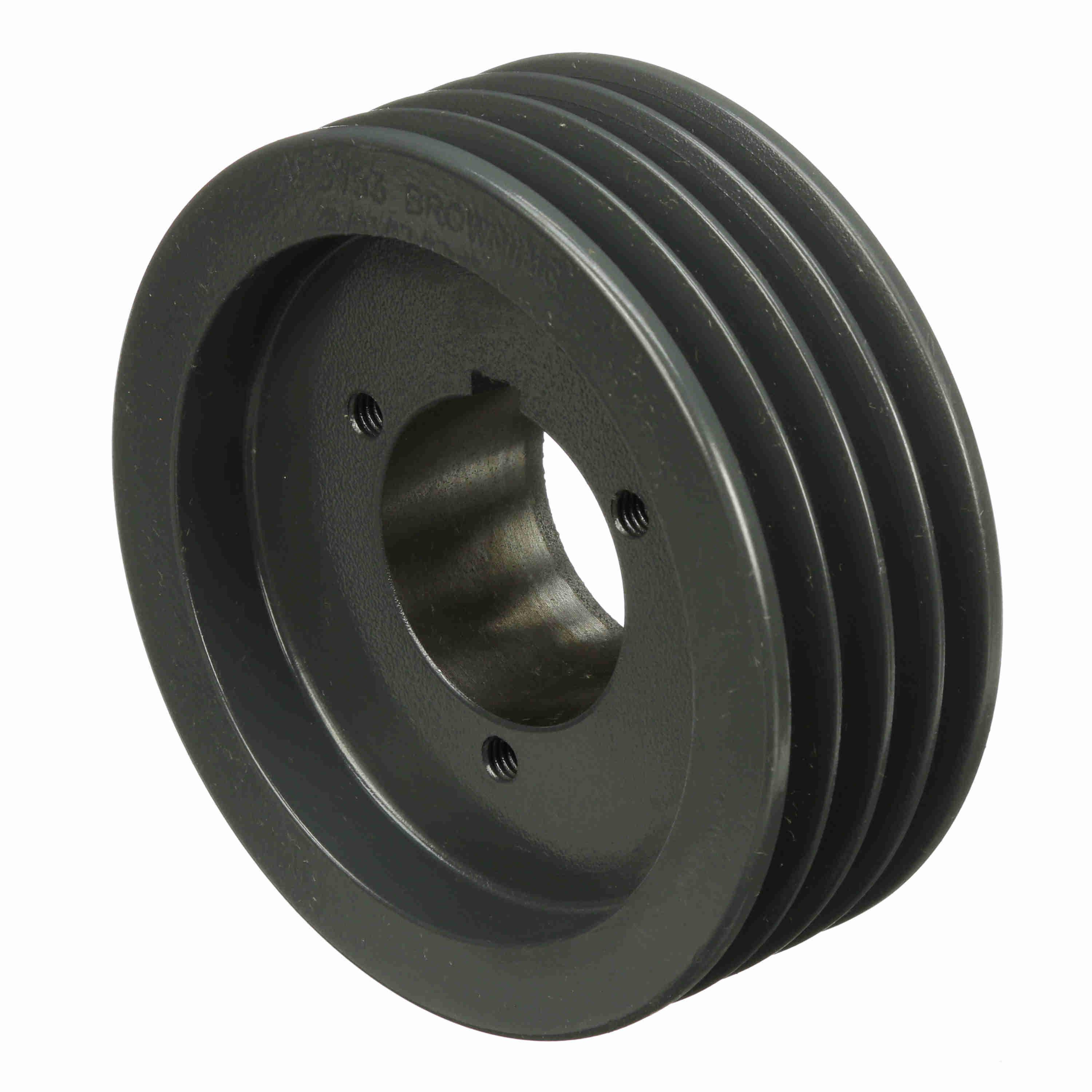

| L | 1060318 | 5.3" | 1/2" to 1 3/4" | 1 29/32" | 2 3/16" | Type 13 Solid | Split Taper | Cast Iron | €297.57 | |
| M | 1061399 | 5.9" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | €562.91 | |
| N | 1060599 | 6 1/2" | 3/4" to 2 11/16" | 1 29/32" | 2 55/64" | Type 13 Web | Split Taper | Cast Iron | €308.70 | |
| O | 1060516 | 6" | 3/4" to 2 11/16" | 1 29/32" | 2 53/64" | Solid Type 13 | Split Taper | Cast Iron | €296.49 | |
| P | 1061431 | 6.3" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | €534.61 | |
| Q | 1061472 | 6.7" | 3/4" to 2 11/16" | 3 1/16" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | €548.17 | |
| R | 1060672 | 6.9" | 3/4" to 2 11/16" | 1 29/32" | 2 55/64" | Type 13 Web | Split Taper | Cast Iron | €294.49 | |
| S | 1061571 | 7 1/2" | 3/4" to 2 11/16" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €630.72 | |

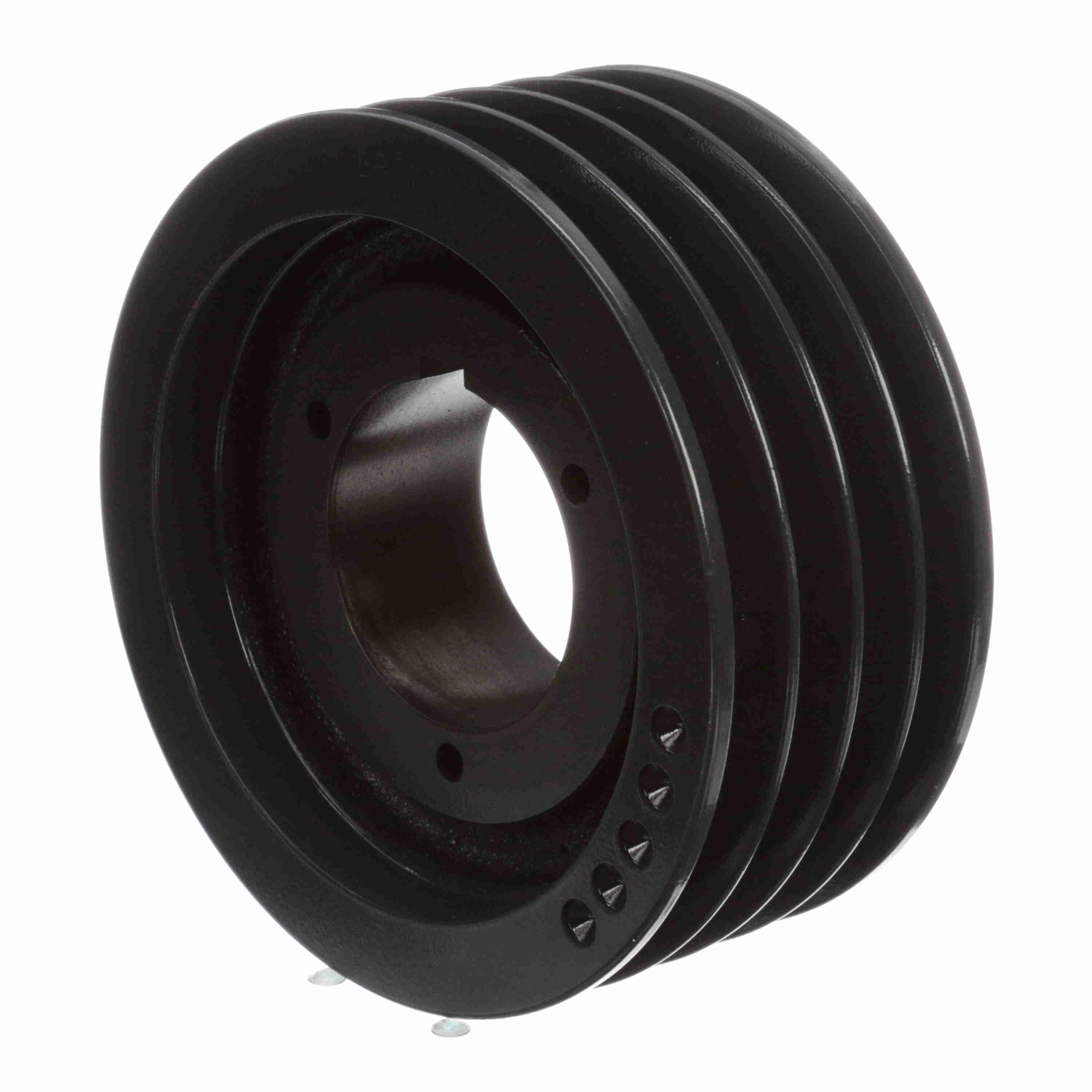

| T | 1061514 | 7.1" | 3/4" to 2 11/16" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €610.69 | |
| U | 1061704 | 8 1/2" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €611.35 | |
| V | 1061639 | 8" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €539.76 | |
| W | 1060755 | 8" | 3/4" to 2 11/16" | 1 29/32" | 2 55/64" | Type 13 Web | Split Taper | Cast Iron | €292.42 | |

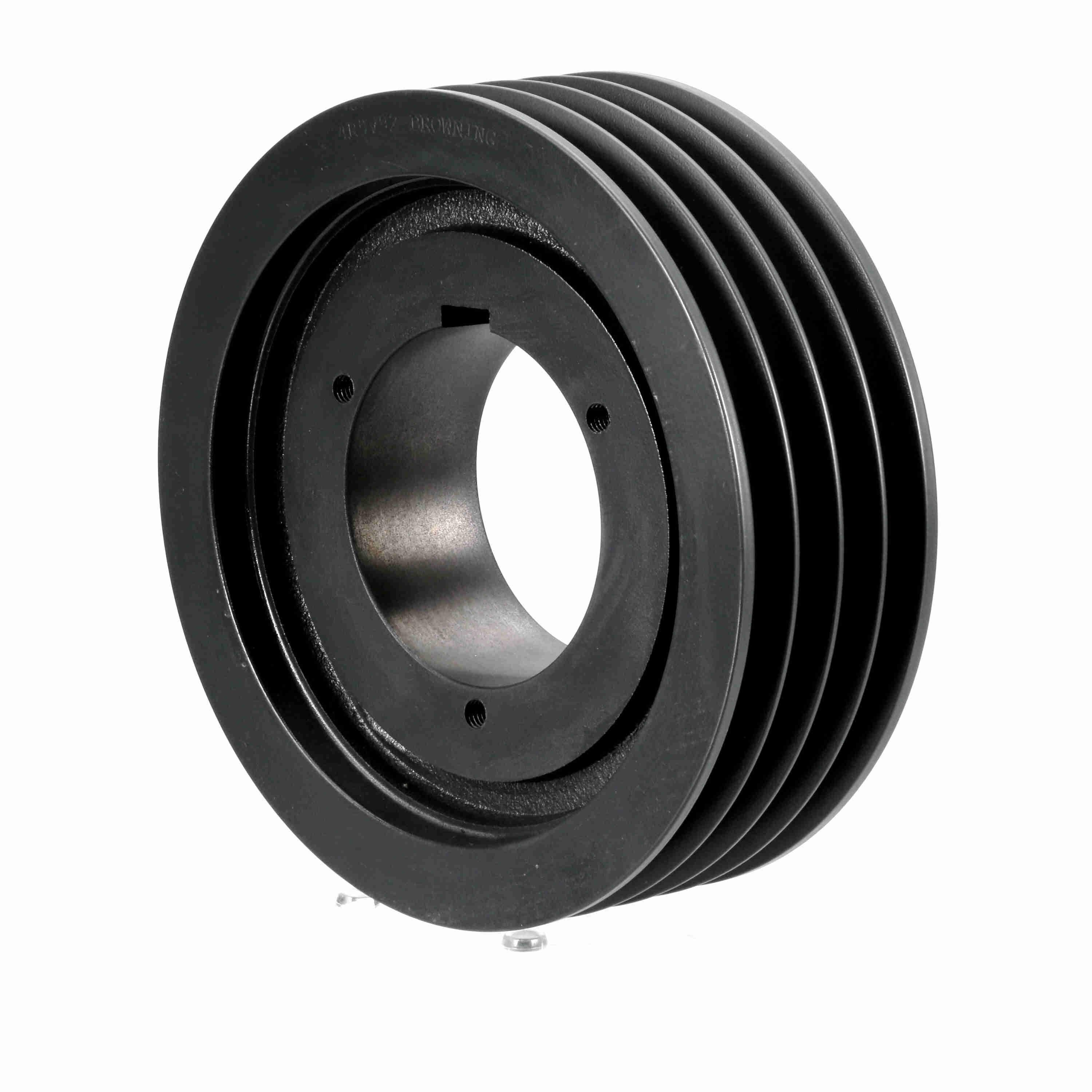

| X | 1061845 | 9 1/4" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €631.76 | |
| Y | 1061910 | 9 3/4" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €727.58 | |
| Z | 1061779 | 9" | 1 1/8" to 3 3/4" | 3 1/16" | 3 45/64" | Type 13 Web | Split Taper | Cast Iron | €609.19 | |
| A1 | 1060839 | 10 3/5" | 3/4" to 2 11/16" | 1 29/32" | 2 55/64" | Type 13 Arm | Split Taper | Cast Iron | €534.61 | |
| B1 | 1061985 | 10.3" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €730.58 | |
| C1 | 1062058 | 10.9" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €695.98 | |
| D1 | 1062124 | 11 4/5" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €818.23 | |

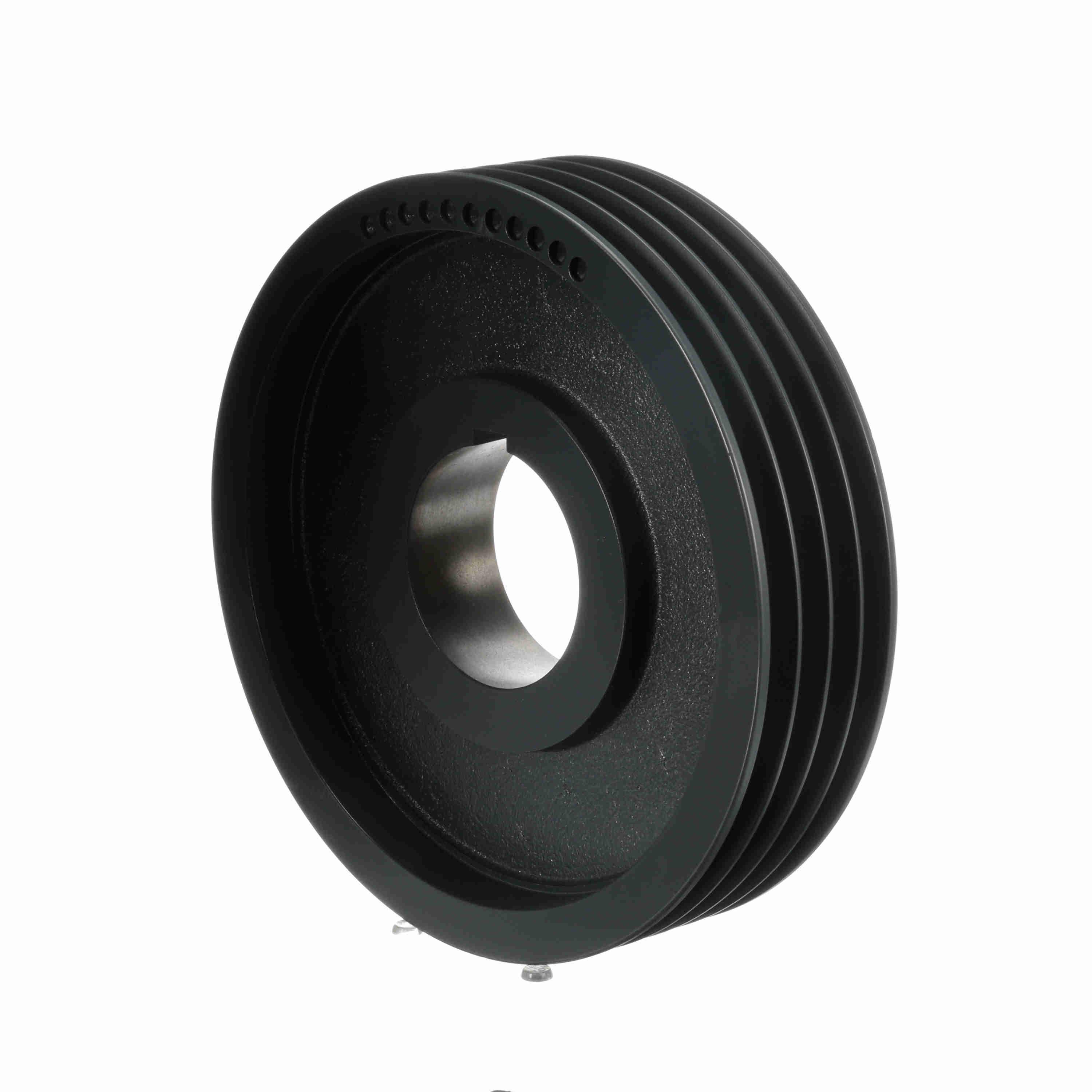

| E1 | 1062199 | 12 1/2" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | €845.13 | |
| F1 | 1062272 | 13 1/5" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €919.31 | |
| G1 | 1062348 | 14" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €1,033.93 | |
| H1 | 1060912 | 14" | 3/4" to 2 11/16" | 1 29/32" | 2 55/64" | Type 13 Arm | Split Taper | Cast Iron | €792.06 | |
| I1 | 1062413 | 15" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €1,151.66 | |
| J1 | 1062488 | 16" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €1,220.07 | |
| K1 | 1060995 | 19" | 1.13" to 3.75" | 1 29/32" | 3 5/32" | Type 16 Arm | Split Taper | Cast Iron | €878.95 | |
| L1 | 1062553 | 21 1/5" | 1.13" to 3.75" | 3 1/16" | 3 11/32" | Type 13 Arm | Split Taper | Cast Iron | €1,445.00 | |
| M1 | 1061076 | 25" | 1.13" to 3.75" | 1 29/32" | 3 5/32" | Type 16 Arm | Split Taper | Cast Iron | €2,175.23 |
