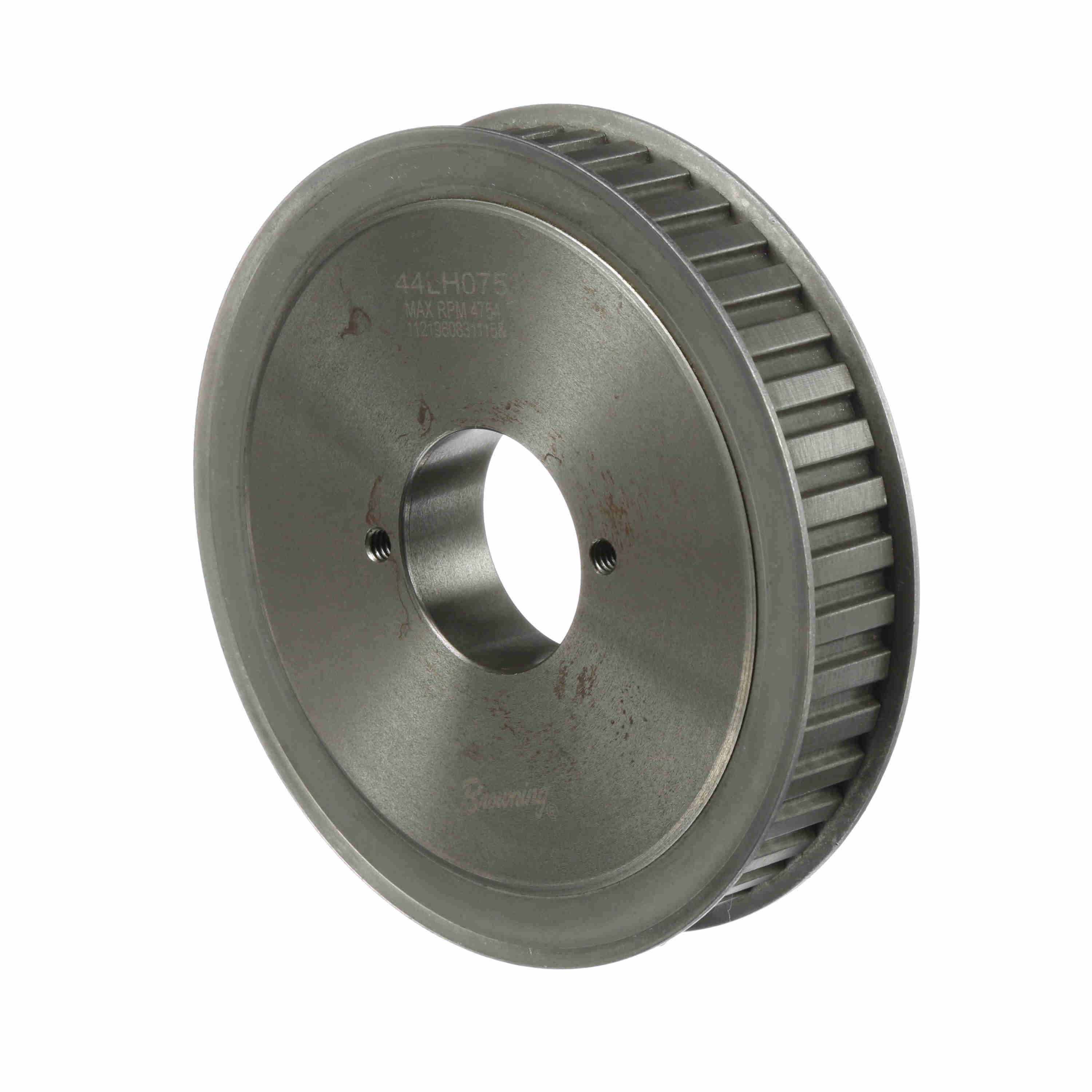

BROWNING 1056381 44LH075 Gearbelt Pulley, Bushed Bore, Steel
Item: AK6MVEModel: 1056381Cross Ref: 44LH075
7 In Stock
44
3/8" to 1 1/2"
Ships within 2 days via
€416.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 3/8" |
| Belt Style | L |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 1" |
| Flange | Yes |
| Flange Dia. | 5 1/2" |
| For Belt Width | 3/4" |
| For Use With | 3/4 Inch Width Type L075 Belt |
| Hub Dia. | 2 1/2" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 44 |
| Other Features | Light, Split Taper Bushing, Type 16 |
| Outside Dia. | 5.222" |
| Overall Length | 1 7/16" |
| Pitch Dia. | 5.252" |
| System Of Measurement | Imperial |
| Type | Type 16 |
| Weight | 2.388 Kg |
Shipping Info:
| Ship weight (kg) | 2.37 |
| Ship height (cm) | 13.26 |
| Ship length (cm) | 3.66 |
| Ship width (cm) | 13.26 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1056241 | 18 | 2.149" | 2.119" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/16" | €133.47 | |
 |
1056258 | 19 | 2.268" | 2.238" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 5/8" | €231.36 | |
 |
1056274 | 21 | 2.507" | 2.477" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/8" | €243.94 | |
 |
1056308 | 26 | 3.104" | 3.074" | 3/8" to 1 1/2" | Type 4 | 2 1/2" | 7/16" | 3 1/8" | €282.28 | |
 |
1056324 | 30 | 3.581" | 3.551" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 3 13/16" | €205.92 | |
 |
1056332 | 32 | 3.82" | 3.79" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 4 1/16" | €218.91 | |
 |
1056340 | 36 | 4.297" | 4.267" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 4 11/16" | €326.72 |
