BUNTING BEARINGS Dri-Plane Powdered Metal Flanged Bearings
Filter
A
B
C| Style | Model | Bore Dia. | Flange Thickness | Flange Dia. | Length Tolerance | Max. Pv | Material | Bronze Material Type | For Environment | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DPEF141820 | - | - | - | - | - | - | - | - | 1 | €14.22 | |

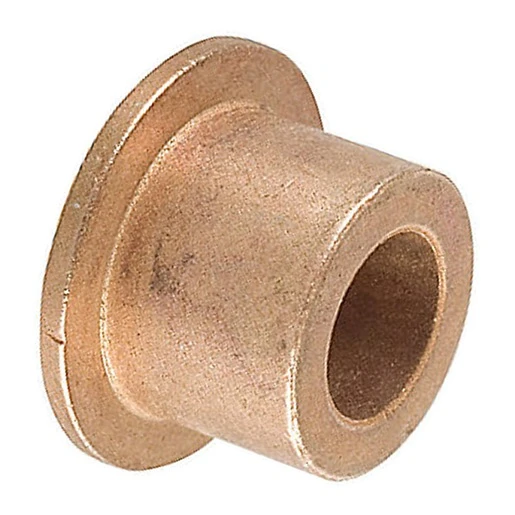

| A | DPEF101410 | - | - | - | - | - | - | - | - | 1 | €6.51 | |
| A | DPEF030504 | 0.19" | 0.063" | - | - | - | Dri-Plane | - | - | 1 | €1.19 | |
| B | DPEF242824 | 1 1/2" | 0.187" | 2" | -0.0075" to +0.0075" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 1 | €15.87 | |
| B | DPEF202424 | 1 1/4" | 0.187" | 1 3/4" | -0.0075" to +0.0075" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 1 | €12.76 | |
| B | DPEF202416 | 1 1/4" | 0.187" | 1 3/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 1 | €9.19 | |
| B | DPEF202420 | 1 1/4" | 0.187" | 1 3/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 1 | €10.99 | |
| B | DPEF283640 | 1 3/4" | 1/4" | 3" | -0.0075" to +0.0075" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 1 | €82.96 | |
| B | DPEF162024 | 1" | 1/8" | 1 1/2" | -0.0075" to +0.0075" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €28.89 | |
| B | DPEF162020 | 1" | 1/8" | 1 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €27.81 | |
| B | DPEF162016 | 1" | 1/8" | 1 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €23.10 | |
| B | DPEF162012 | 1" | 1/8" | 1 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €17.01 | |
| B | DPEF081006 | 1/2" | 1/8" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €4.33 | |
| B | DPEF081216 | 1/2" | 1/8" | 1" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €13.10 | |
| B | DPEF081212 | 1/2" | 1/8" | 1" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €10.99 | |
| B | DPEF081208 | 1/2" | 1/8" | 1" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €8.20 | |
| B | DPEF081016 | 1/2" | 1/8" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €9.33 | |
| B | DPEF081008 | 1/2" | 1/8" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €4.46 | |
| B | DPEF081012 | 1/2" | 1/8" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €7.79 | |
| B | DPEF040608 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €3.95 | |
| B | DPEF040606 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €4.45 | |
| B | DPEF040604 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-sq. in. | - | Sintered Bronze | Vacuum | 3 | €2.83 | |
| B | DPEF040612 | 1/4" | 0.062" | 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €5.62 | |
| B | DPEF121620 | 3/4" | 0.187" | 1 1/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €22.36 | |
| B | DPEF121616 | 3/4" | 0.187" | 1 1/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €18.97 | |
| B | DPEF121612 | 3/4" | 0.187" | 1 1/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €15.42 | |
| B | DPEF121610 | 3/4" | 0.187" | 1 1/4" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €14.15 | |
| B | DPEF121412 | 3/4" | 1/8" | 1 1/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €8.03 | |
| B | DPEF121408 | 3/4" | 1/8" | 1.125" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €6.63 | |
| C | DPEF121624 | 3/4" | 0.187" | 1 1/4" | -0.0075" to +0.0075" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €25.66 | |
| B | DPEF061012 | 3/8" | 0.062" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €9.24 | |
| B | DPEF061008 | 3/8" | 0.062" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €6.46 | |
| B | DPEF060808 | 3/8" | 0.062" | 11/16" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €4.17 | |
| B | DPEF060804 | 3/8" | 0.062" | 11/16" | -0.005" to +0.005" | - | Metal | Sintered Bronze | Vacuum | 3 | €4.09 | |
| B | DPEF061016 | 3/8" | 0.062" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €11.78 | |
| B | DPEF060812 | 3/8" | 0.062" | 0.687" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €5.86 | |
| B | DPEF030508 | 3/16" | 0.062" | 0.437" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €3.23 | |
| B | DPEF101216 | 5/8" | 1/8" | 1" | -0.005" to +0.005" | - | Metal | Sintered Bronze | Vacuum | 3 | €11.64 | |
| B | DPEF101212 | 5/8" | 1/8" | 1" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €8.13 | |
| B | DPEF101420 | 5/8" | 1/8" | 1.125" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €18.73 | |
| B | DPEF101416 | 5/8" | 1/8" | 1.125" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €17.78 | |
| B | DPEF101412 | 5/8" | 1/8" | 1 1/8" | -0.005" to +0.005" | 40000 lbs.-sq. in. | - | Sintered Bronze | Vacuum | 3 | €14.96 | |
| B | DPEF101210 | 5/8" | 1/8" | 1" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €8.47 | |
| B | DPEF101408 | 5/8" | 1/8" | 1 1/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €10.99 | |
| B | DPEF050706 | 5/16" | 0.062" | 0.562" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €4.05 | |
| B | DPEF050712 | 5/16" | 0.062" | 0.562" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €4.39 | |
| C | DPEF050708 | 5/16" | 0.062" | 0.562" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €3.18 | |
| B | DPEF141812 | 7/8" | 1/8" | 1 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €23.80 | |
| B | DPEF141816 | 7/8" | 1/8" | 1 1/2" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | - | Sintered Bronze | Vacuum | 3 | €34.07 | |

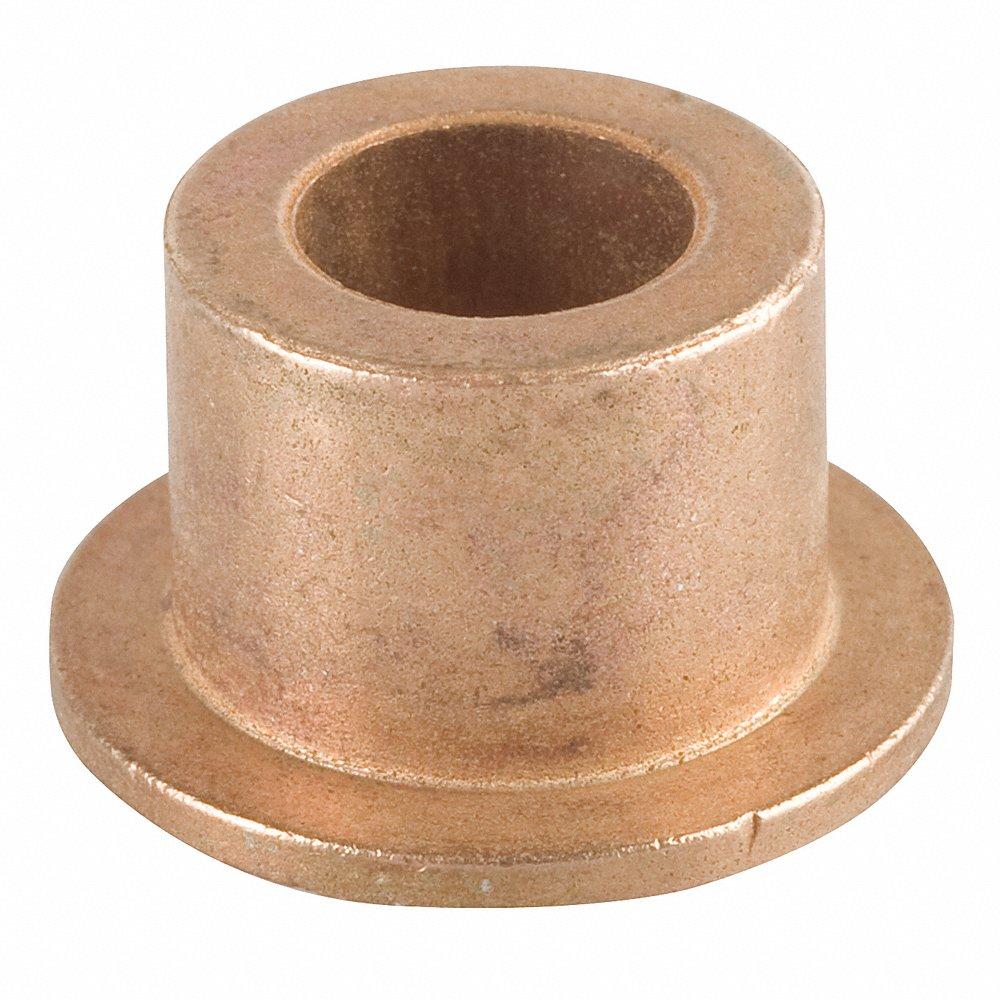

| C | DPEF141828 | 7/8" | 1/8" | 1 1/2" | +/-0.0075" | 40000 lbs.-sq. in. | - | Sintered Bronze | Vacuum | 3 | €43.32 | |
| B | DPEF071012 | 7/16" | 1/8" | 7/8" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €11.92 | |
| B | DPEF070908 | 7/16" | 0.062" | 11/16" | -0.005" to +0.005" | 40000 lbs.-ft./sq. in-min. | Metal | Sintered Bronze | Vacuum | 3 | €6.26 |
