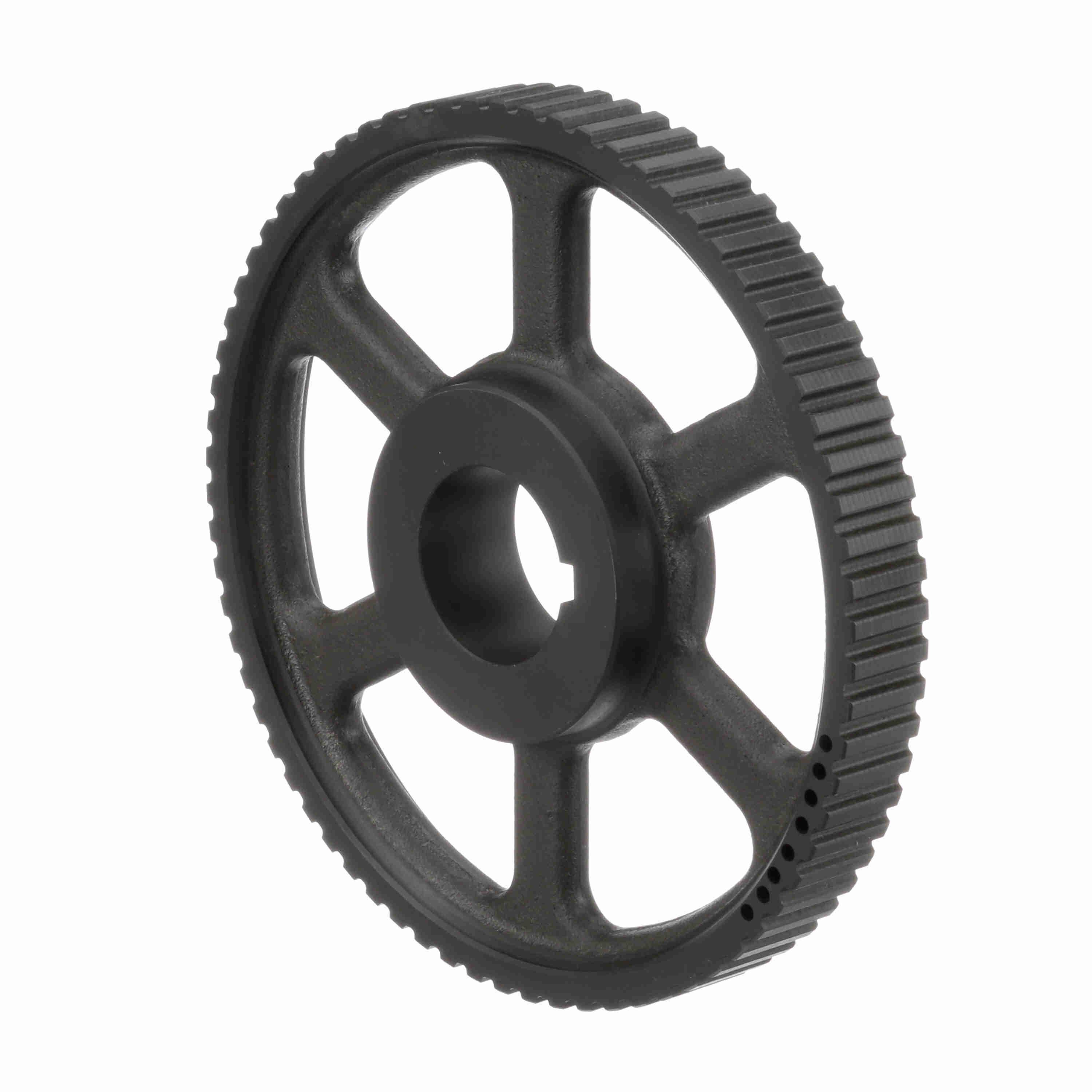

BROWNING 1056456 72LP075 Gearbelt Pulley, Bushed Bore, Steel, 8.564 in OD, 1/2 to 1-3/4 in Bore Dia, 8.594 in Pitch Dia, Type 13, P1 Bushing Type, 1 in Face Width
Item: AK6MVMModel: 1056456Cross Ref: 72LP075
7 In Stock
72
1/2" to 1 3/4"
Ships within 2 days via
€465.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 3/8" |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1" |
| For Use With | 3/4 Inch Width Type L075 Belt |
| Hub Dia. | 3" |
| Hub Projection | 5/8" |
| No. Of Teeth | 72 |
| Outside Dia. | 8.564" |
| Overall Length | 2 3/16" |
| Pitch Dia. | 8.594" |
| Type | Type 13 |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 21.74 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 21.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1056241 | 2.149" | 2.119" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/16" | Split Taper | €133.47 | |
 |
1056258 | 2.268" | 2.238" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 5/8" | Split Taper | €231.36 | |
 |
1056274 | 2.507" | 2.477" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/8" | Split Taper | €243.94 | |
 |
1056308 | 3.104" | 3.074" | 3/8" to 1 1/2" | Type 4 | 2 1/2" | 7/16" | 3 1/8" | Split Taper | €282.28 | |
 |
1056324 | 3.581" | 3.551" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 3 13/16" | Split Taper | €205.92 | |
 |
1056332 | 3.82" | 3.79" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 4 1/16" | Split Taper | €218.91 | |
 |
1056340 | 4.297" | 4.267" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/4" | 4 11/16" | Split Taper | €326.72 |
