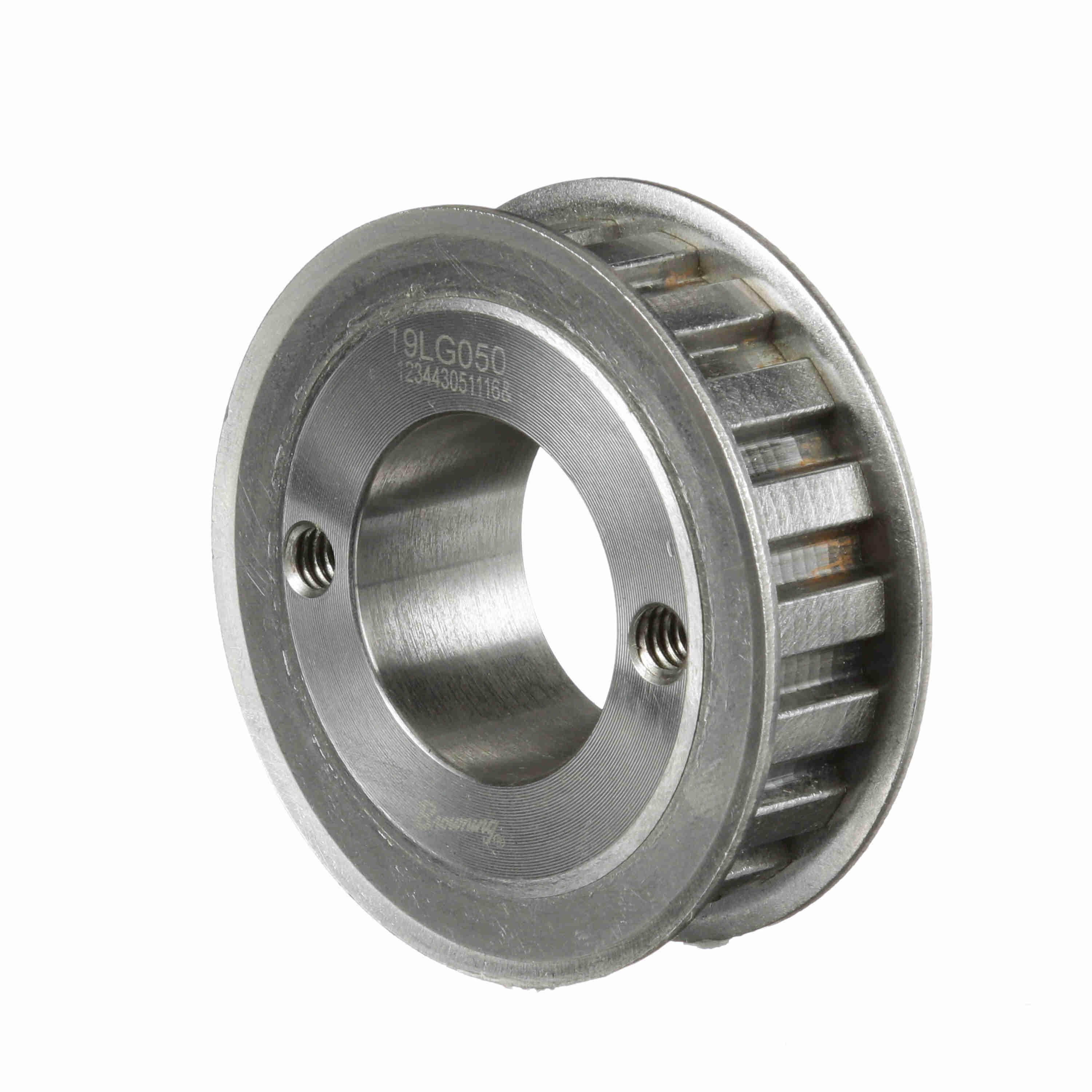

BROWNING 1055979 19LG050 Gearbelt Pulley, Bushed Bore, Steel
Item: AX4TXWModel: 1055979Cross Ref: 19LG050
7 In Stock
19
3/8" to 1"
Ships within 2 days via
€186.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 3/8" |
| Belt Style | L |
| Bore Dia. | 3/8" to 1" |
| Bore Type | Split Taper |
| Bushing Type | G |
| Face Width | 3/4" |
| Flange | Yes |
| Flange Dia. | 2 5/8" |
| For Belt Width | 1/2" |
| For Use With | 1/2" Width Type L050 Belt |
| Hub Dia. | 2" |
| Hub Projection | 7/16" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 19 |
| Other Features | Light, Split Taper Bushing, Type 4 |
| Outside Dia. | 2.238" |
| Overall Length | 1 3/8" |
| Pitch Dia. | 2.268" |
| System Of Measurement | Imperial |
| Type | Type 4 |
| Weight | 0.23 Kg |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 5.69 |
| Ship length (cm) | 3.51 |
| Ship width (cm) | 5.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1056027 | 26 | 3.104" | 3.074" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 3 1/8" | €148.07 | |
 |
1056035 | 28 | 3.342" | 3.312" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 3 5/8" | €161.39 | |
 |
1056100 | 44 | 5.252" | 5.222" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 5 1/2" | €597.61 | |
 |
1056142 | 60 | 7.162" | 7.132" | 3/8" to 1 1/2" | Type 17 | 2 1/2" | 7/16" | - | €439.64 | |
 |
1056167 | 72 | 8.594" | 8.564" | 3/8" to 1 1/2" | Type 17 | 2 1/2" | 0.438" | - | €656.27 | |
 |
1055961 | 18 | 2.149" | 2.119" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/16" | €126.15 | |
 |
1056019 | 24 | 2.865" | 2.835" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 3 1/8" | €142.64 |
