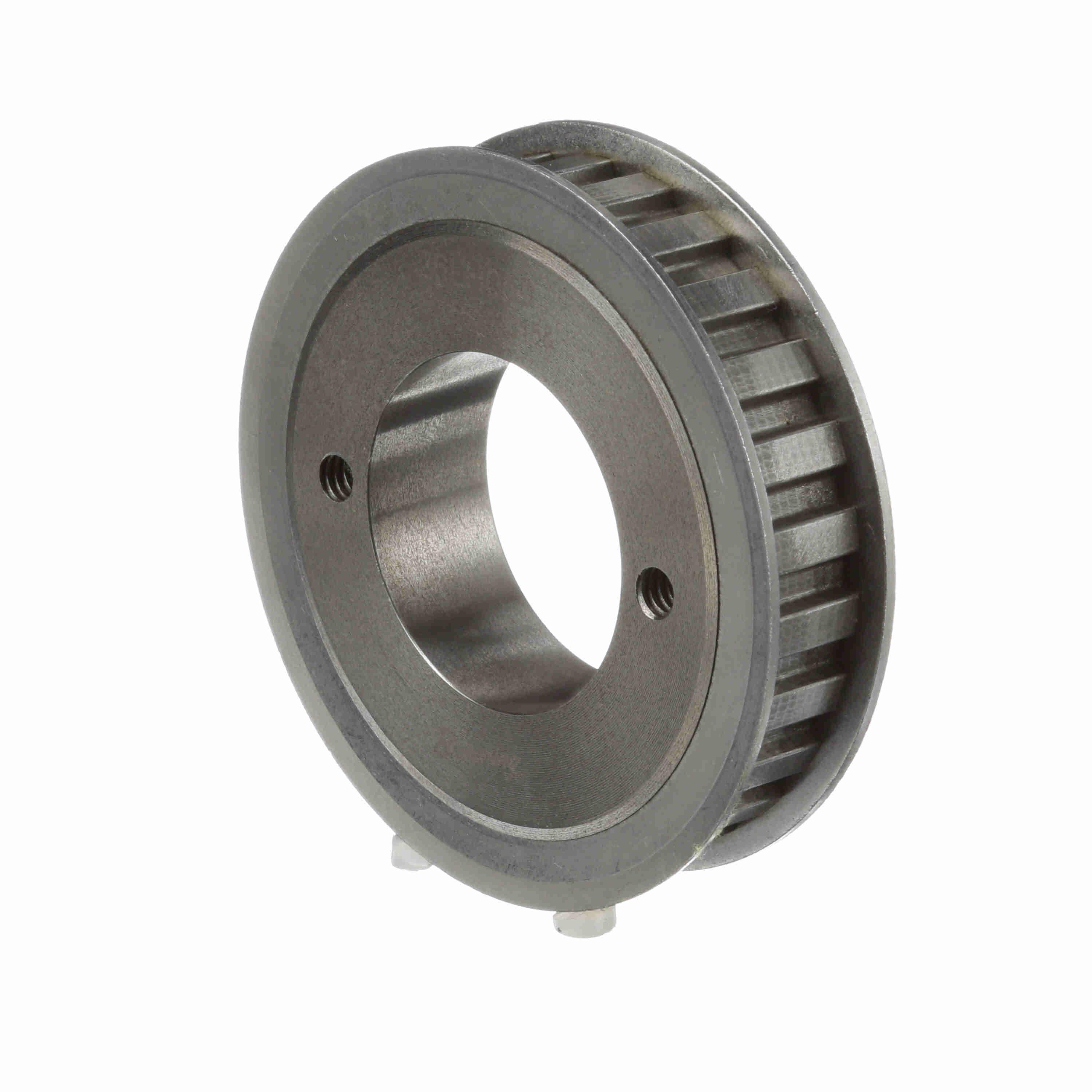

BROWNING 1056027 26LH050 Gearbelt Pulley, Bushed Bore, Steel, 3.074 in OD, 3/8 to 1-1/2 in Bore Dia, 3.104 in Pitch Dia, Type 5, H Bushing Type, 3/4 in Face Width
Item: AK6MTYModel: 1056027Cross Ref: 26LH050
7 In Stock
26
3/8" to 1 1/2"
Ships within 2 days via
€148.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 3/8" |
| Belt Style | L |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 3/4" |
| Flange | Yes |
| Flange Dia. | 3 1/8" |
| For Belt Width | 1/2" |
| For Use With | 1/2" Width Type L050 Belt |
| Hub Dia. | 2 1/2" |
| Hub Projection | 7/16" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Teeth | 26 |
| Other Features | Light, Split Taper Bushing, Type 5 |
| Outside Dia. | 3.074" |
| Overall Length | 1 7/16" |
| Pitch Dia. | 3.104" |
| Product Datasheet | browning-1054840.pdf |
| System Of Measurement | Imperial |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 7.8 |
| Ship length (cm) | 3.66 |
| Ship width (cm) | 7.8 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

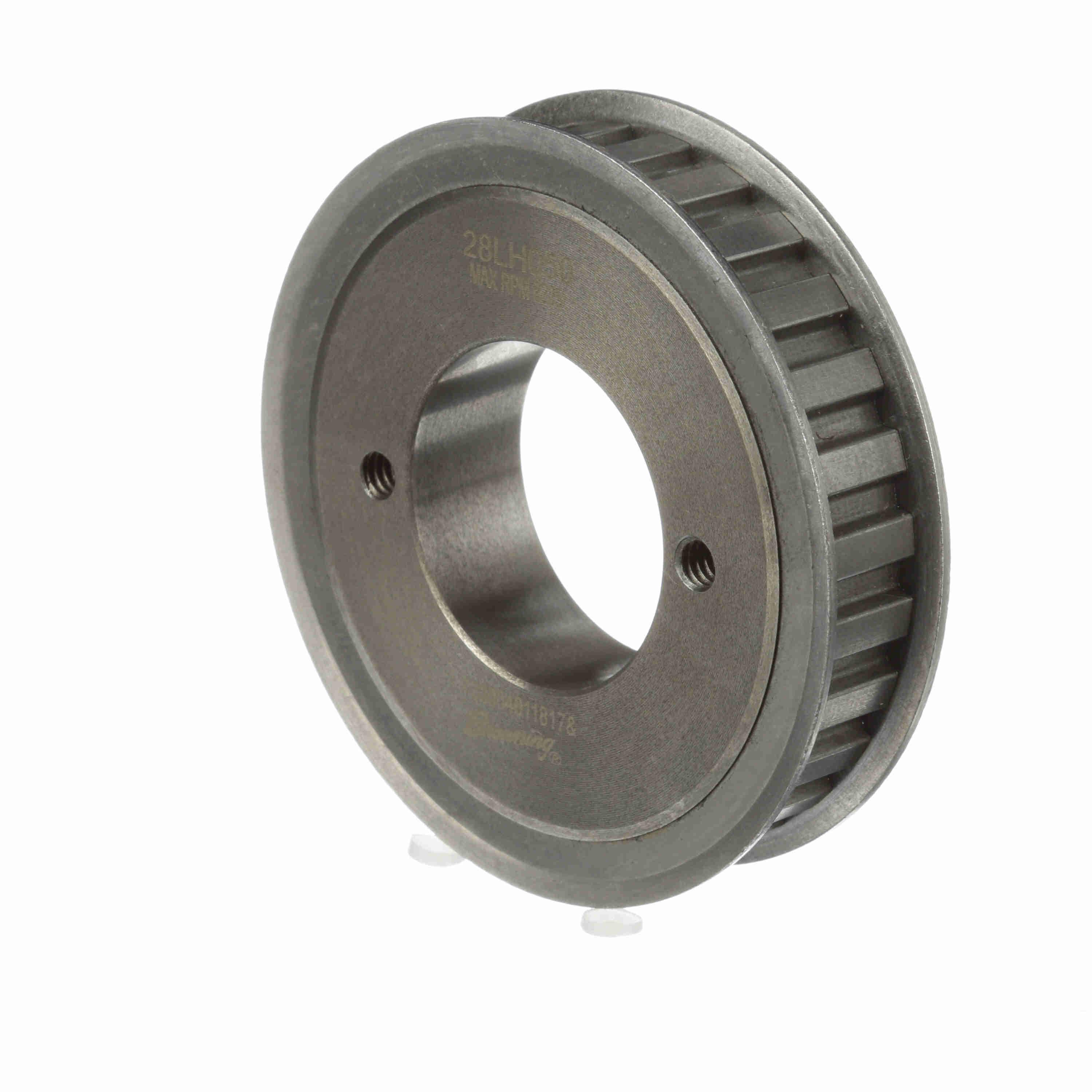

1056035 | 3.342" | 3.312" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 3 5/8" | Split Taper | €161.39 | |
 |

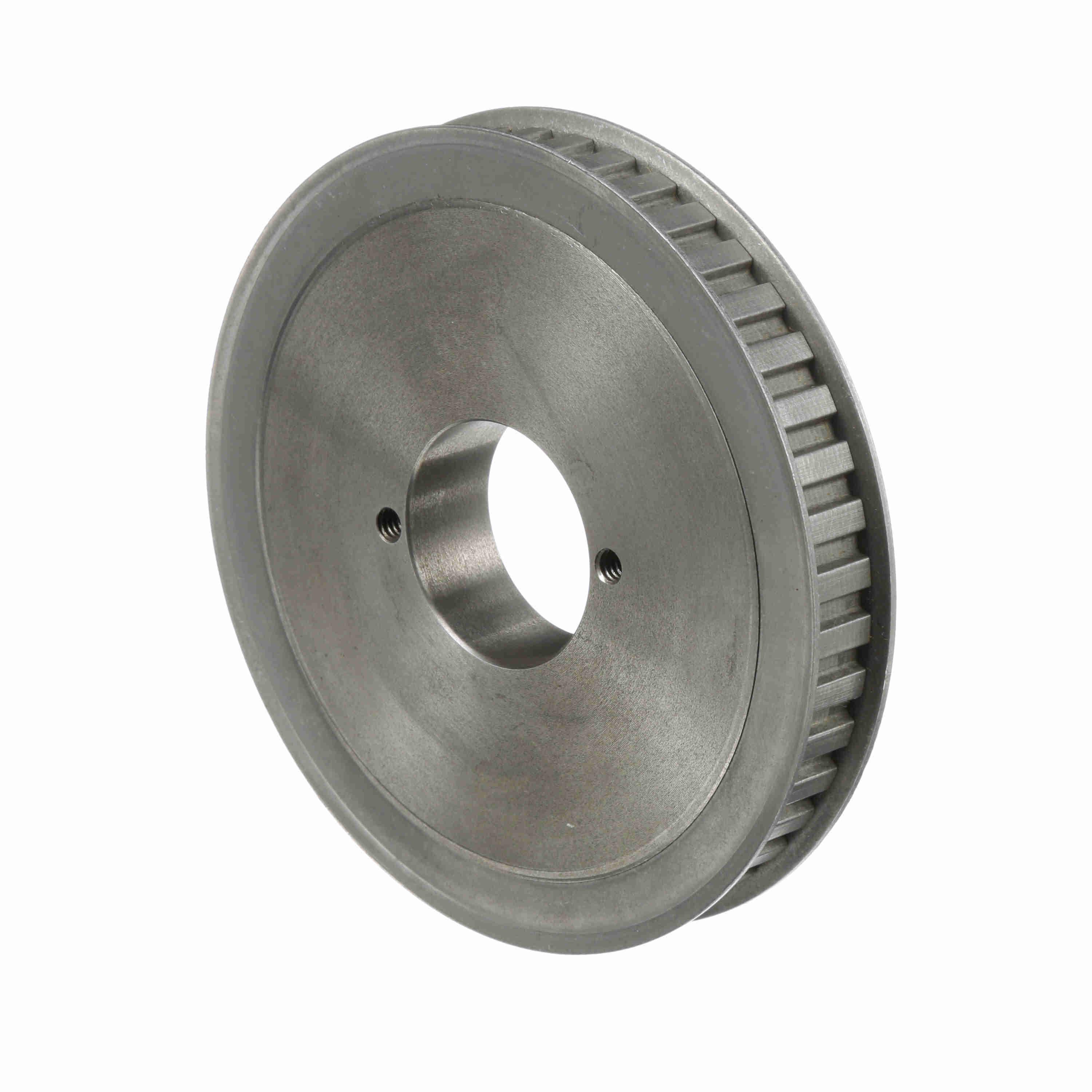

1056100 | 5.252" | 5.222" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 5 1/2" | Split Taper | €597.61 | |
 |

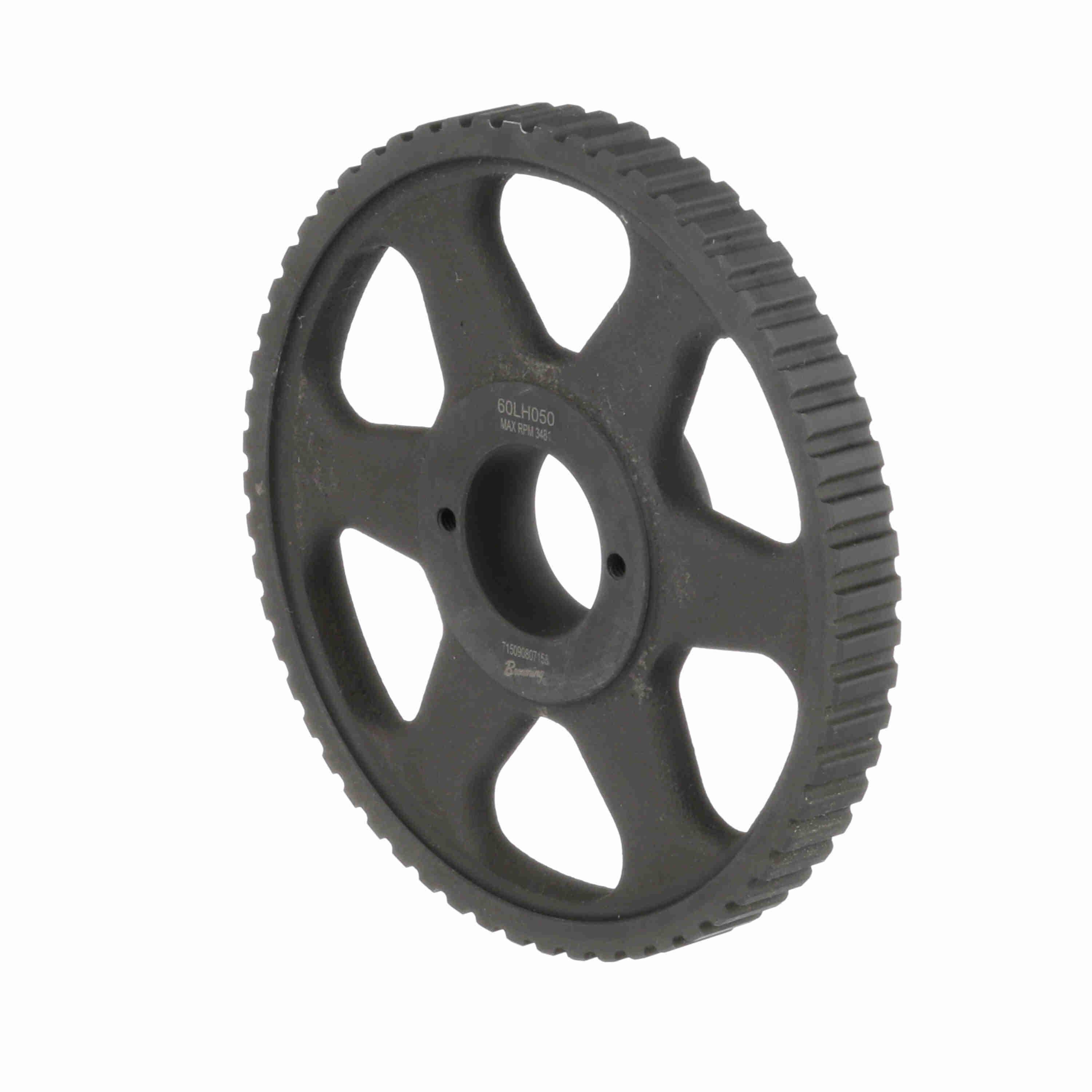

1056142 | 7.162" | 7.132" | 3/8" to 1 1/2" | Type 17 | 2 1/2" | 7/16" | - | Split Taper | €439.64 | |
 |

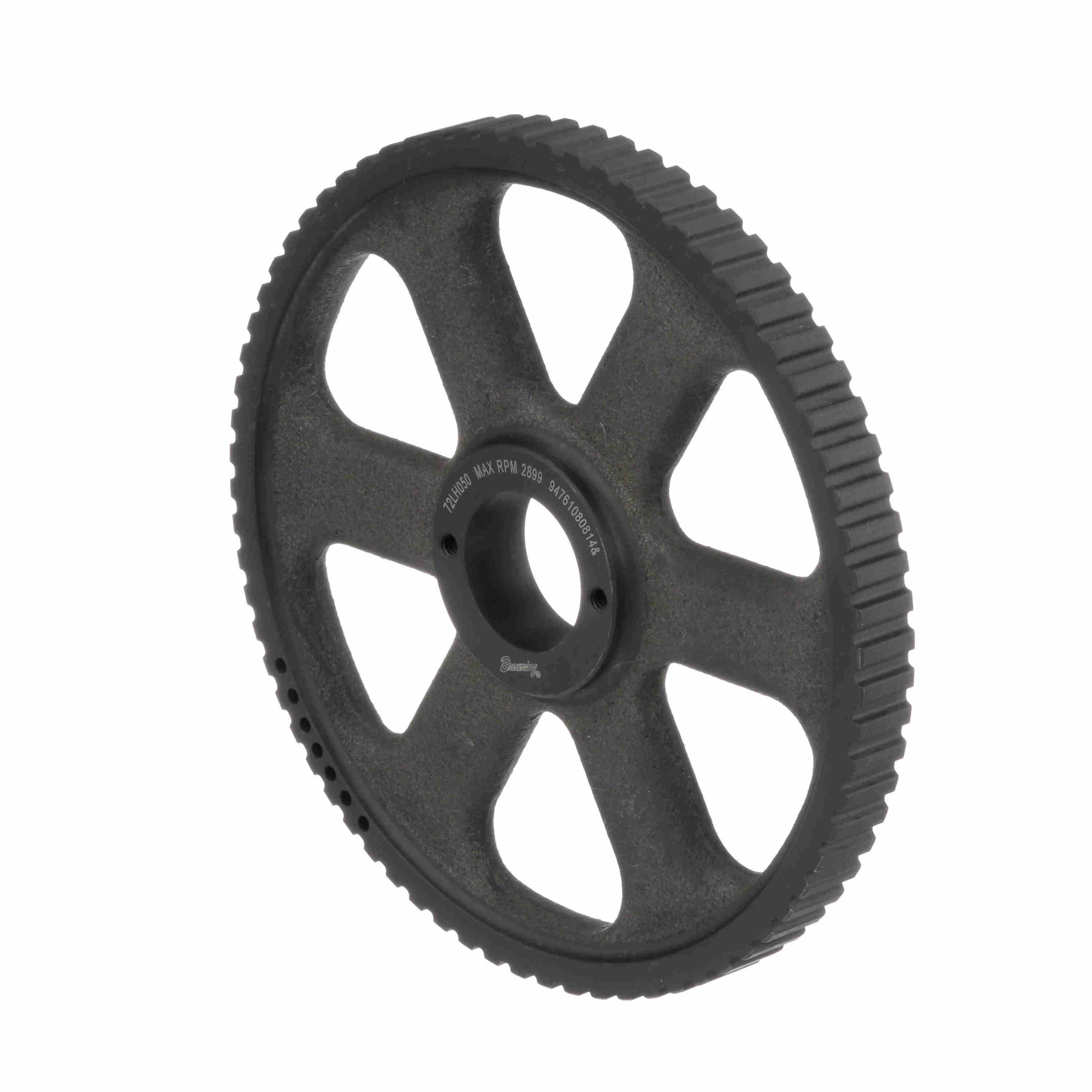

1056167 | 8.594" | 8.564" | 3/8" to 1 1/2" | Type 17 | 2 1/2" | 0.438" | - | Split Taper | €656.27 | |
 |

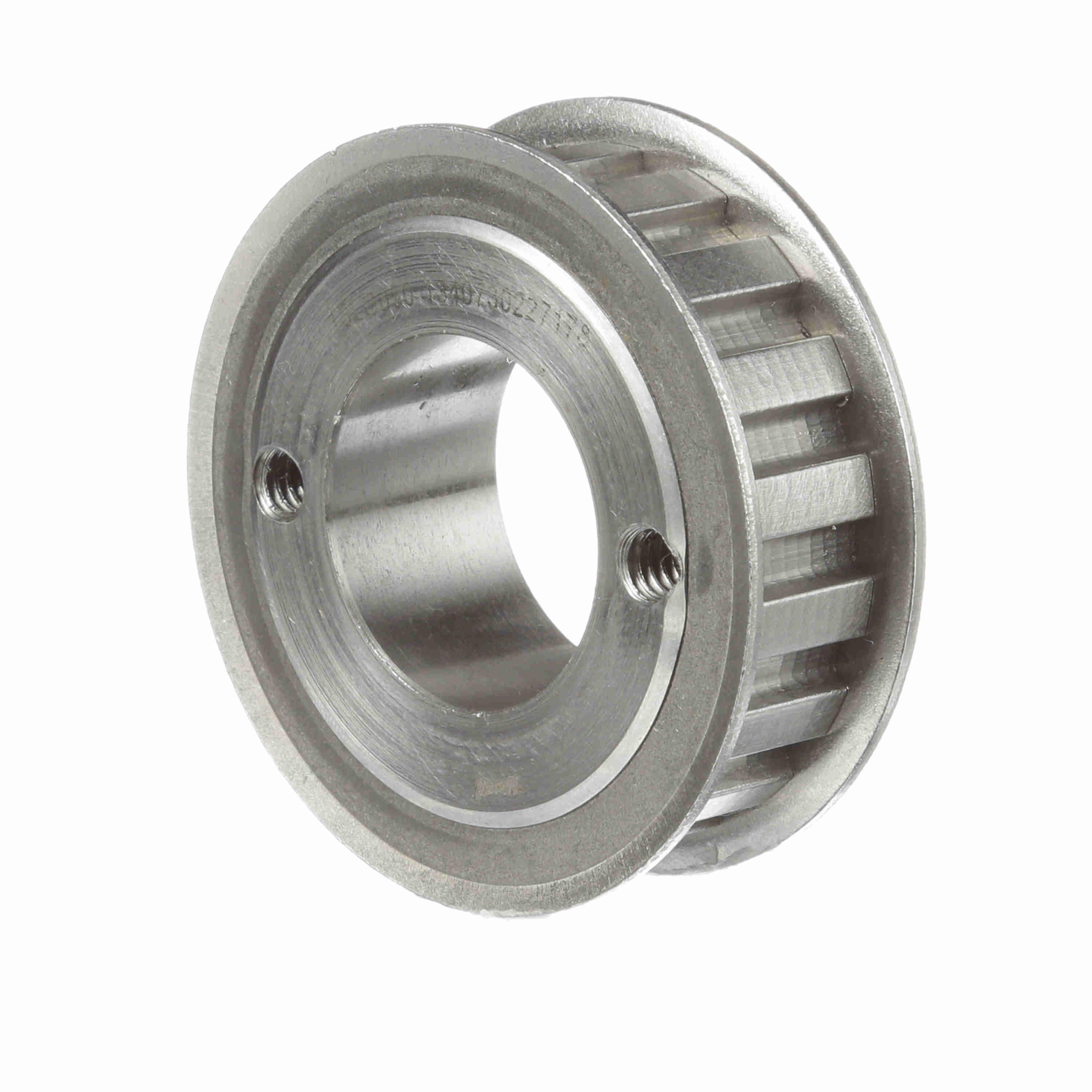

1055961 | 2.149" | 2.119" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/16" | Split Taper | €126.15 | |
 |

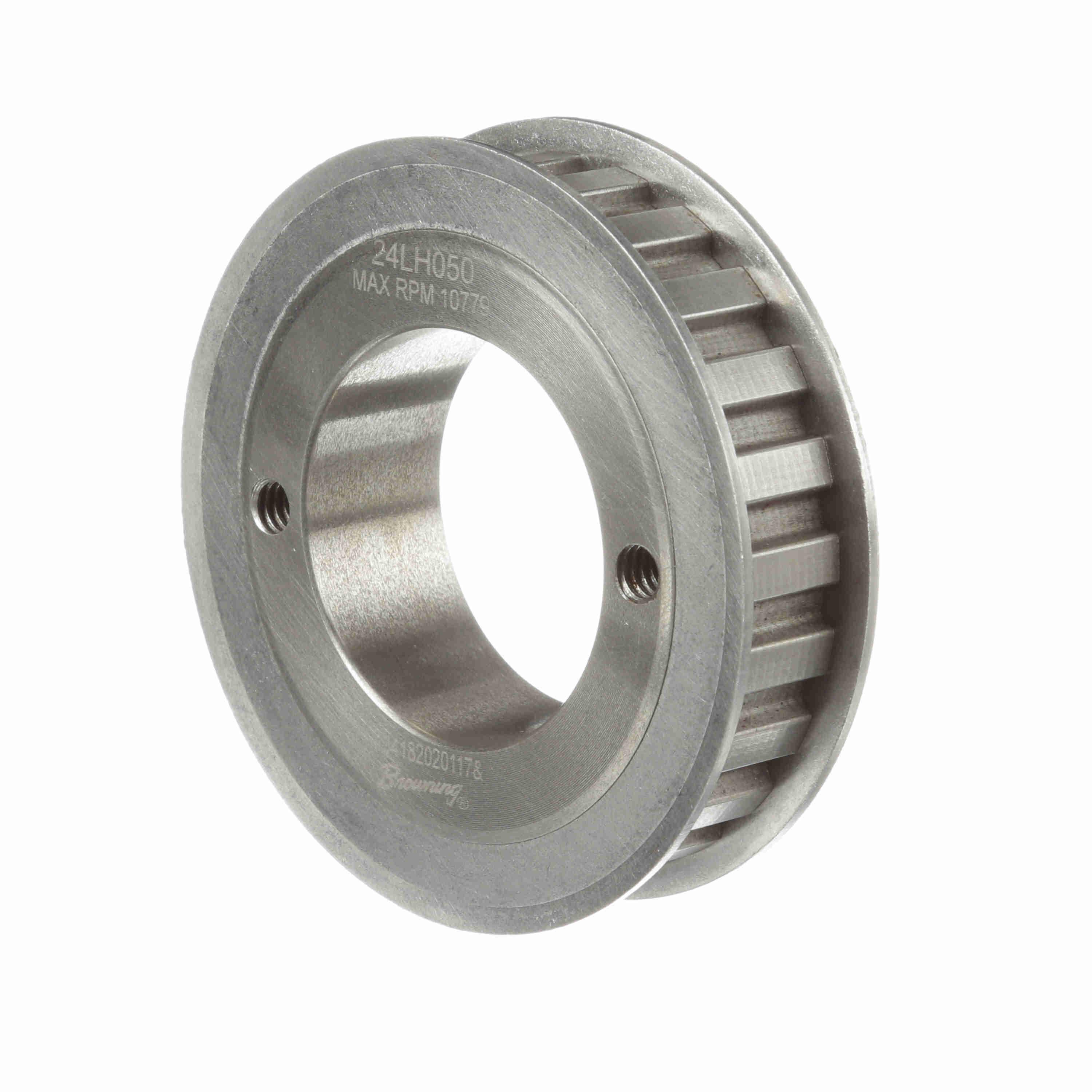

1056019 | 2.865" | 2.835" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 3 1/8" | Split Taper | €142.64 | |
 |

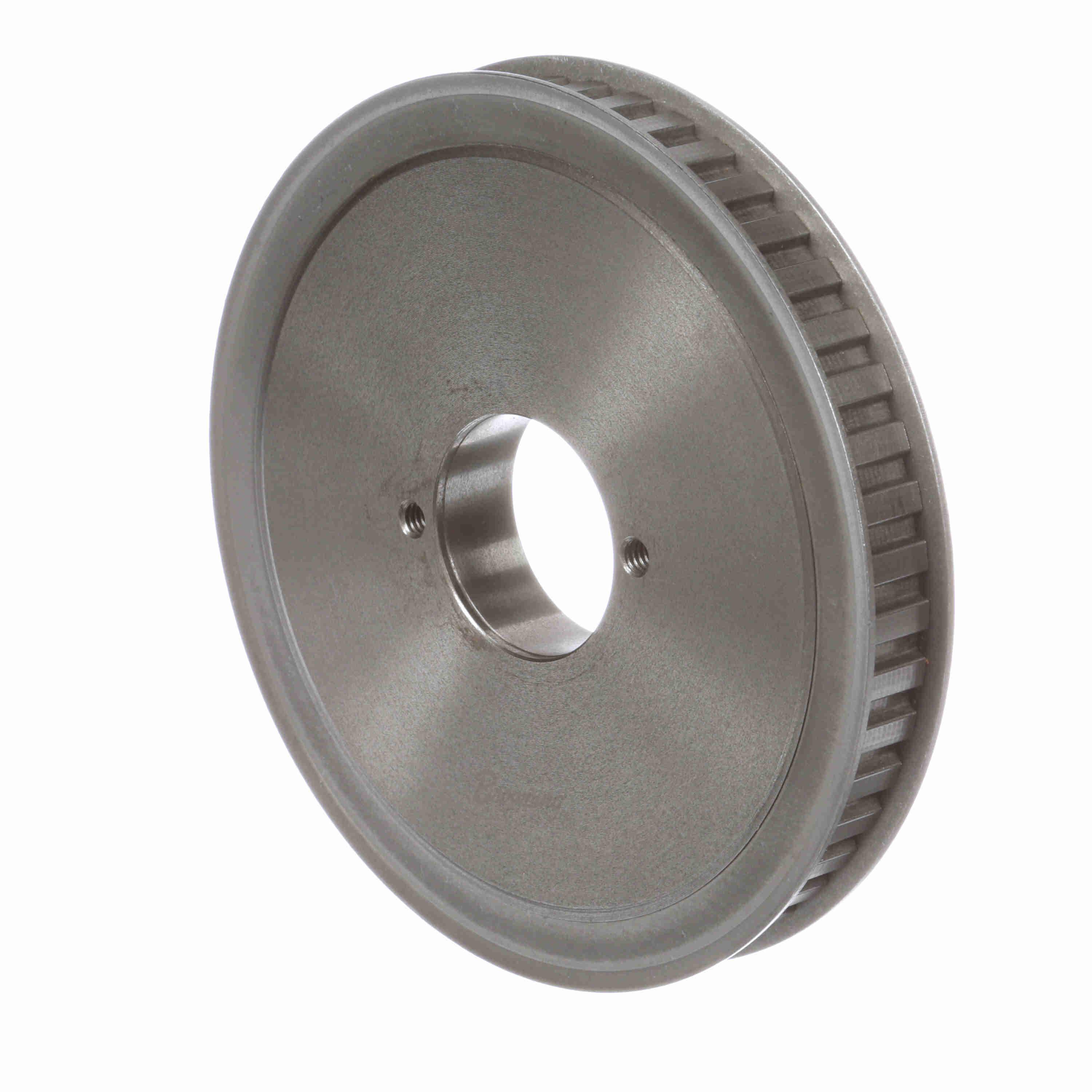

1056126 | 5.73" | 5.7" | 3/8" to 1 1/2" | Type 5 | 2 1/2" | 7/16" | 6" | Split Taper | €422.33 |
