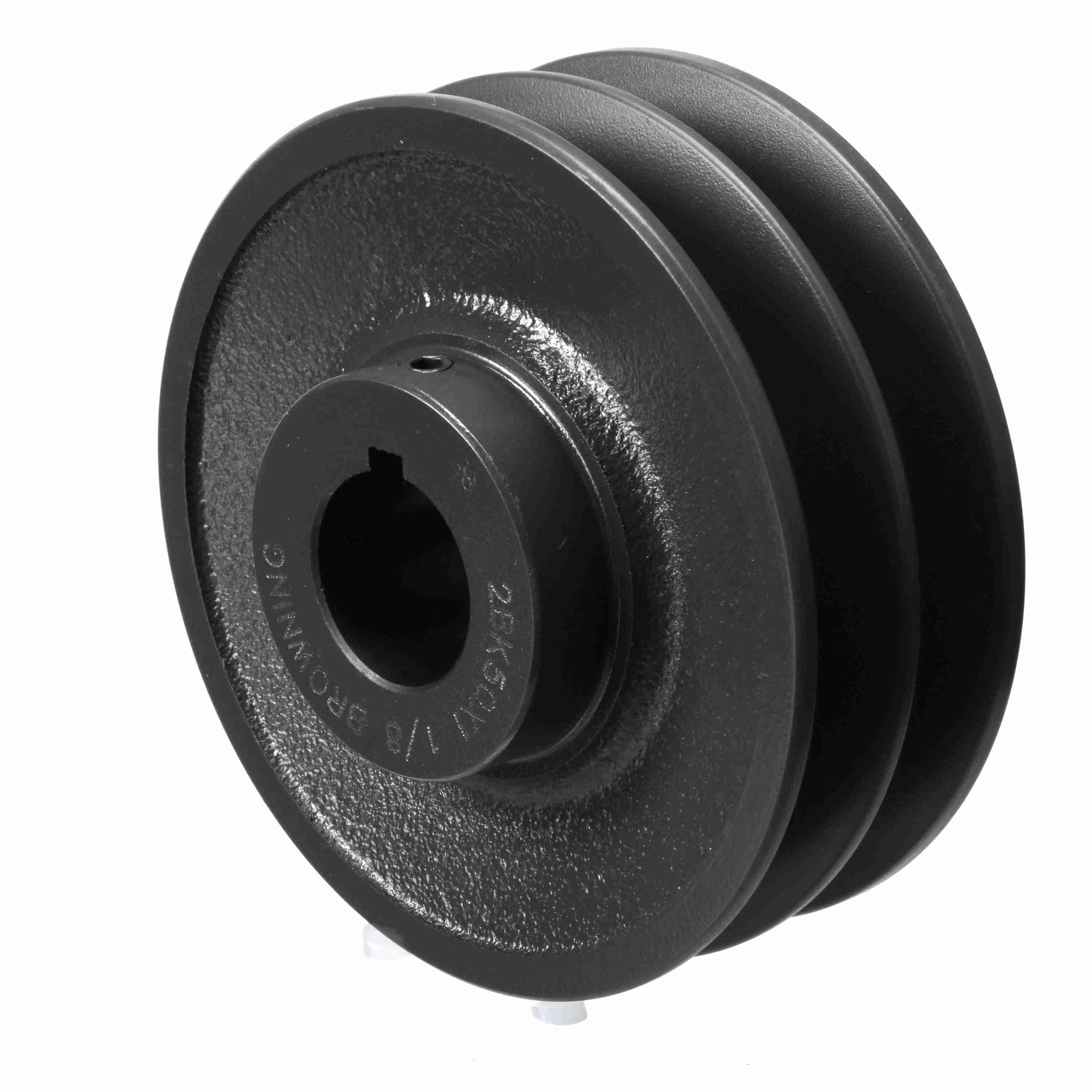

BROWNING 1033588 2BK50X 1 1/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron
Item: AZ9BDKModel: 1033588Cross Ref: 2BK50X 1 1/8
7 In Stock
4 3/4"
1 1/8"
Ships within 2 days via
€263.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1 1/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 2/5" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 3/4" |
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 1.828 Kg |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 5.64 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Bore Type | Outside Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1042977 | 3/8" to 1 1/2" | Split Taper | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €151.98 | |
 |
1043017 | 3/8" to 1 1/2" | Split Taper | 4 3/4" | Type 2 | 2 5/32" | Cast Iron | - | €145.60 | |
 |
1043116 | 3/8" to 1 1/2" | Split Taper | 8 3/4" | Type 3 | 1 29/32" | Cast Iron | 1 3/4" | €226.94 | |
 |
1033018 | 1/2" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €241.18 | |
 |
1033372 | 1 3/8" | Finished | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €218.36 | |
 |
1034172 | 1" | Finished | 15 3/4" | Type 3 | 2 3/32" | Cast Iron | 1 3/4" | €775.83 | |
 |
2739019 | 3/8" to 1 1/2" | Split Taper | 3.95" | Type 2 | 2 7/32" | Cast Iron | 1 3/4" | €165.49 |
