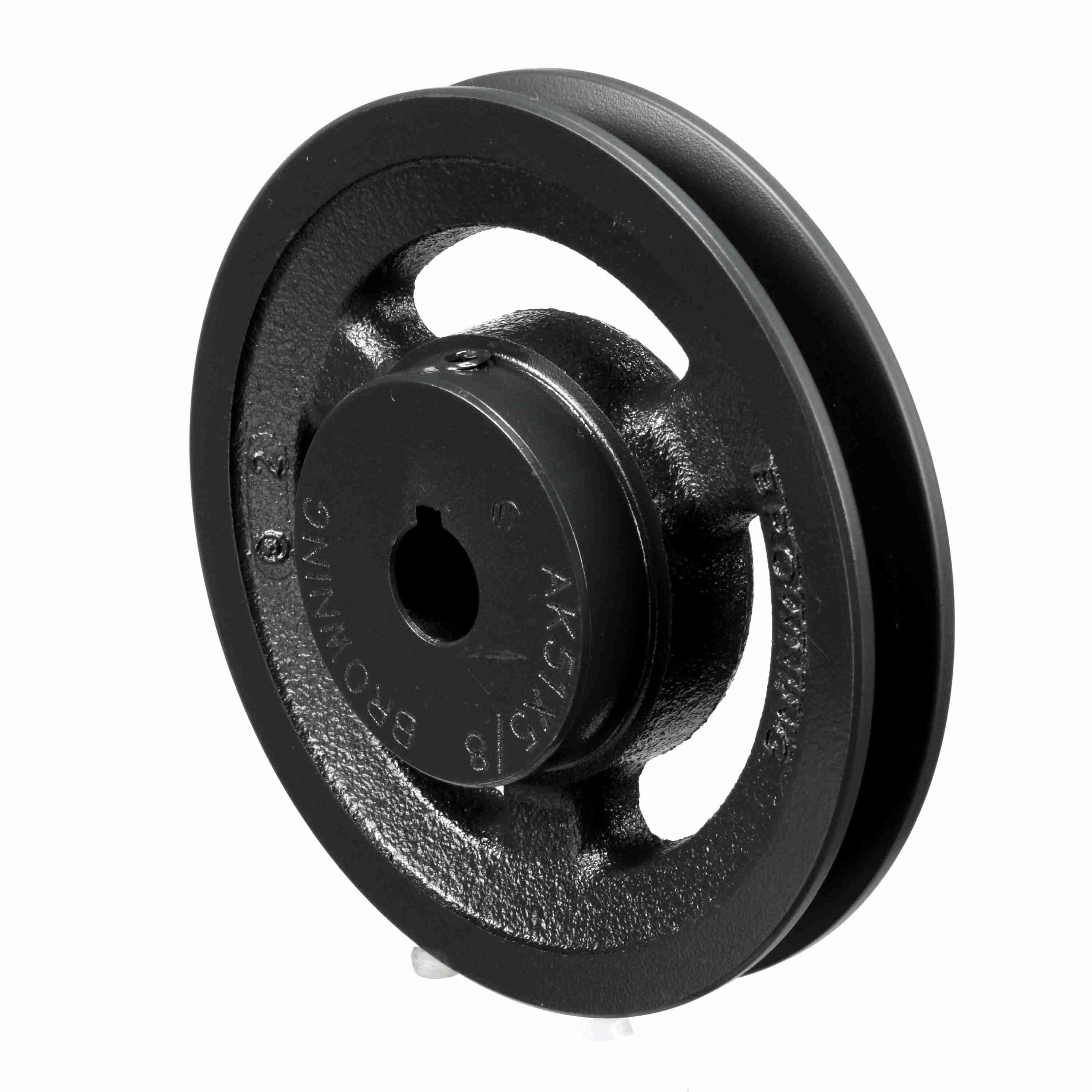

BROWNING 1026657 AK51X5/8 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron, 4.95 in OD, 5/8 in Bore Dia, 4.9 in A/4.36 in 3L Pitch Dia, Type 3, 15/32 in Hub Projection
Item: BA2PLLModel: 1026657Cross Ref: AK51X5/8
7 In Stock
4.95"
5/8"
Ships within 2 days via
€82.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4.7" |
| Min. Pitch Dia. | 4 9/25" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 4.95" |
| Overall Length | 1 7/32" |
| Pitch Dia. | 4.9" |
| Pitch Dia. 3l | 4 9/25" |
| Series | AK Series |
| Suitable For Use With | 4L/A And 3L Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 12.57 |
| Ship length (cm) | 3.1 |
| Ship width (cm) | 12.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Type | Pitch Dia. | Face Width | Min. Pitch Dia. | Max. Pitch Dia. | Hub Projection | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1042142 | 3/8" to 1 1/2" | Type 2 | 4.7" | 3/4" | 4 4/25" | 4 1/2" | 19/32" | Split Taper | €76.50 | |
 |
1042159 | 3/8" to 1 1/2" | Type 2 | 4.9" | 3/4" | 4 9/25" | 4.7" | 19/32" | Split Taper | €71.97 | |
 |
1042266 | 3/8" to 1 1/2" | Type 3 | 8 1/5" | 3/4" | 7.66" | 8" | 19/32" | Split Taper | €108.50 | |
 |
3195294 | 1 7/16" | Type 3 | 9.7" | 3/4" | 9 4/25" | 9 1/2" | 23/32" | Finished | €435.82 | |
 |
3195302 | 1 3/8" | Type 3 | 10 1/5" | 3/4" | 9.66" | 10" | 23/32" | Finished | €318.66 | |
 |
3195336 | 1 3/8" | Type 3 | 13 1/5" | 3/4" | 12.66" | 13" | 23/32" | Finished | €670.05 | |
 |
3195344 | 1 7/16" | Type 3 | 13 1/5" | 3/4" | 12.66" | 13" | 23/32" | Finished | €552.92 |
