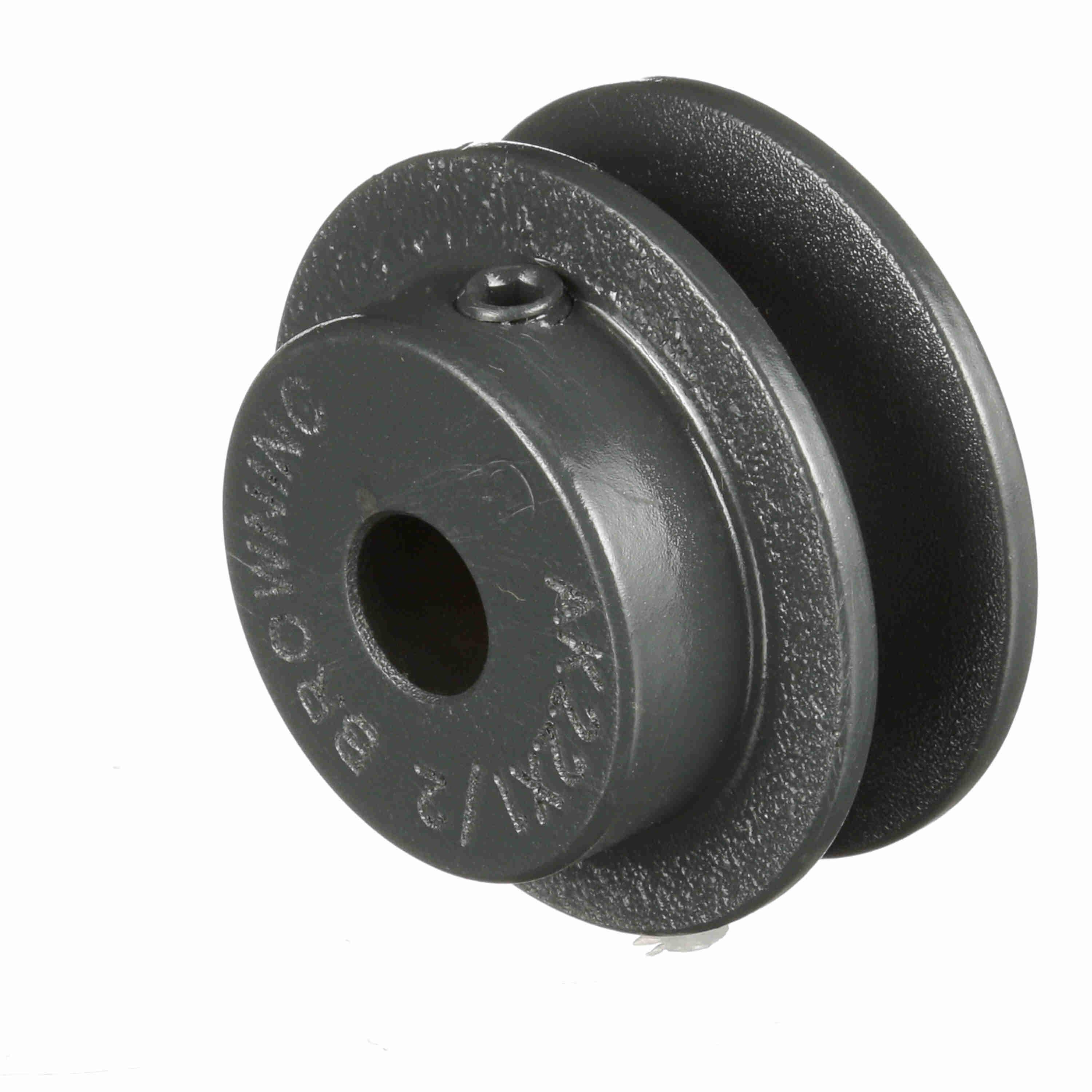

BROWNING 1025907 AK22X1/2 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron
Item: AZ9RRLModel: 1025907Cross Ref: AK22X1/2
7 In Stock
2 1/5"
1/2"
Ships within 2 days via
€60.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 1/2" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 21/32" |
| Hub Projection | 7/16" |
| Keyway | No |
| Material | Cast Iron |
| Max. Pitch Dia. | 2" |
| Min. Pitch Dia. | 1.66" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 2 1/5" |
| Overall Length | 1 3/32" |
| Pitch Dia. (3l) | 1.66" |
| Pitch Dia. (a) | 2 1/5" |
| Series | AK Series |
| Suitable For Use With | 4L/A And 3L Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 1 |
| Weight | 0.227 Kg |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 6.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Face Width | Type | Overall Length | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1042142 | 4 3/4" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 2 | 1 1/2" | Cast Iron | Gray | €76.50 | |
 |
1042159 | 4.95" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 2 | 1 1/2" | Cast Iron | Gray | €71.97 | |
 |
1042266 | 8 1/4" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 3 | 1 1/2" | Cast Iron | Gray | €108.50 | |
 |
3195245 | 7 1/4" | 1 1/8" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €158.30 | |
 |
3195252 | - | 1 1/8" | Finished | 3/4" | - | 1 15/32" | Cast Iron | - | €153.00 | |
 |
3195260 | 7 3/4" | 1 7/16" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €222.17 | |
 |
3195286 | 8 3/4" | 1 7/16" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €210.71 |
