BROWNING Single Groove Sheaves For 4L or A Belts
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2| Style | Model | Bore Dia. | Type | Pitch Dia. | Face Width | Min. Pitch Dia. | Max. Pitch Dia. | Hub Projection | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1027069 | - | Type 3 | 6 2/5" | 3/4" | - | - | 15/32" | Finished | €111.11 | |
| B | 1027663 | - | Type 3 | 14 1/5" | 3/4" | 13.66" | 14" | 23/32" | Finished | €613.47 | |
| C | 2779056 | - | - | - | - | - | - | - | Finished With Keyway, SS | €117.19 | |
| D | 2739001 | - | - | - | - | 3.86" | 4 1/5" | - | - | €123.26 | |
| E | 1026186 | - | Type 2 | 3" | 21/32" | - | - | 7/16" | Finished | €40.16 | |
| F | 2777597 | 0.787" | - | - | - | 3.66" | 4" | - | - | €47.24 | |
| F | 2777464 | 0.787" | - | - | - | 4 4/25" | 4 1/2" | - | - | €49.74 | |
| G | 1027176 | 1 1/4" | Type 3 | 7 1/5" | 3/4" | 6.66" | 7" | 23/32" | Finished | €334.82 | |
| H | 3195179 | 1 1/8" | Type 3 | 6 1/5" | 3/4" | 5.66" | 6" | 15/32" | Finished | €108.42 | |
| I | 3195138 | 1 1/8" | Type 3 | 5 1/5" | 3/4" | - | - | 15/32" | Finished | €92.24 | |
| J | 3195153 | 1 1/8" | Type 3 | 5.7" | 3/4" | 5 4/25" | 5 1/2" | 15/32" | Finished | €104.81 | |
| K | 3195096 | 1 1/8" | Type 3 | 4 1/5" | 3/4" | 3.66" | 4" | 15/32" | Finished | €81.50 | |
| L | 3195104 | 1 1/8" | Type 3 | 4 2/5" | 3/4" | 3.86" | 4 1/5" | 15/32" | Finished | €84.96 | |
| M | 3195112 | 1 1/8" | Type 3 | 4.7" | 3/4" | - | - | 15/32" | Finished | €85.80 | |
| N | 3195161 | 1 1/8" | Type 3 | 5.9" | 3/4" | 5 9/25" | 5.7" | 15/32" | Finished | €105.63 | |
| O | 3195120 | 1 1/8" | Type 3 | 4.9" | 3/4" | 4 9/25" | 4.7" | 15/32" | Finished | €127.09 | |
| P | 3195146 | 1 1/8" | Type 3 | 5 2/5" | 3/4" | - | - | 15/32" | Finished | €117.84 | |
| Q | 3195195 | 1 1/8" | Type 3 | 6 2/5" | 3/4" | - | - | 15/32" | Finished | €134.21 | |
| R | 3195351 | 1 3/8" | Type 3 | 14 1/5" | 3/4" | 13.66" | 14" | 23/32" | Finished | €682.06 | |
| R | 3195336 | 1 3/8" | Type 3 | 13 1/5" | 3/4" | 12.66" | 13" | 23/32" | Finished | €670.05 | |
| S | 3195302 | 1 3/8" | Type 3 | 10 1/5" | 3/4" | 9.66" | 10" | 23/32" | Finished | €318.66 | |
| T | 1027762 | 1 3/16" | Type 3 | 18 1/5" | 3/4" | 17.66" | 18" | 23/32" | Finished | €884.00 | |
| U | 1026756 | 1 3/16" | Type 3 | 5 1/5" | 3/4" | - | - | 15/32" | Finished | €92.24 | |
| V | 1027465 | 1 3/16" | Type 3 | 10 1/5" | 3/4" | 9.66" | 10" | 23/32" | Finished | €144.69 | |
| W | 1027168 | 1 3/16" | Type 3 | 7 1/5" | 3/4" | 6.66" | 7" | 23/32" | - | €128.28 | |
| X | 1026897 | 1 3/16" | Type 3 | 5.7" | 3/4" | 5 4/25" | 5 1/2" | 15/32" | Finished | €104.81 | |
| Y | 1027598 | 1 3/16" | Type 3 | 12 1/5" | 3/4" | 11.66" | 12" | 23/32" | Finished | €320.22 | |
| Z | 1027267 | 1 3/16" | Type 3 | 8 1/5" | 3/4" | 7.66" | 8" | 23/32" | Finished | €121.94 | |
| A1 | 1027036 | 1 3/16" | Type 3 | 6 1/5" | 3/4" | 5.66" | 6" | 15/32" | Finished | €108.42 | |
| B1 | 1027531 | 1 3/16" | Type 3 | 11 1/5" | 3/4" | 10.66" | 11" | 23/32" | Finished | €420.60 | |
| C1 | 1027366 | 1 3/16" | Type 3 | 9 1/5" | 3/4" | 8.66" | 9" | 23/32" | Finished | €203.64 | |
| D1 | 3195294 | 1 7/16" | Type 3 | 9.7" | 3/4" | 9 4/25" | 9 1/2" | 23/32" | Finished | €435.82 | |
| E1 | 3195344 | 1 7/16" | Type 3 | 13 1/5" | 3/4" | 12.66" | 13" | 23/32" | Finished | €552.92 | |
| F1 | 1027739 | 1 7/16" | Type 3 | 15 1/5" | 3/4" | 14.66" | 15" | 23/32" | Finished | €592.77 | |
| G1 | 1027614 | 1 7/16" | Type 3 | 12 1/5" | 3/4" | 11.66" | 12" | 23/32" | Finished | €446.09 | |
| H1 | 1026814 | 1" | Type 3 | 5 2/5" | 3/4" | 4.86" | 5 1/5" | 15/32" | Finished | €92.76 | |
| I1 | 1026459 | 1" | Type 2 | 3.9" | 3/4" | 3 9/25" | 3.7" | 15/32" | Finished | €78.04 | |
| J1 | 1026681 | 1" | Type 3 | 4.9" | 3/4" | 4 9/25" | 4.7" | 15/32" | Finished | €70.42 | |
| K1 | 1026889 | 1" | Type 3 | 5.7" | 3/4" | 5 4/25" | 5 1/2" | 15/32" | Finished | €81.48 | |
| F | 2779114 | 1" | - | - | - | 5.66" | 6" | - | - | €62.87 | |
| L1 | 1027259 | 1" | Type 3 | 8 1/5" | - | 7.66" | 8" | 25/32" | Finished | €121.94 | |
| M1 | 1027580 | 1" | Type 3 | 12 1/5" | 3/4" | 11.66" | 12" | 25/32" | Finished | €300.56 | |
| F | 2779106 | 1" | - | - | - | 5 4/25" | 5 1/2" | - | - | €60.75 | |
| F | 2779080 | 1" | - | - | - | 4.86" | 5 1/5" | - | - | €57.40 | |
| N1 | 1026517 | 1" | Type 3 | 4 1/5" | 3/4" | 3.66" | 4" | 15/32" | Finished | €80.34 | |
| O1 | 1026632 | 1" | Type 3 | 4.7" | 3/4" | - | - | 15/32" | Finished | €85.80 | |
| P1 | 1027028 | 1" | Type 3 | 6 1/5" | 3/4" | - | - | 15/32" | Finished | €84.30 | |
| Q1 | 1027085 | 1" | Type 3 | - | 3/4" | 6 4/25" | 6 1/2" | 23/32" | Finished | €120.88 | |
| R1 | 1027101 | 1" | Type 3 | 6.9" | 3/4" | 6 9/25" | 6.7" | 23/32" | Finished | €142.76 | |
| S1 | 1027150 | 1" | Type 3 | 7 1/5" | 3/4" | 6.66" | 7" | 25/32" | Finished | €99.71 | |
| T1 | 1027523 | 1" | Type 3 | 11 1/5" | 3/4" | 10.66" | 11" | 25/32" | Finished | €237.53 | |
| U1 | 1027358 | 1" | Type 3 | 9 1/5" | 3/4" | 8.66" | 9" | 25/32" | Finished | €134.91 | |
| V1 | 1026392 | 1" | Type 2 | 3.7" | 3/4" | 3 4/25" | 3 1/2" | 15/32" | Finished | €67.62 | |
| W1 | 1027408 | 1" | Type 3 | 9.7" | - | - | - | 23/32" | Finished | €246.43 | |
| X1 | 1027457 | 1" | Type 3 | 10 1/5" | 3/4" | - | - | 25/32" | Finished | €152.23 | |
| Y1 | 1027309 | 1" | Type 3 | 8.7" | 3/4" | - | - | 23/32" | Finished | €233.74 | |
| Z1 | 1027713 | 1" | Type 3 | 15 1/5" | 3/4" | 14.66" | 15" | 23/32" | Finished | €574.19 | |
| A2 | 1026574 | 1" | Type 3 | 4 2/5" | 3/4" | 3.86" | 4 1/5" | 15/32" | Finished | €84.96 | |
| B2 | 1026954 | 1" | Type 3 | 5.9" | 3/4" | 5 9/25" | 5.7" | 15/32" | Finished | €96.72 | |
| C2 | 1027200 | 1" | Type 3 | 7.7" | 3/4" | 7 4/25" | 7 1/2" | 23/32" | Finished | €119.91 | |

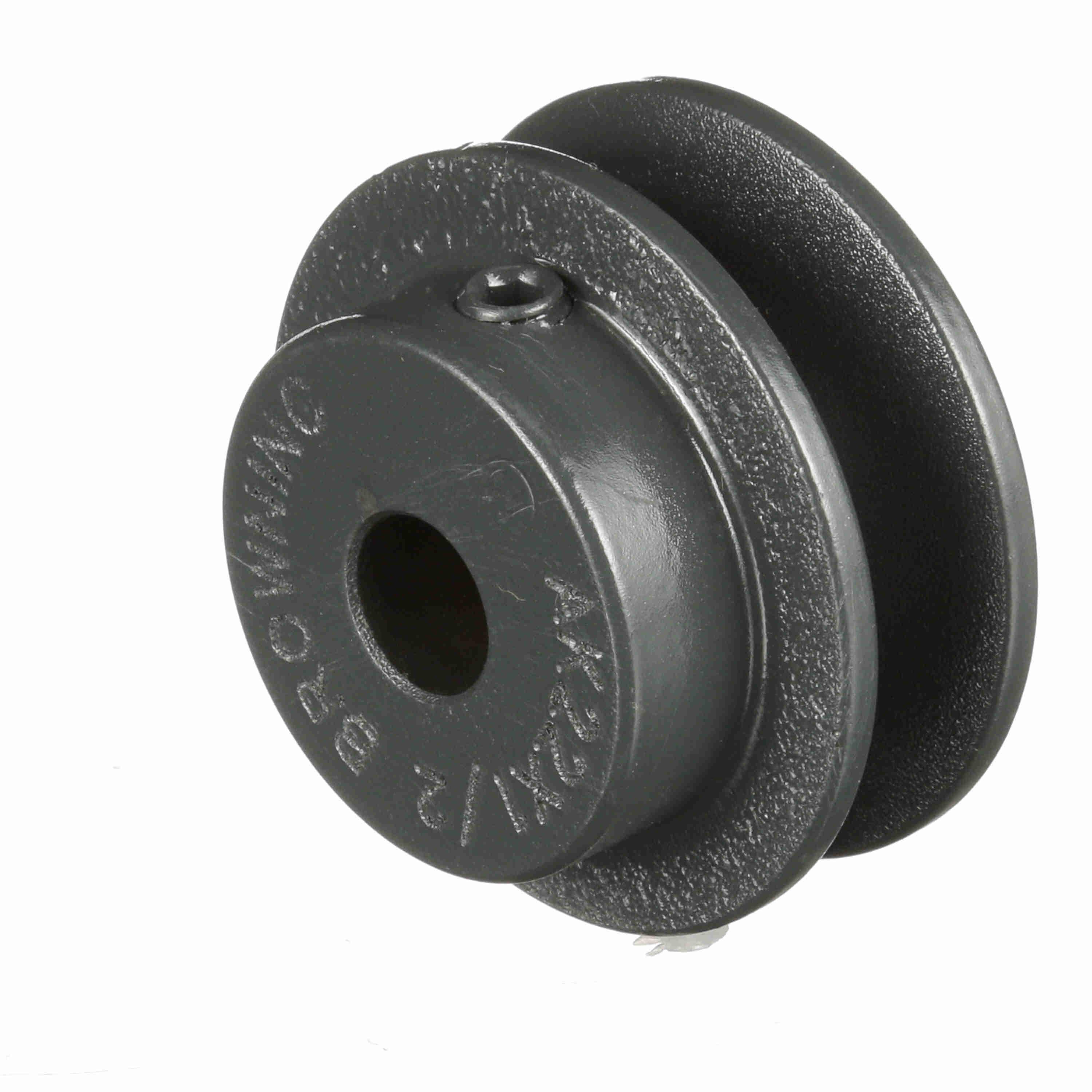

| D2 | 1025907 | 1/2" | Type 1 | 2 1/5" | 21/32" | 1.66" | 2" | 7/16" | Finished | €60.47 |
