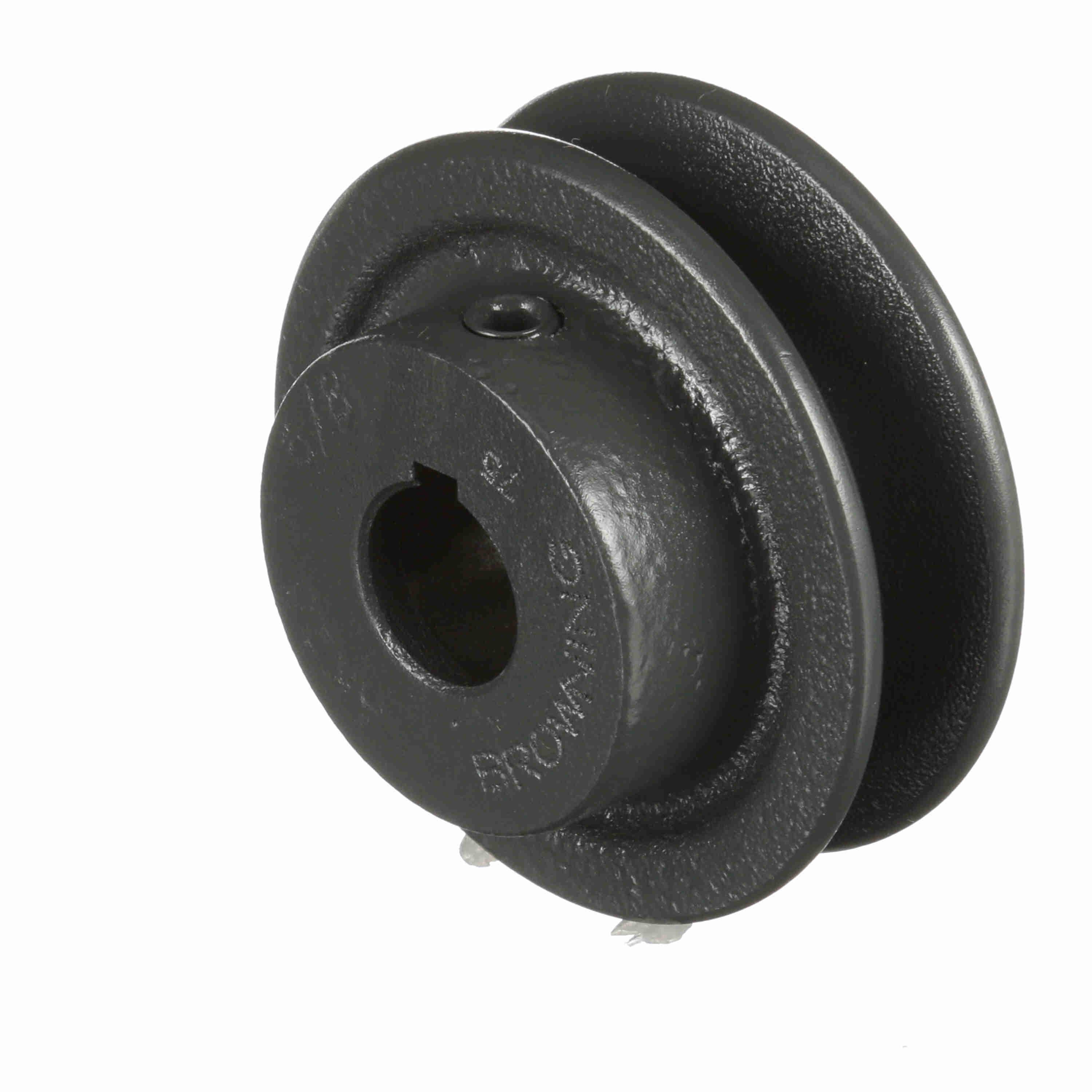

BROWNING 1026004 AK25X5/8 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron, 2-1/2 in OD, 5/8 in Bore Dia, 2-1/2 in A/1.96 in 3L Pitch Dia, Type 2, 7/16 in Hub Projection
Item: BA2XVJModel: 1026004Cross Ref: AK25X5/8
7 In Stock
2 1/2"
5/8"
Ships within 2 days via
€44.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 21/32" |
| Hub Projection | 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 2.3" |
| Min. Pitch Dia. | 1 24/25" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 2 1/2" |
| Overall Length | 1 3/32" |
| Pitch Dia. (3l) | 1 24/25" |
| Pitch Dia. (a) | 2 1/2" |
| Series | AK Series |
| Suitable For Use With | 4L/A And 3L Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 6.73 |
| Ship width (cm) | 7.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Face Width | Type | Overall Length | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1042142 | 4 3/4" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 2 | 1 1/2" | Cast Iron | Gray | €76.50 | |
 |
1042159 | 4.95" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 2 | 1 1/2" | Cast Iron | Gray | €71.97 | |
 |
1042266 | 8 1/4" | 3/8" to 1 1/2" | Split Taper | 3/4" | Type 3 | 1 1/2" | Cast Iron | Gray | €108.50 | |
 |
3195294 | 9 3/4" | 1 7/16" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €435.82 | |
 |
3195302 | 10 1/4" | 1 3/8" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €318.66 | |
 |
3195336 | 13 1/4" | 1 3/8" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €670.05 | |
 |
3195344 | 13 1/4" | 1 7/16" | Finished | 3/4" | Type 3 | 1 15/32" | Cast Iron | - | €552.92 |
