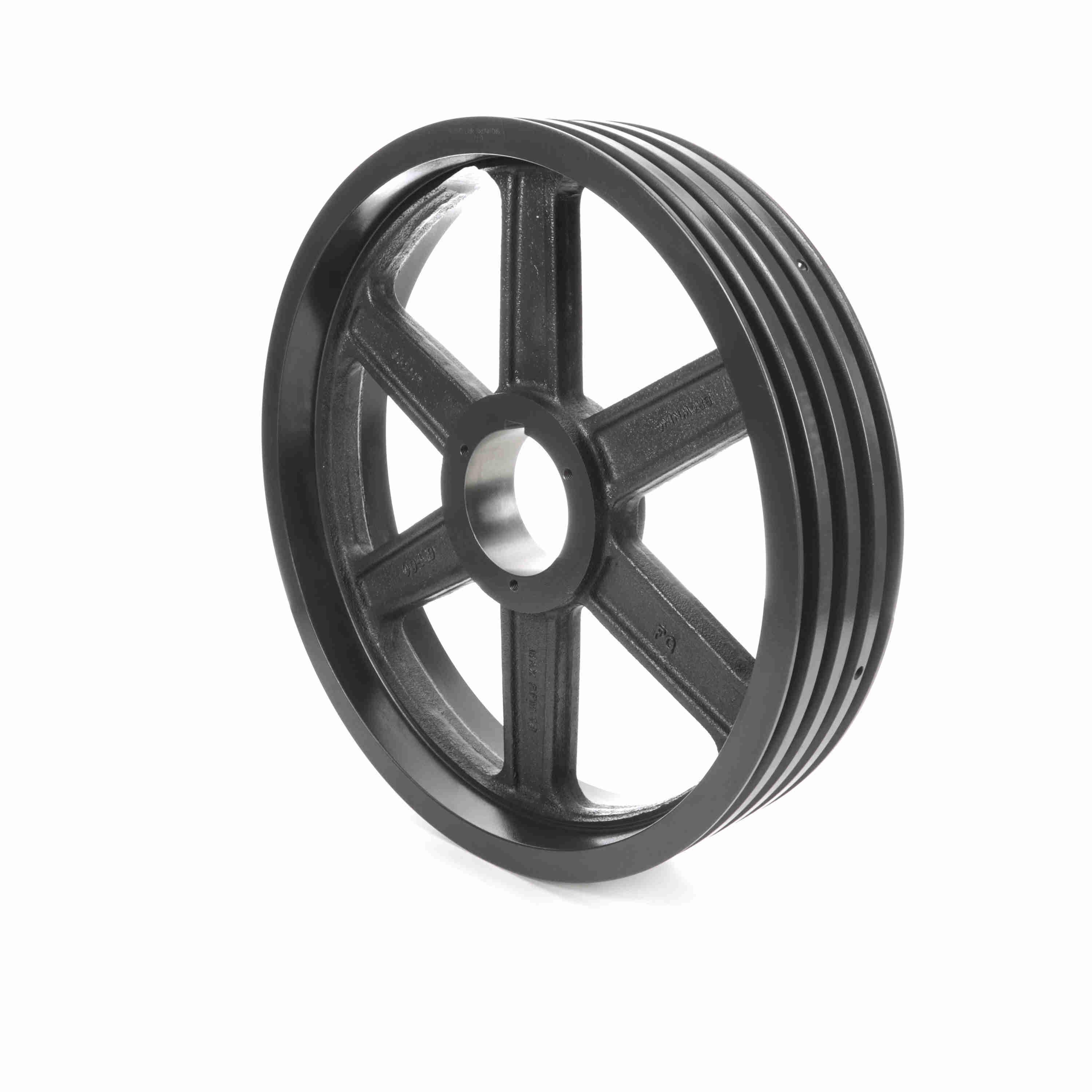

BROWNING 1021898 4MVB200R V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 4 Groove, Cast Iron, 20.35 in OD, 1-1/8 to 3-3/4 in Bore Dia, 19.8 in A/20.3 in B Pitch Dia
Get it by Tuesday, Mar 31
€2,914.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Type | R1 |
| Face Width | 4 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 4 3/8" |
| Max. Pitch Dia. | 20" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 4 3/8" |
| Min. Pitch Dia. | 19 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 20.35" |
| Overall Length | 4 3/8" |
| Pitch Dia. (a) | 19 4/5" |
| Pitch Dia. (b) | 20.3" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Arm |
Shipping Info:
| Ship weight (kg) | 34.43 |
| Ship height (cm) | 51.69 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 51.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1021336 | 5.35" | 1" to 2 5/8" | 5 13/32" | Type 5 | Bushed | Cast Iron | 4 3/8" | €1,005.24 | |
 |
1021930 | 25.35" | 1 1/8" to 3 3/4" | - | Type 15 Arm | Bushed | Cast Iron | 4 3/8" | €2,951.57 | RFQ
|
|
1021971 | 30.35" | 1 1/8" to 3 3/4" | 4 3/8" | Type 15 Arm | Bushed | Cast Iron | 4 3/8" | €7,246.34 | |
 |
1021856 | 18 3/4" | 1 1/8" to 3 3/4" | 4 3/8" | Type 15 Arm | Bushed | Cast Iron | 4 3/8" | €2,712.34 | |
 |
1021518 | 7 3/4" | 1" to 2 5/8" | 4 19/32" | Type 15 Web | Bushed | Cast Iron | 4 3/8" | €828.53 | RFQ
|
 |
1021369 | 5 3/4" | 1" to 2 5/8" | 5 13/32" | Type 5 | Bushed | Cast Iron | 4 3/8" | €815.13 | RFQ
|
 |
1021716 | 12 3/4" | 1 1/8" to 3 3/4" | 4 3/8" | Type 15 Arm | Bushed | Cast Iron | 4 3/8" | €1,784.58 |
