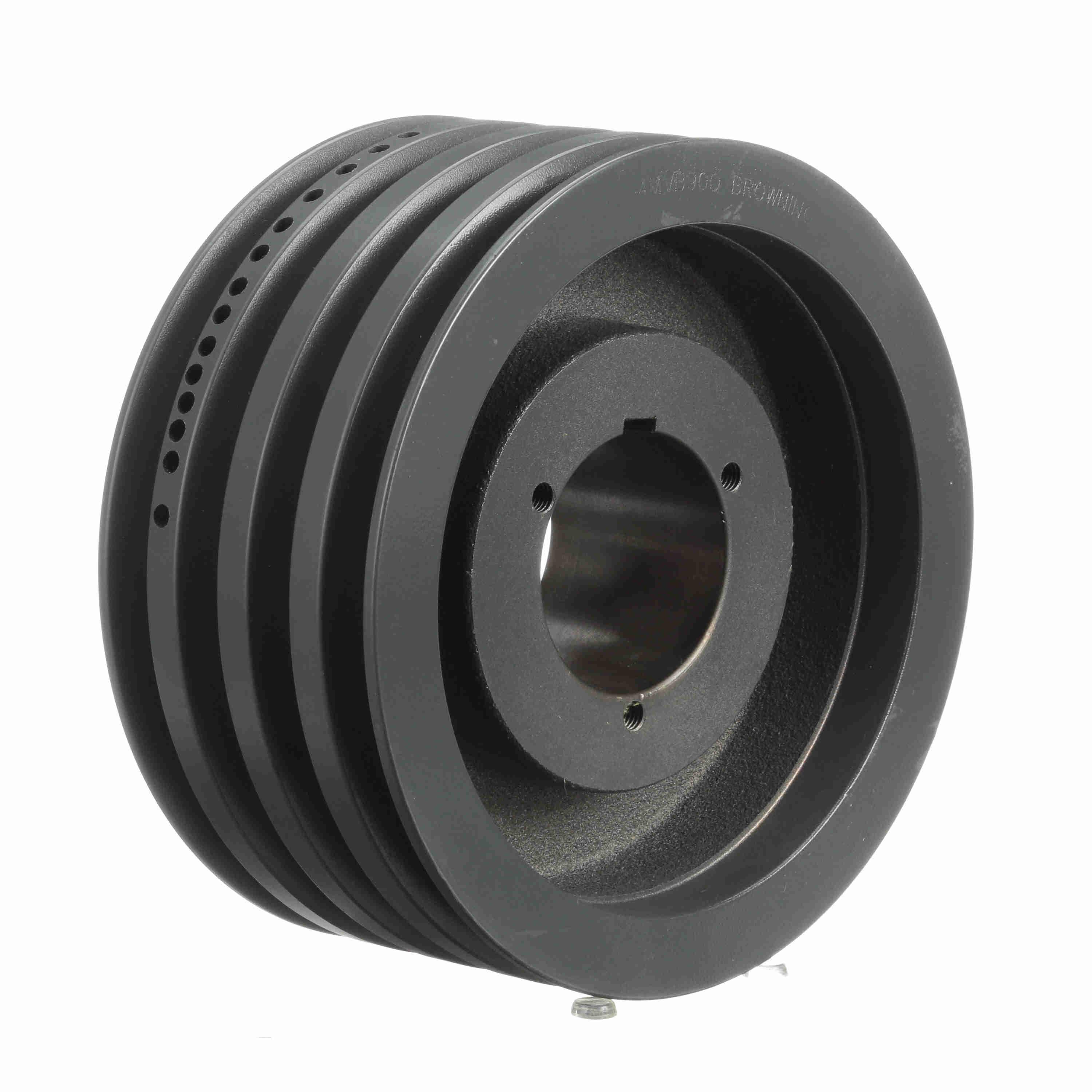

BROWNING 1021971 4MVB300R V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 4 Groove, Cast Iron, 30.35 in OD, 1-1/8 to 3-3/4 in Bore Dia, 29.8 in A/30.3 in B Pitch Dia
Get it by Monday, Aug 17
€7,246.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Type | R1 |
| Face Width | 4 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 4 3/8" |
| Max. Pitch Dia. | 30" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 4 3/8" |
| Min. Pitch Dia. | 29 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 30.35" |
| Overall Length | 4 3/8" |
| Pitch Dia. | 29 4/5" |
| Pitch Dia. (b) | 30.3" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Arm |
Shipping Info:
| Ship weight (kg) | 60.53 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Pitch Dia. (b) | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

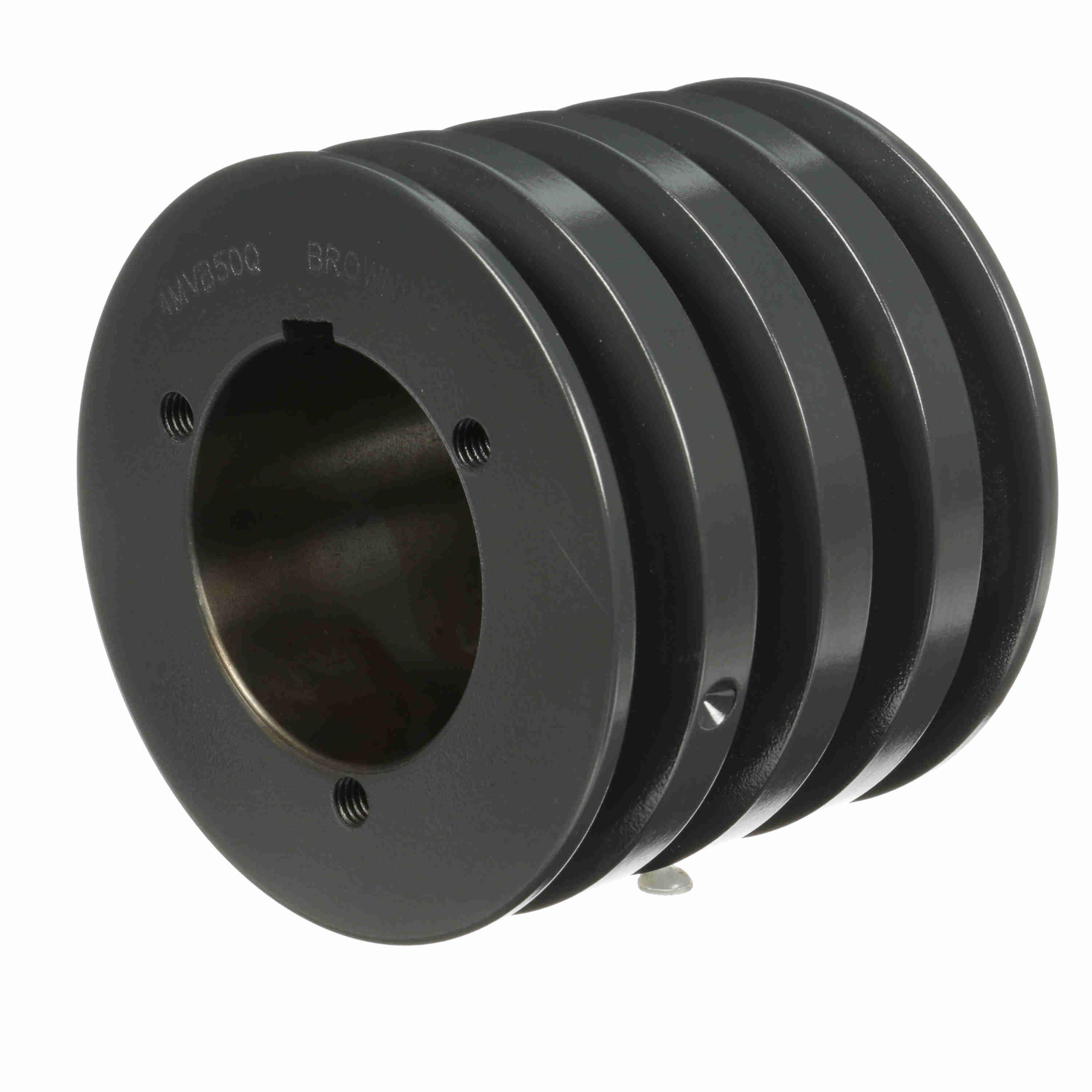

1021336 | 4 4/5" | 1" to 2 5/8" | Type 5 | 5" | 4 3/5" | Q2 | 5.3" | Cast Iron | €1,005.24 | |
 |
1021856 | 18 1/5" | 1 1/8" to 3 3/4" | Type 15 Arm | 18 2/5" | 18" | R1 | 18.7" | Cast Iron | €2,712.34 | |
 |

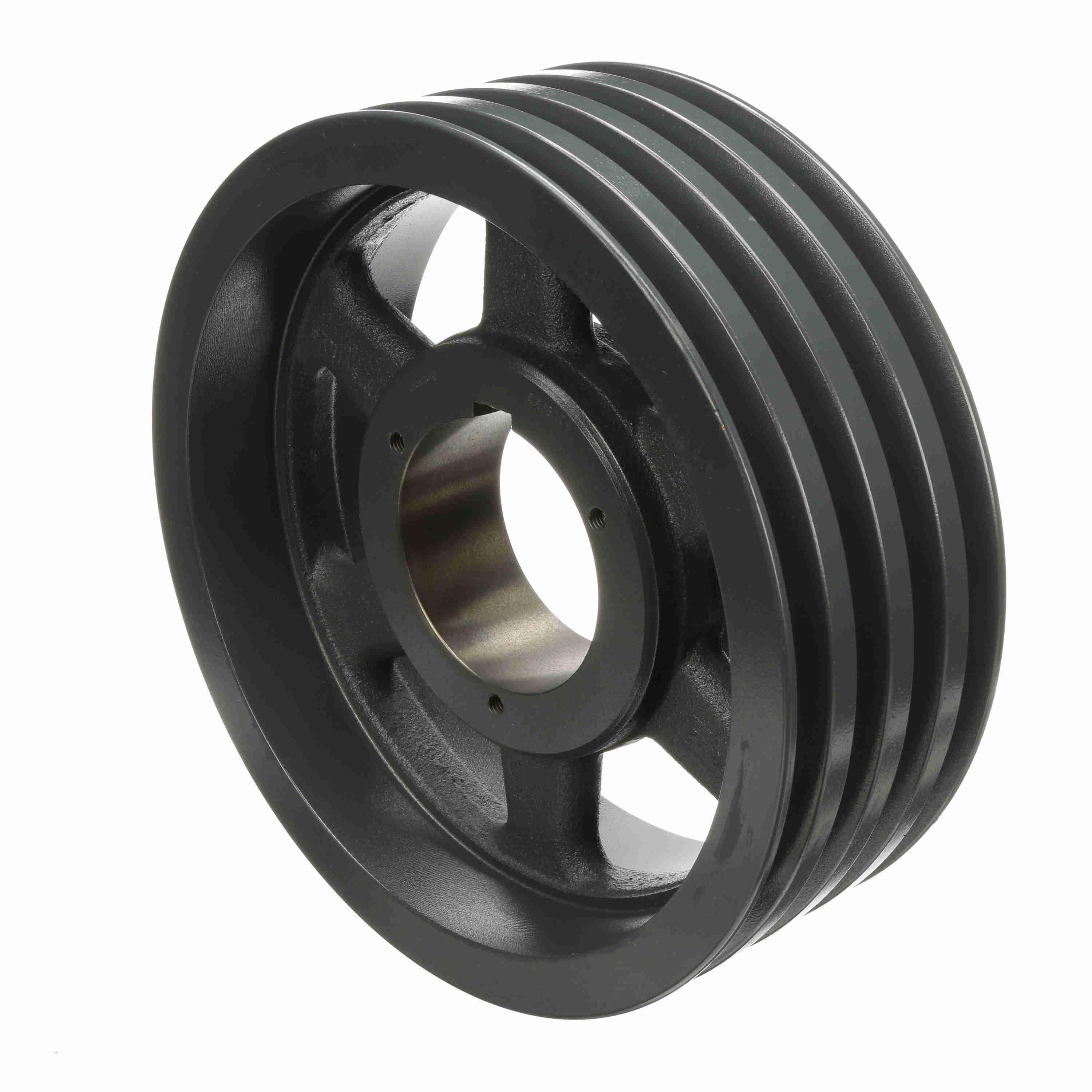

1021716 | 12 1/5" | 1 1/8" to 3 3/4" | Type 15 Arm | 12 2/5" | 12" | R1 | 12.7" | Cast Iron | €1,784.58 | |
 |
1021898 | 19 4/5" | 1 1/8" to 3 3/4" | Type 15 Arm | 20" | 19 1/2" | R1 | 20.3" | Cast Iron | €2,914.26 | |
 |
1021807 | 15 1/5" | 1 1/8" to 3 3/4" | Type 15 Arm | 15 2/5" | 15" | R1 | 15.7" | Cast Iron | €2,234.99 | |
 |
1021542 | 7.8" to 8.3" | 1" to 2 5/8" | - | - | - | Split Taper | - | Cast Iron | €1,440.15 | |
 |
1021757 | 13 2/5" | 1 1/8" to 3 3/4" | Type 15 Arm | - | - | R1 | 13.9" | Cast Iron | €2,000.52 |
