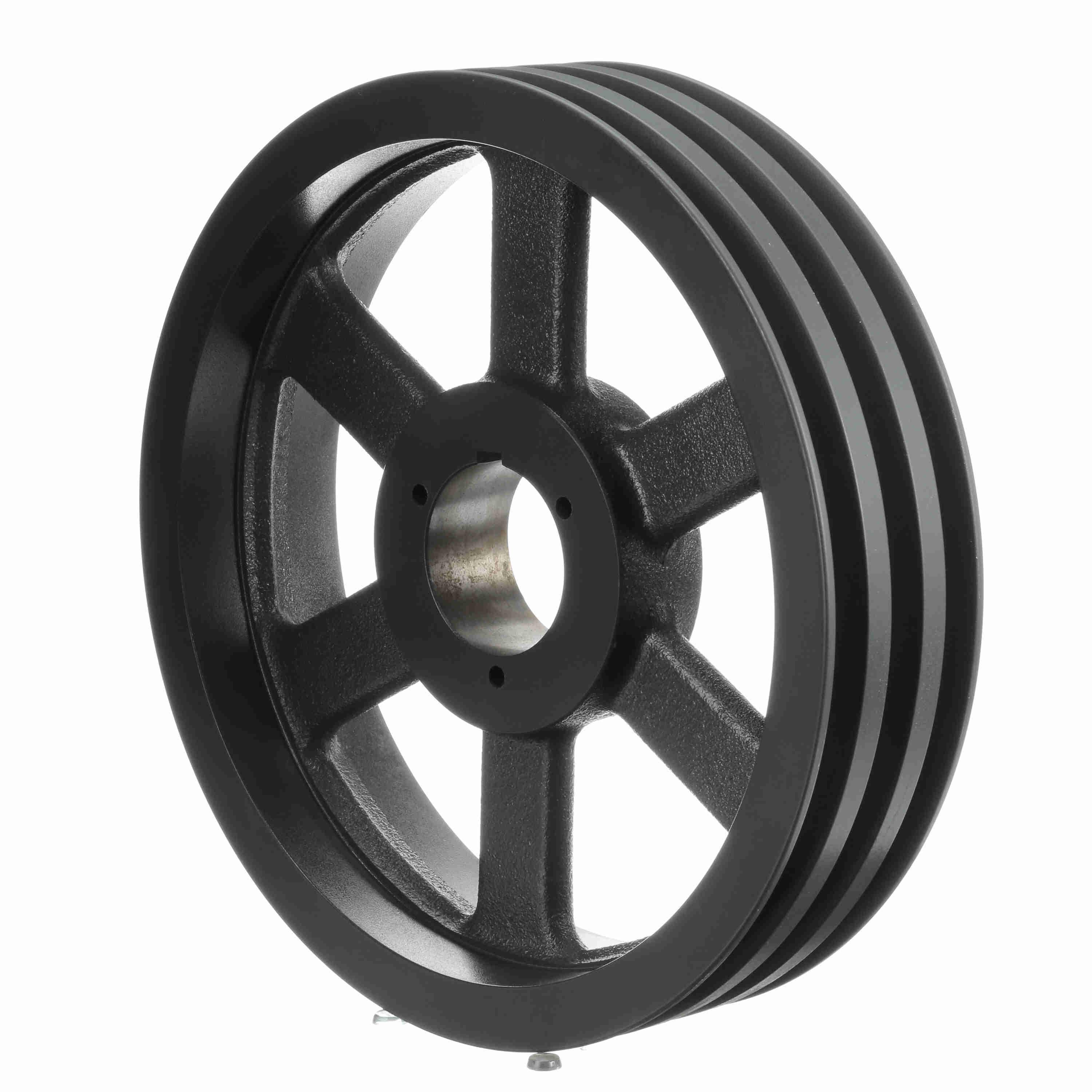

BROWNING 1021740 3MVB136Q V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 3 Groove, Cast Iron
13.95"
3/4" to 2 11/16"
Get it by Tuesday, Dec 23
€1,760.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Bushed |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 3 1/4" |
| Max. Pitch Dia. | 13 3/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 3 1/4" |
| Min. Pitch Dia. | 13 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 13.95" |
| Overall Length | 3 17/32" |
| Pitch Dia. (a) | 13 2/5" |
| Pitch Dia. (b) | 13.9" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Arm |
| Weight | 17.155 Kg |
Shipping Info:
| Ship weight (kg) | 16.9 |
| Ship height (cm) | 35.43 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 35.43 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1021849 | 18 3/4" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €2,365.24 | |
 |
1021468 | 7.35" | 3/4" to 2 11/16" | 3 17/32" | Type 15 Web | Bushed | Cast Iron | 3 1/4" | €1,085.37 | |
 |
1021500 | 7 3/4" | 3/4" to 2 11/16" | 3 17/32" | Type 15 Web | Bushed | Cast Iron | 3 1/4" | €1,149.00 | |
 |
1021567 | 8.95" | 3/4" to 2 11/16" | 3 17/32" | Type 15 Web | Bushed | Cast Iron | 3 1/4" | €1,285.08 | |
 |
1021351 | 5 3/4" | 1/2" to 1 3/4" | 3 1/2" | Type 15 Web | Bushed | Cast Iron | 3 1/4" | €1,158.24 | |
 |
1021393 | 6.35" | 1/2" to 1 3/4" | 3 1/2" | Type 15 Web | Bushed | Cast Iron | 3 1/4" | €786.07 | |
 |
1021666 | 11.35" | 3/4" to 2 11/16" | 3 17/32" | Type 15 Arm | Bushed | Cast Iron | 3 1/4" | €1,499.27 |
