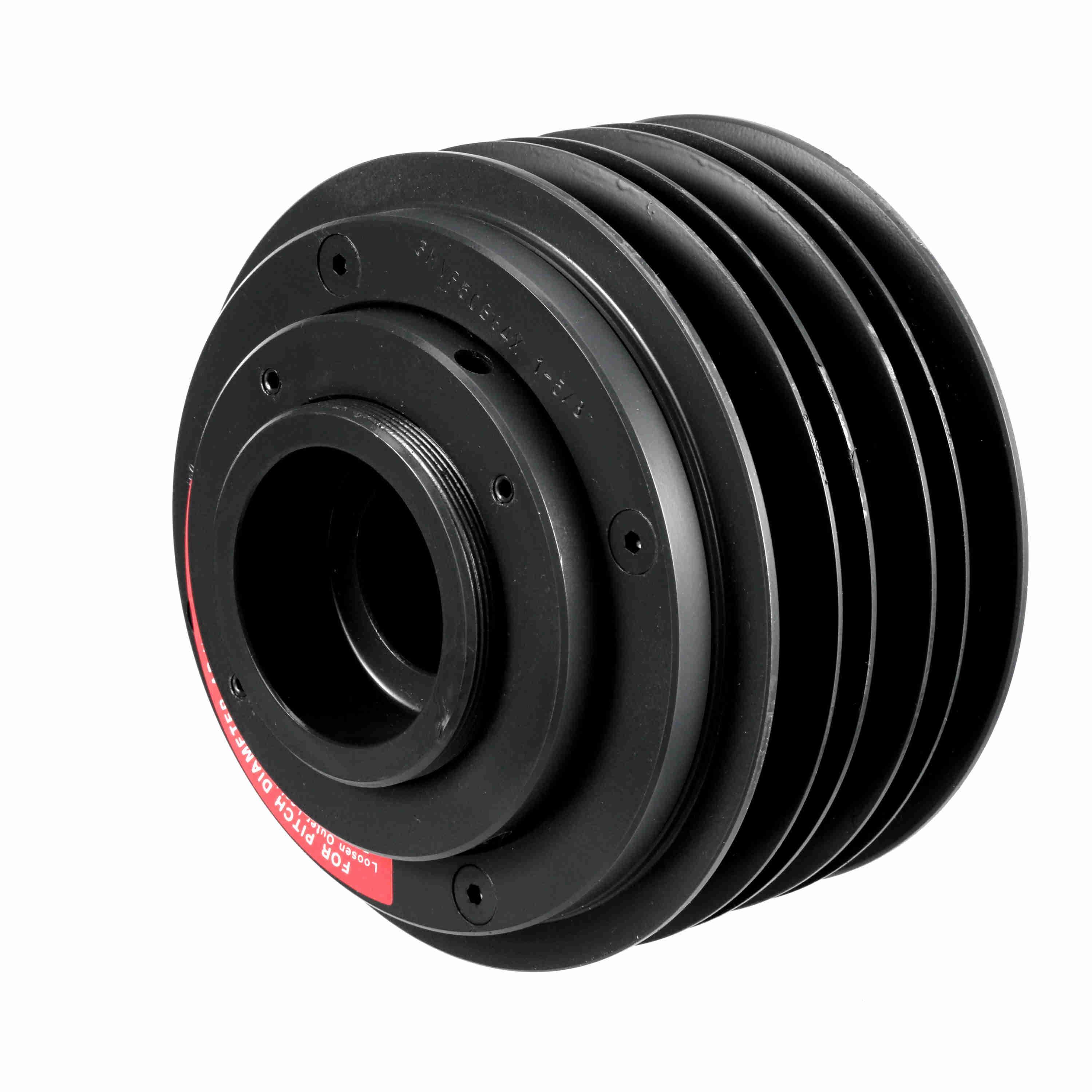

BROWNING 1020205 3MVP50B64X 1 5/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 3 Groove, Cast Iron
Get it by Tuesday, Dec 23
€1,294.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 3 1/16" to 3 7/16 |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 3.438" |
| Max. Pitch Dia. | 6 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 3.063" |
| Min. Pitch Dia. | 4.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 6 17/25" |
| Overall Length | 4 3/4" |
| Pitch Dia. (a) | 5.1" to 6.2" |
| Pitch Dia. (b) | 5.3" to 6.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 22.9 lbs. |
Shipping Info:
| Ship weight (kg) | 9.81 |
| Ship height (cm) | 16.97 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 16.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Material | Face Width | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1019892 | Finished | 5 17/25" | 1 1/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €2,134.41 | |
 |
1020031 | Finished | 6.18" | 1 1/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €2,947.62 | |
 |
1020189 | Finished | 6 17/25" | 1 1/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €2,345.35 | |
 |
1020197 | Finished | 6 17/25" | 1 3/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €1,671.56 | |
 |
1020320 | Finished | 7.18" | 1 3/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €1,743.19 | |
 |
1020551 | Bushed | 8 17/25" | 3/4" to 1 3/4" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €1,691.12 | |
 |
1019918 | Finished | 5 17/25" | 1 5/8" | Cast Iron | 3 1/16" to 3 7/16 | 4 3/4" | €1,156.26 |
