BROWNING A-B Variable Speed Sheaves, 3 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U| Style | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bore Type | Bushing Type | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

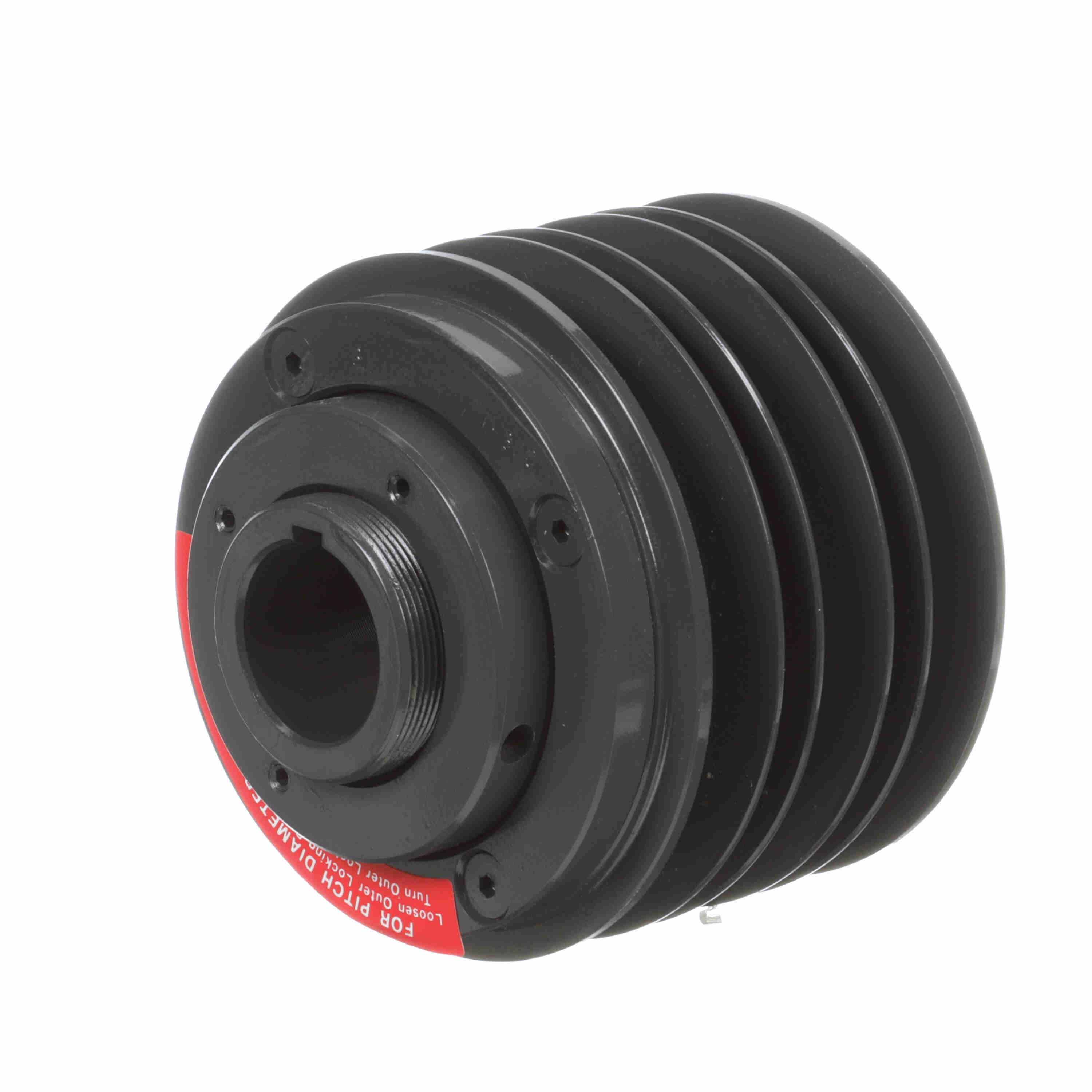

| A | 1019819 | 3.6" to 4.7" | 1 3/8" | 4.9" | 3 2/5" | 3 4/5" to 5 1/5" | Finished | No Bushing | - | €1,135.17 | |
| B | 1019801 | 3.6" to 4.7" | 1 1/8" | 4.9" | 3 2/5" | 3 4/5" to 5 1/5" | Finished | No Bushing | - | €2,055.96 | |
| C | 1019900 | 4.1" to 5.2" | 1 3/8" | 5 2/5" | 3.9" | 4.3" to 5.7" | Finished | No Bushing | - | €1,470.98 | |
| D | 1019918 | 4.1" to 5.2" | 1 5/8" | 5 2/5" | 3.9" | 4.3" to 5.7" | Finished | No Bushing | - | €1,156.26 | |
| E | 1019892 | 4.1" to 5.2" | 1 1/8" | 5 2/5" | 3.9" | 4.3" to 5.7" | Finished | No Bushing | - | €2,134.41 | |
| F | 1020056 | 4.6" to 5.7" | 1 5/8" | 5.9" | 4 2/5" | 4 4/5" to 6 1/5" | Finished | No Bushing | - | €1,220.64 | |

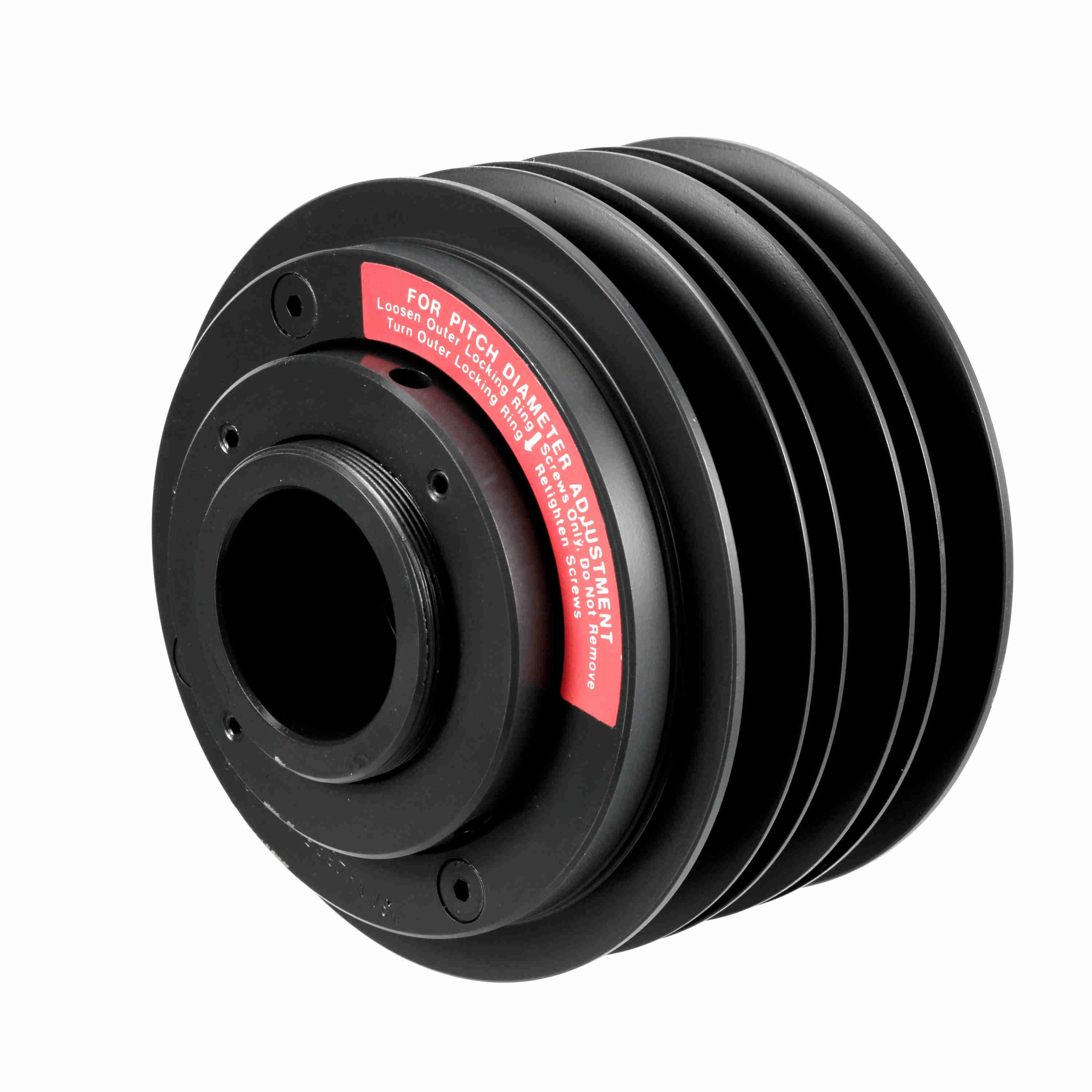

| G | 1020049 | 4.6" to 5.7" | 1 3/8" | 5.9" | 4 2/5" | 4 4/5" to 6 1/5" | Finished | No Bushing | - | €1,575.61 | |

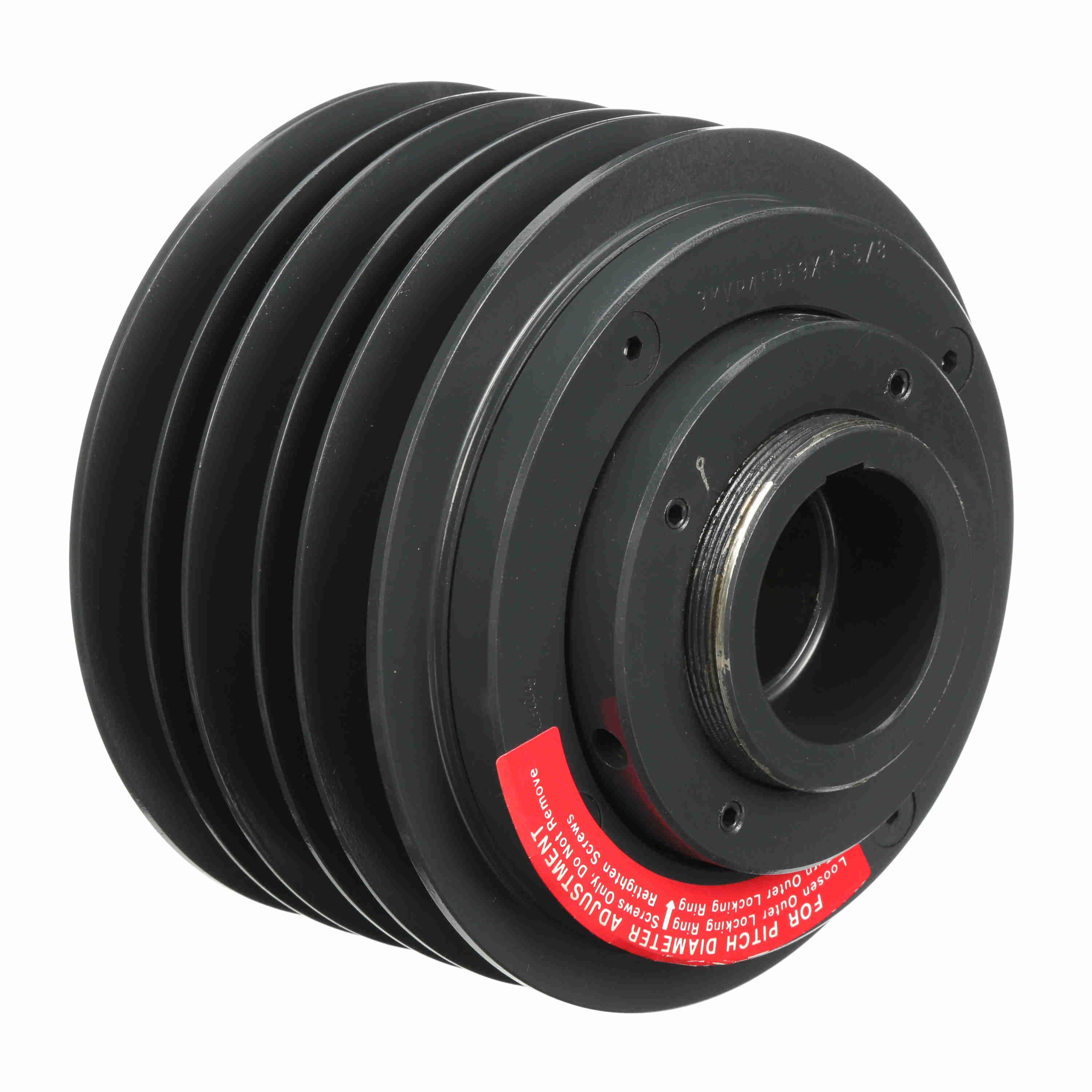

| H | 1020031 | 4.6" to 5.7" | 1 1/8" | - | - | 4 4/5" to 6 1/5" | Finished | - | - | €2,947.62 | |

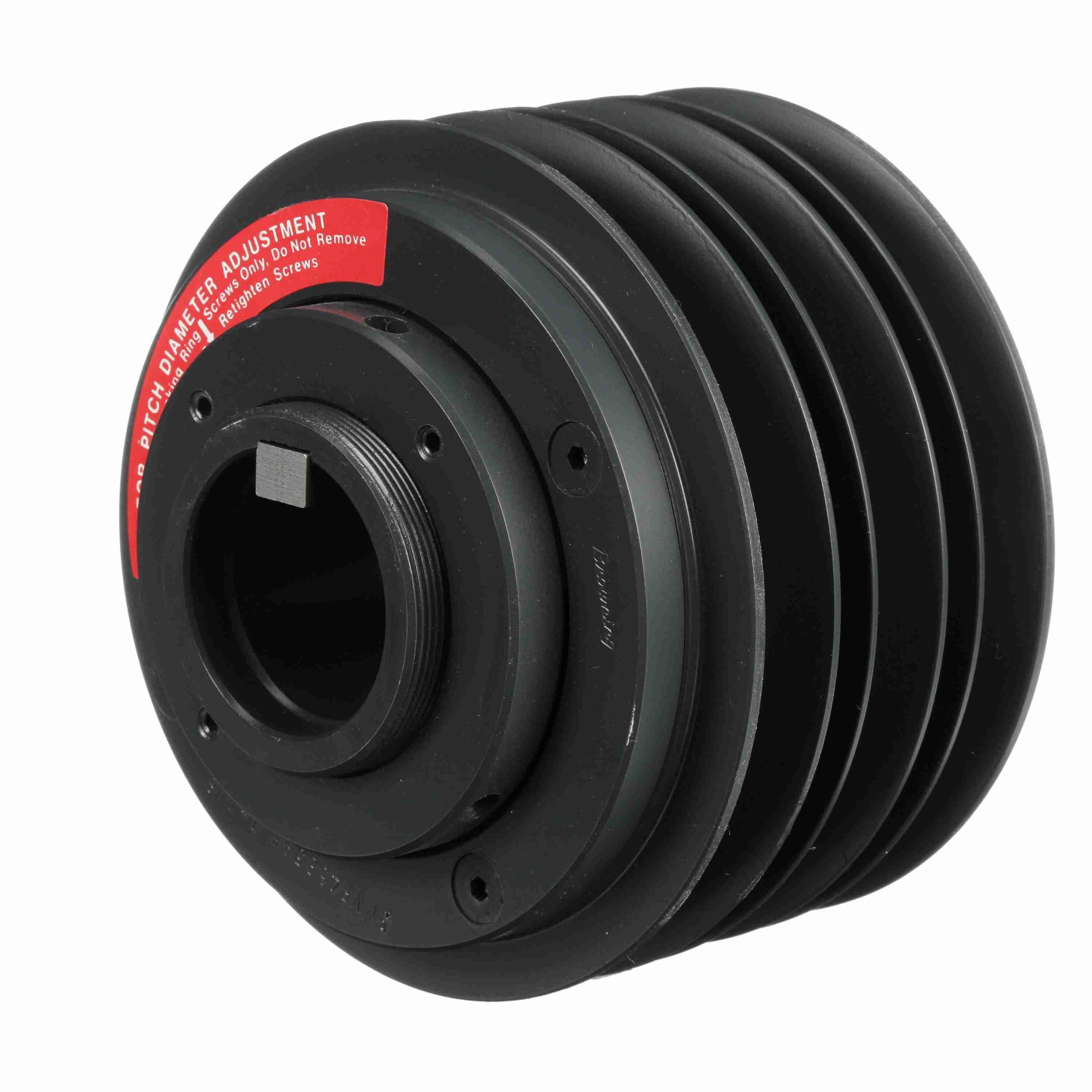

| I | 1020064 | 4.6" to 5.7" | 1 7/8" | - | - | 4 4/5" to 6 1/5" | Finished | - | - | €1,552.88 | |
| J | 1020197 | 5.1" to 6.2" | 1 3/8" | 6 2/5" | 4.9" | 5.3" to 6.7" | Finished | No Bushing | - | €1,671.56 | |

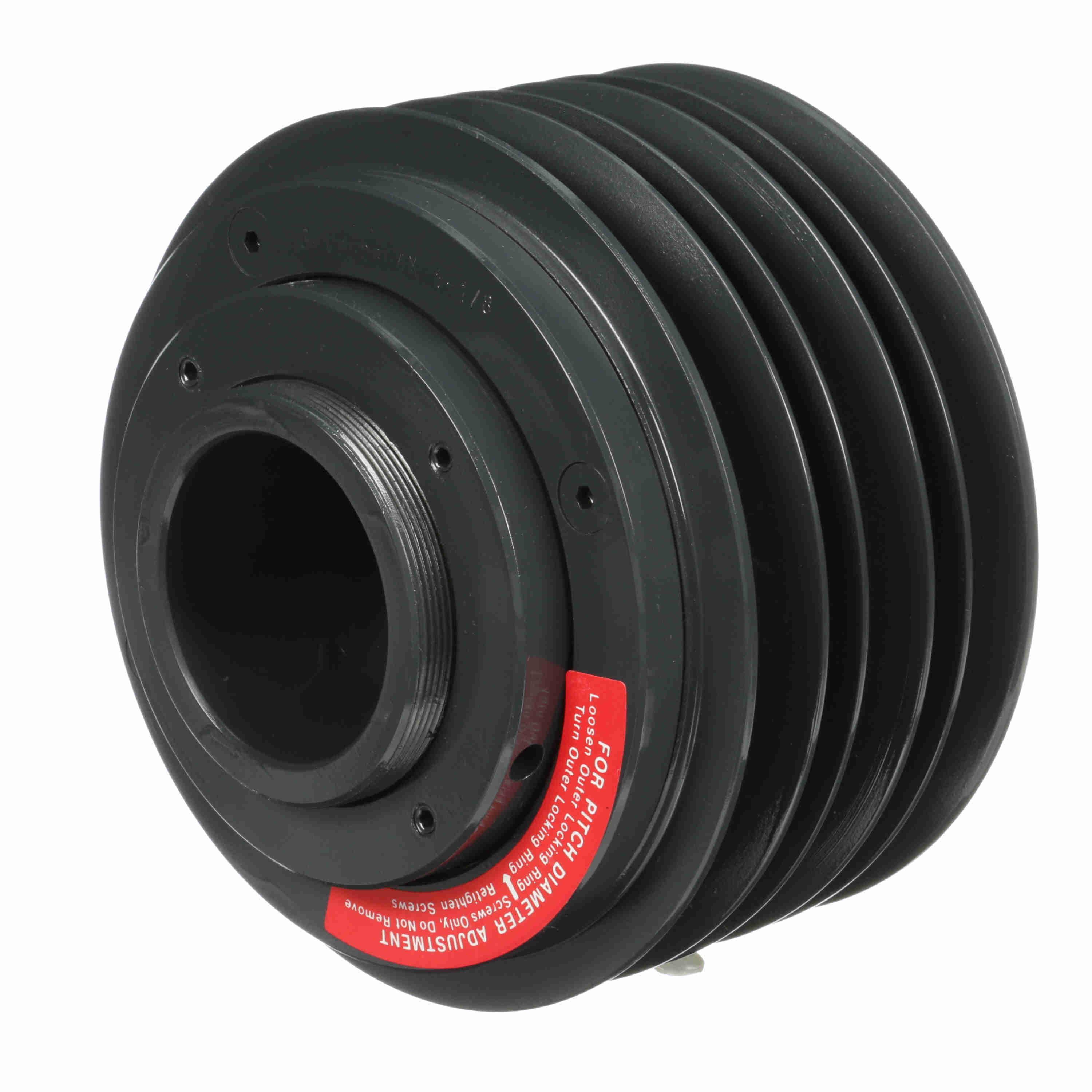

| K | 1020189 | 5.1" to 6.2" | 1 1/8" | 6 2/5" | 4.9" | 5.3" to 6.7" | Finished | No Bushing | - | €2,345.35 | |
| L | 1020213 | 5.1" to 6.2" | 1 7/8" | - | - | 5.3" to 6.7" | Finished | - | - | €1,647.45 | |

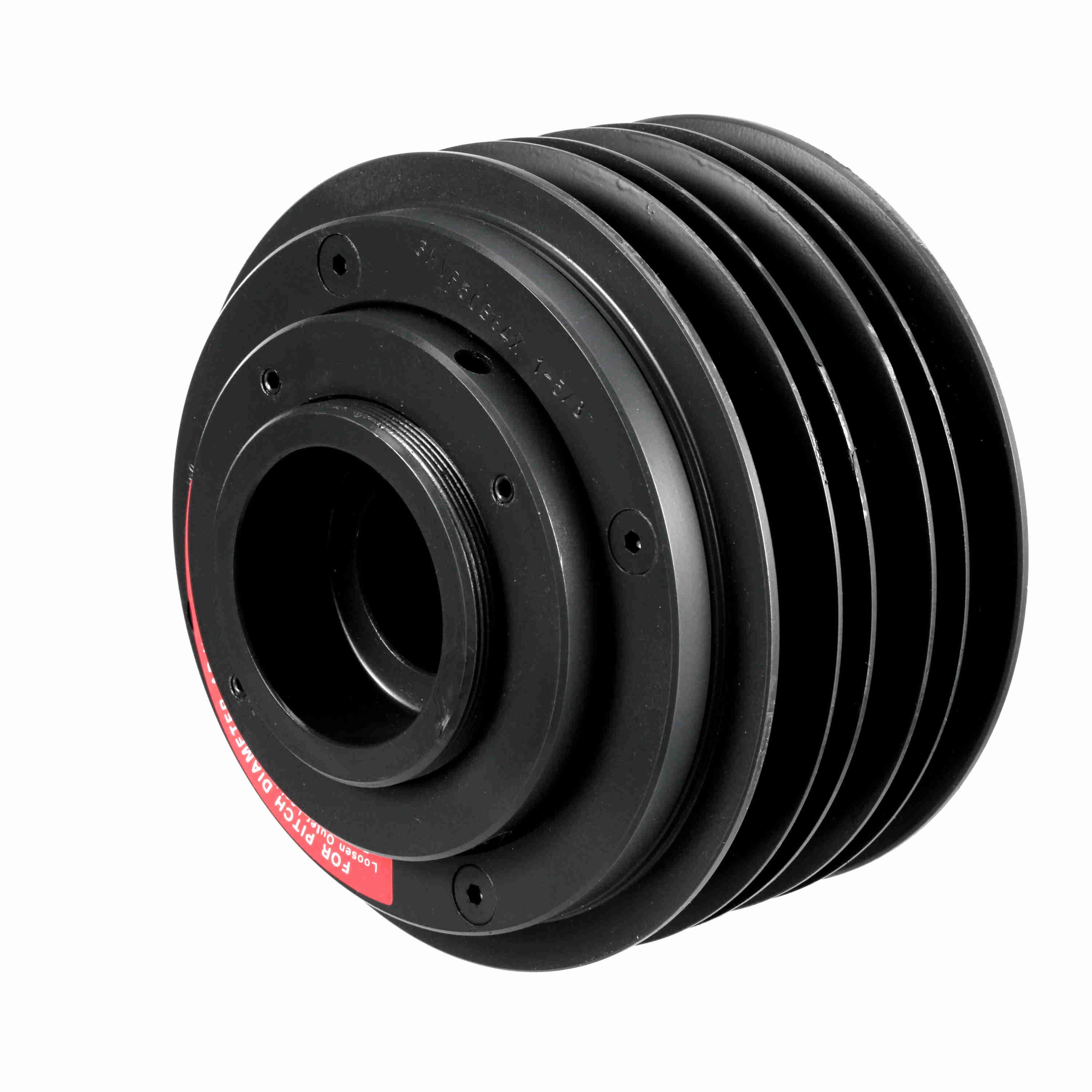

| M | 1020205 | 5.1" to 6.2" | 1 5/8" | 6 2/5" | 4.9" | 5.3" to 6.7" | Finished | No Bushing | - | €1,294.96 | |
| N | 1020320 | 5.6" to 6.7" | 1 3/8" | 6.9" | 5 2/5" | 5 4/5" to 7 1/5" | Finished | No Bushing | - | €1,743.19 | |

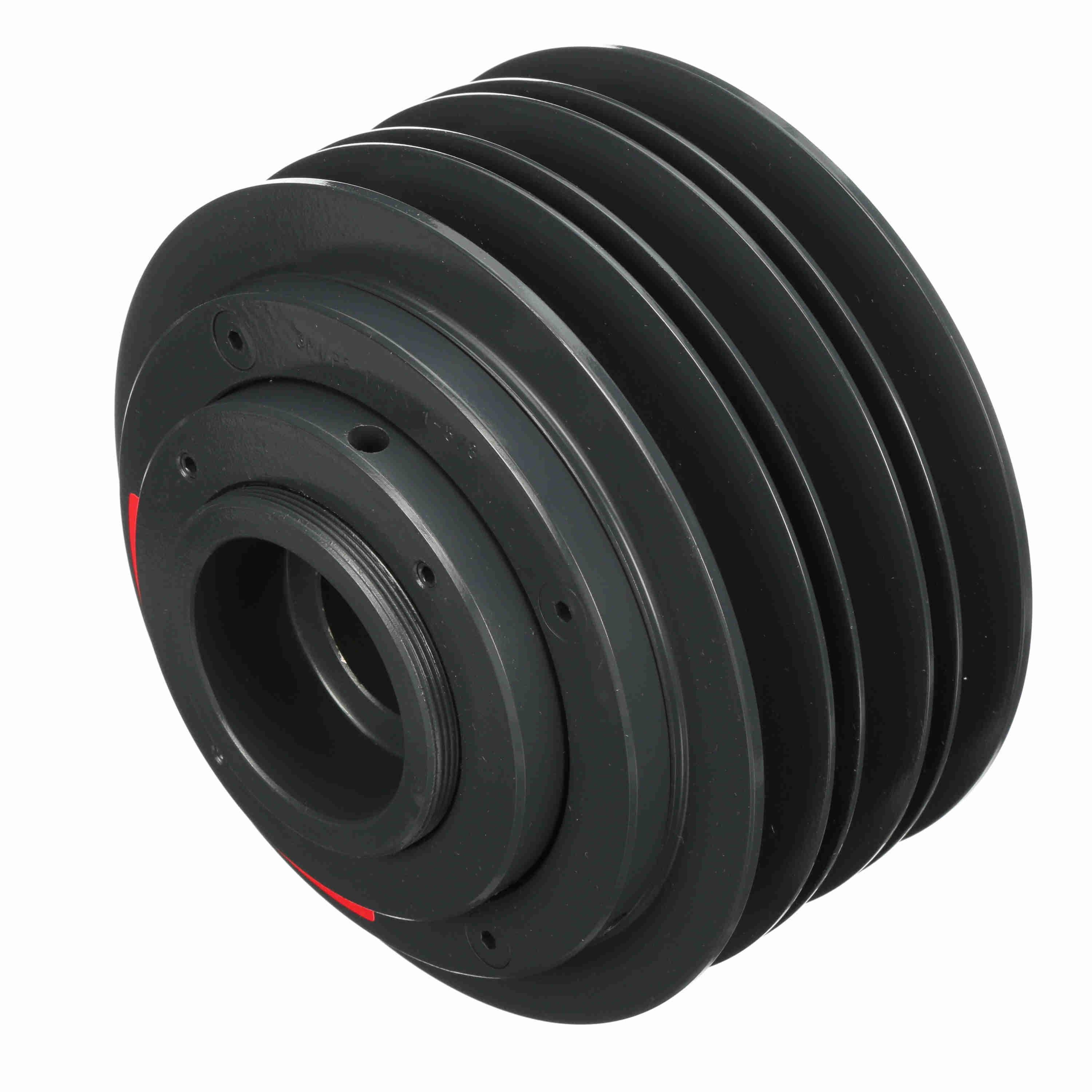

| O | 1020338 | 5.6" to 6.7" | 1 5/8" | 6.9" | 5 2/5" | 5 4/5" to 7 1/5" | Finished | No Bushing | - | €1,350.45 | |
| P | 1020346 | 5.6" to 6.7" | 1 7/8" | 6.9" | 5 2/5" | 5 4/5" to 7 1/5" | Finished | No Bushing | - | €1,543.99 | |
| Q | 1020452 | 6.1" to 7.2" | 1 7/8" | - | - | 6.3" to 7.7" | Finished | - | - | €1,443.66 | |
| R | 1020445 | 6.1" to 7.2" | 3/4" | 7 2/5" | 5.9" | 6.3" to 7.7" | Split Taper | P2 | 3/4" to 1 3/4" | €1,403.73 | |

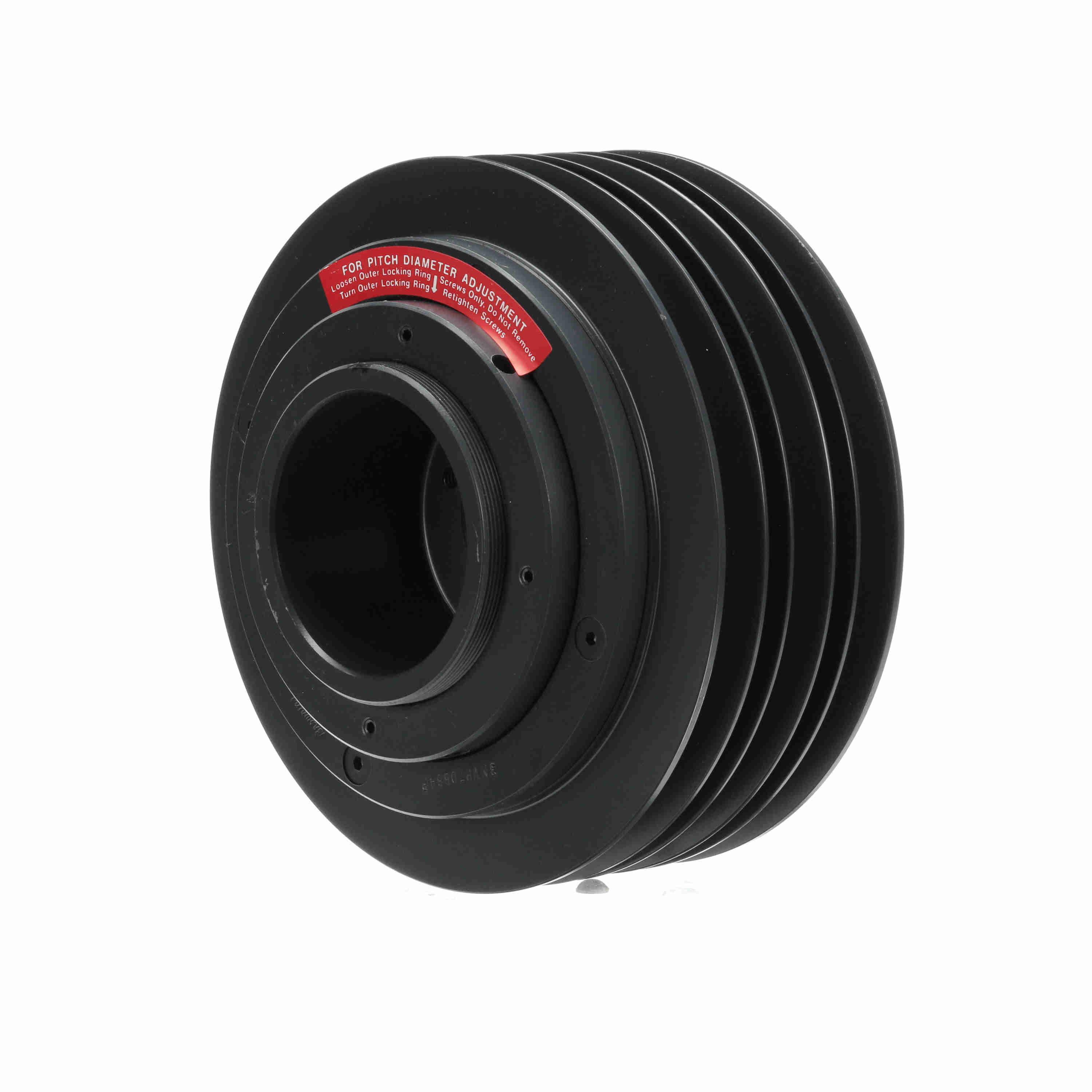

| S | 1020551 | 7.1" to 8.2" | 3/4" to 1 3/4" | - | - | 7.3" to 8.7" | Bushed | P2 | - | €1,691.12 | |
| T | 1020569 | 7.1" to 8.2" | 1 7/8" | 8 2/5" | 6.9" | 7.3" to 8.7" | Finished | No Bushing | - | €1,728.84 | |
| U | 1020825 | 8.1" to 9.2" | 1" | 9 2/5" | 7.9" | 8.3" to 9.7" | Split Taper | Q2 | 1" to 2 5/8" | €1,945.41 |
