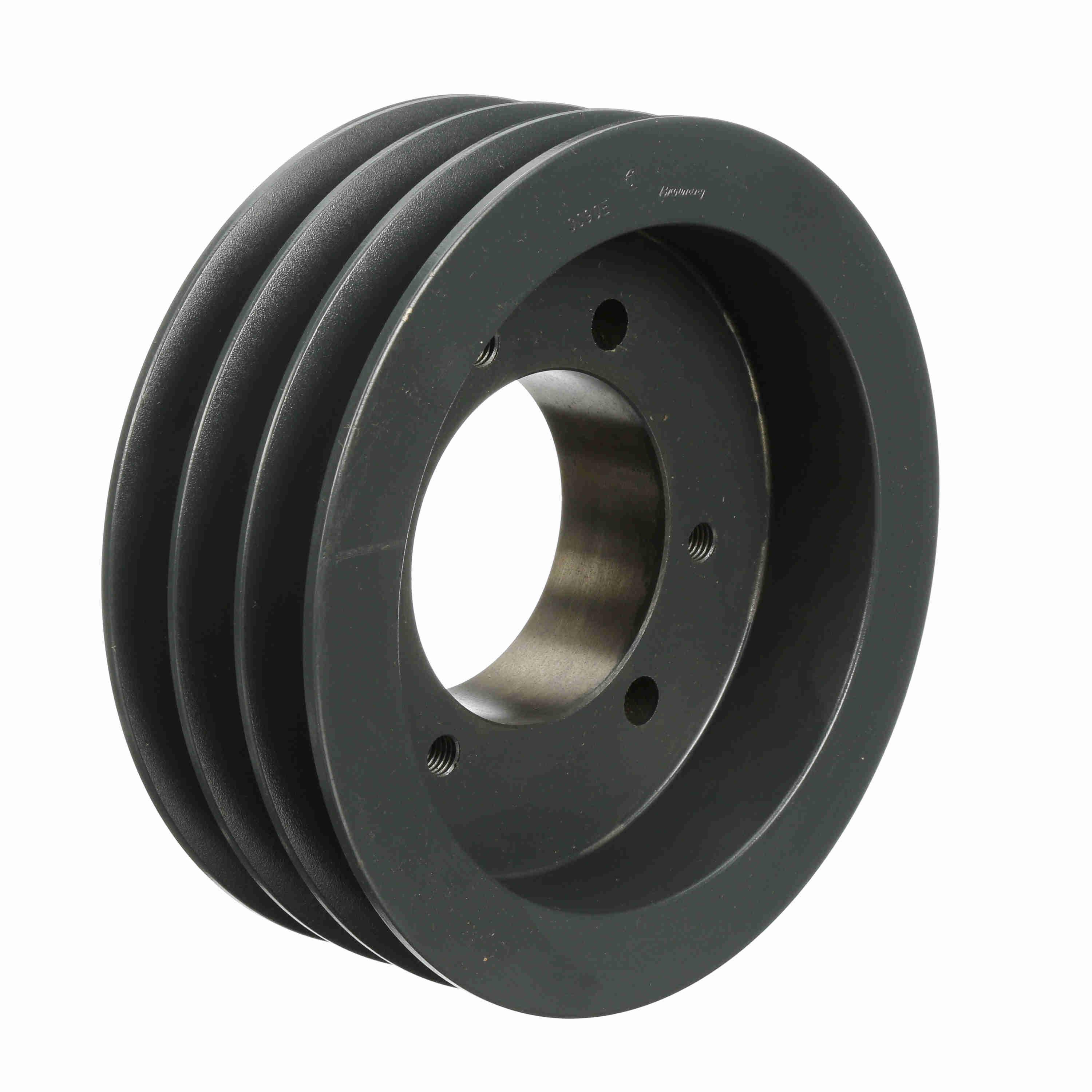

BROWNING 1011956 3C56P V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 6 in OD, 3/4 in to 1 3/4 in Bore Dia
6"
3/4" to 1 3/4"
Get it by Monday, Aug 17
€968.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P2 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 3/5" |
| Min. Pitch Dia. | 5 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 6" |
| Overall Length | 3 29/64" |
| Pitch Dia. | 6" |
| Suitable For Use With | Gripbelt C Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 5.9 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 15.39 |
| Ship width (cm) | 15.39 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1012178 | 9 3/5" | 1.13" to 3.75" | Type 13 Web | 9 1/5" | 9 1/5" | R1 | - | Cast Iron | €1,530.45 | |
 |
1013135 | 16 2/5" | 1.13" to 3.75" | Type 13 Arm | 16" | 16" | R1 | - | Cast Iron | €1,442.17 | |
 |
1013655 | 27 2/5" | 1.13" to 3.75" | Type 13 Arm | 27" | 27" | R1 | - | Cast Iron | €3,988.74 | |
 |
1013515 | 24 2/5" | 1 1/8" to 3 3/4" | Arm Type 13 | 24" | 24" | R1 | 5/16" | Cast Iron | €2,614.86 | |
 |
1012889 | 13 2/5" | 1.13" to 3.75" | Type 13 Arm | 13" | 13" | R1 | - | Cast Iron | €1,403.39 | |
 |
1012970 | 14 2/5" | 1.13" to 3.75" | Type 13 Arm | 14" | 14" | R1 | - | Cast Iron | €1,400.59 | |
 |
1013051 | 15 2/5" | 1.13" to 3.75" | Type 13 Arm | - | - | R1 | - | Cast Iron | €1,772.68 |
