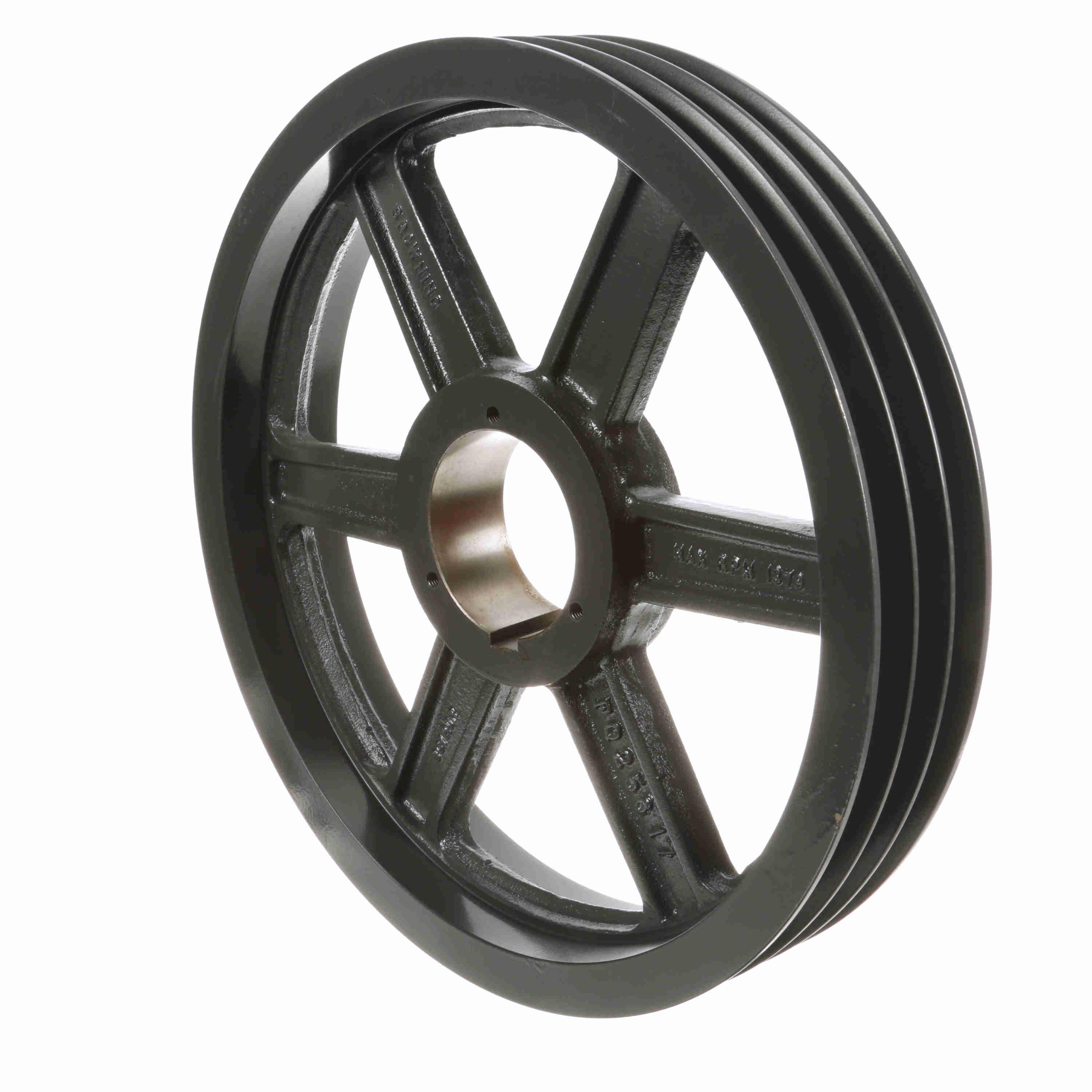

BROWNING 1013234 3C180R V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
18 2/5"
1.13" to 3.75"
Get it by Tuesday, Dec 23
€2,238.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 18" |
| Min. Pitch Dia. | 18" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 18 2/5" |
| Overall Length | 3 25/32" |
| Pitch Dia. | 18 2/5" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
| Weight | 24.222 Kg |
Shipping Info:
| Ship weight (kg) | 24.03 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 47.63 |
| Ship width (cm) | 47.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

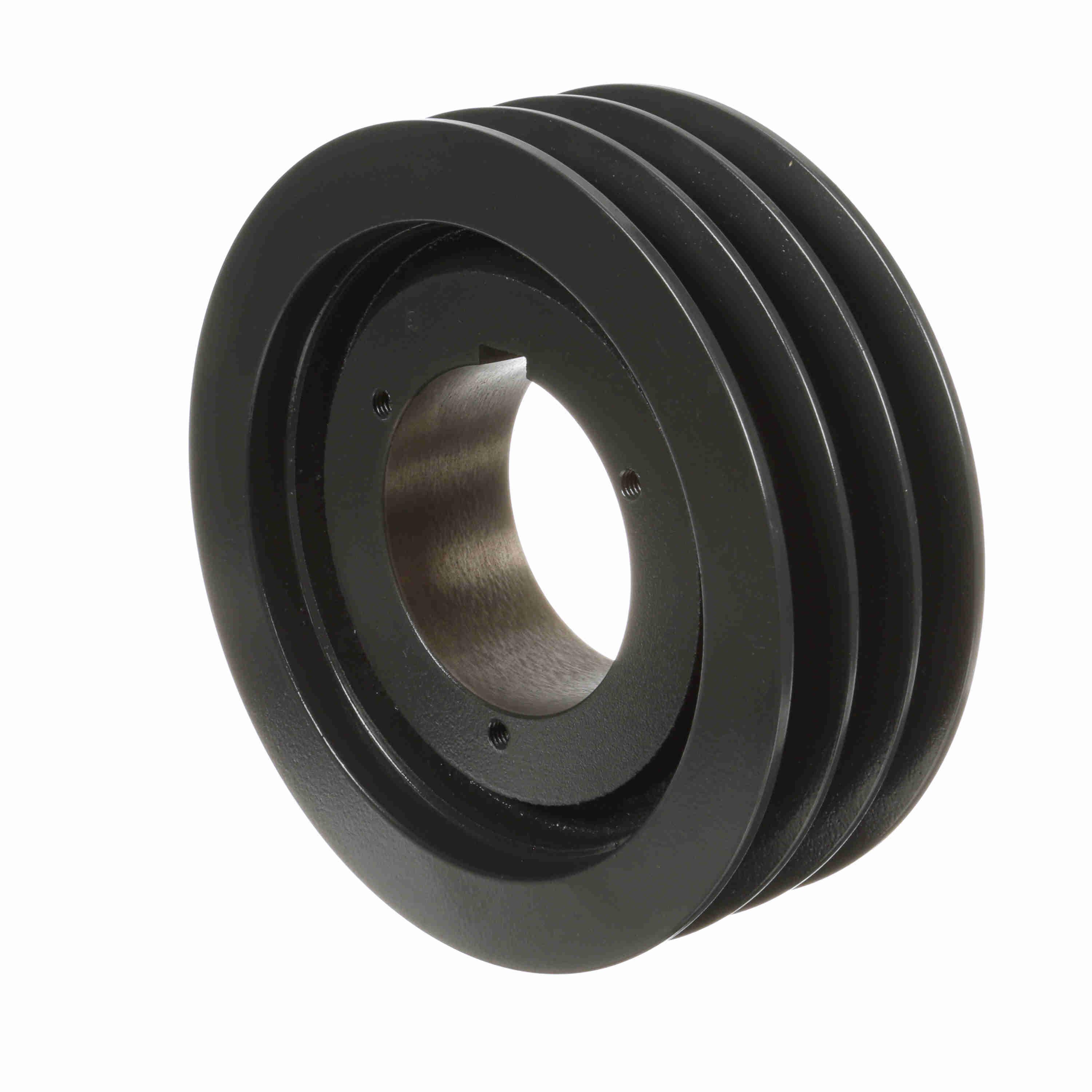

1012178 | 9 3/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €1,530.45 | |
 |

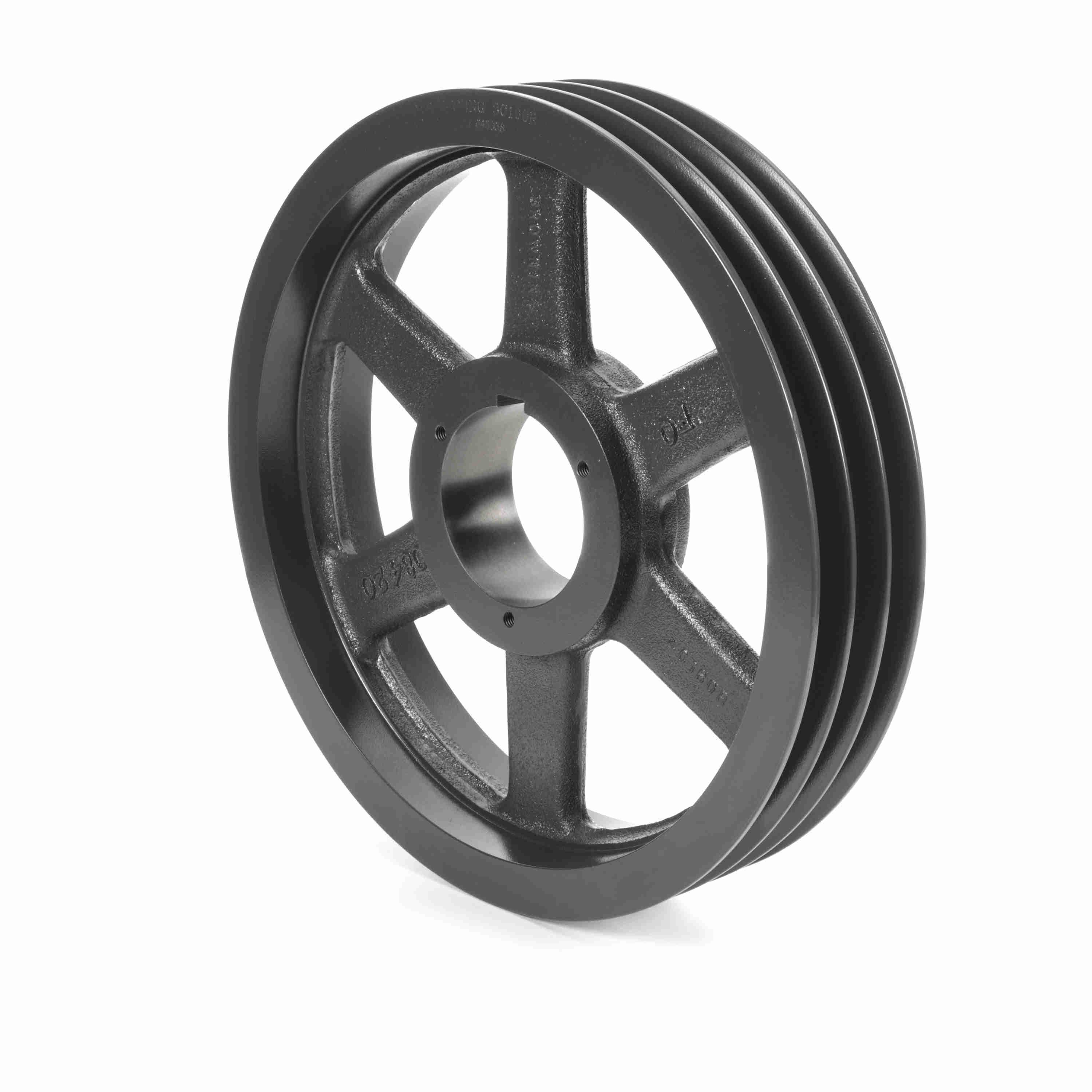

1013135 | 16 2/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,442.17 | |
 |

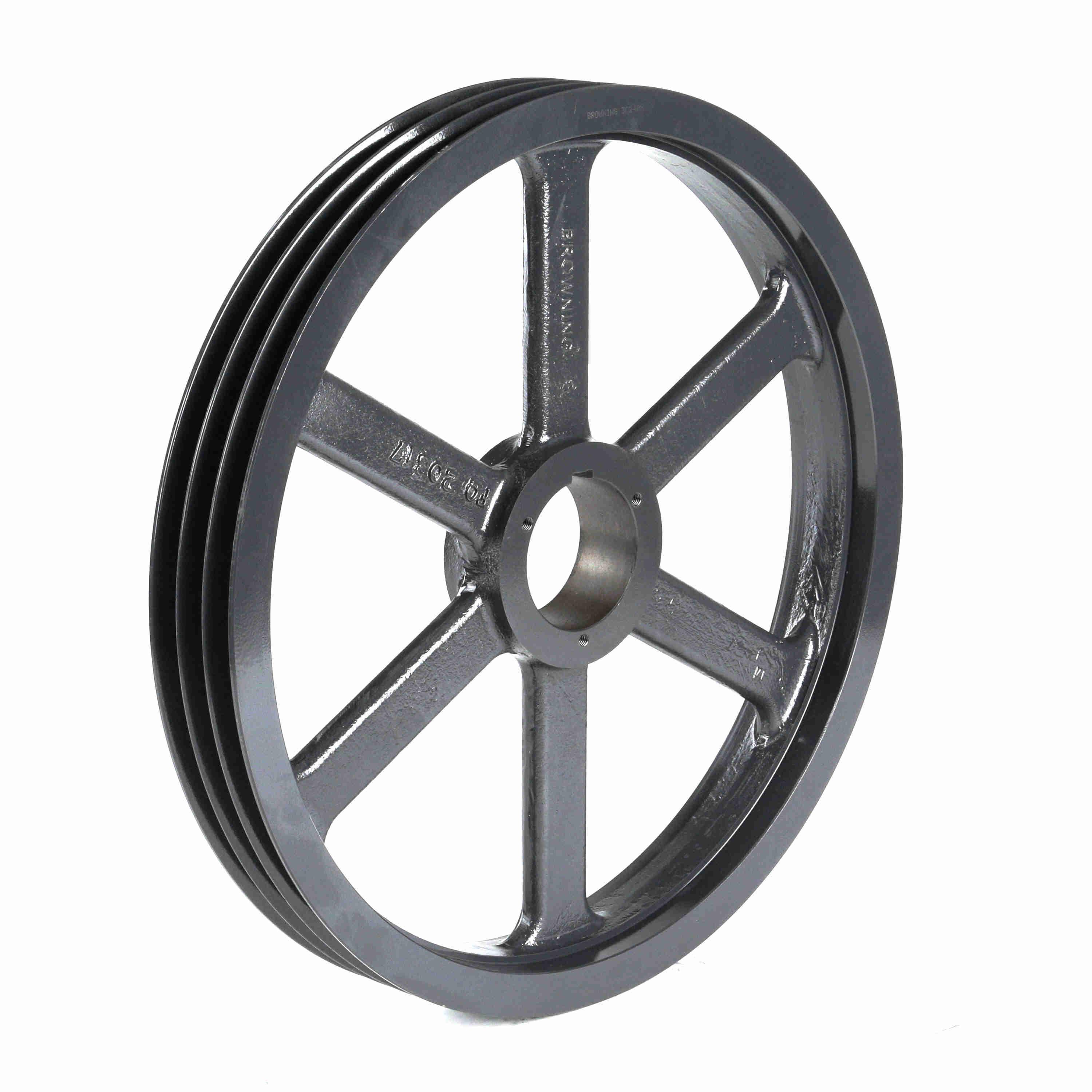

1013655 | 27 2/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €3,988.74 | |
 |

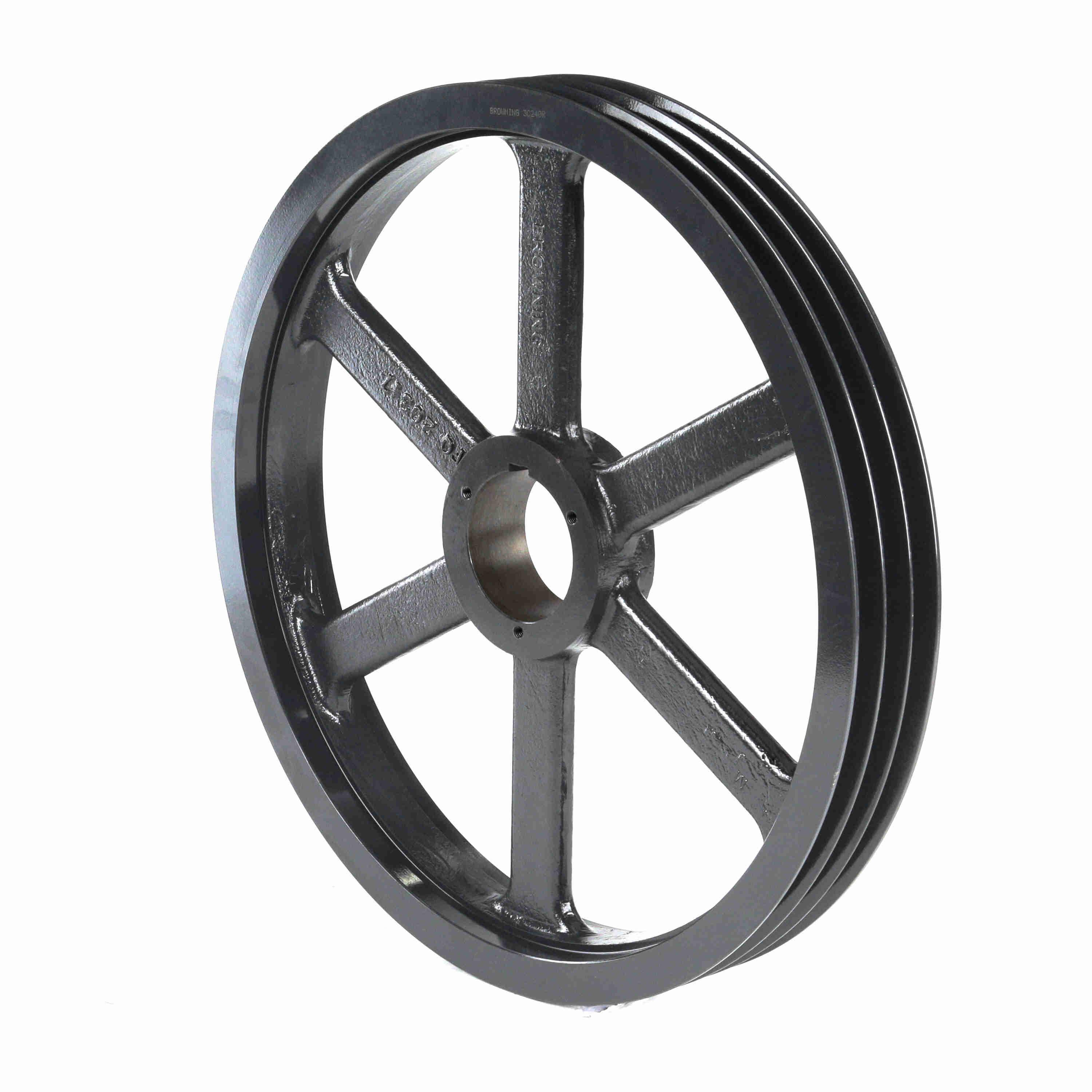

1013515 | 24 2/5" | 1 1/8" to 3 3/4" | 3 51/64" | Arm Type 13 | Split Taper | Cast Iron | 3 1/4" | €2,614.86 | |
 |

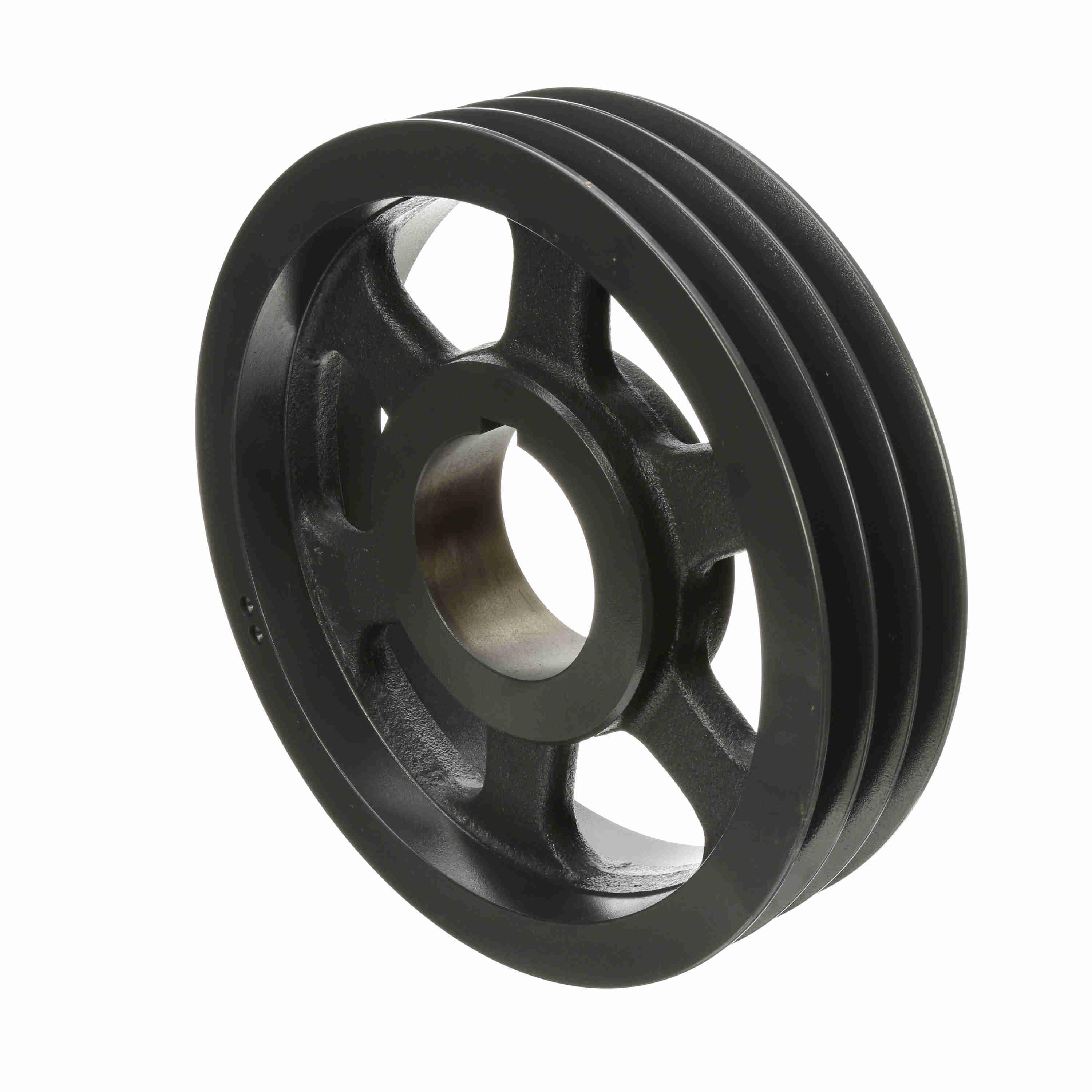

1012889 | 13 2/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,403.39 | |
 |

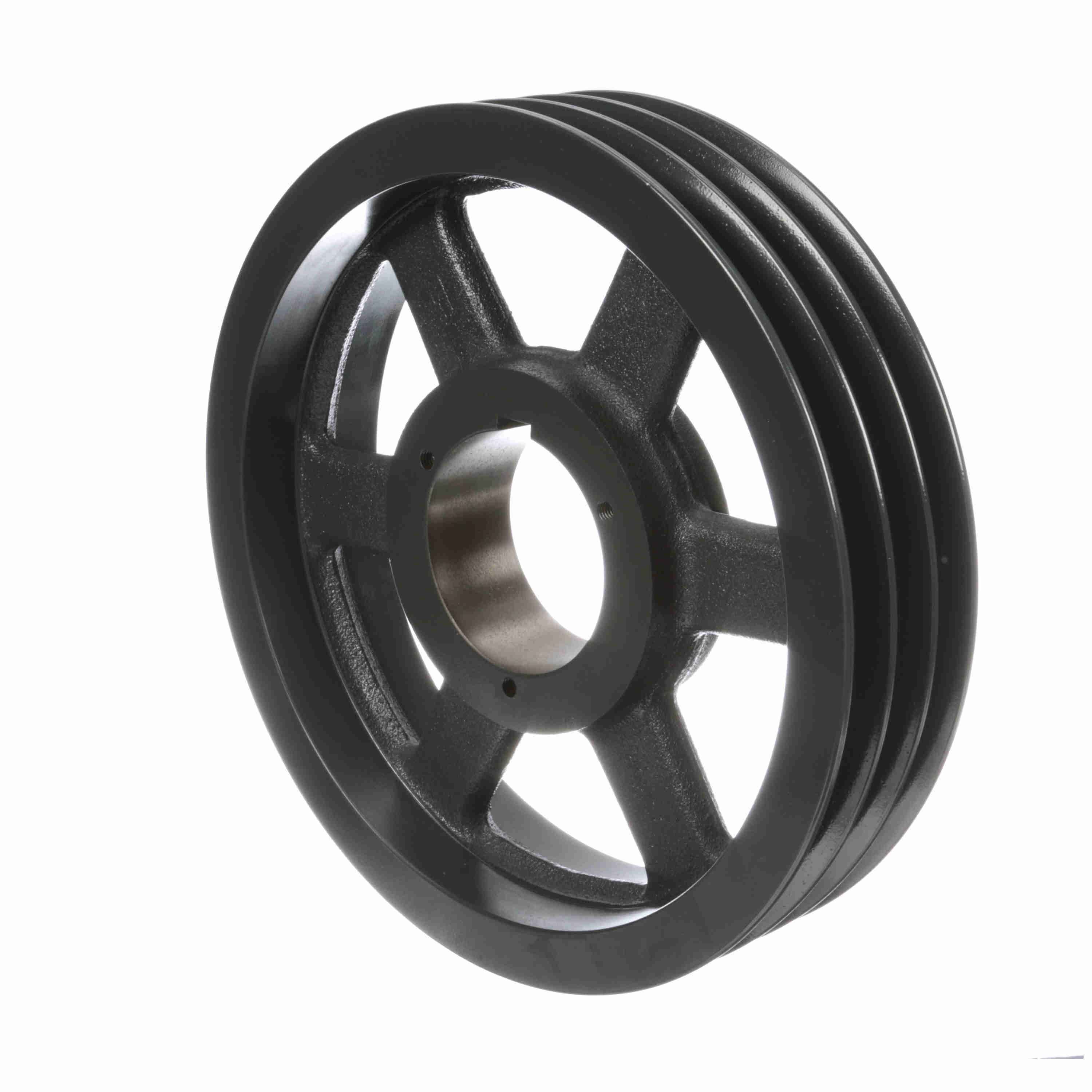

1012970 | 14 2/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,400.59 | |
 |

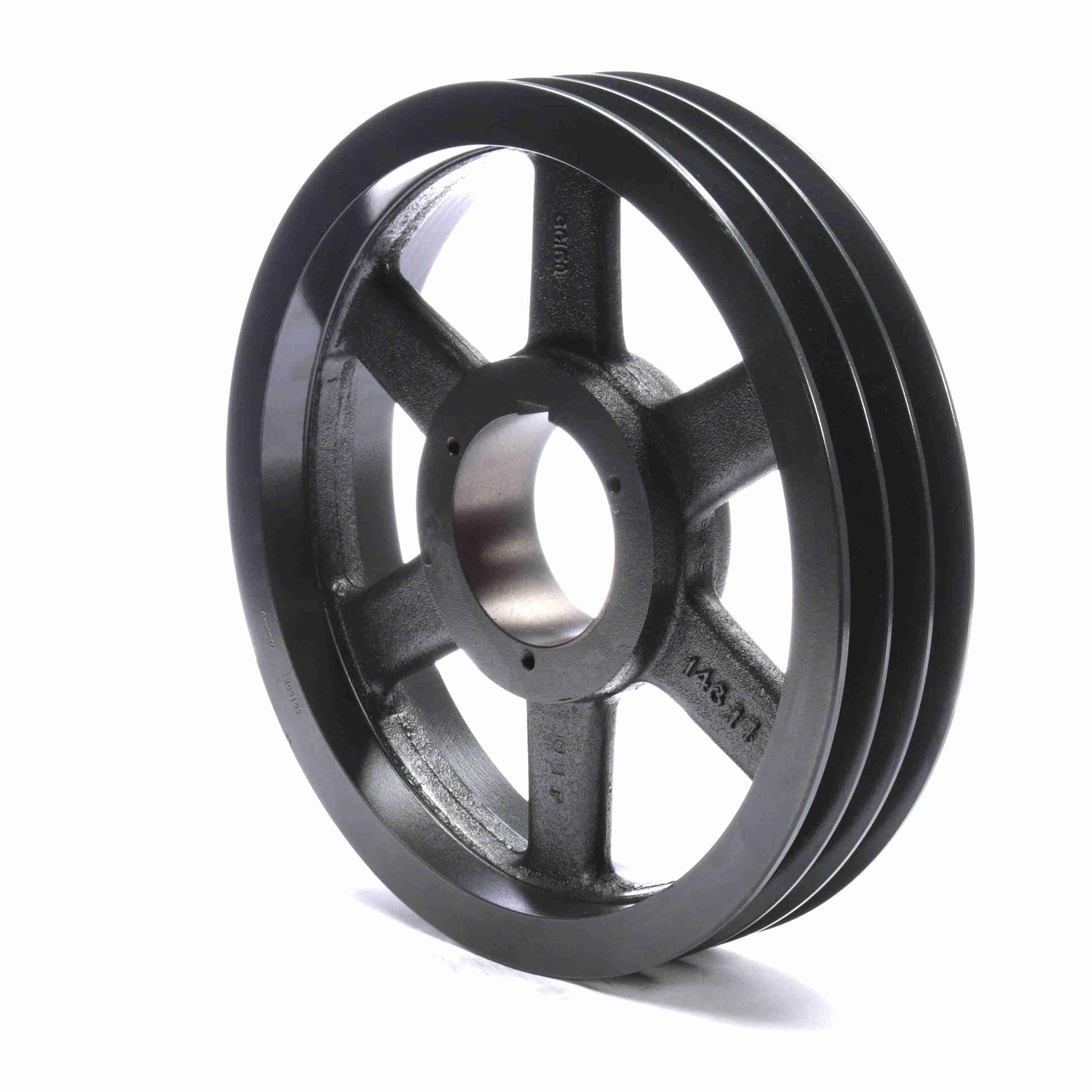

1013051 | 15 2/5" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,772.68 |
