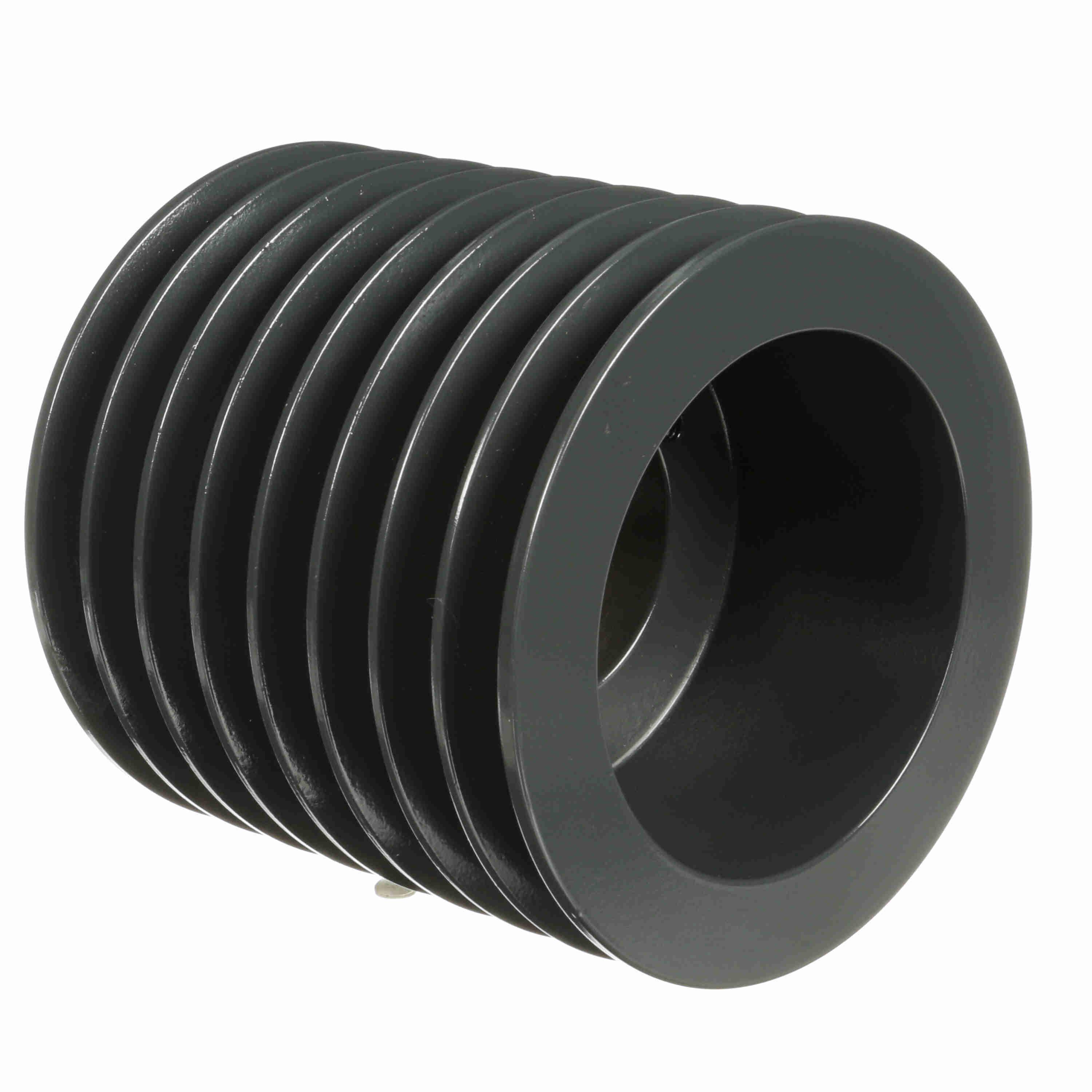

BROWNING 1011014 8B90R V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, 9.35 in OD, 1.38 to 3.625 in Bore Dia, 8.8 in A/9.3 in B Pitch Dia, R2 Bushing Type, Type 15 Web
Get it by Monday, Aug 17
€1,437.78 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1.38" to 3.625" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 3/8" to 3 5/8" |
| Bushing Type | R2 |
| Face Width | 6 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9" |
| Min. Pitch Dia. | 8 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 9.35" |
| Overall Length | 6 9/32" |
| Pitch Dia. | 8 4/5" |
| Pitch Dia. (b) | 9.3" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
Shipping Info:
| Ship weight (kg) | 26.06 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 23.83 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

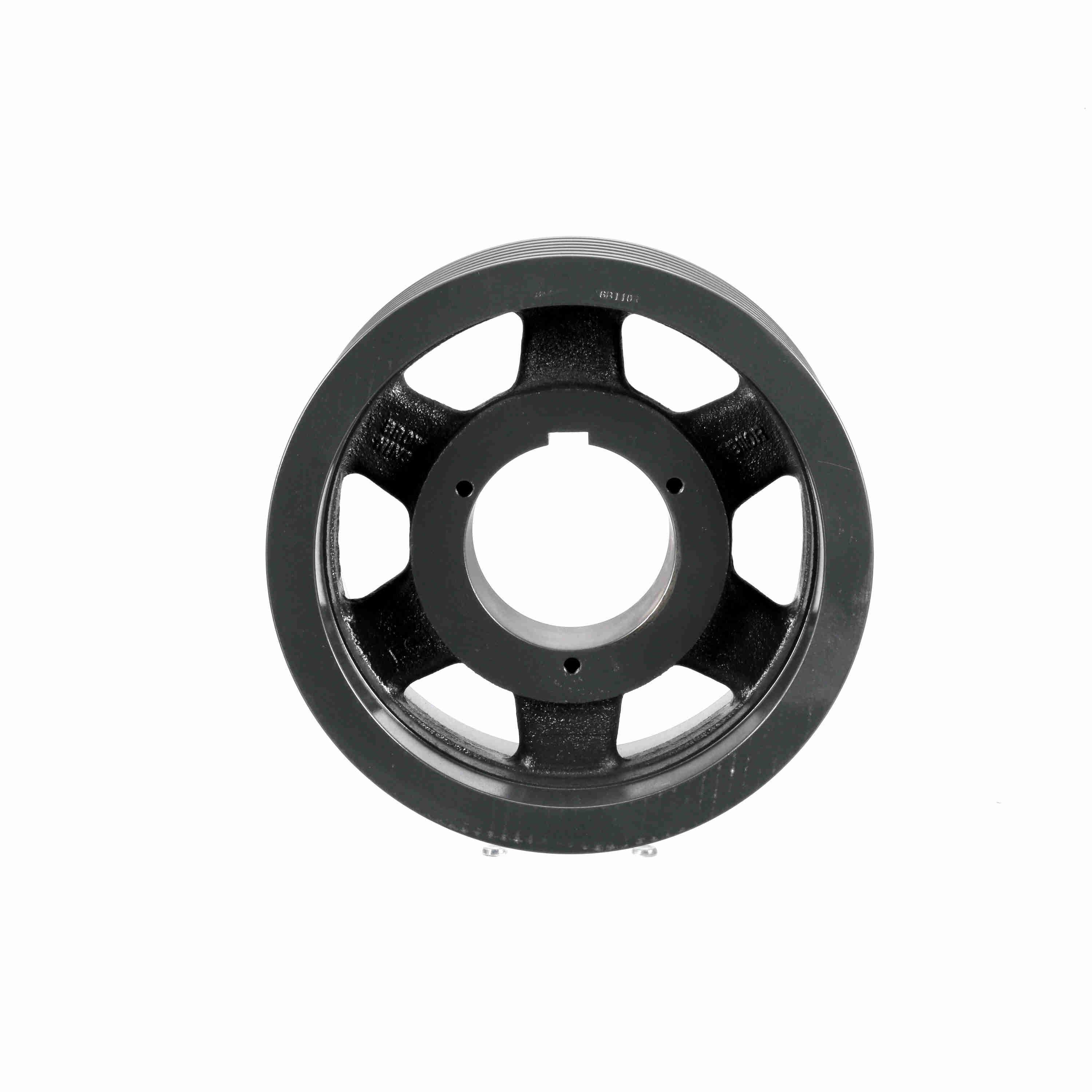

1011105 | 10 4/5" | 1.38" to 3.625" | Type 15 Web | 11" | 10 3/5" | 11.3" | R2 | Cast Iron | €2,294.36 | |
 |

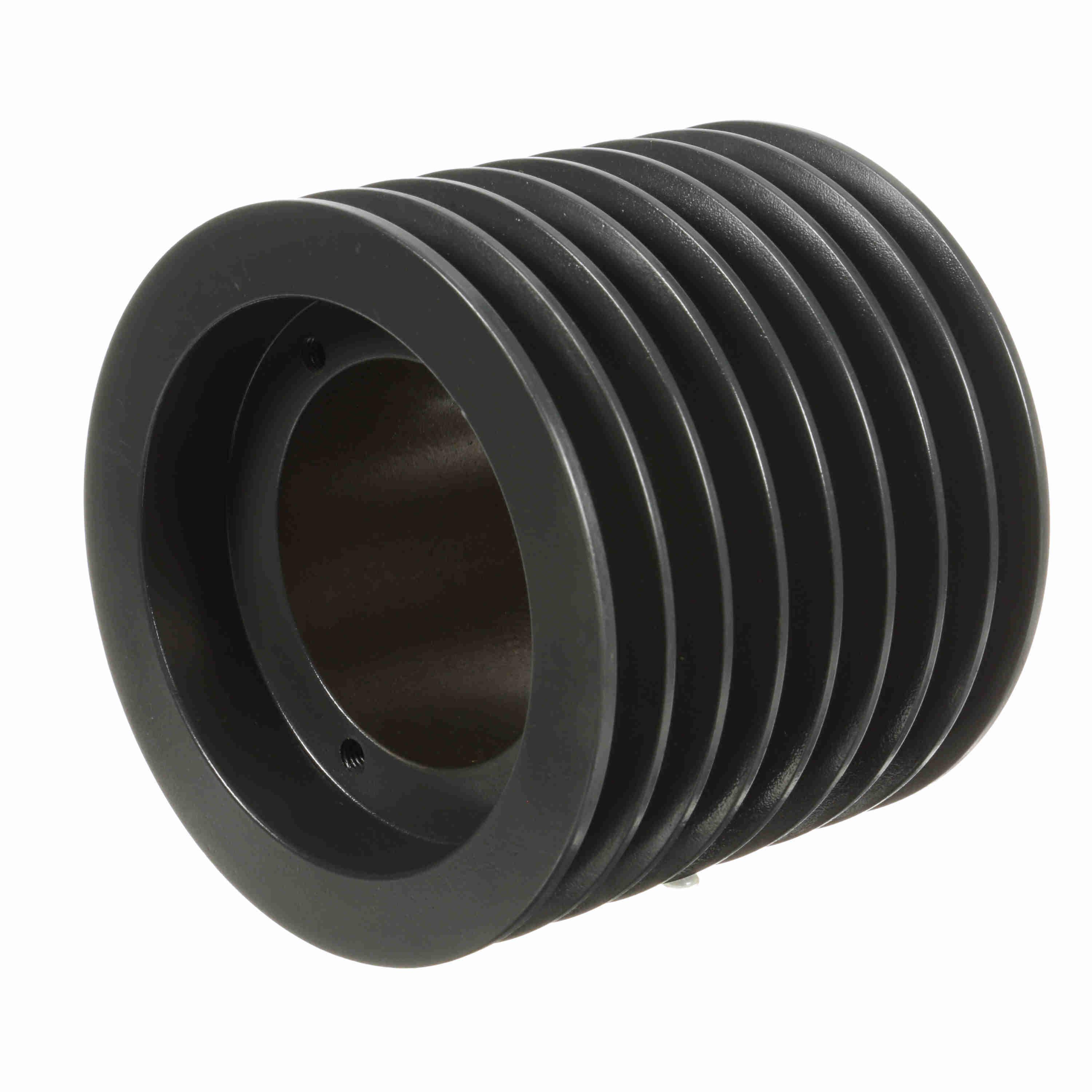

1010842 | 6 4/5" | 1.38" to 3.625" | Type 15 Web | - | - | 7.3" | R2 | Cast Iron | €1,512.00 | |
|
1011873 | 37 4/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 38.3" | R2 | Cast Iron | €4,040.32 | |
|
1011444 | 18 1/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 18.7" | R2 | Cast Iron | €4,250.65 | |
 |

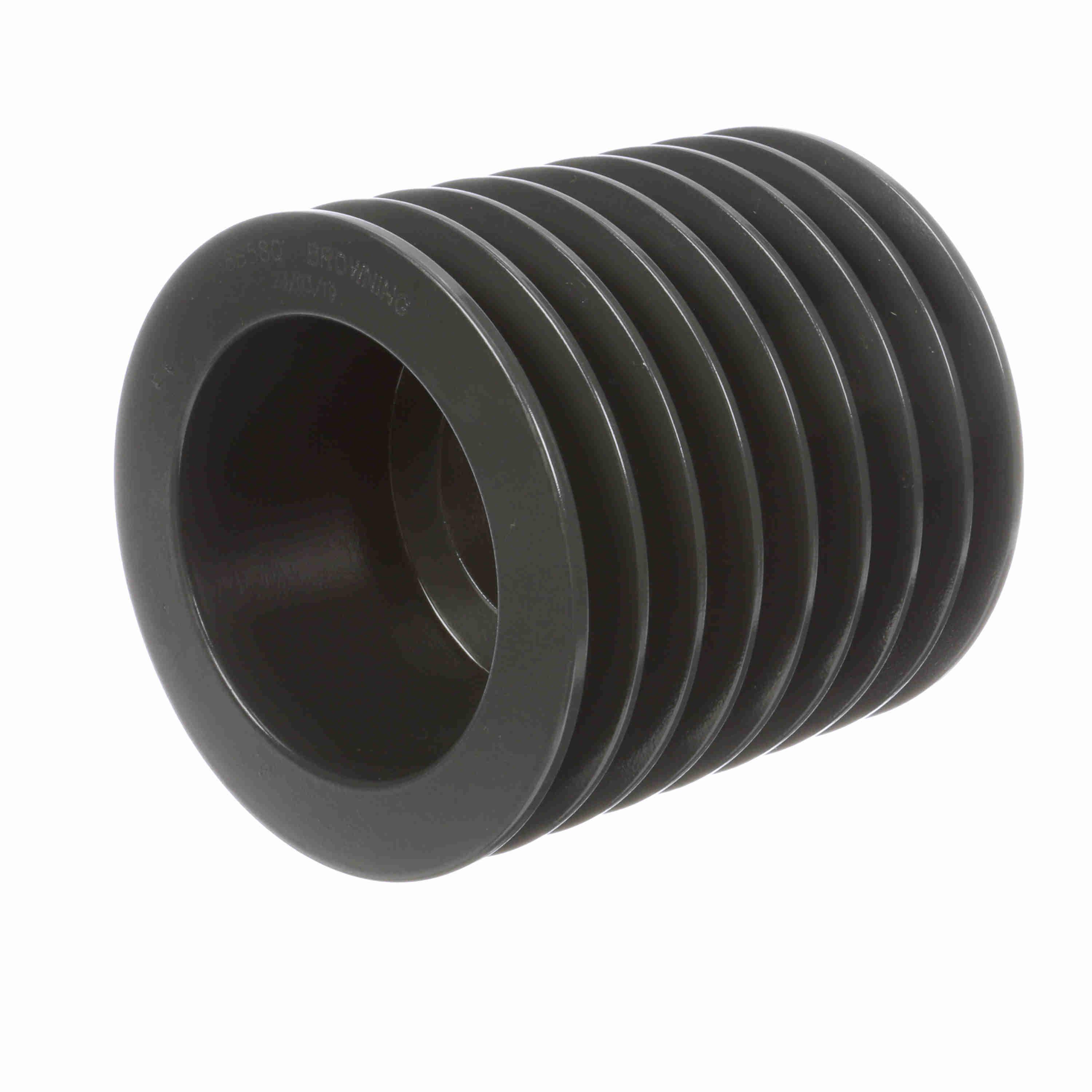

1010529 | 5 3/5" | 1" to 2 5/8" | Type 15 Web | - | - | 6.1" | Q2 | Cast Iron | €1,431.97 | |
|
1011154 | 12 1/5" | 1.38" to 3.625" | Type 15 Arm | 12 2/5" | 12" | 12.7" | R2 | Cast Iron | €1,857.65 | |
|
1011881 | 37 4/5" | 1.69" to 4.25" | Type 15 Arm | - | - | 38.3" | S1 | Cast Iron | €3,915.97 |
