BROWNING B Series Gripbelt Sheaves With Split Taper Bushings, 8 Grooves
Filter
A
B
C
D
E
F
G| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

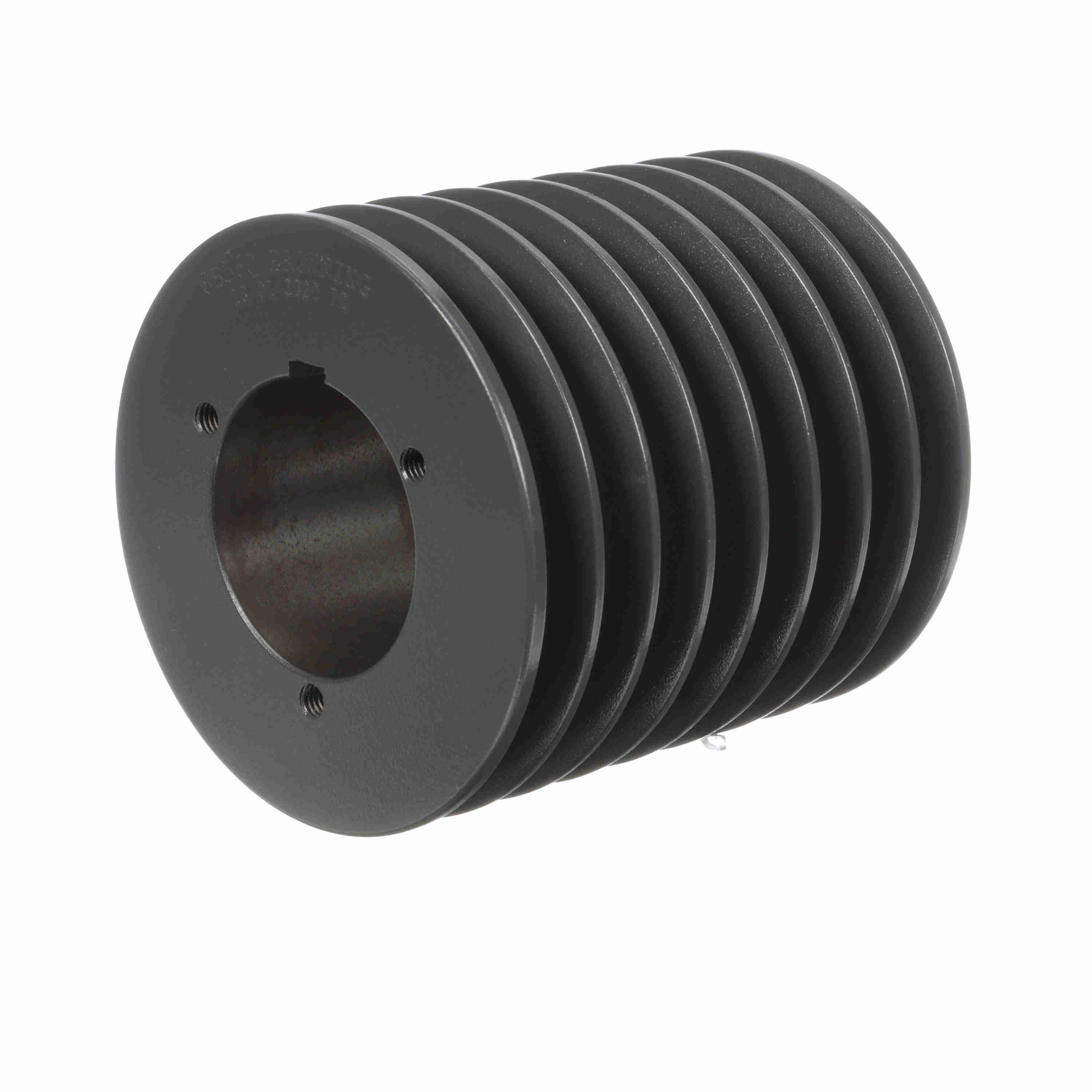

| A | 1010479 | 5 2/5" | 1" to 2 5/8" | Type 5 | 5 3/5" | 5 1/5" | 5.9" | Q2 | Cast Iron | €637.62 | |
| B | 1010529 | 5 3/5" | 1" to 2 5/8" | Type 15 Web | - | - | 6.1" | Q2 | Cast Iron | €1,431.97 | |
| C | 1010800 | 6 3/5" | 1" to 2 5/8" | Type 15 Web | - | - | 7.1" | Q2 | Cast Iron | €868.09 | |

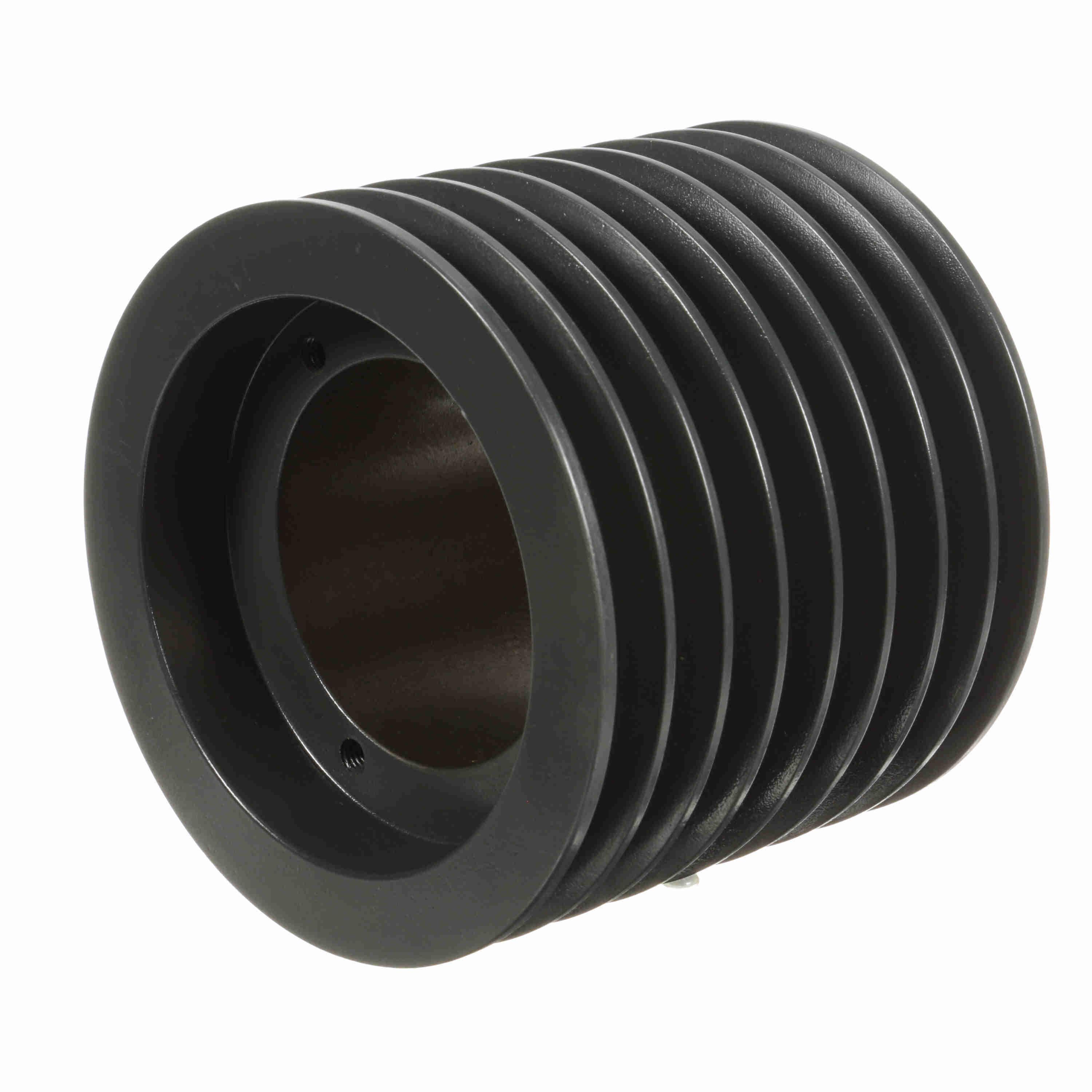

| D | 1010842 | 6 4/5" | 1.38" to 3.625" | Type 15 Web | - | - | 7.3" | R2 | Cast Iron | €1,512.00 | |
| E | 1010644 | 6" | 1" to 2 5/8" | Type 15 Web | 6 1/5" | 5 4/5" | 6 1/2" | Q2 | Cast Iron | €663.04 | |
| F | 1010974 | 8 2/5" | 1.38" to 3.625" | Type 15 Web | - | - | 8.9" | R2 | Cast Iron | €1,956.58 | |
| F | 1011014 | 8 4/5" | 1.38" to 3.625" | Type 15 Web | 9" | 8 3/5" | 9.3" | R2 | Cast Iron | €1,437.78 | |
| G | 1011105 | 10 4/5" | 1.38" to 3.625" | Type 15 Web | 11" | 10 3/5" | 11.3" | R2 | Cast Iron | €2,294.36 | |
| G | 1011154 | 12 1/5" | 1.38" to 3.625" | Type 15 Arm | 12 2/5" | 12" | 12.7" | R2 | Cast Iron | €1,857.65 | |
| G | 1011444 | 18 1/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 18.7" | R2 | Cast Iron | €4,250.65 | |
| G | 1011873 | 37 4/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 38.3" | R2 | Cast Iron | €4,040.32 | |
| G | 1011881 | 37 4/5" | 1.69" to 4.25" | Type 15 Arm | - | - | 38.3" | S1 | Cast Iron | €3,915.97 |
