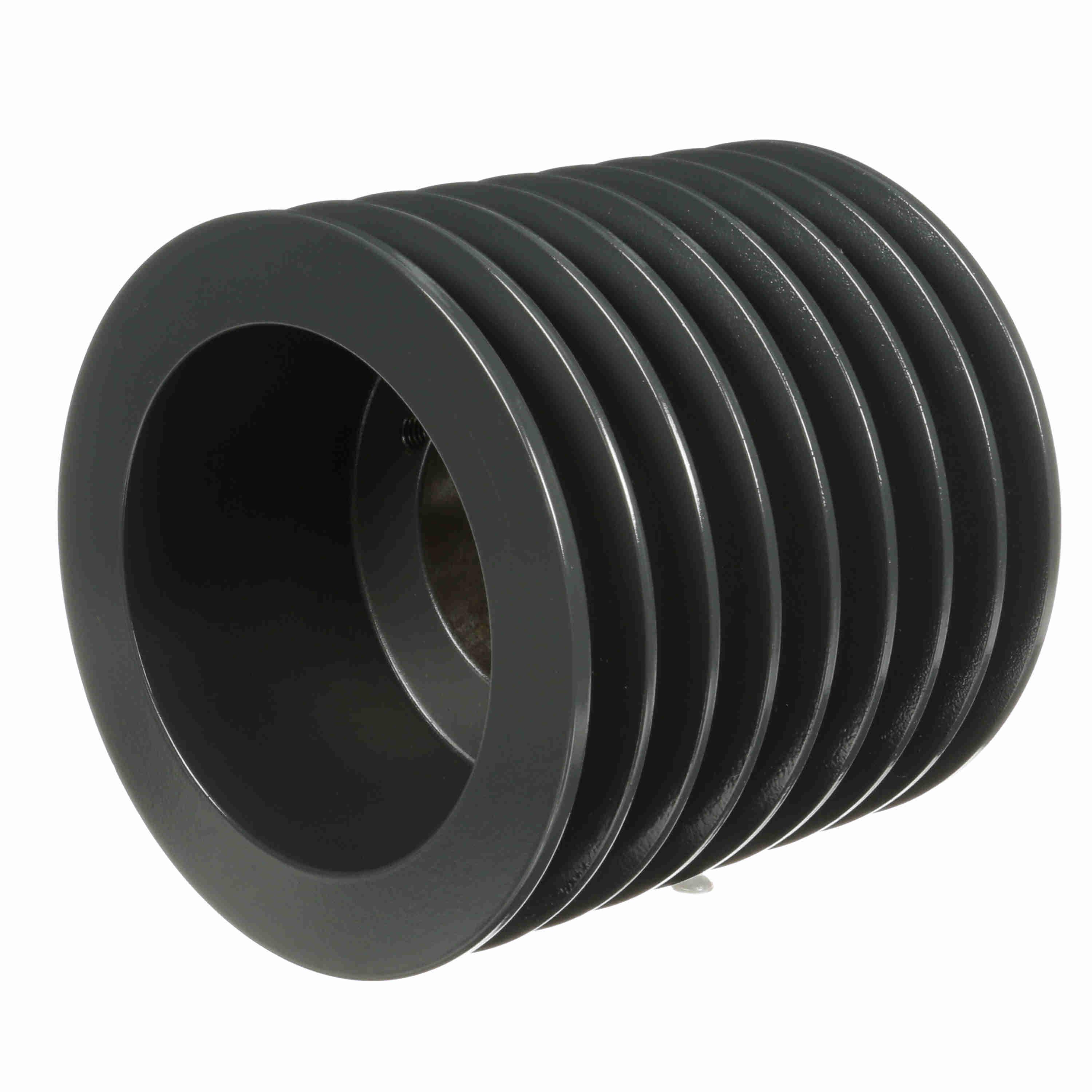

BROWNING 1010644 8B62Q V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron, 6.55 in OD, 1 to 2-5/8 in Bore Dia, 6 in A/6.5 in B Pitch Dia, Q2 Bushing Type, Type 15 Web
Get it by Monday, Aug 17
€663.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 6 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 1/5" |
| Min. Pitch Dia. | 5 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 6.55" |
| Overall Length | 6 1/4" |
| Pitch Dia. | 6" |
| Pitch Dia. (b) | 6 1/2" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 16.64 |
| Ship width (cm) | 16.64 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1011105 | 10 4/5" | 1.38" to 3.625" | Type 15 Web | 11" | 10 3/5" | 11.3" | R2 | Cast Iron | €2,294.36 | |
 |
1010842 | 6 4/5" | 1.38" to 3.625" | Type 15 Web | - | - | 7.3" | R2 | Cast Iron | €1,512.00 | |
|
1011873 | 37 4/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 38.3" | R2 | Cast Iron | €4,040.32 | |
|
1011444 | 18 1/5" | 1.38" to 3.625" | Type 15 Arm | - | - | 18.7" | R2 | Cast Iron | €4,250.65 | |
 |
1010529 | 5 3/5" | 1" to 2 5/8" | Type 15 Web | - | - | 6.1" | Q2 | Cast Iron | €1,431.97 | |
 |
1011014 | 8 4/5" | 1.38" to 3.625" | Type 15 Web | 9" | 8 3/5" | 9.3" | R2 | Cast Iron | €1,437.78 | |
|
1011154 | 12 1/5" | 1.38" to 3.625" | Type 15 Arm | 12 2/5" | 12" | 12.7" | R2 | Cast Iron | €1,857.65 |
