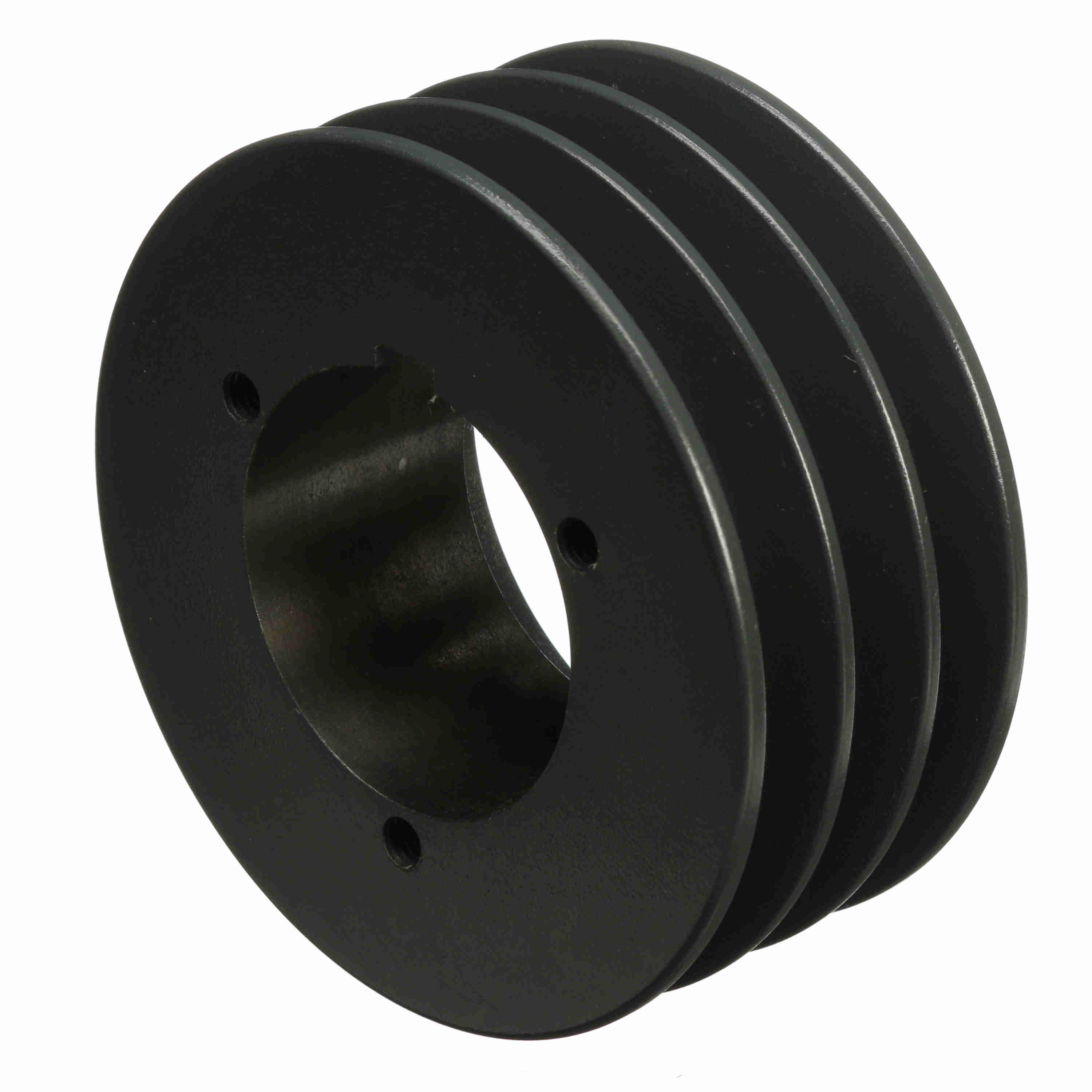

BROWNING 1010404 3B54Q V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
Item: BA2RPTModel: 1010404Cross Ref: 3B54Q
7 In Stock
Ships within 2 days via
€281.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 2/5" |
| Min. Pitch Dia. | 5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 5 3/4" |
| Overall Length | 3 17/32" |
| Pitch Dia. (a) | 5 1/5" |
| Pitch Dia. (b) | 5.7" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 5 |
| Weight | 3.59 Kg |
Shipping Info:
| Ship weight (kg) | 3.71 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1011618 | 25.35" | 1.13" to 3.75" | 3 13/32" | Type 13 Arm | Cast Iron | Split Taper | 2 1/2" | €1,397.87 | |
 |
1011725 | 30.35" | 1.13" to 3.75" | 3 13/32" | Type 13 Arm | Cast Iron | Split Taper | 2 1/2" | €1,623.51 | |
 |
1011394 | 18 3/4" | 1 1/8" to 3 3/4" | 3 27/64" | - | Cast Iron | Split Taper | 2 1/2" | €578.71 | |
 |
1010503 | 6.15" | 3/4" to 2 11/16" | 3 13/64" | Type 13 Web | Cast Iron | Split Taper | 2 1/2" | €304.57 | |
 |
1011832 | 38.35" | 1.13" to 3.75" | 3 13/32" | Type 13 Arm | Cast Iron | - | 2 1/2" | €2,520.55 | |
 |
1010784 | 7.15" | 3/4" to 2 11/16" | 3 13/64" | Type 13 Web | Cast Iron | Split Taper | 2 1/2" | €303.73 | |
 |
1010453 | 5.95" | 3/4" to 2 11/16" | 3 17/32" | Type 5 | Cast Iron | Split Taper | 2 1/2" | €295.30 |
