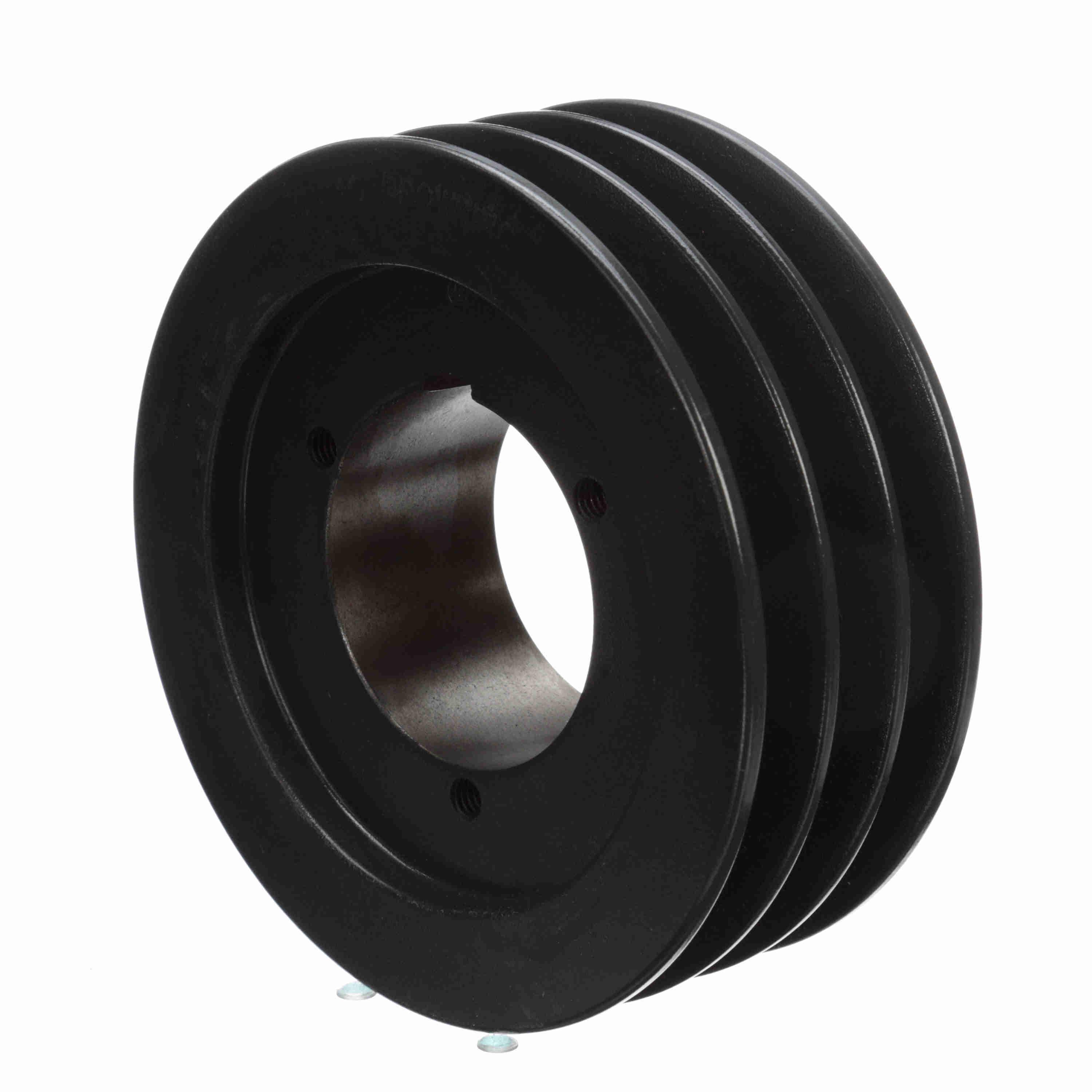

BROWNING 1010685 3B64Q V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 6-3/4 in OD, 3/4 to 2-11/16 in Bore Dia, Q1 Bushing Type
Get it by Friday, Aug 14
€288.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 2/5" |
| Min. Pitch Dia. | 6" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 6 3/4" |
| Overall Length | 3 5/32" |
| Pitch Dia. | 6 1/5" |
| Pitch Dia. (b) | 6.7" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 5.63 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1011618 | 24 4/5" | 1.13" to 3.75" | Type 13 Arm | 25" | 24 1/2" | 25.3" | R1 | - | €1,397.87 | |
 |
1011725 | 29 4/5" | 1.13" to 3.75" | Type 13 Arm | 30" | 29 1/2" | 30.3" | R1 | - | €1,623.51 | |
 |
1011394 | 18 1/5" | 1 1/8" to 3 3/4" | - | 18 2/5" | 18" | 18.7" | R1 | 11/16" | €578.71 | |
 |
1010503 | 5 3/5" | 3/4" to 2 11/16" | Type 13 Web | 5 4/5" | 5 2/5" | 6.1" | Q1 | 15/32" | €304.57 | |
 |
1011832 | 37 4/5" | 1.13" to 3.75" | Type 13 Arm | - | - | 38.3" | R1 | - | €2,520.55 | |
 |
1010784 | 6 3/5" | 3/4" to 2 11/16" | Type 13 Web | 6 4/5" | 6 2/5" | 7.1" | Q1 | 15/32" | €303.73 | |
 |
1010453 | 5 2/5" | 3/4" to 2 11/16" | Type 5 | 5 3/5" | 5 1/5" | 5.9" | Q1 | - | €295.30 |
